new video + notebook: Flappy bird kinematics

[cooperrc]

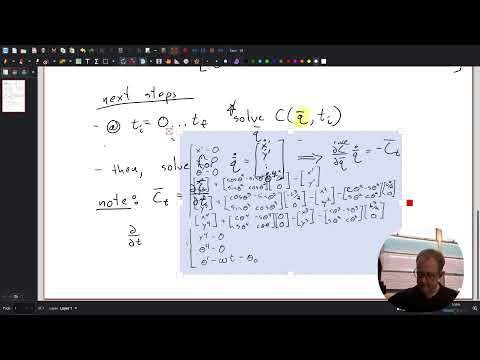

In this video, we use a two dimensional motion example, Flappy bird moving on a sine-wave, to demonstrate the process of creating multibody dynamics (MBD) kinematic simulations. Then, we start to derive the constraint equations and constrained motion of a piston crank system. For further info and reading, check out the Shabana ch 3 examples.

What will the system of equations be for this system? How will we solve for the speeds of the moving parts?

What other paths could you send Flappy bird on?

[cjdipietrantonio]

The system of position constraint equations for the piston crank system is as derived in the lecture. Once we have established $\vec{C}\left(\vec{q}, t\right)$, and solved for $\vec{q}$ at each time step of the desired range, the process for finding the speeds of the moving parts follows the same framework demonstrated with the Flappy Bird example/in previous lectures. We compute the Jacobian $C_q = \frac{\partial \vec{C}}{\partial \vec{q}}$ and the partial time derivative vector $\vec{C}_t = \frac{\partial \vec{C}}{\partial t}$, then solve the velocity equation $C_q \dot{\vec{q}} = - \vec{C}_t$. At each time step, we first solve the nonlinear constraint equations for the positions, then substitute those values into the Jacobian $(C_q)$ and the partial time derivative vector $(\vec{C}_t)$, and then solve the resulting linear system for $\dot{\vec{q}}$. This is powerful because it is scalable, regardless of how many constraints and degrees of freedom a system has, as long as the number of constraints equals the number of DOFs, the positions and velocities can be found at each time step using this framework. Furthermore, when solving for the positions and velocities at each time step, the problem reduces to nonlinear and linear algebra, respectively, with no differential equations required. As for alternative Flappy Bird paths, you could swap out either or both of the constraints. The geometric constraint $y = \sin{\pi x}$ defines the shape of the path, and the driving constraint $x = 2t$ dictates how the bird moves along it. For the path shape, another option we could try would be $y = A\sin{\pi x} \cdot e^{-\alpha x}$. This would result in a decaying oscillation, where the bird's up and down motion gradually flattens out. For the driving constraint, we could try using $x = t^2$ to have the bird accelerate.

[jordanbollacke]

I think it would be interesting to explore a scenario where the bird either accelerates or decelerates to see how the graphical motion would change. I tried plotting it with 2^t/2 but I am struggling a bit -- is anybody having better luck? I am running the file in Julia and changing the C constraint but not noticing a difference in the plot.

[alw14027]

Hope this helps after some research in what I think you are trying to do...
"Don't change the path geometry yet. Go into your C_drive function and replace the linear term 2t with at^2. Crucially, find where you define the time derivative vector C_t and update the entry corresponding to the driving constraint to 2at."

Path Constraint should remain - y - f(x) = 0
Driving Constraint should remain - x-g(t) = 0
However, g(t) should change

So constraint would be $\Phi_{drive} = x - 2^{t/2} = 0$ and velocity (derivative) would be $\frac{d}{dt}(2^{t/2}) = 2^{t/2} \cdot \ln(2) \cdot \frac{1}{2}$

May want to check time step to be about x=a*t^2

[danny-kruzick]

For this example, the system of equations comes from the constraint equations that define both the shape of the path and how Flappy moves along it. In the notebook, those are $y - \sin(\pi x) = 0$ for the sine-wave path and $x - 2t = 0$ for the forward motion. Together, those make up the full constraint system $C(q,t)$. From there, the positions are solved first at each time step, and then the velocities are found by differentiating the constraint equations and solving the linear system $C_q\dot{q} = -C_t$ for $\dot{q}$. I thought that was pretty interesting because it shows that we can get the motion from constraint equations (a nonlinear solve for position), and then a linear solve for velocity, without having to directly set up differential equations first. That seems like a really useful setup for the piston-crank example too.

For other paths, there are a lot of options just by changing either the geometric constraint or the driving constraint. A couple easy ones would be a decaying sine-wave path like $y = A\sin(\pi x)e^{-\alpha x}$ so the motion slowly flattens out, or changing the driving equation to something like $x = t^2$ so Flappy speeds up as it moves forward. I also think circular or parabolic paths would be interesting to try. What I liked about this example is that the overall solution process stays the same even when the path changes. It seems like a really flexible way to build more complicated motion problems.

[matlabkid]

1. What will the system of equations be for this system?
   To solve the system, we define d12 algebraic constraint equations (C of Q, t = 0) that account for the fixed ground(3), hinges at O(2), A(2), and B(2), the prismatic constraint of the sliding body 4(2), and a driving rotational constraint for body 2(1). These equations should ensure the system's position is known for any given time.

2. How will we solve for the speeds of the moving parts?
   We can solve for the velocities (Q dot) using the Jacobian(DCQ). By taking the partial derivative of the constraint equations wrt time (Ct), we set up the linear system: Jacobian times Q dot equals negative Ct. We can then solve this linear algebra problem using Julia to determine how fast each part is moving and rotating.

3. What other paths could you send Flappy bird on?
   The video uses Flappy Bird as a simple two-degree-of-freedom example, where it is constrained to a sine wave moving at a constant horizontal velocity. To send Flappy Bird on different paths, we could modify the constraint equations to follow other functions, such as: linear or polynomial paths, arbitrary curves, controlled motion.

[alw14027]

So I concur with everyone else however, that was for a sine wave. I took a slightly different approach using some research and other paths for a flappy bird....in my case I am exploring a tanh step which would mimic almost like a signal where we would have two horizontal smooth levels. This introduces y = tanh(x).

To start the equation would be y = Atanh(kx) where A is the height of the step (difference between low and high level) and k is the steepness of the transition.

The constraint equation would $\Phi$ = y - Atanh(kx) = 0

Next similar to the other equation we take the Jacobian which is the partial derivative of the constraint with respect to x,y.

• with respect to y: $$\frac{\partial \Phi}{\partial y} = 1$$
• with respect to x: $$\frac{\partial \Phi}{\partial x} = -A \cdot k \cdot \text{sech}^2(k \cdot x)$$

To add the change in levels we would just need to subtract the tanh functions like the following equations... $y = A \cdot \left[ \tanh(k(x - x_1)) - \tanh(k(x - x_2)) \right]$

This still will translate to the following like others proved in class... $C_q \dot{q} = -C_t$

I think this is so unique because it can be used for different probblems like decaying oscillation, parabolic path, step/square waves as long as the Jacobian is fully defined.

Please note...research included was combination of Gemini and ChatGPT and the Textbook material.

[agambhir-uconn]

I was just thinking of what a tanh function would actually represent for the motion of flappy bird in the context of the actual game. It would be great if one could send flappy bird through all the pipes with one tap to adjust the bird to the higher horizontal level. I guess it would be like a cheat code if the pipes never got closer!

That said, your explanation is really good and shows how you can tailor this example to several continuous functions.

[juliamachaj]

This was fun way to represent sinusoidal motion. Obviously Flappy’s path is not exactly sinusoidal depending on tube height and user input bit it’s a good approximation to make the point. This leads to the constraint equations C(q,t). At each time step, the position of the bird can be found by solving this constraint system, then, the speeds of the moving parts are obtained by differentiating the constraints with respect to time and solving the linear system Cqq˙=−Ct.C_q \dot{q} = -C_t.

I think Danny Kruzick said it well that you could send Flappy on paths like a decaying sine-wave path or an exponential path (Flappy goes to space!).

[LaythDuval]

I think this example does a really good job showing how everything comes from the constraint equations. For Flappy Bird, if we take q=[x,y], the system is just the path constraint y−sin(πx)=0 and the driving constraint x−2t=0. Together those give the full system C(q,t)=0.

The way it’s solved is pretty interesting too. First, you solve that nonlinear system to get the position at each time step. Then, instead of setting up full equations of motion, you just differentiate the constraints and solve Cq​q˙​=−Ct​, which is linear, to get the velocities. So it splits into a nonlinear position solve and a linear velocity solve, which makes things a lot simpler.

I also like how flexible it is. You can basically send Flappy on any path just by changing the constraint. A few ideas could be a parabola, a circle, or even something like a decaying sine wave so the motion flattens out over time. You could also change how it moves along the path, like using x=t^2 so it speeds up.

[QLane22]

For the Flappy Bird example, the system of equations consists of the constraint equations: the path constraint y−sin(πx) = 0 and the driving constraint x−2t = 0. Together they form C(q,t)=0. To find velocities, we differentiate the constraints and solve the linear system Cqq = -Ct at each time step after solving for positions nonlinearly.

Other paths for Flappy Bird could include:

• y = Asin(πx)e^(−αx) (decaying sine wave)
• y = x^2 (parabola)
• x^2 + Y^2 = R^2 (circle, with a different driving constraint)
• x = t^2 (changing speed along the same path)

[med17018]

What will the system of equations be for this system?
In the process of creating multibody dynamics (MBD) kinematic simulations, the governing rule is the number of constraints will equal the number of degrees of freedom (DOF). To solve the simulations, differential equations are not needed. Instead, linear equations are necessary.
The flappy bird example is constrained on a y=sinπx sine-wave path with an applied constraint of x=2t. These two equations make up the constraint equation C(q,t). Then, a set of constraint equations can be found which define position and movement of the flappy bird sine-wave.
How will we solve for the speeds of the moving parts?
We can solve for speeds of the moving parts by first using the constraint equation and differentiating the equation with respect to time. From there, we will get the Jacobian which we can use in the velocity equation, and then finally, solve for speeds.
What other paths could you send Flappy bird on?
The flappy bird sine-wave is currently traveling on a sin wave path where one wavelength is one “flappy bird meter”. This path could be changed to various options; cosine path (y=cosπx), a circle(x^2+y^2=r^2), an ellipse(x^2/a^2 +y^2/b^2 =1), a damped oscillation(y=e^(-t) sin⁡(ωt)), etc. Changing the path would then change the constraint equations

[AidanJak]

For the Flappy Bird problem, the system of equations comes directly from the constraint equations that define both the path and the forward motion. Taking $q = [x,y]$ and the constraint equations: $y - sin(\pi x) = 0$ , $x-2t = 0$ together form $C(q,t) = 0$. To solve for the speeds of the moving parts, we first solve the nonlinear constraint equations for the positions at each time step. Then we differentiate the constraints with respect to time and solve the linear velocity equation $C_q \dot{q} = -C_t$. This gives the velocities once the positions are known.

For the other Flappy Bird paths, just by changing the geometric constraint will give many other possibilities. Some examples include a circle, parabola, cosine wave, or decaying sine/cosine waves. I find it interesting how you are able to create basically any path just by changing the constraints.

[AuZwick]

I like how you explained solving for position first and then velocity, that made it easier to follow. The x − 2t constraint is interesting because it basically forces the motion instead of letting it be solved dynamically. I also agree that changing the constraint is a cool way to create different paths without changing everything else. It really shows how flexible these equations are.

[joshuajimenez1]

This flappy bird system is governed by constraint equations on the position q = [x, y]^T which are a path constraint y-sin⁡(πx)=0 and a motion constraint x-2t=0. Together, these form the system C(q,t)=0, which is solved at each time step to find the bird’s position. The speeds are not given directly and instead are computed by differentiating the constraints with respect to time, giving the linear system ∂C/∂qqdot=-∂C/∂t. Substituting the current values of x, y and t turns this into a 2x2 linear algebra problem whose solution gives xdot and ydot​. Other paths for the bird can be created by changing the geometric constraint like y = Asin(kx) for greater flapping, y=x^2+bx+c for a parabolic dive, or parametric paths like x=Rcos⁡(ωt), y=Rsin⁡(ωt) for circular motion, while keeping the same constraint solution approach.

[marcellabintou]

From what I understand, making the flappy bird path included using constraint equations that were specifically of a sine wave. We use the variable q to generalize the position of the bird. We made the x position move forward at a constant speed of 2t. Our system was C(q,t), which involved both of these relationships. To find the speed of the moving parts, we needed to do the time derivatives of the constraints found. Doing this allowed us to find a linear system that we could compute. We could probably send Flappy Bird on a circular path using both x and y values like: (x-x0)^2 + (y-y0)^2 - R^2 = 0.

[jhngms]

I think it would be interesting to model Flappy Bird on a decaying function. I.e. the amplitude of his motion decreases with time. This would introduce a new challenge to the game, in which you'd have to fit into a smaller space as the round goes on. We could simply define the decaying y-position as: $$y(t) = A_0 e^{-\lambda t} \sin(\omega t)$$

[shainaerrico]

1. What will the system of equations be for this system?
   The motion is defined using constraint equations C(q,t)=0, where q=[x,y]. In this case, there are two constraints: where one forces the point to follow the sine-wave path, and the other drives the motion forward in time. So the system is:

$$C(q,t) = \begin{bmatrix} y - sin (πx) \\ x - 2t \end{bmatrix} = 0 $$

Since there are two equations and two unknowns, we would solve for the position (x,y) at each time step using a nonlinear solver.

2. How will we solve for the speeds of the moving parts?
   To solve for the speeds of the moving parts, we would differentiate the constraints with respect to time, which gives:
   $$C_{q}​q˙​=−Ct​$$

$$ \begin{bmatrix} −πcos(πx) & 1 \\ 1 & 0 \end{bmatrix} \ \begin{bmatrix} x˙ \\ y˙​ \end{bmatrix} = \begin{bmatrix} 0 \\ 2 \end{bmatrix} $$

After solving for position, we can plug those values into the Jacobian and solve this linear system to get velocities.

3. What other paths could you send Flappy bird on?
   You can change the motion by modifying the constraint equations. For example, a parabolic path y=ax^2, or a circular path x^2+y^2=R^2 would work.

[ojmoney00]

Because the constraints in the model are only the path constraint: y = sin(pi*x) and the horizontal speed being x' = 2 this then can make the system of equations:

$$C(q,t) = \begin{bmatrix} y-sin(\pi x) \\ x-2t \end{bmatrix} = 0$$

This makes sure that for any time $t$, the position at that time will always be $$2t$$ where taking the derivative of it would be $x' = 2$. To solve for the speeds x' and y', we take the derivative of the constraint function. Then we can solve for $q'$ and then find our velocities.

$$\frac{d}{dt}C(q,t)=0\longrightarrow \frac{\partial C}{\partial q}q'+\frac{\partial C}{\partial t}\longrightarrow \frac{\partial C}{\partial q}q' = -\frac{\partial C}{\partial t}$$

We can also make the bird go along different paths. Some of these paths include circular paths such as $$x^2 + y^2 = r^2$$, or we can have a random curve with a higher polynomial that can make the bird not move in a symmetric path $$x^{10} + x^9 + x^8 ...$$. Something like this would probably mean it takes the code a lot longer to analyze and solve for because there's not necessarily a pattern to follow. We can also experiment with something like zigzag curves or piecewise functions to make the bird move in way different patterns.

[jaydawg-young]

I looked at this by separating what is being prescribed versus what is being solved through constraints.
For the Flappy Bird example moving along a sine wave, the motion is fully prescribed. That means the position of the bird is given as a function of time (for example y=Asin(ωt)), so the system does not solve for where it goes. Instead, it enforces that the motion follows that path. In that case, velocity just comes from differentiating the prescribed position, so the speeds are also directly tied to the sine function.
For the piston–crank system, it is more of a standard multibody constraint problem. You write a loop-closure equation that connects the crank, connecting rod, and piston position. That gives you a nonlinear position constraint. Then, to find speeds, you differentiate that constraint with respect to time. This gives a linear relationship between angular velocity of the crank, angular velocity of the rod, and the piston velocity. So at each time step, you solve a system of equations to get the unknown speeds.

[cbull0]

For the Flappy Bird example, the system of equations comes from the path constraint and the driving constraint. Using q=[x,y], the sin wave motion can be written as C(q,t) = [y - sin(pix); x - 2t] = 0. The first equation keeps Flappy Bird on the sine wave, and the second equation makes it move forward at a constant speed. To solve for the speeds, you have to solve the position constraints at each time step. Then you have to differentiate the constraints and solve C_qq_dot = -C_t. This gives us the velocity of the moving parts after the position is known. Other paths for Flappy Bird could be a parabola, cos wave, or a decaying sine wave.

[juliannnatran]

For the Flappy Bird example, the bird follows a sinusoidal path, which demonstrates constrained two-dimensional motion. Other possible paths could include a circular trajectory, a parabolic arc, or a spiral path. A damped oscillation path could also simulate realistic flying behavior where the the amplitude decreases over time. More complex motion could be designed using spline curves or piecewise functions.

[tjs21014]

This discussion provided a good opportunity to reflect on how the tools from this course fit together and apply beyond individual homework problems. Concepts like generalized coordinates, Lagrangian mechanics, stability analysis, and damping all form a consistent framework for modeling real mechanical systems. What stood out most was how simulations, animations, and phase portraits helped bridge the gap between theory and physical intuition. Rather than just solving equations, the course emphasized understanding system behavior and how design choices affect motion and stability. Overall, this discussion reinforced the value of energy‑based methods and made it clear how these ideas carry over to more advanced dynamics, controls, and real‑world engineering applications.

[casscconsi07]

To set up the equations for this problem, we use generalized coordinates. With four rigid bodies, there are 12 generalized coordinates in total. To find the speeds of the moving parts, we would take the Jacobian of the constraint equations and solve for the velocity vector at each time step. A good example from biomechanics is isokinetic testing on a Biodex machine. In this test, the machine keeps the leg moving at almost a constant angular velocity and treats the knee joint as a hinge constraint. In both situations, constraints control how the system moves and how fast it can go.

[GoateT33]

For the piston-crank system, the governing equations are a set of algebraic position constraints, often written as Phi(q, t) = 0. In this setup, we have generalized coordinates (q) for the crank, connecting rod, and piston, which are tied together by constraints like pin joints and the slider block. Because this is a kinematic simulation, we aren’t actually solving differential equations of motion; instead, we are solving nonlinear algebraic equations at every time step to see how the parts must be positioned to stay connected as the driver moves.

To find the speeds of the moving parts, we move to the velocity level by taking the time derivative of the constraints. This gives us the linear system: [Jacobian] * [velocities] = -[partial time derivative], or (Phi_q) * (q_dot) = -Phi_t. Once we use an iterative solver like Newton-Raphson to find the positions (q) for a specific moment, we plug those values into the Jacobian matrix and solve the resulting linear system for the velocities (q_dot). It’s a really efficient workflow because the velocity problem is just straightforward linear algebra, even though the position problem is nonlinear.

As for Flappy Bird’s path, the framework is flexible enough to handle almost any geometry. Instead of a standard sine wave, we could send him on a "bouncing" trajectory using an absolute value function like y = |A * sin(B * x)|, which would make his path look like he’s hitting a floor and popping back up. We could also change the driving constraint—maybe instead of a constant horizontal speed, we use a function like x = t^2 so he starts slow and rapidly accelerates across the screen.

[ericbrown1118]

The system of equations for this model will contain 12 equations that define the connectiveness and motion of the four bodies: 3 constraints to immobilized the ground body, 2 constraints each of all of the joints (origin, crank-rod pin, and rod-piston pin) so 6 in total, 2 constraints to ensure the piston only moves along the x-axis without rotating, and finally 1 time dependent constraint that governs the rotation of the crank. Once the nonlinear position solution has been found, at a time ,t, then the speeds can be found next.

Solving for the speeds can be done using linear algebra rather than integration by using the complete set of the constraint derivatives of the with respect to time and the Jacobian matrix, [Jacobian][Velocities]=-[Partial derivatives of constraints with respect to time]. Using software like MATLAB or arithmetic methods like Newton-Raphson, we can find the positions at a time t, then plug those values into the Jacobian and solve the resulting linear system.

Since Flappy Bird’s motion is defined entirely by the intersection of a geometric constraint (the path) and a driving constraint (the speed), you can change its trajectory by using decaying oscillations (y=Asin(pi*x)exp(-alphax), where alpha is the decay constant) to simulate the bord gradually losing energy and flattening its path.

[dugganjake]

For this example (flappy bird) the motion can be described by defining the horizontal position as the function of time and constraining the vertical to follow a sine path. If the bird moves at a constant speed:

X(T) = VxT

And the path is Y(T) = Asin(KX + phi), and we can substitute X(T) in and get Y(T) = Asin(KVxT + phi).

Then, the constraint equation is: C(X, Y, T) = Y - Asin(KX + phi)Xdot = 0
Velocity vector: V = Xdoti + Ydotj

As for the piston and crank the same idea works, but with more constraints between the angle, the rod, and piston displacement. First we could write out the constraint equations, then differentiate them to get velocity equations. Then these can be solved in matrix form to get the unknown speeds.

[vedantsingh28]

The system of equations for this problem comes from the constraint equations that define the motion of the system. In the Flappy Bird example, the bird is constrained to move along a sine-wave path while also moving forward with time. The equations are y - sin(πx) = 0 and x - 2t = 0. The first equation forces the bird to stay on the sine-wave path, while the second equation controls the forward motion at a constant speed. Together, these equations form the full constraint system. For the piston-crank system, the same process is used, except there are more equations because of the revolute joints, slider constraints, and driving rotation between multiple rigid bodies. To solve for the speeds of the moving parts, the constraint equations are differentiated with respect to time. This gives the velocity equation, which is Cq * q_dot = -Ct. First, the nonlinear position equations are solved at each time step. Then, the Jacobian matrix (Cq) and time derivative vector (Ct) are evaluated using the current positions, and the resulting linear system is solved for the velocities. This makes the problem easier because the velocity analysis becomes a linear algebra problem instead of requiring differential equations. Other paths for Flappy Bird could be created by changing the constraint equations. For example, the bird could move along a parabola using y = ax^2, a circle using x^2 + y^2 = R^2, or a decaying sine wave using y = A*sin(πx)*e^(-αx). The driving constraint could also be changed from x = 2t to x = t^2 which would cause the bird to accelerate as it moves forward.

[HerminioV]

I solved the separation of the Flappy Bird example into two constraints, one that controls the forward motion and one that controls the path shape. If the bird is moving forward at a constant speed, the horizontal position could be prescribed as x−vt=0 Then the vertical motion could be constrained to a sine wave, y−Asin(ωt)=0 This makes the motion fully prescribed because the bird is not really being “solved” dynamically. Instead, the constraints are forcing it to follow a certain path. To get the speeds of the moving parts, I would differentiate the constraint equations and use the velocity-level constraint equation C​q˙​=−Ct​ For the simple time-based sine path, this gives you x˙=v, y˙​=Aωcos(ωt) So once the position constraints are known, the velocity constraints give the speeds at each time step. For the piston-crank system, the same idea applies, but there are more constraints because the bodies are connected through joints. The crank angle, connecting rod angle, and piston position all have to satisfy the geometry of the mechanism. After solving the position constraints, the Jacobian can be used to solve for the unknown velocities. For other Flappy Bird paths, I think it would be interesting to try a decaying sine wave, a circular loop, or a figure eight path. A decaying sine wave would probably look more realistic because the bird could start with larger motion and then slowly level out over time.

[honczjoseph]

For this example the motion is coming straight from the constraint equations that define both the path and the driving motion. The sine wave path constraint controls where the bird can move. the driving contraint controls how the bird moves along the path over time. Solving the nonlinear position constraints allows us to solve the velocity equations using a Jacobian matrix relationship.
Being able to use the same framework for different paths by only changing the constraint equation is super insteresting to me. If we were to change from a sine wave to a circular path or even a parabola we could change the system enetirely.

[JillianSS]

Another interesting extension would be solving for accelerations by differentiating the velocity equations once more. This leads to the acceleration-level constraint equation, where the Jacobian, generalized accelerations, and additional quadratic velocity terms are included. Using this approach, we could analyze how rapidly the bird speeds up or changes direction along different paths. For example, with a driving constraint like x=t^2, the bird would not only accelerate forward, but its vertical acceleration would also increase because of the curvature of the path. This demonstrates how the same constraint-based framework can be extended from position analysis to full kinematic analysis, including velocities and accelerations, without directly integrating equations of motion.

[C-vonk]

To allow for precise control of a sinusoidal wave utilizing a 2-dimensional arm like system. you will need 12 equation systems of equations to constrains the system (12 equations are needed becasue you have 4 parts each with 3 attached variables). These 12 equations constrain the locations and angels of every peice of the system. using this system of equations you can calculate there position with respect to time aswell as the angels compared to the other peices. the goal is to get this system C(q,t) to be equal to 0 to solve it and this is how to set it up to do that. The derivatives of these equations contain the velocities of all of the points of the system.

this system could move in all sorts of ways you could have this move as a function of a different wave such as "square" or saw tooth wave you could also have it move in different directions. I have previously worked with similar systems that use this in 3 dimensions to trace complex part surfaces.

[LRand7]

In this example, the motion comes directly from the constraint equations that define both the path and how Flappy moves along it. For the sine‑wave case, the constraints are 𝑦 − sin ⁡ ( 𝜋 𝑥 ) = 0 for the geometry and 𝑥 − 2 𝑡 = 0 for the driving motion, which together form 𝐶 ( 𝑞 , 𝑡 ) = 0 . At each time step, the position is found by solving this nonlinear system, and the velocities follow from differentiating the constraints and solving the linear system. I thought it was interesting that the motion can be obtained entirely from constraints, nonlinear solve for position, linear solve for velocity, without writing differential equations first, which is the same idea used in the piston‑crank problem.

[brookerichard23]

For the Flappy Bird example, the system of equations comes from the constraint equations that define the bird’s motion. Let q = [x,y]. The constraints are:
y − sin(πx) = 0
x − 2t = 0
Together, these form the constraint equation C(q,t) = 0. To solve for the speeds of the moving parts, we differentiate the constraints with respect to time to get the velocity equation:
Cq q̇ = −Ct
where Cq is the Jacobian matrix of the constraints and Ct is the partial derivative with respect to time. By solving this system, we can determine the velocities of the moving parts at each time step. The piston crank system follows the same process by relating the crank angle, connecting rod length, and piston displacement through geometric constraints. For the Flappy Bird path, there are many other possible trajectories besides a sine wave. Some examples include:
y = cos(πx)
y = x^2
y = A sin(πx)e^(−αx)
The last equation would create a decaying oscillation where the bird’s motion slowly flattens out over time. Changing the driving constraint could also affect the motion. For example: x = t^2 would make the bird accelerate as it moves forward.
