Course Structure

This is the structure of the course file, which has a size of 0x5BFC0.

Offset Size Description
0x0 0x200 Course Header
0x200 0x2DEE0 Course Area (Main Area)
0x2E0E0 0x2DEE0 Course Area (Sub Area)

Course Header

Offset Size Description
0x0 0x1 Start Y Position
0x1 0x1 Goal Y Position
0x2 0x2 Goal X Position
0x4 0x2 Timer
0x6 0x2 Clear Condition Amount
0x8 0x2 Last Saved Year
0xA 0x1 Last Saved Month
0xB 0x1 Last Saved Day
0xC 0x1 Last Saved Hour
0xD 0x1 Last Saved Minute
0xE 0x1 Custom Autoscroll Speed
0xF 0x1 Clear Condition Category
0x10 0x4 Clear Condition CRC32
0x14 0x4 Game Version
0x18 0x4 Management Flags
0x1C 0x4 Clear Check Attempts
0x20 0x4 Clear Check Time
0x24 0x4 Creation ID
0x28 0x8 Upload ID
0x30 0x4 Clear Check Game Version
0x34 0xBC Reserved
0xF0 0x1 Unknown (Usually 0xFF)
0xF1 0x3 Game Style (null-terminated)
0xF4 0x42 Name (32 characters, null-terminated)
0x136 0xCA Description (75 characters with space for 100, null-terminated)

Custom Autoscroll Speed

Value Description
0 x1
1 x2
2 x3

Clear Condition Category

Value Description
0 None
1 Parts
2 Status
3 Actions

Clear Condition CRC32

Value Description
0x1664515A Reach the goal without taking damage.
0x4C8772A3 Reach the goal on a Lakitu's Cloud.

Game Version

Bit Description
0 1.0.0
1 1.0.1
2 1.1.0
3 2.0.0
4 3.0.0
5 3.0.1

Clear Check Game Version

Value Description
0 1.0.0
1 1.0.1
2 1.1.0
3 2.0.0
4 3.0.0
5 3.0.1

Management Flags

Bit Description
0 Needs to be set, but isn't for quest_105 and quest_115
1 Has passed clear check
2 Unknown
3 Used only for Lesson and Quest courses
4 Can't upload course
5 Has clear condition amount
6 Has chosen sub area orientation
7+ Unknown

If bit0 is not set in a course, then opening the Coursebot will show an error indicating that the course is corrupted.

Game Style

Value Description
"M1" Super Mario Bros.
"M3" Super Mario Bros. 3
"MW" Super Mario World
"WU" New Super Mario Bros. U
"3W" Super Mario 3D World

Course Area

Offset Size Description
0x0 0x48 Course Area Header
0x48 0x14500 (0x20 * 2600) Object
0x14584 0x4B0 (0x4 * 300) Sound Effect
0x149F8 0x12D4 (0x3C4 * 5) Snake Block
0x15CCC 0xE420 (0x124 * 200) Clear Pipe
0x240EC 0x348 (0x54 * 10) Piranha Creeper
0x24434 0x1B8 (0x2C * 10) ! Block
0x245EC 0x1B8 (0x2C * 10) Track Block
0x247A4 0x3E80 (0x4 * 4000) Ground
0x28624 0x4650 (0xC * 1500) Track
0x2CC74 0x4B0 (0x4 * 300) Icicle
0x2D124 0xDBC Reserved

Course Area Header

Offset Size Description
0x0 0x1 Theme
0x1 0x1 Autoscroll Type
0x2 0x1 Boundary Flags
0x3 0x1 Orientation
0x4 0x1 End Liquid Height
0x5 0x1 Liquid Mode
0x6 0x1 Liquid Speed
0x7 0x1 Start Liquid Height
0x8 0x4 Right Boundary
0xC 0x4 Top Boundary
0x10 0x4 Left Boundary
0x14 0x4 Bottom Boundary
0x18 0x4 Flags
0x1C 0x4 Object Count
0x20 0x4 Sound Effect Count
0x24 0x4 Snake Block Count
0x28 0x4 Clear Pipe Count
0x2C 0x4 Piranha Creeper Count
0x30 0x4 ! Block Count
0x34 0x4 Track Block Count
0x38 0x4 Reserved
0x3C 0x4 Ground Count
0x40 0x4 Track Count
0x44 0x4 Icicle Count

Theme

Value Description
0 Ground
1 Underground
2 Castle
3 Airship
4 Underwater
5 Ghost House
6 Snow
7 Desert
8 Sky
9 Forest

Autoscroll Type

Value Description
0 None
1 Slow
2 Normal
3 Fast
4 Custom

Boundary Flags

Value Description
0 Built Above Line
1 Built Under Line

Orientation

Value Description
0 Horizontal
1 Vertical

Liquid Mode

Value Description
0 Static
1 Rising or Falling
2 Rising and Falling

Liquid Speed

Value Description
0 None
1 x1
2 x2
3 x3

Flags

Bit Description
0 Unknown
1 Night Time
2+ Unknown

Object

Offset Size Description
0x0 0x4 X Position
0x4 0x4 Y Position
0x8 0x2 Reserved
0xA 0x1 Width
0xB 0x1 Height
0xC 0x4 Flags
0x10 0x4 Child Flags
0x14 0x4 Extended Data
0x18 0x2 ID
0x1A 0x2 Child ID
0x1C 0x2 Link ID
0x1E 0x2 Sound Effect ID

Sound Effect

Offset Size Description
0x0 0x1 ID
0x1 0x1 X Position
0x2 0x1 Y Position
0x3 0x1 Reserved

Sound Effect IDs

ID Name Category
0 Shock Feelings
1 Clatter Stingers
2 Kick Stingers
3 Applause Feelings
4 Glory Reactions
5 Punch Stingers
6 Laughter Feelings
7 Baby Feelings
8 Ding Dong Reactions
9 Boss Music Music
10 Heartbeat Music
11 Scream Feelings
12 Drama! Stingers
13 Jump Stingers
14 Cheer Feelings
15 Doom Reactions
16 Fireworks Animations
17 Honk Honk Stingers
18 Bzzt! Reactions
19 Bonus Music Music
20 Silence Music
21 Unknown Unknown
22 Unknown Unknown
23 Party Popper Feelings
24 Booo! Feelings
25 Guffaw Feelings
26 Near Miss Feelings
27 Unknown Unknown
28 Unknown Unknown
29 Oink Stingers
30 Kuh-thunk! Stingers
31 Beep! Stingers
32 Ninja Attack Stingers
33 Unknown Unknown
34 Unknown Unknown
35 Zap! Stingers
36 Flash Animations
37 Yeah! Reactions
38 Aww... Reactions
39 Unknown Unknown
40 Unknown Unknown
41 Audience Animations
42 Scatting Animations
43 Spark Animations
44 Traditional Animations
45 Electric Guitar Animations
46 Twisty Turny Animations
47 Woozy Animations
48 Final Boss Music
49 Peaceful Music
50 Horror Music
51 Super Mario Galaxy Music
52 Super Mario 64 Music
53 Super Mario Sunshine Music
54 Super Mario Kart Music
55 Unknown Unknown

ID 21 appears to be the same as the Scatting (ID 42) sound effect, but without the visual effect.

Snake Block

Offset Size Description
0x0 0x1 Index
0x1 0x2 Node Count
0x2 0x1 Unknown (Always 1)
0x3 0x1 Reserved
0x4 0x3C0 (0x8 * 120) Snake Block Nodes

Snake Block Node

Offset Size Description
0x0 0x2 Index
0x2 0x2 Direction
0x4 0x2 Unknown (Always 0x100)
0x6 0x2 Reserved
Direction
Value Description
1 Left
2 Right
3 Down
4 Up
5 Left to Down
6 Down to Left
7 Left to Up
8 Up to Left
9 Right to Down
10 Down to Right
11 Right to Up
12 Up to Right
13 Right to End
14 Left to End
15 Up to End
16 Down to End

Clear Pipe

Offset Size Description
0x0 0x1 Index
0x1 0x1 Node Count
0x2 0x1 Unknown (Always 1)
0x3 0x1 Reserved
0x4 0x120 (0x8 * 36) Clear Pipe Nodes

Clear Pipe Node

Offset Size Description
0x0 0x1 Type
0x1 0x1 Index
0x2 0x1 X Position
0x3 0x1 Y Position
0x4 0x1 Width
0x5 0x1 Height
0x6 0x1 Unknown (Always 1)
0x7 0x1 Direction
Type
Value Description
0 Closed on opposite direction
1 Closed on direction
2 Open
3+ Unknown

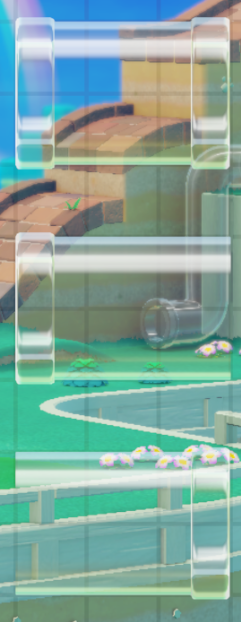

Values 0 and 1 will cause a part of the clear pipe to become "closed", as seen in the below image.


With a basic 2x3 right direction clear pipe, setting the Type field to 3 will cause the course to corrupt.

Direction
Value Description
0 Right
1 Left
2 Up
3 Down

Piranha Creeper

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Index
0x2 0x1 Node Count
0x3 0x1 Reserved
0x4 0x50 (0x4 * 20) Piranha Creeper Nodes

Piranha Creeper Node

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Direction
0x2 0x2 Reserved
Direction
Value Description
1 Left
2 Right
3 Down
4 Up
5 Left to Down
6 Down to Left
7 Left to Up
8 Up to Left
9 Right to Down
10 Down to Right
11 Right to Up
12 Up to Right
13 Right to End
14 Left to End
15 Up to End
16 Down to End

! Block

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Index
0x2 0x1 Node Count
0x3 0x1 Reserved
0x4 0x28 (0x4 * 10) ! Block Nodes

! Block Node

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Direction
0x2 0x2 Reserved
Direction
Value Description
1 Left
2 Right
3 Down
4 Up
5 Left to Down
6 Down to Left
7 Left to Up
8 Up to Left
9 Right to Down
10 Down to Right
11 Right to Up
12 Up to Right
13 Right to End
14 Left to End
15 Up to End
16 Down to End

Track Block

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Index
0x2 0x1 Node Count
0x3 0x1 Reserved
0x4 0x28 (0x4 * 10) Track Block Nodes

Track Block Node

Offset Size Description
0x0 0x1 Unknown (Always 1)
0x1 0x1 Direction
0x2 0x2 Reserved
Direction
Value Description
1 Left
2 Right
3 Down
4 Up
5 Left to Down
6 Down to Left
7 Left to Up
8 Up to Left
9 Right to Down
10 Down to Right
11 Right to Up
12 Up to Right
13 Right to End
14 Left to End
15 Up to End
16 Down to End

Ground

Offset Size Description
0x0 0x1 X Position
0x1 0x1 Y Position
0x2 0x1 ID
0x3 0x1 Background ID

Track

Offset Size Description
0x0 0x2 Unknown
0x2 0x1 Flags
0x3 0x1 X Position
0x4 0x1 Y Position
0x5 0x1 Type
0x6 0x2 Link ID
0x8 0x2 Unknown (Changes depending on the size of the track, usually + 10 if the track is not looped)
0xA 0x2 Unknown (Always 04 01 if connected to a track, otherwise changes depending on the size of the track, usually + 10 if the track is not looped)

Flags

Value Description
1 Has Object

Type

Value Description
0 Horizontal
1 Vertical
2 Descending Diagonal
3 Ascending Diagonal
4 Bottom Left Curve
5 Top Right Curve
6 Top Left Curve
7 Bottom Right Curve
8 Horizontal 3
9 Horizontal 1
10 Vertical 3
11 Vertical 1
12 Horizontal 4
13 Horizontal 2
14 Vertical 4
15 Vertical 5

Icicle

Offset Size Description
0x0 0x1 X Position
0x1 0x1 Y Position
0x2 0x1 Type
0x3 0x1 Reserved

Type

Value Description
0 Falling
1 Solid
