Tutorial: Your First Requirement

This hands-on walkthrough takes you through VXD's full pipeline — from submitting a natural-language requirement to seeing merged pull requests.

Demo

Want to see the workflow before trying it?

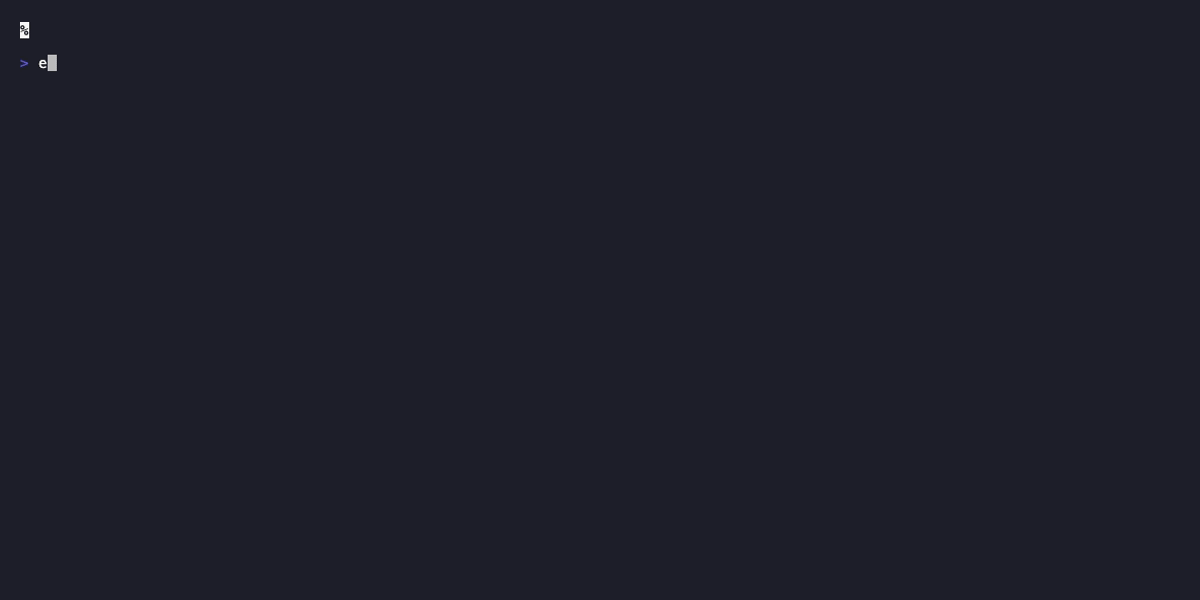

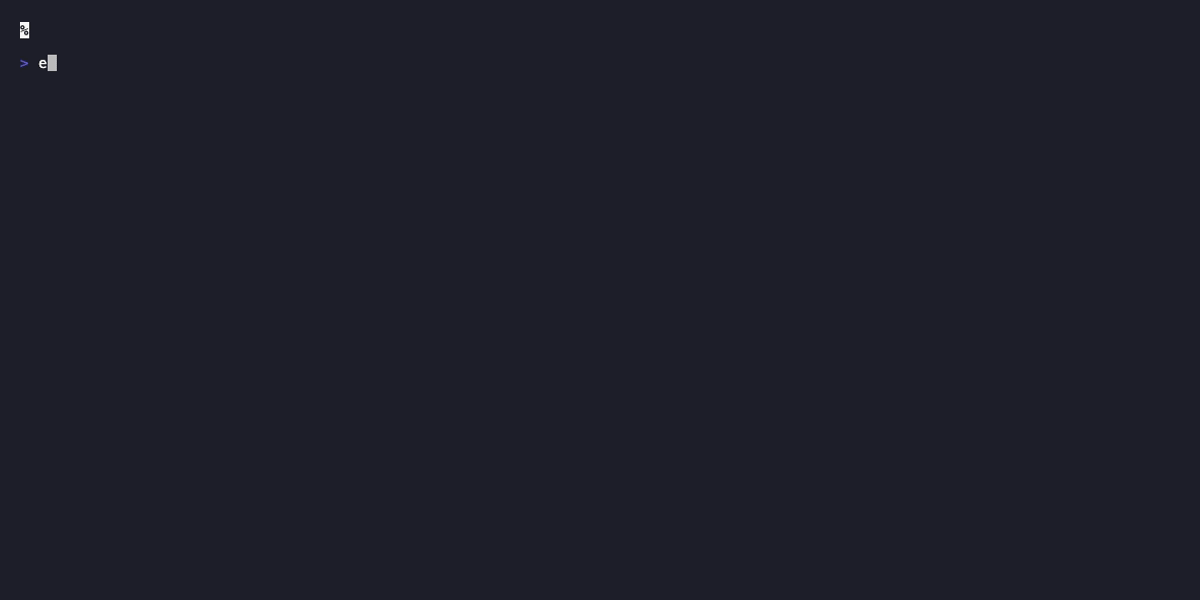

VXD Demo

You can also re-record the demo locally with VHS:

brew install vhs ffmpeg ttyd   # or: go install github.com/charmbracelet/vhs@latest
vhs docs/demo.tape

This produces docs/demo.gif showing vxd init through vxd dashboard in action.

Setup

Make sure you've completed the Getting Started guide. You need:

  • VXD installed and vxd init run in a git repository
  • At least one AI runtime CLI available (Claude Code recommended)
  • GitHub CLI authenticated (gh auth login)

For this tutorial, we'll use a simple requirement that produces 2-3 stories.

Step 1: Submit a Requirement

vxd req "Add a health check endpoint at GET /healthz that returns 200 OK with a JSON body containing service name, version, and uptime"

What happens behind the scenes:

  1. VXD emits a REQ_SUBMITTED event
  2. The Tech Lead agent (Claude Opus) decomposes your requirement into stories
  3. Each story gets a Fibonacci complexity score (1, 2, 3, 5, 8, or 13)
  4. Dependencies between stories are identified and stored as a DAG
  5. Events are emitted: STORY_CREATED (per story), then REQ_PLANNED

You'll see output like:

Requirement submitted: REQ-01HXYZ...
Planning via Tech Lead...

Stories created:
  STORY-001  [2] Add /healthz route with basic 200 response
  STORY-002  [3] Implement uptime tracking and version injection
  STORY-003  [2] Add health check integration tests
             (depends on STORY-001, STORY-002)

Dependency graph:
  STORY-001 ──┐
              ├──> STORY-003
  STORY-002 ──┘

Step 2: Check Status

vxd status

This queries the SQLite projection store and shows the current state:

Requirement REQ-01HXYZ: "Add a health check endpoint..."
  Status: planned

  Stories:
    STORY-001  [2] Add /healthz route           draft
    STORY-002  [3] Implement uptime tracking     draft
    STORY-003  [2] Add integration tests         draft (blocked)

Stories in draft are waiting to be dispatched. blocked means dependencies haven't been satisfied yet.

Step 3: Resume to Start Execution

vxd resume REQ-01HXYZ

This triggers the Dispatcher, which:

  1. Reads the dependency DAG
  2. Identifies Wave 1 — stories with no unmet dependencies (STORY-001, STORY-002)
  3. Routes each story by complexity:
    • Complexity 2 (STORY-001) -> Junior agent (Claude Haiku / GPT-4o-mini)
    • Complexity 3 (STORY-002) -> Junior agent
  4. Creates a git worktree and branch per story (vxd/STORY-001, vxd/STORY-002)
  5. Spawns tmux sessions with the configured AI runtime
Wave 1: dispatching 2 stories in parallel

  STORY-001 -> junior (haiku-4) session: vxd-STORY-001
  STORY-002 -> junior (gpt-4o-mini) session: vxd-STORY-002

Agents working...

Step 4: Monitor Progress

Live Dashboard

vxd dashboard

The TUI dashboard is a single-pane layout — all five sections (agents, pipeline summary, stories, activity, escalations) are visible at once, updated every 2 seconds. Use j/k to scroll the stories table, w to open the web dashboard in a browser, and q to quit.

If you prefer a browser-based view with full control capabilities (pause, retry, reassign, escalate, kill, edit), launch the web dashboard instead:

vxd dashboard --web   # opens http://localhost:8787

Quick Status Checks

# List active agents
vxd agents --status working

# View recent events
vxd events --limit 10

# Check a specific requirement
vxd status --req REQ-01HXYZ

Step 5: Watch the Pipeline Complete

As agents finish, VXD automatically progresses each story through:

  1. Code Review — A Senior agent reviews the diff via LLM
  2. QA — Lint, build, and test commands run against the worktree
  3. PR Creation — gh pr create with the configured template
  4. Auto-Merge — Squash merge + branch cleanup (if auto_merge: true)

Once STORY-001 and STORY-002 are merged, Wave 2 kicks off automatically:

Wave 2: dispatching 1 story

  STORY-003 -> junior (haiku-4) session: vxd-STORY-003

STORY-003 (integration tests) runs now that its dependencies are satisfied.

Step 6: Verify Completion

vxd status
Requirement REQ-01HXYZ: "Add a health check endpoint..."
  Status: completed

  Stories:
    STORY-001  [2] Add /healthz route           merged  PR #42
    STORY-002  [3] Implement uptime tracking     merged  PR #43
    STORY-003  [2] Add integration tests         merged  PR #44

Review the Event Trail

vxd events --limit 30

You'll see the full audit trail: every state transition, every agent action, every QA result.

Check for Any Escalations

vxd escalations

If any stories needed escalation (agent stuck, repeated QA failures), they appear here with reasons and resolution status.

Step 7: Cleanup

VXD handles cleanup automatically based on your config, but you can also trigger it manually:

# Preview what would be cleaned up
vxd gc --dry-run

# Actually clean up
vxd gc

This removes merged worktrees and branches past the retention period.

What You've Learned

Stage Command What Happens
Submit vxd req "..." Tech Lead decomposes into stories
Plan (automatic) Stories scored, DAG built
Dispatch vxd resume Wave-based parallel assignment
Execute (automatic) Agents work in tmux sessions
Review (automatic) Senior LLM reviews diffs
QA (automatic) Lint + build + test
Merge (automatic) PR created + auto-merged
Cleanup vxd gc Worktrees pruned, branches deleted

Next Steps

  • Workflows — understand each pipeline stage in depth
  • Configuration — tune routing, monitoring, and merge behavior
  • Monitoring — learn about the watchdog, supervisor, and intervention options
