Gade

A Groovy based Analytics Development Environment for Analysts and Data Scientists

Gade is a modern IDE designed specifically for data analysis, visualization, and machine learning with Groovy. It combines the power of the JVM ecosystem with an intuitive interface optimized for data science workflows.

Gade started off as a fork of Ride, but evolved into a simpler, more integrated environment for Groovy-based data science. Since there is no equivalent to R's data.frame in Java or Groovy, Gade integrates the matrix library for tabular data manipulation.

System Requirements

Minimum Requirements:

• Java: JDK 21 or later (LTS recommended)
• Memory: 4GB RAM minimum, 8GB+ recommended for large datasets
• Disk Space: 500MB for application + workspace storage
• Operating System:
  • Linux (x64, tested on Ubuntu 20.04+)
  • macOS (x64/ARM64, tested on macOS 11+)
  • Windows 10/11 (x64)

Optional Dependencies:

• Git: For version control integration (recommended)
• Gradle/Maven: For dependency management (bundled runtimes available)

Features

🚀 Interactive Code Execution

• Multiple Runtime Modes:
  • Gade Runtime: Embedded Groovy ScriptEngine for fast interactive execution
  • Gradle Runtime: Full Gradle support with dependency management
  • Maven Runtime: Maven-based execution for enterprise workflows
• Execute code: Full script execution, selected text, or current line (Ctrl+Enter)
• Live variable inspection: See all variables and objects created during execution
• Fast iteration: No compilation wait times for quick data exploration

💡 Intelligent Code Completion

• Context-aware suggestions: Completions for Groovy, Java, SQL, JavaScript
• Member access completion: Type . to see available methods and properties
• Import assistance: Automatic import suggestions for classes
• Keyword completion: Language-specific keywords and constructs
• Performance optimized: Sub-100ms response time for completions

🎨 Syntax Highlighting

• Multi-language support: Groovy, Java, SQL, XML, JavaScript, HTML, Markdown
• Customizable themes: Configure colors and fonts to your preference
• Real-time validation: Syntax errors highlighted as you type

📊 Data Visualization

Built-in support for creating publication-quality charts:

• Line charts, bar charts, pie charts

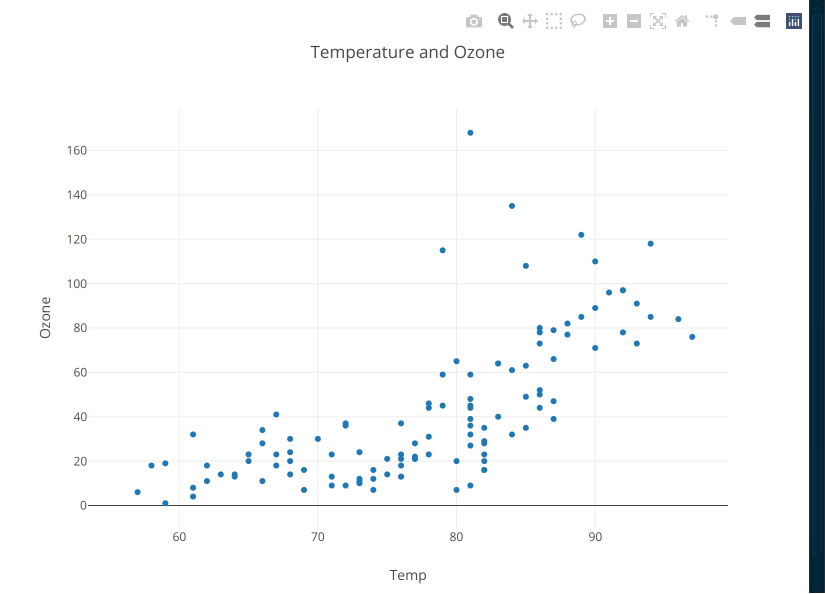

• Scatter plots with regression lines
• Heatmaps and correlation matrices
• Box plots and histograms
• Integration with matrix-charts and FreeCharts

🗄️ Database Integration

• JDBC support: Connect to any JDBC-compatible database
• Connection management: Save and reuse database connections
• SQL editor: Dedicated SQL script support with result viewers
• Result visualization: Query results displayed in interactive tables
• Export capabilities: Export results to CSV, Excel, or other formats

📦 Dependency Management

• Gradle integration: Use Gradle for dependency resolution
• Maven integration: Maven-based dependency management
• Automatic classpath: Dependencies automatically added to classpath
• Cache management: Intelligent caching for faster subsequent runs

🔧 Git Integration

• Built-in Git support: Clone, commit, push, pull directly from IDE
• Visual diff: See changes before committing
• Branch management: Create, switch, and merge branches
• Commit history: Browse repository history

📝 Project Management

• Workspace organization: Group related scripts and resources
• File browser: Navigate project structure easily
• Multiple tabs: Work on multiple files simultaneously
• Auto-save: Never lose work with automatic saving

🛠️ Advanced Features

• Environment variables: Manage runtime environment settings
• Package wizards: Scaffold Groovy applications or libraries
• Chart export: Save visualizations as PNG/SVG
• Markdown support: View and edit Groovy Markdown (gmd) files
• Extensible: Plugin architecture for custom completion engines

Quick Start

1. Installation

Download the latest release from the releases page or use one of the installation methods below.

2. First Launch

After installation, start Gade using the platform-specific launcher:

• Linux/macOS: ./gade.sh
• Windows: gade.cmd or double-click the desktop icon

3. Create Your First Script

1. Click File → New Script (or press Ctrl+N)
2. Enter the following code:

// Simple data analysis example
import se.alipsa.groovy.matrix.*

// Create a matrix (like R's data.frame)
def data = Matrix.builder()
  .columns([
    [1, 2, 3, 4, 5] as Integer[],
    [10, 20, 30, 40, 50] as Integer[]
  ])
  .columnNames('x', 'y')
  .build()

println data
println "Mean of x: ${data.mean('x')}"
println "Sum of y: ${data.sum('y')}"

3. Press F5 (or click the Run button) to execute
4. View results in the Console tab

4. Working with Databases

1. Right-click Connections → Add Connection
2. Enter connection details:
   • Name: MyDatabase
   • Driver: org.h2.Driver (for H2 database)
   • URL: jdbc:h2:mem:testdb
   • Username/Password: (if required)
3. Right-click connection → Connect
4. Create a new SQL script and run queries

5. Create Visualizations

import se.alipsa.groovy.matrix.*
import se.alipsa.groovy.charts.*

def data = Matrix.builder()
  .data([
    [1, 10], [2, 20], [3, 15], [4, 25], [5, 30]
  ])
  .columnNames('x', 'y')
  .build()

def chart = LineChart.create(data, 'x', 'y', 'My Chart')
chart.show()

For more examples, see the examples directory.

Installation

Option 1: Pre-built Distribution (Recommended)

The easiest way to get started. Download the platform-specific zip file from the releases page.

Linux:

# Download and extract
wget https://github.com/perNyfelt/gade/releases/download/v1.0.0/gade-linux-1.0.0.zip
unzip gade-linux-1.0.0.zip
cd gade-linux-1.0.0

# Run Gade
./gade.sh

# Optional: Create desktop launcher
# Use the gade.png icon in the base directory

macOS:

# Download and extract
curl -L -O https://github.com/perNyfelt/gade/releases/download/v1.0.0/gade-macos-1.0.0.zip
unzip gade-macos-1.0.0.zip
cd gade-macos-1.0.0

# Run Gade
./gade.sh

# Optional: Move to Applications folder
# mv gade.app /Applications/

Windows:

# Download gade-windows-1.0.0.zip from releases page
# Extract to C:\Program Files\Gade (or location of choice)
# Run gade.cmd or double-click desktop icon

# For Git Bash users:
# Create shortcut: "C:\Program Files\Git\bin\bash.exe" ./gade.sh

Option 2: Run via Maven (No Installation)

If you have Maven and Java 21 installed:

# Download the launcher script
wget https://github.com/perNyfelt/gade/releases/download/v1.0.0/gadeMavenRunner.sh
chmod +x gadeMavenRunner.sh

# Run Gade
./gadeMavenRunner.sh

This downloads dependencies on first run and launches Gade without a full installation.

Option 3: Run via Groovy

If you have Groovy installed:

# Download the Groovy launcher
wget https://github.com/perNyfelt/gade/releases/download/v1.0.0/gade.groovy

# Run Gade
groovy gade.groovy

Option 4: Build from Source

For developers who want the latest version:

# Clone the repository
git clone https://github.com/perNyfelt/gade.git
cd gade

# Quick run (development mode)
./gradlew run

# Build platform-specific distribution
./gradlew clean build runtimeZip

# Find distributions in build/ directory
# gade-linux.zip, gade-macos.zip, gade-windows.zip

See CONTRIBUTING.md for detailed build instructions.

Option 5: Install from Maven (Offline Installation)

Creates a self-contained offline installation:

# Prerequisites: Java 21+ and Maven 3.6.3+
wget https://github.com/perNyfelt/gade/releases/download/v1.0.0/installFromMaven.sh
chmod +x installFromMaven.sh

# Run installer
./installFromMaven.sh

# Application created in gade.app/ directory
cd gade.app
./gade.sh

Note: The distribution is OS-specific due to JavaFX platform dependencies.

Configuration

Customizing Startup Options

Create env.sh (Linux/macOS) or env.cmd (Windows) in Gade's installation directory:

Linux/macOS (env.sh):

#!/usr/bin/env bash

# Increase memory for large datasets
JAVA_OPTS="-Xmx16G"

# Hi-DPI scaling (200%)
JAVA_OPTS="$JAVA_OPTS -Dglass.gtk.uiScale=200%"

# Use Marlin rendering engine (better performance)
JAVA_OPTS="$JAVA_OPTS -Dsun.java2d.renderer=sun.java2d.marlin.MarlinRenderingEngine"

# Custom splash screen duration (seconds)
SPLASH_TIME=5

Windows (env.cmd):

@echo off

REM Increase memory for large datasets
set "JAVA_OPTS=-Xmx16G -Dglass.gtk.uiScale=200%"

REM Show console output (use java instead of javaw)
SET JAVA_CMD=C:\Program Files\Java\jdk-21\bin\java.exe

REM Custom splash screen duration
SET SPLASH_TIME=5

Available Environment Variables

Variable	Purpose	Example
JAVA_OPTS	JVM options and system properties	-Xmx16G -Dprop=value
JAVA_CMD	Path to Java executable (override default)	/opt/jdk-21/bin/java
SPLASH_TIME	Splash screen duration in seconds	5

Common JVM Options

Memory Settings:

-Xmx16G          # Maximum heap size (16GB)
-Xms4G           # Initial heap size (4GB)
-XX:+UseG1GC     # Use G1 garbage collector (recommended)

Display Settings:

-Dglass.gtk.uiScale=200%           # Hi-DPI scaling (Linux/macOS)
-Dsun.java2d.renderer=...          # Rendering engine
-Dprism.order=sw                   # Software rendering (for remote desktop)

Performance:

-Dsun.java2d.renderer=sun.java2d.marlin.MarlinRenderingEngine  # Better 2D performance

Troubleshooting

Application Won't Start

Problem: Gade fails to launch or crashes immediately

Solutions:

1. Verify Java version:

   java -version  # Must be 21 or later

   If wrong version, set JAVA_CMD in env.sh/env.cmd to point to Java 21+

2. Check JavaFX availability:

   # JavaFX should be bundled, but verify with:
   java -jar gade.jar --version

3. Enable console output (Windows):

   REM In env.cmd:
   SET JAVA_CMD=C:\path\to\java.exe

   This shows error messages in console window

4. Clear JavaFX cache:

   # Linux/macOS
   rm -rf ~/.java/.userPrefs/javafx

   # Windows
   del /S /Q %USERPROFILE%\.java\.userPrefs\javafx

Code Completion Not Working

Problem: Pressing Ctrl+Space shows no suggestions or is very slow

Solutions:

1. Check runtime selection:

   • Go to Tools → Runtime → Select Runtime
   • For quick completion, use "Gade Runtime" (embedded)
   • Gradle/Maven runtimes may need dependency resolution first

2. Rebuild dependency cache:

   • Go to Tools → Clear Gradle Cache
   • Restart Gade
   • Open your script and wait for indexing to complete

3. Verify classpath:

   // Add to your script to debug
   println System.getProperty("java.class.path")

4. Performance tuning:

   • Increase memory in env.sh: JAVA_OPTS="-Xmx8G"
   • Large projects may need more heap space

Gradle Dependency Resolution Fails

Problem: "Could not resolve dependencies" error when using Gradle runtime

Solutions:

1. Check build.gradle syntax:

   // Ensure valid Gradle build file
   plugins {
       id 'groovy'
   }

   repositories {
       mavenCentral()
   }

   dependencies {
       implementation 'org.apache.commons:commons-lang3:3.12.0'
   }

2. Clear Gradle cache:

   • Go to Tools → Clear Gradle Cache
   • Or manually: rm -rf ~/.gradle/caches/

3. Check network connectivity:

   # Test Maven Central access
   curl -I https://repo1.maven.org/maven2/

4. Use offline mode (if you have cached dependencies):

   • Add to build.gradle: offline = true

5. Verify Gradle daemon:

   ./gradlew --status  # Check daemon health
   ./gradlew --stop    # Stop and restart daemon

Database Connection Fails

Problem: Cannot connect to database or "ClassNotFoundException: driver"

Solutions:

1. Verify JDBC driver is added:

   • Go to Connections → Add Connection
   • Click Add JDBC Driver and select .jar file
   • Or add to build.gradle dependencies

2. Test connection string:

   // H2 (embedded)
   jdbc:h2:mem:testdb
   jdbc:h2:file:./data/mydb

   // PostgreSQL
   jdbc:postgresql://localhost:5432/mydb

   // MySQL
   jdbc:mysql://localhost:3306/mydb

3. Check firewall/network:

   # Test database server connectivity
   telnet localhost 5432  # PostgreSQL
   telnet localhost 3306  # MySQL

4. Enable JDBC logging:

   • Add to env.sh: JAVA_OPTS="-Djdbc.drivers=org.postgresql.Driver -Dlog4j.debug=true"

Script Execution Hangs or Crashes

Problem: Script runs forever or crashes with OutOfMemoryError

Solutions:

1. Increase heap memory:

   # In env.sh
   JAVA_OPTS="-Xmx16G"  # Adjust based on dataset size

2. Check for infinite loops:

   • Use Run → Stop Execution (or Ctrl+C in console)
   • Review loop conditions

3. Large dataset handling:

   // Stream large files instead of loading all at once
   def file = new File('large.csv')
   file.eachLine { line ->
       // Process one line at a time
   }

4. Monitor memory usage:

   // Check memory during execution
   def runtime = Runtime.getRuntime()
   println "Used memory: ${(runtime.totalMemory() - runtime.freeMemory()) / 1024 / 1024} MB"
   println "Max memory: ${runtime.maxMemory() / 1024 / 1024} MB"

Git Operations Fail

Problem: Cannot clone, commit, or push to repository

Solutions:

1. Verify Git credentials:

   • Go to Git → Settings
   • Configure username and email
   • For HTTPS: Use personal access token (not password)

2. SSH key setup (for SSH URLs):

   # Generate SSH key if needed
   ssh-keygen -t ed25519 -C "your_email@example.com"

   # Add to ssh-agent
   eval "$(ssh-agent -s)"
   ssh-add ~/.ssh/id_ed25519

   # Add public key to GitHub/GitLab
   cat ~/.ssh/id_ed25519.pub

3. Test Git access:

   # HTTPS
   git clone https://github.com/user/repo.git

   # SSH
   git clone git@github.com:user/repo.git

4. Check proxy settings:

   # If behind corporate proxy
   git config --global http.proxy http://proxy.company.com:8080

Hi-DPI / Scaling Issues

Problem: UI appears too small or blurry on high-resolution displays

Solutions:

1. Linux/macOS:

   # In env.sh - scale UI 200%
   JAVA_OPTS="-Dglass.gtk.uiScale=200%"

2. Windows:

   REM In env.cmd
   set "JAVA_OPTS=-Dglass.win.uiScale=200%"

3. Font size adjustment:

   • Go to Edit → Preferences → Appearance
   • Adjust editor font size
   • Adjust console font size

Remote Desktop / VNC Issues

Problem: Gade doesn't render properly over remote desktop

Solutions:

1. Use software rendering:

   # In env.sh
   JAVA_OPTS="-Dprism.order=sw -Dprism.verbose=true"

2. Disable hardware acceleration:

   JAVA_OPTS="$JAVA_OPTS -Djavafx.animation.fullspeed=false"

3. For headless servers, use X11 forwarding:

   ssh -X user@server
   ./gade.sh

Getting Help

If these solutions don't resolve your issue:

1. Check logs:

   • Logs are in ~/.gade/logs/ (Linux/macOS) or %USERPROFILE%\.gade\logs\ (Windows)
   • Include log contents when reporting issues

2. Search existing issues:

   • Check GitHub Issues for similar problems

3. Report a bug:

   • Use the GitHub issue tracker
   • Include: OS, Java version, error messages, steps to reproduce

4. Community support:

   • See Wiki for additional documentation
   • Check Discussions for Q&A

Issues and Feature Requests

For bugs, feature requests, or questions, please use the GitHub issue tracker.

Documentation

• Cookbook - an introduction to use Gade to solve common Data Scientist tasks.
• Freecharts - A short description on how to use the Freecharts library with Gade
• User Manual - can be found in Gade (Help -> User Manual)
• Wiki - Wiki pages on various topics related to Gade

Examples

In the examples dir you can find a lot of examples of using Gade. Many of them are taken from Paul Kings groovy-data-science project at Github and modified slightly to work interactively in Gade.

Building and compiling

To build Gade, simply do gradle build

A quick development run is simply gradle run

To create multi-platform distributions do gradle clean build runtimeZip You will find the zip distros (gradle-*.zip) in the build dir, and the source jar and javadoc jar in build/libs

The install.sh script is an example of how to automate installation of the platform specific build on your machine.

3:rd party software used

Note: only direct dependencies are listed below.

org.apache.groovy:groovy-all

Makes it possible to run Groovy scripts. Apache Software License, Version 2.0.

io.github.classgraph:classgraph

Very fast class and module loader scanning library. Used for autocompletion among other things. MIT License

org.fxmisc.richtext:richtextfx

Base for all code editors. Used to color (syntax highlight) code etc. Copyright (c) 2013-2017, Tomas Mikula and contributors under BSD 2-Clause "Simplified" License

org.girod:fxsvgimage

Allows conversion of svg files to javafx Image nodes. MIT license.

org.apache:log4j

The logging framework used. Apache 2.0 license

com.fasterxml.jackson.core:jackson-core and jackson-databind

Used for JSON handling in various places. Copyright Fasterxml under Apache 2.0 license.

org.apache.tika:tika-core

Used to detect file types as Files.probeContentType is inconsistent over different OS's; Apache 2.0 license.

org.apache.tika:tika-parsers

Used to detect file encoding. Apache 2.0 license.

org.apache.commons-lang3

Used for time and string formatting Apache 2.0 license.

org.apache.commons-io

Used for reading files content Apache 2.0 license.

com.github.jsqlparser:jsqlparser

Used to validate and analyse SQL code. Apache Software License, Version 2.0.

org.apache.maven:maven-artifact

Used to do semantic version comparisons. Apache Software License, Version 2.0.

org.eclipse.jgit:org.eclipse.jgit

Used to provide git support. Eclipse Distribution License v1.0

se.alipsa.matrix + all sub projects

A data container, statistics and visualization library for Groovy, similar to Joinery and Tablesaw for Java. MIT license.

se.alipsa.groovy:data-utils

Makes it possible to load jdbc drivers without having to resort to the system classloader. MIT license.

se.alipsa:simple-rest

Provides support for REST interaction with Munin. MIT license.

se.alipsa.groovy:gmd

Provides support for processing Groovy Markdown (gmd). MIT license.

Contributing

If you are interested in helping out, reporting issues, creating tests or implementing new features are all warmly welcome. See also todo for roadmap.
