TorchRBM

Basic implementation in Pytorch of the Restricted Boltzmann Machine with binary hidden units.

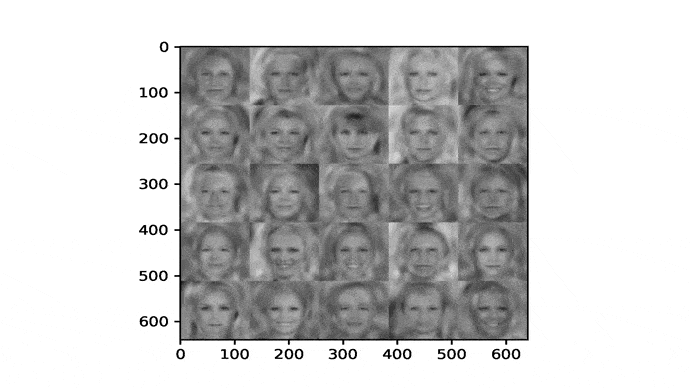

Example of samples obtained for a RBM trained on CelebA in black and white:

Installation

Install the package

pip install -e .

Training

To train a model enter:

python rbm/train_rbm.py --data <path_to_data> --filename <output_path>

The input data variables can be both in binary format or categorical (Potts).

• For the binary format, the input file is expected to be a text file in which each row represents one data point and it is a sequence of 0 or 1 separated by a space character;

• For the categorical variables, the input file must be in fasta format, where headers (identified by the > character) are alternated with sequences of symbols. For instance:

  >sequence_1
  -KLVIQAAPYGPEWLPGDADDLPL
  >sequence_2
  -KKIILEARVNEYAPRTSNPNIPYTA


  The alphabet for the categorical variables must be specified using the --alphabet argument. One of the standard options protein, dna and rna can be chosen, or a user-defined alphabet that is coherent with the input data.

To restore an interrupted training, enter:

python rbm/train_rbm.py --data <path_to_data> --filename <model_path> --num_updates <new_number_updates> --restore

where model_path is the path to an existing RBM model and new_number updates must be larger than the previous number of gradient updates.

Training Options

All the available options can be visualized by entering

python rbm/train_rbm.py -h

• -d, --data: Path to the dataset to be used for training the model;
• -w, --weights: (Optional, defaults to False) Whether to put weights on the sequences based on the sequence identity with the neighbors;
• -o, --filename: (Optional, defaults to RBM.h5) Name of the file where to store the model;
• -H, --num_hiddens: (Optional, defaults to 100) Number of latent variables;
• --n_save: (Optional, defaults to 50) Number of models to save along the training;
• --training_mode: (Optional, defaults to PCD) Training protocol. The possible options are: CD, PCD, Rdm;
• --num_updates: (Optional, defaults to 1e5) Number of gradient updates to be performed;
• --lr: (Optional, defaults to 0.01) Learning rate;
• --gibbs_steps: (Optional, defaults to 10) Number of chain updates performed at each gradient estimation;
• --batch_size: (Optional, defaults to 5000) Minibatch size;
• --num_chains: (Optional, defaults to 5000) Number of Markov Chains to run in parallel;
• --alphabet: (Optional, defaults to protein) Type of encoding for the sequences. Choose among ['protein', 'rna', 'dna'] or a user-defined string of tokens;
• --restore: (Optional) Flag to be used for restarting from an old training;
• --centered: (Optional, defaults to True) Use the centered gradient for the training.
• --spacing: (Optional, defaults to exp) Type of spacing between two checkpoints where the model is stored. The possible choices are: linear, exp;
• --seed: (Optional, defaults to 0) Random seed.

Analyze the model

In the repository notebooks there are two examples of how to inspect the fitted RBM model and generate new data with it.
