Drift correction & particle segmentation — plus the four defects that made Segment unusable on real data by CSSFrancis · Pull Request #117 · CSSFrancis/spyde

CSSFrancis · 2026-08-02T16:04:01Z

Wave A (drift) and Wave B (particle segmentation) of DRIFT_AND_PARTICLES_PLAN.md,
plus a stabilization pass on the Segment caret after it was tried on a real
in-situ movie and reported as "immediately unusable. Crashes the rendering."

The plan work is in the earlier commits. This description covers the last four,
because they are the interesting ones: every defect below was invisible to
pytest, to tsc, and to a comprehensive e2e spec that already existed.

1. The raster overlay could never run on a tiled frame

Reported: "14028 particles in this region", the preview window a flat sheet of
green, the renderer hung.

The renderer sizes the overlay mask against base_width || image_width — the
tile OVERVIEW grid — while tile mode sets image_width to the FULL native
frame. _set_raster_overlay reduced to the overview grid, which is what the
renderer wants and what set_overlay_mask then rejected against the image
shape. The ValueError landed in a bare except and was logged at DEBUG,
so every large-frame preview fell back to one filled polygon per instance.

So the path added to avoid N polygons could never run on any frame big enough
to need it. At 14028 instances the fallback is the hang.

before — nothing drawn at all	after — the mask draws

Both captured by reverting exactly one fix and re-running, so they isolate what
they claim to. Fixed upstream in CSSFrancis/anyplotlib#56 — that must merge
first, and the pin bumped, or this regresses on a clean checkout.

_MAX_OUTLINE_POLYS is the seatbelt: reaching it means the raster was
unavailable, and the honest answer is then "too many to draw" rather than
thousands of paths. The failure log is WARNING now — the fallback from there is
worse than the failure.

2. Switching to Scribble left the dead result on the paint surface

show_preview_window cleared the vector outlines but not the raster, so
above 100 instances the previous engine's result survived the switch. On the
tab whose entire job is painting on the image, that is the reported
"unusable" — you cannot paint on an image you cannot see. Its own docstring
says it prevents exactly this; it only covered one of the two drawing routes.

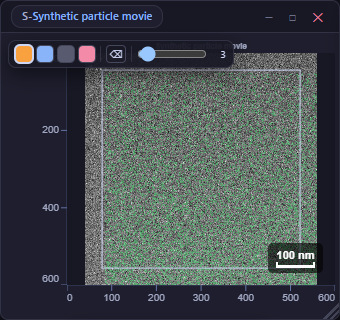

before — the frame is buried	after — clean

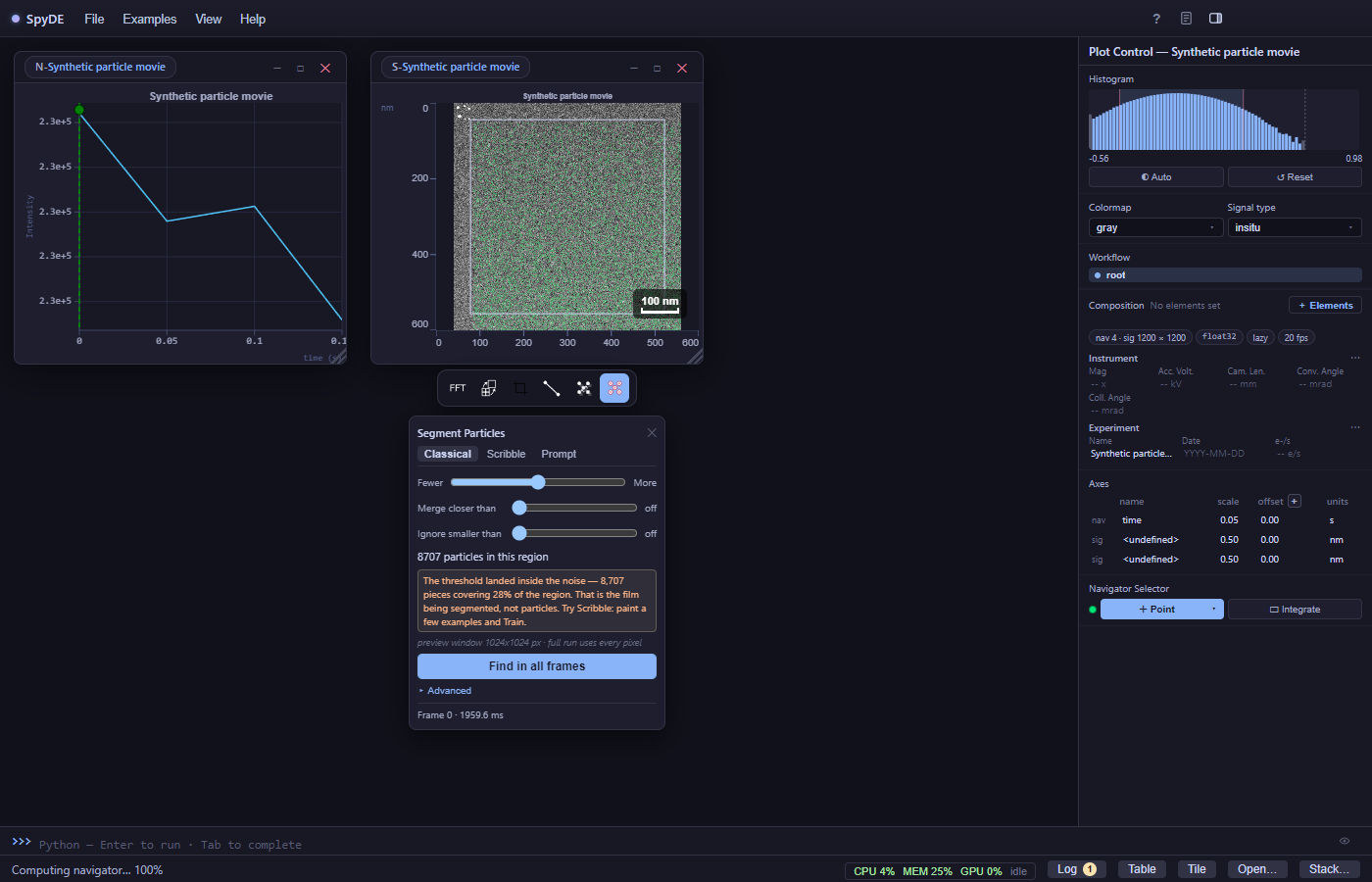

3. A failed threshold was reported as a result

Otsu on a low-contrast frame has no bimodal histogram to find, lands inside the
noise, and the split shatters the support film. No caret knob rescues it —
measured on a stand-in (noisy film, 8 faint particles, 1024²):

settings	instances	coverage
defaults	4873	39%
`min_size=200`	208	14%
`min_size=2000`	17	7.2%
watershed off	751	40%
`gaussian=2` + `min_size=200` + no watershed	8	52%

That last row is the trap: 8 instances looks like the 8 real particles, until
you notice it covers 52% of the frame — those 8 bodies are the film. So the
verdict tests count AND coverage; neither is diagnostic alone.

"14028 particles" reads as a bad answer, and sends the user to sliders that
cannot fix it. The caret now names the failure and points at the engine that
does work on this data (plan §0.9). It does not silently re-tune.

4. The caret threw on first render, and three controls lied

ee74ad6 swapped the Confidence slider for two nanometre sliders and broke four
things at once:

Field was used but never imported → the caret threw on mount, blank
window. Already exported from WizardShell; one line.
Confidence went nowhere. The commit's comment says it moved to Advanced.
It did not — min_score kept its state, its payload field and a working
backend filter, with nothing able to move it off 0.
The nm sliders are only nm on a length axis. They divide by the signal's
scale, and a reciprocal-space signal reports a healthy positive scale in
nm⁻¹ — so a merge radius came out wrong by the camera length while the caret
still read "nm". The label follows the axis now (µm and Å convert; a
non-length axis falls back to px).
Advanced did not fit. 907 px in an 805 px MDI area, and the caret cannot
scroll (the Threshold menu is absolutely positioned, so an overflow:auto
ancestor clips it) — the histogram and Commit Frame were unreachable. Two
columns is plan B7's own answer.

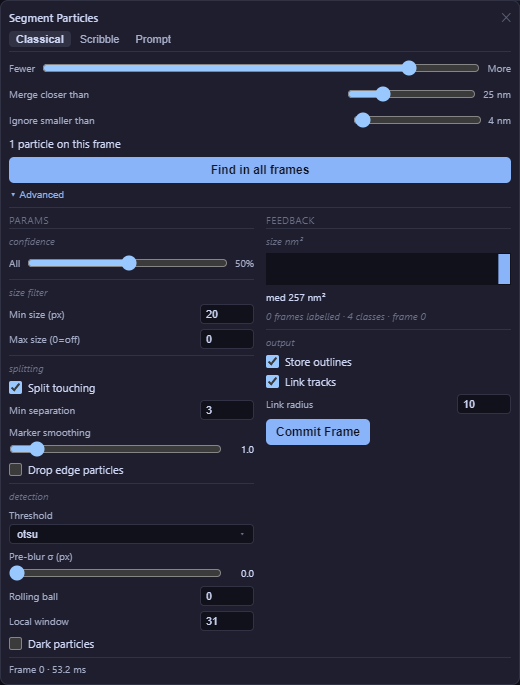

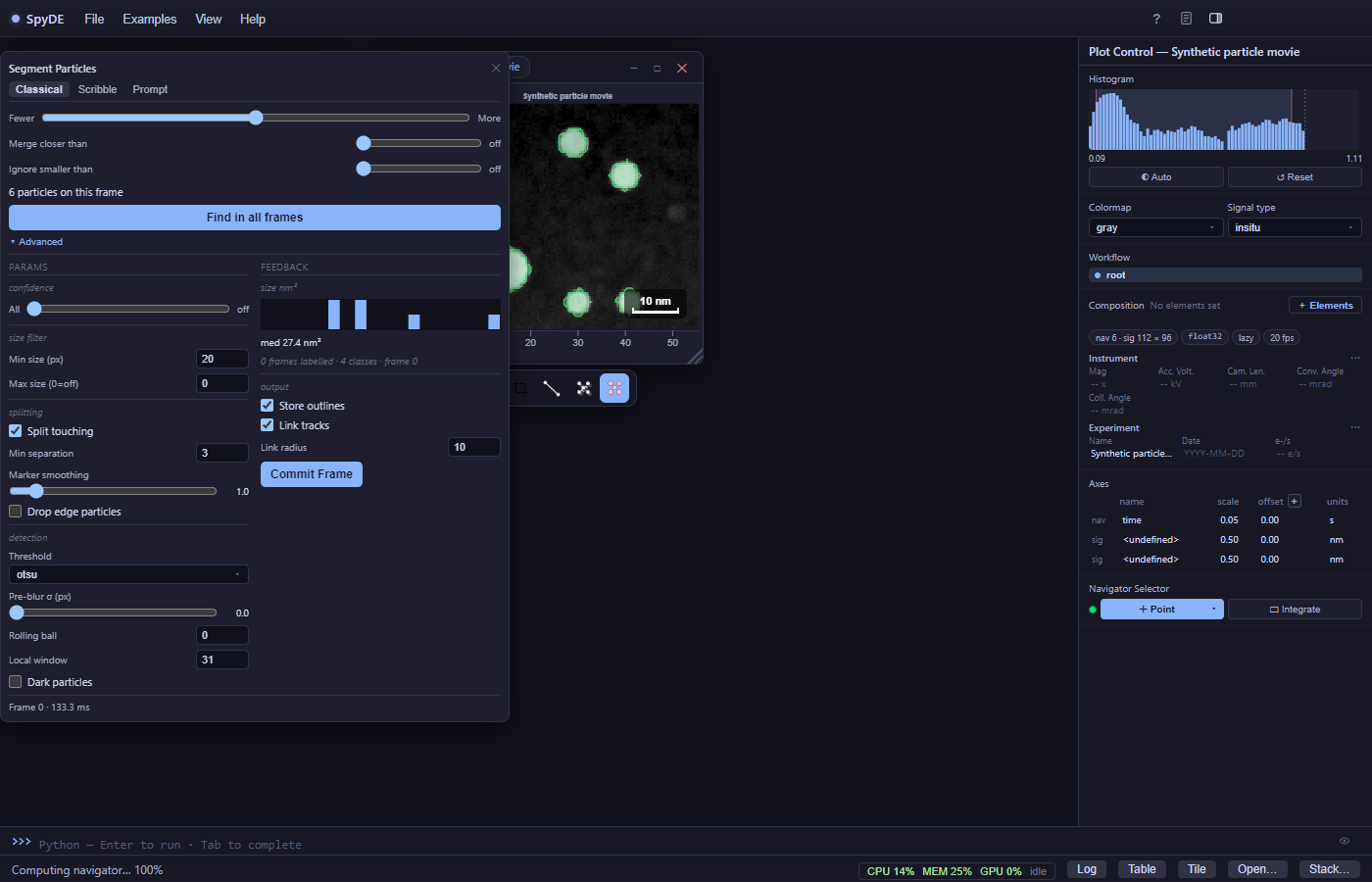

Advanced, two columns	the face filters + Confidence

Widening then exposed a placement bug: a side-placed caret anchors its RIGHT
edge to the window's left, so at 520 px it walked off the left edge of the app
and its controls became unclickable. FloatingToolbar clamps side placements
into the MDI area now — overlapping the owning window is recoverable, being
off-screen is not.

Why none of this was caught

Three test-design lessons, all recorded in the plan:

Assert on the bytes that SHIP, never on what the caller built. The test
for the tiling trap faked set_overlay_mask and checked the mask SpyDE
constructed, so it never enforced the contract that failed. It uses a real
Plot2D now.
A silent except … log.debug around a render call hides a hang.
The bundled fixture is clean, so it cannot reproduce a threshold failure.
load_test_data_particles takes noise now; seg_oversegment.spec.ts pairs
noise: 0.35 with size: [1200,1200] (above the 1024 tile threshold) —
either alone reproduces nothing.

And the caret's own two invariants, since that seam has now broken twice: the
renderer payload and particles_action.DEFAULTS stay a 1:1 key match (22/22),
and every useState setter has a caller.

Performance

Contours are ~half a preview's cost at high instance counts and are discarded
above the draw cap anyway: 1513 → 969 ms at n=4873, rows bit-identical.
The watershed's 639 ms is inherent to a mask covering 39% of the frame — the fix
there is to stop producing such a mask, not to optimise the split. Numbers in
benchmarks.md.

Verification

3415 passed, 4 skipped, 1 xfailed — full spyde/tests/migrated/
13 passed — segmentation e2e (segment_wizard, seg_overlay, and the new
seg_oversegment)
2 passed — GPU/tile parity
2002 passed — anyplotlib, with the companion fix

Every screenshot above is from a real driven app, not a mockup.
