Original App Design Project - README

Group Members: Chiseng Wong, Yiyi Huang, Eric Chen, Abijit Jayachandran

ChessTracker

Table of Contents

1. Overview
2. Product Spec
3. Wireframes
4. Schema

Overview

Description

A chess tracker app that allows a user to look into their chess statistics over time compared to their friends' and other users.

App Evaluation

• Category: Games/Utility
• Mobile: Convenience. It is a companion of sorts to a chess mobile app. It may be easier to access your statistics through an app rather than a website.
• Story: Allows users to track their chess statistics and compare it to their friends'
• Market: Chess players who want to look at specific statistics and those who want to compare with friends.
• Habit: Most users will use the app every day or at least once a week to track their progress.
• Scope: This app could start off as a simple statistics app that looks at your past ratings compared to your friends. Perhpas, in the future, it could also include a forum of sorts where you can discuss chess with others.

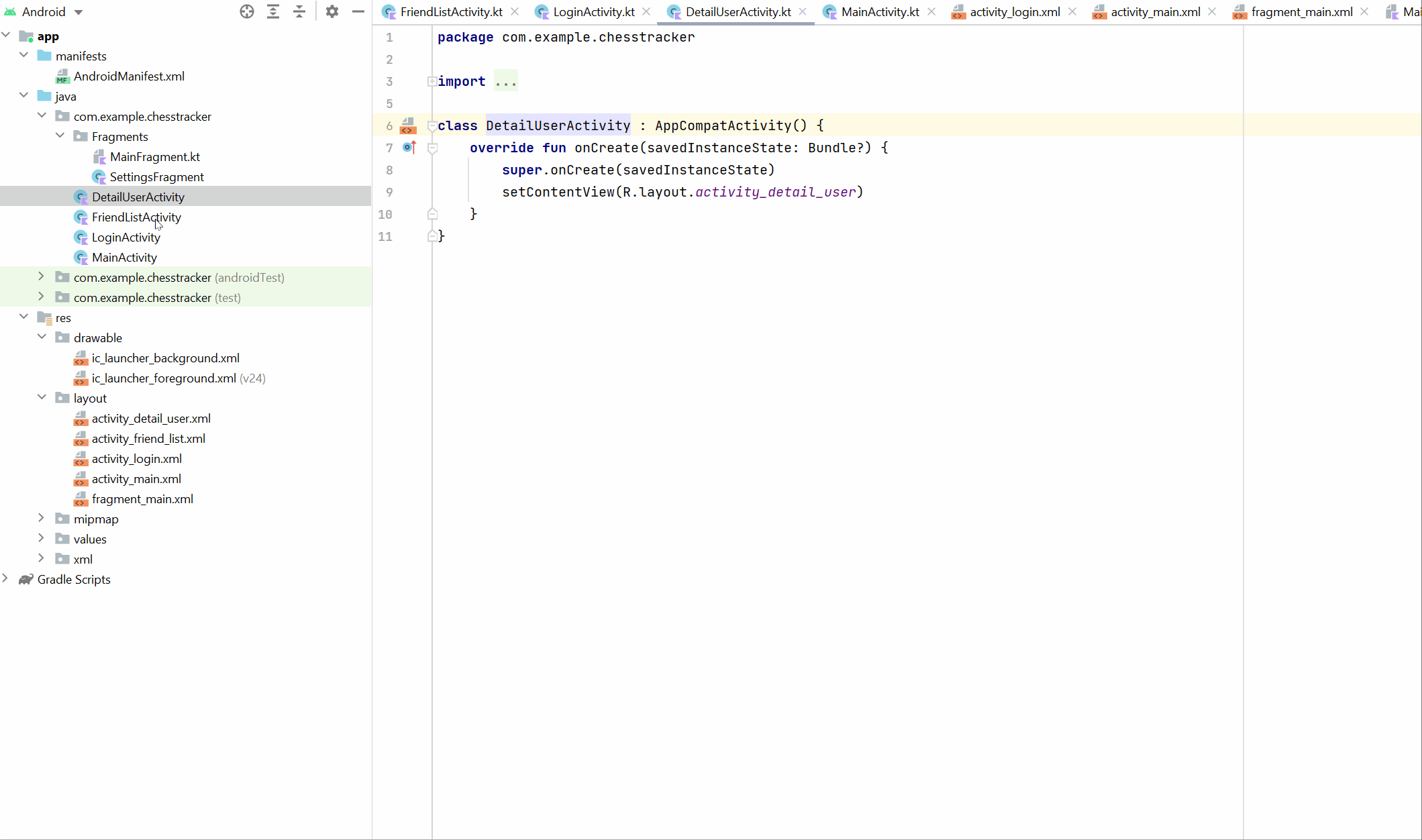

Weekly GIF Progress

Week 9

Week 8

Week 7

Product Spec

1. User Stories (Required and Optional)

Week 7 note: No user stories were completed in code sprint #1. Week 8 note: Basic fragments were put in place in code spring #2. Week 9 note: Users can now log in and log out, look at a graph of their recent ratings, see a list of friends, change themes, and see game history.

Required Must-have Stories

• User can log-in using their chess.com username
• User can see their rating over time
• User can see their chess game history and look over specific games.

Optional Nice-to-have Stories

• Visualisation of the data (pie charts, bar charts, line graph)
• User can see a leaderboard with their friends
• A "compare" feature that puts your statistics next to someone elses
• User can create leaderboard with specific people rather than all their friends.
• Have a leaderboard for specific regions such as San Diego, or LA.
• Have a forum for discussion
• User can logout and change preferences
• User can search for other users from chess.com

2. Screen Archetypes

• Register - User signs up or logs into their account
• User is prompted to log in to one's chess.com account gain access to their profile information
• Settings Screen
• User can logout and change preferences
• Detail/ Profile Screen
• User can view their own or other users' detailed stats
• Main/Stream Screen
• User can see a leaderboard with their friends
• User can see their rating over time
• User can see their chess game history and look over specific games.
• User can search for other users from chess.com

3. Navigation

Tab Navigation (Tab to Screen)

• Main Screen
• Settings

Flow Navigation (Screen to Screen)

• Log-in screen
• Main Screen
• Detail (specific users from search)

Wireframes

Schema

Models

Model: User

Property	Type	Description
playerId	Integer	unique Id for user
username	String	username of user
rating	Number	rating of the user
profileImage	File	profile picture of the user
recentGames	Array	recent games from user
friendList	Array	friends of user

Model: Game

Property	Type	Description
id	String	unique id of game
Result	Number	Result of the game
player1	Pointer to User	Player playing white
player2	Pointer to User	Player playing black
date	DateTime	date and time that the game was played

Networking

List of network requests by screen

• Login Screen

  • (Read/GET) Query for specified user

• Main Screen

  • (Read/GET) Query all players sorted by rating //leaderboard
  • (Read/GET) Query all games in recentGames array //recentGame
  • (Read/GET) Query all rating from user's recentGames //data graph

• Detail Screen

  • (Read/GET) Query all games in the player's recentGames array //recentGame
  • (Read/GET) Query all rating from the player's recentGames //data graph

• Setting Screen

  • (Read/GET) Query preferences on Chess.com (profileImage, username)
  • (Update/PUT) Update user's app preference (theme)

• FriendList Screen

  • (Create/POST) Add a new User (object) as a friend
  • (Read/GET) Query if the user exists on the site
  • (Read/GET) Query all players in friendList array

Code Snippet for network requests

val client = AsyncHttpClient()
client.get("https://api.chess.com/pub/{Endpoint}", object: JsonHttpResponseHandler() {
override fun onFailure(
statusCode: Int,
headers: Headers?,
response: String?,
throwable: Throwable?
) {
Log.e(TAG, "onFailure $statusCode")
}

override fun onSuccess(statusCode: Int, headers: Headers?, json: JSON) {
// use data
}
}

The general framework for each network call will follow the above format. However, we will have to change the API endpoint and the JSON data extraction based on what we need for that particular request. The idea for this framework was taken from our Flixster assignment. However, to make our friend list and log-in we need a different code snippet.

val query: ParseQuery<User> = ParseQuery.getQuery(Post::class.java)
query.include(User.playerID)

We can use the above format to add data to our own Parse database. Our database contains each user's playerID, their app preferences and their friend list. This format is similar to the statements made in our Parstagram assignment. The log-in screen will also make a request to our Parse database.

Chess.com API

We will be using the chess.com API to access a given user's data.

Base URL: https://api.chess.com/pub/

HTTP Verb	Endpoint	Description
GET	/player/{username}	get info about user
GET	/player/{username}/games	recent games of user
GET	/player/{username}/stats	gets rating data of user
