F1Tenth ROS Setup

A simplified setup and workspace for using F1Tenth with ROS and Docker.

Prerequisites

Windows/Mac

• git
• Docker Desktop

Editor

• Visual Studio Code (unless you have some other preference)

Linux

• Make sure to sync packages before installing new packages

• git

  • Debian based
    • sudo apt update (syncing packages)
    • sudo apt install git
  • Arch based
    • sudo pacman -Sy (syncing packages)
    • sudo pacman -S git
  • Gentoo based
    • sudo emerge --sync (syncing packages)
    • sudo emerge git

• Docker

  • Debian based
  • Arch based
    • sudo pacman -S yay base-devel
    • yay -S docker-git
  • Gentoo based
    • sudo emerge app-containers/docker app-containers/docker-cli

Systemd based - Debian/Arch etc

• sudo systemctl enable docker
• sudo systemctl start docker

Init Systems

OpenRC - Gentoo

• sudo rc-update add docker
• sudo rc-service docker start
• If encountering a crash from docker, manually solve it by sudo rc-service docker zap

User permisions

• sudo usermod -aG docker <username>

Building the Docker Image and making a Container

These steps should only have to be done once. Run the commands in the following steps in a Terminal.

1. Clone this repository

git clone https://github.com/FT-Autonomous/f1tenth-ros-setup.git

2. Build the Docker Image

The build might take a while to load the first time you run it.

cd f1tenth-ros-setup
docker build -t f1tenth-ros .

4. Run a Container

This step will ensure the build has worked by running a container. Later we will run the simulator in this container.

docker run -it f1tenth-ros

You should see your terminal display something like

root@...:/#

You may now exit the container by pressing CTRL+D. From now on we will be running this container from VSCode.

Running the Container in VSCode

You will do this anytime you want to run the simulator or work on your solution.

1. Ensure you have the Remote - Containers extension installed in VSCode

Extensions (in Sidebar on left of screen) -> Search Remote - Containers -> Click the one with the star -> Install

2. Using Remote Explorer to attach to the container

Remote Exporer (in Sidebar on left of screen) -> Ensure the dropdown at the top is set to Containers -> there should be an f1tenth-ros container shown (hit refresh button if not) -> right-click f1tenth-ros -> Attach to Container

This will start the container we made previously and then attach to it (allow us to edit code and run commands), opening it in a new window.

3. Opening the Workspace

After the previous step, you should see an Open Folder button. Click it and type the path /f1tenth_workspace/.

It may take a few seconds to load.

You should see a src folder. This holds the f1tenth_simulator package and will also be the place we create our own packages.

You should open a terminal now, as we will need at least one to run the simulator and our code: Terminal (top taskbar) -> New Terminal.

You can see that a terminal opens, with the current directory being our workspace.

Each time you open a Terminal, you should run the ros-init script, as this will ensure you are able to use the ROS commands.

source /utils/ros-init.sh

Running the F1Tenth Simulator

When inside the running container, you may execute the run-simulator script from the utils folder. This will build the workspace, then use roslaunch to launch the simulator. As you get more used to ROS, you may not want to build the workspace each time, but for now, this is a foolproof way of getting the simulator running.

source /utils/run-simulator.sh

If you don't have display access set up yet you will see something like [rviz-X] process has died.... Don't worry, the simulator is still running, it just has no display output. See the end of this README to set up display access.

Choosing a racetrack

All of the racetracks in the F1Tenth Racetracks Repo can be used in the simulator. To choose a racetrack, you add the name of the track as a parameter in the run-simulator command, e.g. to run the simulator using Silverstone as the racetrack:

source /utils/run-simulator.sh Silverstone

Adding your own packages

Clone your package into the src directory. If you are in FTA, you will clone the FTA F1Tenth Driver in here.

Ensure you do a build of the workspace after you add a package so that ROS can find it:

cd /f1tenth_workspace
catkin_make
source devel/setup.bash

Making nodes launch whenever the Simulator launches

Makes testing smoother, as you can run everything from one terminal. This is best shown with an example.

In this case, you have created a package called my_package which contains a source file driver.py. To launch driver.py whenever the simulator launches, you would add the following line to the simulator.launch file:

<launch>
...
<node pkg="my_package" name="disparity_node" type="driver.py" output="screen"/>
</launch>

Note that the name field corresponds to what you decide to name the node when initializing it using rospy.init_node in the driver.py file.

Running nodes seperately while the simulator is running

Use the plus button in the Terminal window to add another terminal.

Run the usual initialization script as described above

source /utils/ros-init.sh

Ensure you are using the environment created when the workspace was last built

source /f1tenth_workspace/devel/setup.bash

Run a file in your package

rosrun <package-name> <filename>

Stuff to note about running packages:

• If you get an unexpected Couldn't find executable named..., you may need to make your file executable:

chmod +x <filepath>

• If you get something like Unable to register with master node, the simulator isn't running. Ensure the simulator is running before running your own packages.

• Having multiple terminals open can get confusing, luckily in VSCode you can rename each terminal to something more convenient: Right-click terminal name -> rename.

Enabling the container to display GUIs on the host machine (Windows)

Prerequisite: Chocolatey must be installed on your computer.

Warning: Some firewalls may block access so it might be necessary to disable your firewall when running the simulator.

Open Windows Powershell as Administrator and install the xming package

choco install xming

Open the XLaunch Application

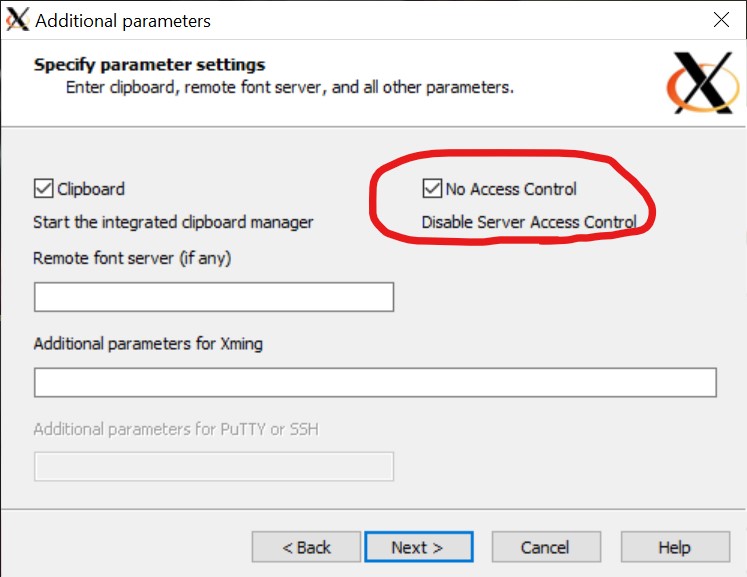

Follow the default settings for each step except the following

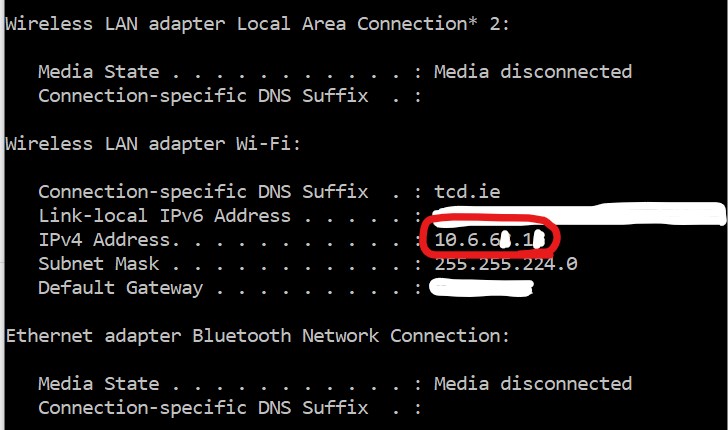

Once the XLaunch setup is finished, find your local IP Address by entering an ipconfig command in your local terminal

ipconfig

Your local IP should be found similarly to where its shown below (ignore the white marks)

Execute the setup-display script in the container passing your local IP Address as a parameter.

source /utils/set-display.sh <Local IP Address>

Now when you run the simulator you should see the display open in a new window.

Enabling the Container to display GUIs on the host machine (Ubuntu, and other)

First, install Rocker, then after you have built your image (step 3), run the following command in your Terminal to run the Docker image:

rocker [optional: --nvidia or --devices /dev/dri/card0] --x11 docker-ros
