Dependency cruiser

About

Just playing around building a simple dependency cruiser.

Features:

• Find import violations specified from a configuration file
• Create a graph of dependencies in .dot format
• Find cycles

How to run

Import violations

Configure rules

Those rules represent imports that are forbidden. For configuring them create a rules-config.json file in the root directory. The file schema should be like the following:

{
    "rules": [
        {
            "name": "{{Unique name for the rule}}",
            "fromPattern": "{{regex that matches the dependent module}}",
            "toPattern": "{{regex that matches the dependency module}}"
        },
        ...
    ]
}

Run

For running the program just do:

• yarn install
• yarn run violationsFromRuleFile -- {{rootFile}} {{rulesFilePath}}

Where:

• {{rootFile}} is the path of the source file to start cruising from. The .ts extension should be excluded.
• {{rulesFilePath}} is the path of the file that defines the rules

Dependency graph

Run

For running the program just do:

• yarn install
• yarn run exportDependencyGraph -- {{rootFile}}

Where:

• {{rootFile}} is the path of the source file to start cruising from. The .ts extension should be excluded.

The program will print into the standard output the content of a .dot file. This .dot file can be converted into an image using graphviz.

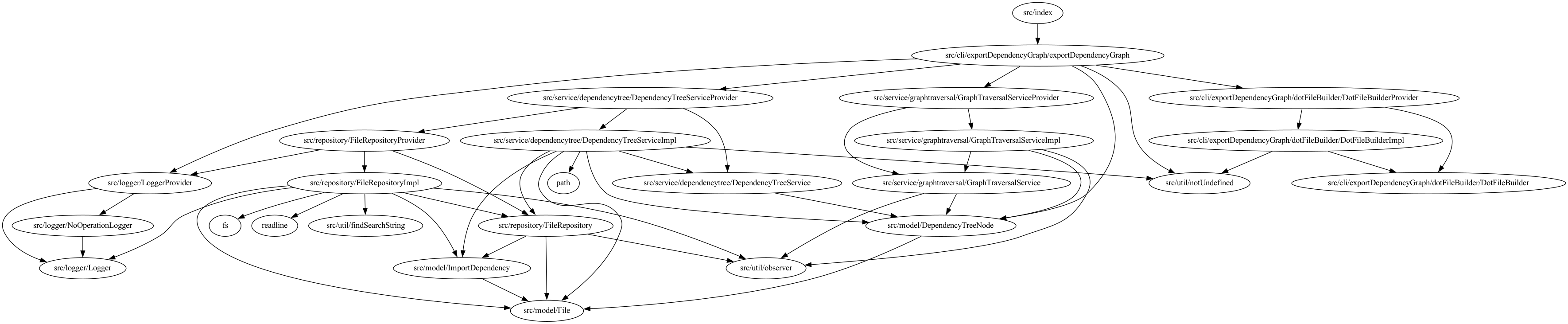

Example graph

Find cycles

Run

For running the program just do:

• yarn install
• yarn run findCycles -- {{rootFile}}

Where:

• {{rootFile}} is the path of the source file to start cruising from. The .ts extension should be excluded.

The program will print into the standard output the content of a .dot file. This .dot file can be converted into an image using graphviz.

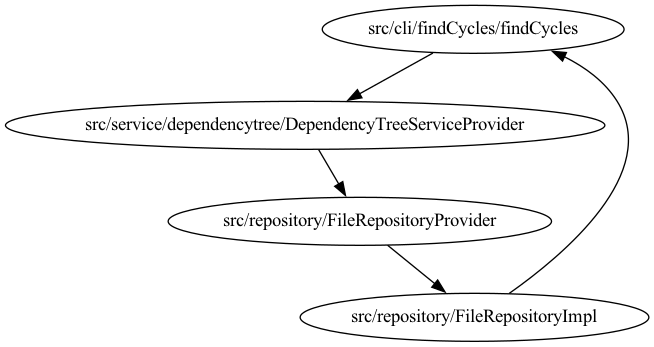

Example graph that I generated after adding a dependency from FileRepositoryImpl.ts to findCycles.ts

Drawbacks and pitfalls

• This is a very naive implementation and it is not optimized at all
• Only works with files that have a .ts extension
• The program takes the base path as the current working directory. This is used for mapping imports relative to the project to the absolute path in the computer.
