Turn any HDMI display into a self-updating Wi-Fi voucher kiosk with live weather, powered by Raspberry Pi.
PiSpot Show is a headless Raspberry Pi appliance that drives hotel lobby TVs and public-area monitors. Every hour it generates a fresh time-limited Wi-Fi voucher from the Spotipo captive-portal API, pulls a live weather forecast, and composites everything into a branded Full-HD image rendered directly to the Linux framebuffer -- no desktop environment required.
A PiJuice HAT provides battery-backed power management with RTC wake/sleep scheduling, a hardware watchdog, and graceful low-voltage shutdown, making the device suitable for unattended 24/7 operation.
Originally developed and deployed in 2018 for the company GPConnect. Part of the PiSpot ecosystem:
| Project | Description |
|---|---|
| PiSpot Watch | Wrist-wearable e-ink voucher device |
| PiSpot Show (this repo) | HDMI kiosk display for lobby TVs |
| PiSpot Deployment | Fleet provisioning and Vault configuration |
- Hourly voucher rotation -- generates a new Spotipo Wi-Fi voucher every hour with configurable duration, speed limits, device caps, and data quotas.
- Live weather overlay -- fetches temperature, "feels like", daily min/max, conditions, and forecast summary from the Dark Sky API with matching weather icons.
- Full-HD branded output -- 1920x1080 image composited with Pillow using custom Raleway typography, logos, SSID, voucher code, weather data, and current date.
- Framebuffer rendering -- pushes images directly to
/dev/fb0viafbi, bypassing X11/Wayland entirely for a minimal, kiosk-grade display pipeline. - PiJuice power management -- battery UPS with RTC wake-up alarms (e.g. 09:00 weekdays), scheduled shutdown via cron, hardware watchdog (5s), wake-on-charge at 20%.

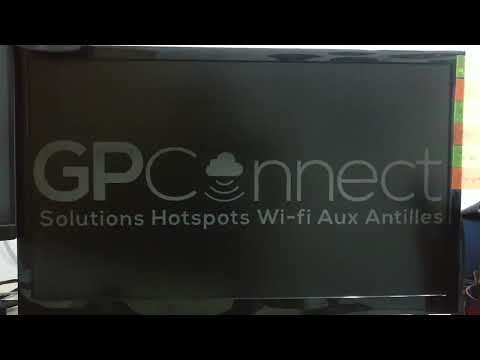

- Boot splash screen -- displays branding immediately on power-on via a dedicated systemd unit, before the main service starts.
- Ansible deployment -- single playbook provisions packages, creates users, generates SSH keys, clones the repo, registers services, configures WiFi, and optimizes GPU/USB power.

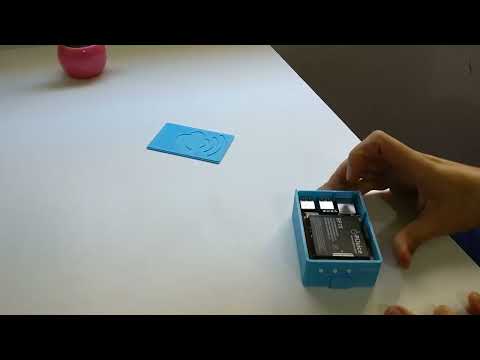

- 3D-printable enclosure -- FreeCAD parametric designs and ready-to-print STLs for a custom case with button panel and lid.
- Error resilience -- on API failure, renders an error screen and retries after 60 seconds without crashing.
See all photos in docs/photos/.
+------------------+
| HDMI Display |
| (1920x1080) |
+--------+---------+
|
+--------+---------+
| Raspberry Pi |
| + PiJuice HAT |
+--+-----+------+--+
| | |
+---------+ +--+--+ ++----------+
| | | | |
+-------v---+ +-----v-+ +-v--v------+ +---v--------+
| Spotipo | | Dark | | Pillow | | fbi |
| WiFi API | | Sky | | (image | | (framebuf |
| (voucher) | | (wx) | | render) | | display) |
+-----------+ +-------+ +-----------+ +------------+
- main.py runs in an infinite loop as a systemd service.
- Each hour, it POSTs to the Spotipo API to create a time-limited voucher.
- It GETs the current weather from Dark Sky (with localized language support).
- Pillow composites the voucher code, SSID, weather data, date, and branding onto a 1920x1080 PNG.
fbipushes the image to the Linux framebuffer.- piJuice_stop.py is called via cron to trigger a timed shutdown; the PiJuice RTC alarm handles the next wake-up.
| Component | Purpose |
|---|---|
| Raspberry Pi 3 (or later) | Main compute board |
| PiJuice HAT (1680 mAh) | Battery UPS, RTC alarms, watchdog, wake-on-charge |
| HDMI display (TV or monitor) | Guest-facing 1920x1080 voucher screen |
| MicroSD card (8 GB+) | Raspbian OS + application |
| Power supply (5 V / 2.5 A) | Board + HAT power |
git clone https://github.com/GeiserX/PiSpot-Show.git
cd PiSpot-ShowEdit main.py and set your credentials:
Spotipo_Key = "YOUR-SPOTIPO-TOKEN"
Darksky_Key = "YOUR-DARKSKY-KEY"Also update the Spotipo endpoint URL, SSID name, and weather coordinates.
ansible-playbook -i inventory deployment-files/main.ymlThe playbook handles: system packages (fbi, pijuice-base, imagemagick), Python dependencies, dedicated user with scoped sudo, SSH key generation, service registration, WiFi, timezone, and GPU/USB power optimization.
Set the RTC wake alarm via pijuice_cli (e.g. 09:00 weekdays) and add the shutdown cron:
crontab -e
# 0 17 * * * /usr/bin/python3 /opt/PiSpot_HDMI/piJuice_stop.pySet in the API request body inside main.py:
| Parameter | Default | Description |
|---|---|---|
duration_val |
4 |
Voucher validity period |
duration_type |
2 |
Duration unit (1=min, 2=hour, 3=day) |
num_devices |
10 |
Max concurrent devices per voucher |
speed_dl |
1024 |
Download speed limit (Kbps) |
speed_ul |
256 |
Upload speed limit (Kbps) |
bytes_t |
0 |
Data cap (0 = unlimited) |
Defined in pijuice_config.JSON:
- Low battery -- halt and power off
- Watchdog reset -- automatic reboot (5s period)
- Wake-on-charge -- boot at 20% battery
- Button / forced power off -- graceful halt
The Case/ directory contains a complete enclosure designed in FreeCAD:
| File | Description |
|---|---|
Caja.stl |
Main housing body |
Tapa.stl |
Top lid / cover |
Botonera.stl |
Button panel insert |
*.fcstd |
FreeCAD parametric source files |
*.gx |
Goxel voxel models |
PiSpot-Show/
main.py # Main loop: voucher + weather + render + display
piJuice_stop.py # Scheduled shutdown script
pijuice_config.JSON # PiJuice HAT event/watchdog configuration
fonts/ # Raleway Light + Black typeface
images/ # Backgrounds, logos, weather icons, generated output
servicefiles/
pispot_hdmi.service # Main application systemd unit
splashscreen.service # Boot splash systemd unit
deployment-files/
main.yml # Ansible provisioning playbook
wpa_supplicant.conf # WiFi network configuration
GitLabANDHostname.py # SSH key + hostname setup for fleet devices
Case/ # 3D enclosure (FreeCAD + Goxel + STL)
LICENSE # GPL-3.0
GNU General Public License v3.0
Contributions are welcome. Open an issue or submit a pull request.
This project follows the Contributor Covenant v2.1 Code of Conduct.
