This is a private fullstack application project. I was solely responsible for building and managing the **DevOps infrastructure** and **CI/CD automation**. My key responsibilities included

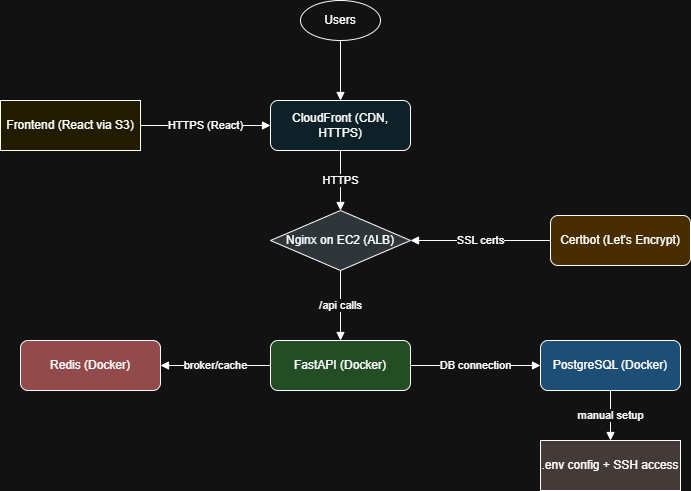

🧠 EC2 Manual Deployment Architecture

📘 Show Description

This diagram illustrates the manual deployment of the proskills backend project using EC2 and MobaXterm.

• Users access the frontend via CloudFront + S3
• ALB (Nginx) is manually configured on an EC2 instance with Certbot SSL
• /api requests are proxied to FastAPI running inside a Docker container
• Redis and PostgreSQL also run as Docker containers on the same EC2
• Configuration and deployment are handled manually using .env files and SSH

---

🏗️ Infrastructure with Terraform

• Designed and implemented modular infrastructure using Terraform
• Created reusable modules for:
  • network – VPC, subnets, route tables, IGW, NAT Gateway
  • security – IAM roles, security groups
  • alb – Application Load Balancer with HTTPS (ACM)
  • ecs – Fargate services: FastAPI, PostgreSQL, Redis
  • cloud map – Service Discovery between containers
• Configured private DNS (*.local) for internal service communication

---

⚙️ Backend & Frontend Deployment

• Built CI/CD pipelines using GitHub Actions:
  • FastAPI backend: Docker build → push to Amazon ECR → deploy to ECS Fargate or EC2
  • React frontend: npm build → upload to S3 → trigger CloudFront cache invalidation
• Integrated custom domains:
  • 🔗 https://api.myteamapp.click
  • 🔗 https://myteamapp.click

---

🐳 EC2 & Docker

• Manually tested backend deployment on EC2 with Docker:
  • FastAPI + Redis + PostgreSQL containers
  • Environment management via .env
  • Reverse proxy setup using Nginx
  • SSH access using .pem keys

---

🔐 HTTPS & Domains

• Configured HTTPS using AWS ACM and ALB listeners
• Managed DNS records using Route53
• Applied Basic Auth protection for the /docs route in Swagger (FastAPI)

---

🧪 Additional Tools

• copy_structure.py – Script to auto-generate the project folder structure
• start.sh – Shell script to bootstrap local development or deployment
• Maintained clean and modular separation in all Terraform configuration files

---

🔒 Access to Private Code

The actual backend and frontend code are stored in a private GitHub repository.
If you're an employer, reviewer, or team member – please contact me for access.

---

🧠 Team & Course

This project was developed by Team THE-GAME as part of a hands-on DevOps/Web Development course.
Each member was responsible for a real-world feature. My role focused entirely on DevOps and cloud infrastructure.

---

📷 Screenshots

You can add demo images, architecture diagrams, or GIFs here later.

---

📬 Contact

• 👤 Name: Vasyl Radashev
• 🛠️ Role: DevOps Engineer (Infrastructure & CI/CD)
• ✉️ Email: vasiliyradashev24@gmail.com

---

🧪 Frontend + Backend Integration
