RSDatePicker

A customizable UIView date/time picker that presents a native picker in a dropdown-style popover. Requires iOS 15 or newer.

Setup

• Storyboard: Create a UIView, set its custom class to RSDatePicker, and connect it with an @IBOutlet

• Code: let datePicker = RSDatePicker(frame: CGRect(x: 0, y: 0, width: 200, height: 44))

Usage

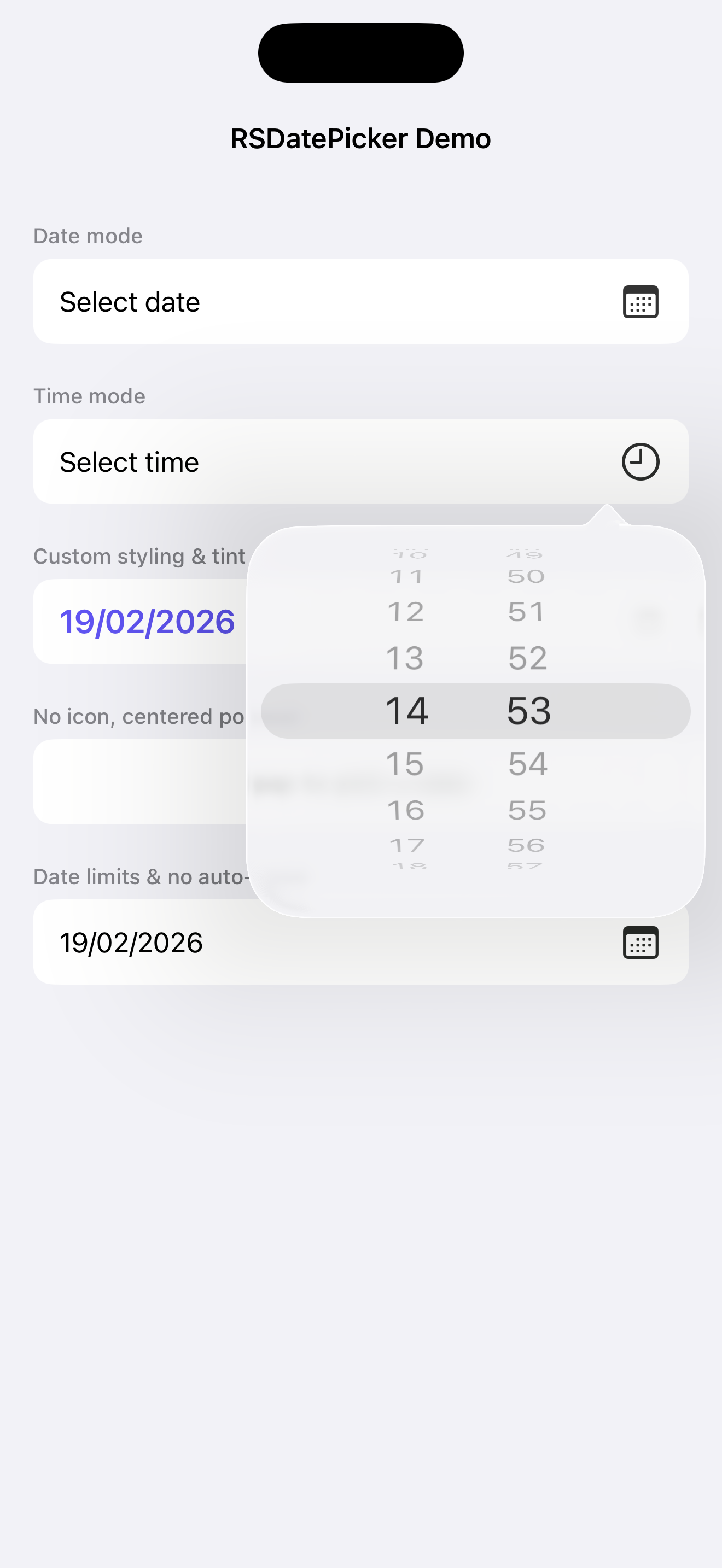

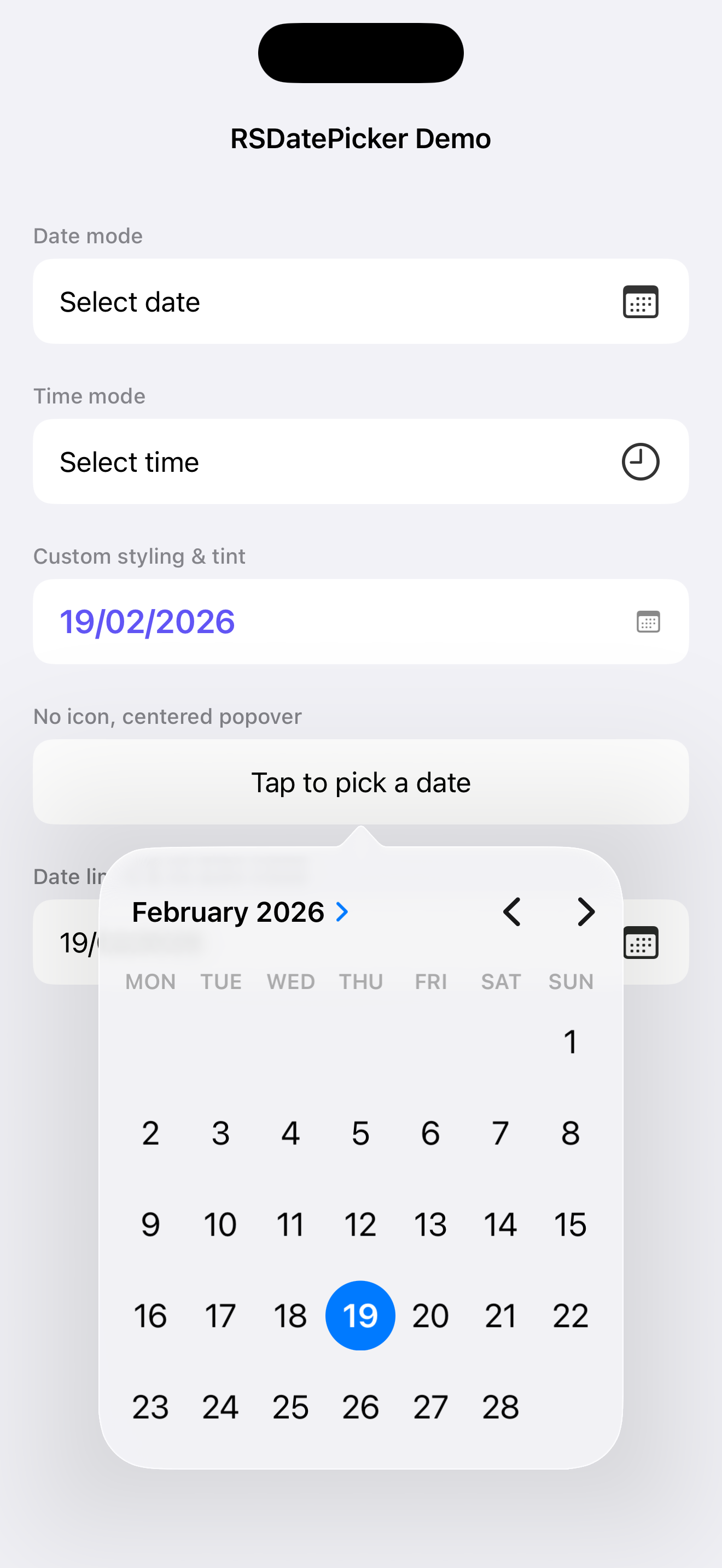

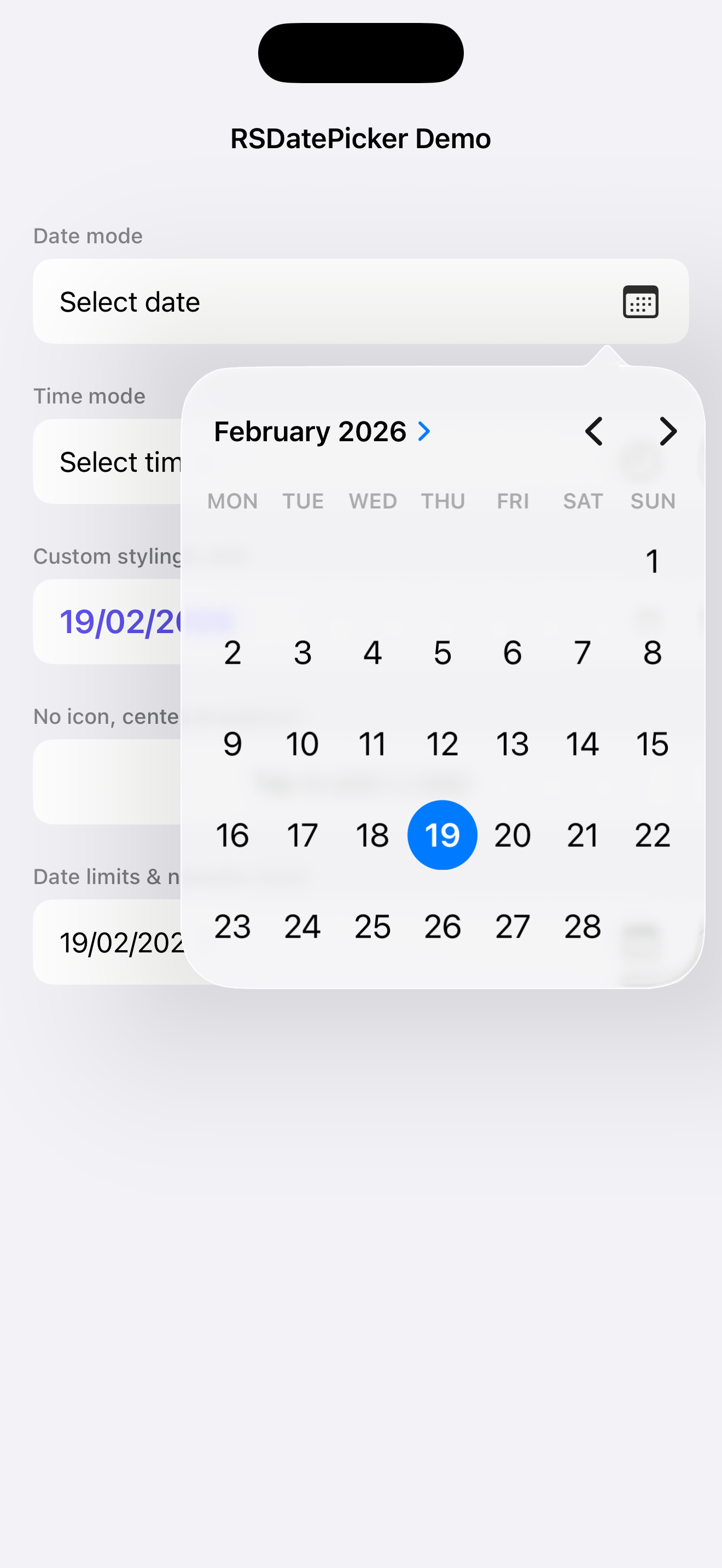

Tapping the view opens a popover containing a UIDatePicker — inline calendar for date mode, spinning wheels for time mode.

Configuration

Property	Type	Default	Description
currentDate	Date?	nil	Selected date. Shows placeholder when nil
initialText	String?	nil	Placeholder text. Auto-derives from pickerMode when nil
minimumDate	Date?	nil	Minimum selectable date
maximumDate	Date?	nil	Maximum selectable date
pickerMode	PickerMode	.date	.date (inline calendar) or .time (wheels)
dateFormat	String?	nil	Custom date format. Uses dd/MM/yyyy or HH:mm by default
closeWhenSelectingDate	Bool	true	Auto-close popover after selection (date mode only)

Appearance

Property	Type	Default	Description
font	UIFont?	System 17pt	Label font
textColor	UIColor?	.label	Label text color
calendarIconIsHidden	Bool	false	Hide the icon
calendarIconTint	UIColor	.label	Icon tint color
calendarIconSizeMultiplier	CGFloat	0.75	Icon size relative to view height (0.1–1.0)
calendarIconImage	UIImage?	nil	Custom icon. Auto-derives from pickerMode when nil
leftMargin	CGFloat	16	Left content margin
rightMargin	CGFloat	16	Right content margin
topMargin	CGFloat	8	Top content margin
bottomMargin	CGFloat	8	Bottom content margin

Popover

Property	Type	Default	Description
popoverAlignment	PopoverAlignment	.trailing	Arrow anchor: .leading, .center, or .trailing
popoverSize	CGSize?	nil	Custom popover size. Uses sensible defaults when nil
pickerTintColor	UIColor?	nil	Tint color for the picker inside the popover

Callback

datePicker.didChangeDate = { newDate in
    print(newDate)
}

Subclassing

Override updateUI() for custom setup that runs after initialization.

Full example

import RSDatePicker

@IBOutlet weak var datePicker: RSDatePicker!

datePicker.layer.cornerRadius = 16
datePicker.pickerMode = .date
datePicker.currentDate = Calendar.current.date(byAdding: .day, value: -1, to: Date())
datePicker.minimumDate = Calendar.current.date(byAdding: .day, value: -7, to: Date())
datePicker.maximumDate = Calendar.current.date(byAdding: .day, value: 30, to: Date())

datePicker.font = .systemFont(ofSize: 18, weight: .medium)
datePicker.textColor = .systemIndigo
datePicker.calendarIconTint = .systemIndigo
datePicker.pickerTintColor = .systemIndigo
datePicker.calendarIconSizeMultiplier = 0.6

datePicker.popoverAlignment = .center
datePicker.closeWhenSelectingDate = true

datePicker.didChangeDate = { newDate in
    print(newDate)
}

Migrating from v1

v2.0.0 is a full rewrite. The view no longer uses a XIB or an invisible UIDatePicker overlay — it presents a native picker in a popover instead.

Minimum iOS

Raised from 13.4 to 15.0.

Removed properties

v1 Property	Action
forceScalePicker	Remove. The popover handles sizing on all devices
closeAnimationDuration	Remove. The system popover animation is used
pickerAlignment (NSTextAlignment)	Replace with popoverAlignment (.leading / .center / .trailing)

Changed properties

Property	v1	v2
initialText	String (default "Select {DATE/TIME}")	String? (default nil, auto-derives from pickerMode)
calendarIconImage	UIImage (force-unwrapped default)	UIImage? (default nil, auto-derives from pickerMode)
calendarIconSizeMultiplier	CGFloat? (default nil)	CGFloat (default 0.75)
pickerMode	PickerMode? (default nil)	PickerMode (default .date)
leftMargin / rightMargin	Double (default 8)	CGFloat (default 16)

New properties

Property	Description
popoverAlignment	.leading, .center, .trailing — controls popover arrow position
popoverSize	Optional custom popover dimensions
pickerTintColor	Tint color for the picker inside the popover

Other changes

• The view IBOutlet is removed. Background color is set directly on the RSDatePicker instance.
• @available(iOS 15.0, *) annotations are removed since the package declares iOS 15 minimum.
• The icon automatically switches between calendar (date) and clock (time) based on pickerMode.

License

RSDatePicker is available under the MPL-2.0 license. More info available here.
