RefinedPool

Evading Elastic EDR call stack signatures through dynamic code cave injection

RefinedPool is an enhancement of LibTPLoadLib by @AlmondOffSec, which uses call gadgets to break the call stack signature used by Elastic EDR on proxying module loads via Windows Thread Pool API.

Original Technique

The original LibTPLoadLib technique (detailed in this blogpost) works by:

• Using Thread Pool callbacks to proxy LoadLibraryA calls
• Leveraging a call gadget (call r10; add rsp, 0x28; ret) to remove the callback function from the call stack

• This breaks Elastic's detection pattern that looks for suspicious call stacks when loading libraries

The original approach required:

• Loading a specific hardcoded DLL (dsdmo_10.0.26100.1882.dll) containing the gadget
• The DLL had to be manually placed at C:\dsdmo_10.0.26100.1882.dll
• This creates a circular dependency: loading a suspicious DLL to evade detection of loading DLLs

"Innovation"

The need for external hardcoded DLLs was eliminated by implementing dynamic code cave injection.

Instead of searching for pre-existing gadgets in hardcoded DLLs, RefinedPool:

1. Enumerates loaded modules in the current process
2. Locates code caves within executable sections, specifically:
   • Searches inside existing function boundaries using the Exception Directory (.pdata / RUNTIME_FUNCTION table)
   • Looks for continuous sequences of null bytes or INT3 instructions (0xCC)
   • Ensures the cave is at least 10 bytes to fit the gadget
3. Writes the gadget dynamically into the discovered code cave:

   41 FF D2        ; call r10
   33 C0           ; xor eax, eax
   48 83 C4 28     ; add rsp, 0x28
   C3              ; ret

4. Uses the injected gadget for the Thread Pool callback, just like the original technique

Advantages

• No external DLL dependencies: Works with modules already loaded in memory
• Stealthier: No suspicious DLL load operations that could trigger alerts
• More practical: Doesn't require specific Windows versions or pre-staged files
• Dynamic adaptation: Searches across multiple candidate modules automatically
• Function-aware: Preferentially places gadgets within legitimate function boundaries for "better stealth"

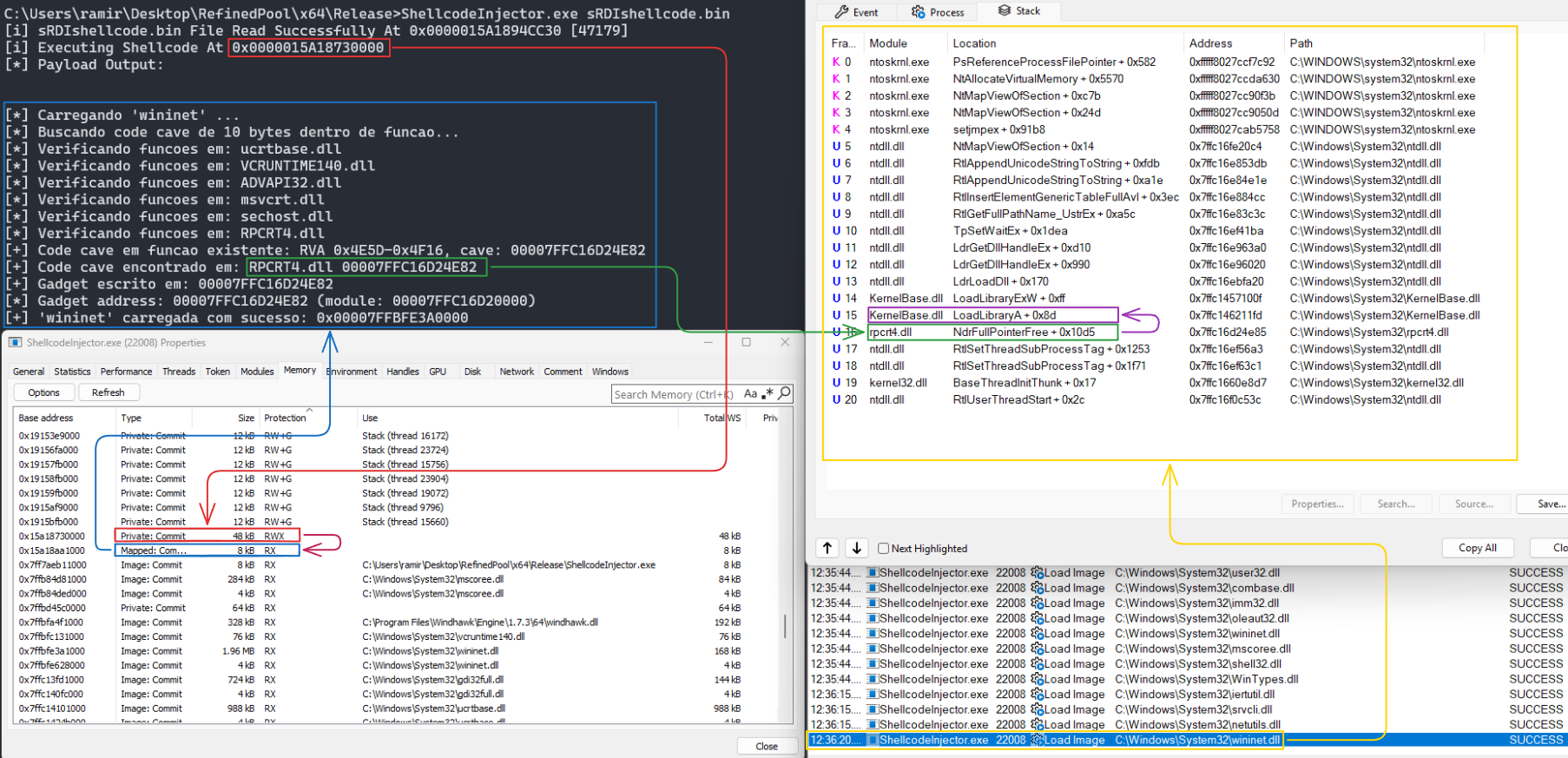

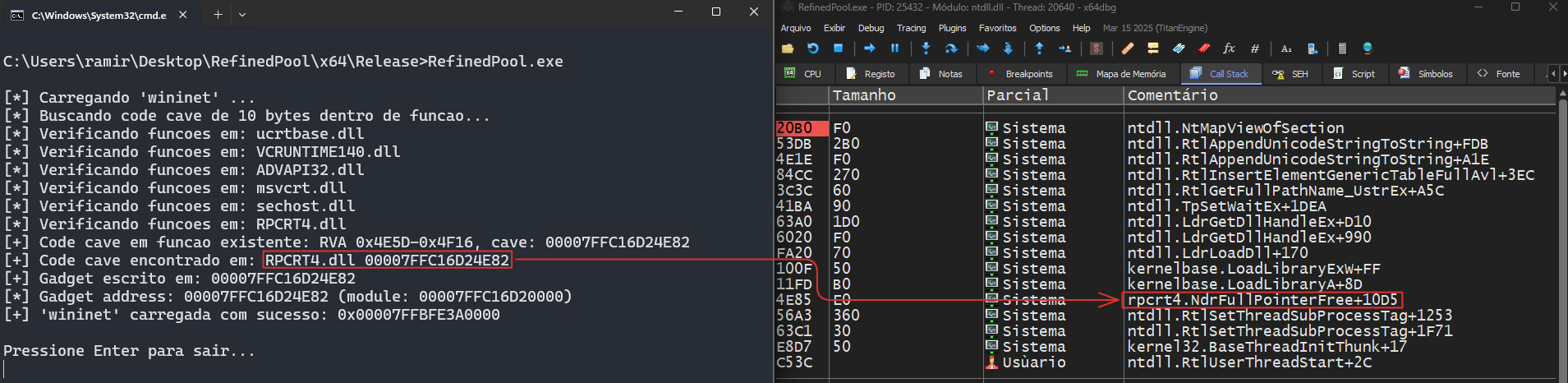

Call Stack Result

---

Module Exclusion List

To avoid critical system modules, RefinedPool excludes:

• ntdll.dll
• kernel32.dll
• kernelbase.dll

Methods

The methods can be easily alternated in "loadlib.c".

1. WriteGadget (primary method):

   • Combines code cave detection with dynamic gadget injection
   • Uses FindCodeCaveInFunction to locate suitable memory space
   • Writes the 10-byte gadget sequence directly into discovered code caves
   • Handles memory protection changes (VirtualProtect) automatically

2. FindCallGadget (original method):

   • Searches for pre-existing gadget patterns in loaded modules
   • Scans candidate DLLs for the byte sequence: 41 FF D2 ... 48 83 C4 28 C3
   • Kept for compatibility and fallback scenarios
   • Can be used as alternative when code cave injection is not desired

Credits & References

Original Work

• LibTPLoadLib by @AlmondOffSec
  • Repository: https://github.com/AlmondOffSec/LibTPLoadLib
  • Blog: https://offsec.almond.consulting/evading-elastic-callstack-signatures.html
  • License: BSD 3-Clause License (see tploadlib.c)

Inspiration & Research

• Elastic EDR detection rule - The signature this technique bypasses
• @rasta-mouse's LibTP - Format inspiration for the original project
• Crystal Palace - Shared library framework used in the original
• Carregamento por Proxy - My research on proxy loading techniques
• Return Address Spoofing - My research on call stack manipulation

License

This project respects the original BSD 3-Clause License from LibTPLoadLib. See the copyright notice in tploadlib.c for the original license terms.

Acknowledgments

Special thanks to @AlmondOffSec / @SAERXCIT for the original research and implementation that made this enhancement possible.
