Have a home network lab and need something better than a spreadsheet to plan and track your networks? Perhaps a small business, or even a medium-sized business. Need integrated address planning, DNS and DHCP all rolled into one, but found other solutions much too complicated (Netbox) or too simple (Pi-hole)? CIDRella is lightweight IP Address Management system that requires minimal system resources (can be deployed as a container or LXC) and minimal learning curve.
Pronounced cider-ella, a lame, near-homophone of Cinderella. Why? It's complicated.
CIDR stands for Classless Inter-Domain Routing. Read about it here.
- DNS Management — Forward and reverse zones with A, CNAME, MX, TXT, SRV records and auto-incrementing SOA serial. Automatic generation of PTR reverse-DNS zones
- DHCP management — Scopes, options (global defaults + per-scope overrides), MAC reservations, lease tracking
- Domain blocklists — Ad/malware blocking with multiple categories and auto-updates
- GeoIP DNS filtering — Country-based DNS filtering with blocklist/allowlist modes
- Anomaly Detection — Unusual host resolution or query frequency, DGA detection, beaconing detection
- Analytics — Visualize DNS query data, Top 10 activity, system performance
- Network & Domain Inheritance — Dividing an allocated subnet migrates gateway, DHCP scopes, and ranges to the inheriting child
- Functional ranges — Define IP ranges (DHCP scopes, static, custom) with overlap detection and color coding

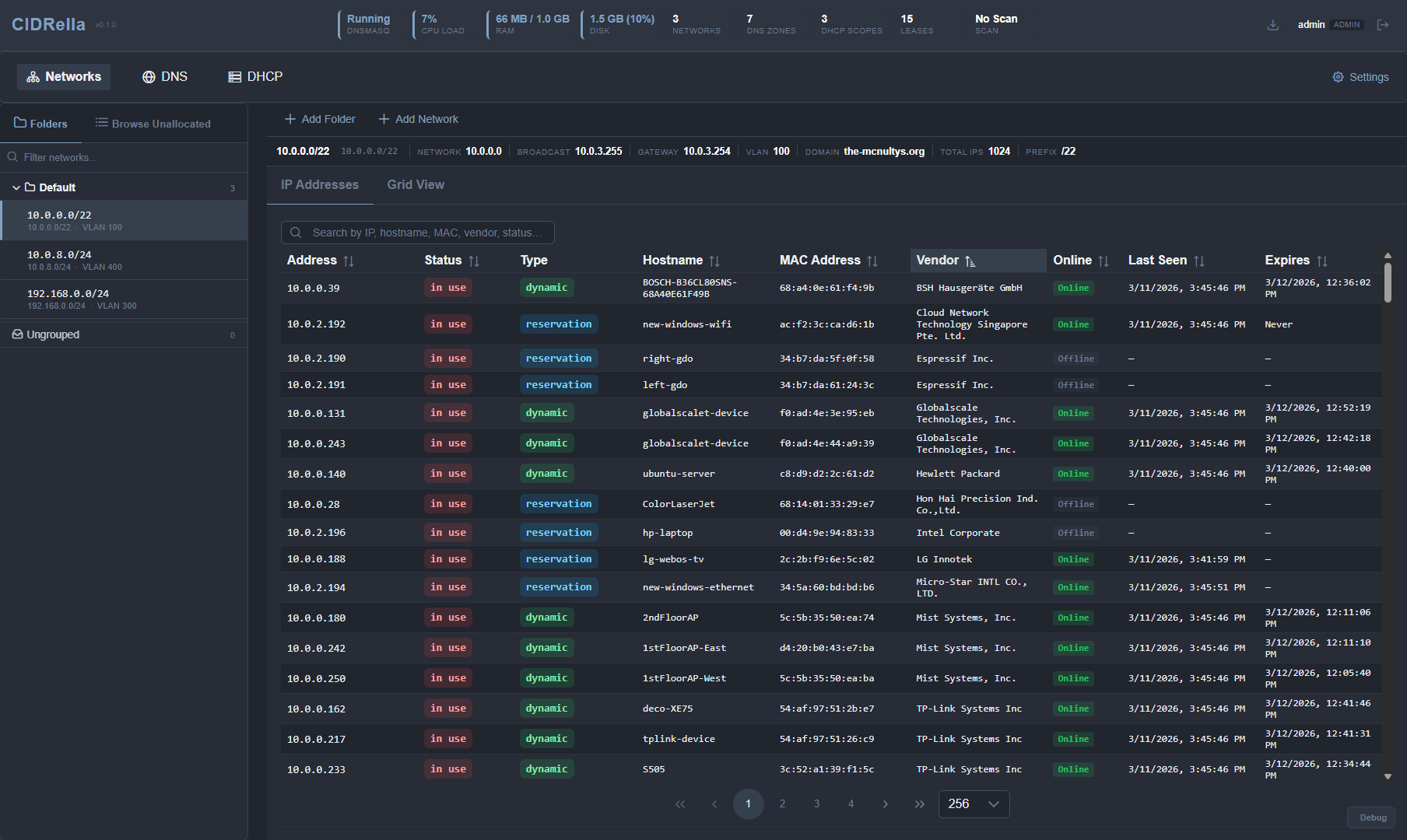

- IP address grid — Color-coded visual map with drag-select, shift-click range select, and context menu
- Network scanning & Rogue Detection — ARP/ping-based liveness scans with configurable intervals and per-subnet/per-IP enable inheritance
- Pi-hole import — Import DNS records, DHCP reservations, and settings from Pi-hole
- Backup & restore — Scheduled backups with retention policy, manual download, and upload restore
- Role based access control — RBAC with admin, dns_admin, dhcp_admin, and readonly roles
- In-app update checker — Periodic check against GitHub releases with UI notification
- Setup wizard — Guided first-run setup for interface binding, network creation, and Pi-hole import
Warning: While no known vulnerabilities exist in this application it would be unwise to expose its open ports on a public network. Always secure your infrastructure.
Choose your deployment method:
- Docker — Quick start for development and testing
- Native (Debian/Ubuntu) — Recommended for production on bare metal or LXC
| Layer | Technology |
|---|---|
| DNS/DHCP | DNSmasq |
| Backend | Node.js + Express |
| Frontend | Vue 3 + PrimeVue |
| Database | SQLite (better-sqlite3) |
| Database | DuckDB (for analytics and anomaly detection) |
| Custom | DNS proxy (for domain and country blocking) |
| Process Manager | s6-overlay (Docker), systemd (native) |
| Role | Description |
|---|---|
| admin | Full access to all features |
| dns_admin | Manage DNS records and zones |
| dhcp_admin | Manage DHCP scopes and reservations |
| readonly_dns | View DNS configuration |
| readonly_dhcp | View DHCP configuration |
| readonly | View all configuration |
