⚠️ Commercial use of this code is prohibited without explicit written permission from the author. For commercial licensing inquiries: liluelue7@gmail.com / 2586329235@qq.com

---

pip install git+https://github.com/jjjkkll157/agentgate.git

AgentGate is a local HTTP proxy for AI agent tool calls. It sits between your agent and the external APIs it calls, handling retries, rate limits, circuit breaking, and error formatting. One pip install, one YAML file, no cloud, no Kubernetes. Runs on localhost:9400.

If you have built an AI agent that calls external tools — search APIs, email, databases, anything with an HTTP endpoint — you know the drill: 429s at peak traffic, random 500s from upstream, schema changes that break your JSON parsing, connection drops mid-request. Every codebase copies the same retry boilerplate, and every codebase gets it slightly wrong.

AgentGate does this once, right, as a local sidecar.

Install

pip install git+https://github.com/jjjkkll157/agentgate.git

Python 3.10 or newer.

Or use Docker:

docker compose up

Quick start

Create tools.yaml — or pick a preset from presets/:

# Option A: start from a preset
cp presets/brave-search.yaml tools.yaml

# Option B: write your own
cat > tools.yaml << 'EOF'
tools:
  web_search:
    endpoint: https://api.search.brave.com/res/v1/web/search
    method: GET
    headers:
      X-Subscription-Token: "${BRAVE_API_KEY}"
    retry:
      max_attempts: 3
    ratelimit:
      max_per_minute: 20
    circuit_breaker:
      failure_threshold: 5
      cooldown_seconds: 30
    cache:
      ttl_seconds: 300
EOF

Start it:

agentgate --config tools.yaml

Call a tool:

curl -X GET "http://localhost:9400/tool/web_search?q=test"

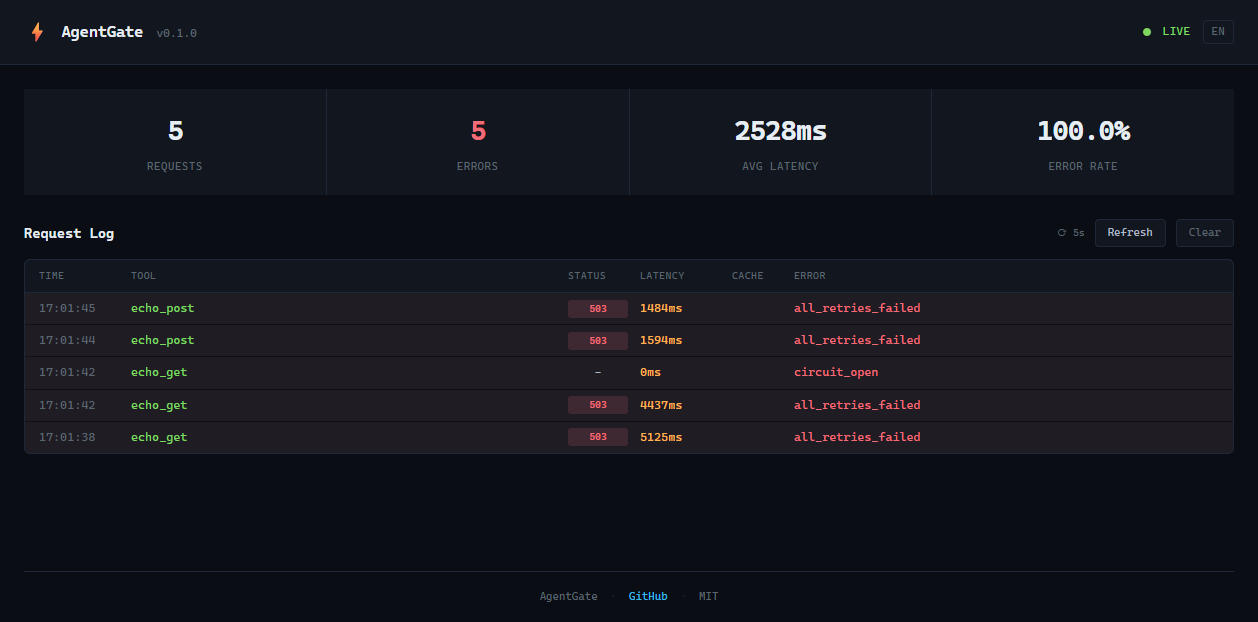

Dashboard at http://localhost:9400/dashboard.

Capabilities

Capability	Detail
Auto retry	Exponential backoff + jitter. Honors Retry-After headers.
Rate limit aware	Reads X-RateLimit-Remaining from API responses, syncs token bucket.
Circuit breaker	N failures → trip → cooldown → one probe → recover or re-trip.
Concurrency cap	Per-tool max_concurrent — asyncio.BoundedSemaphore.
Schema validation	Input/output JSON Schema checks before and after every call.
Middleware hooks	User-defined before / after Python hooks per tool.
Structured errors	{"error":true,"reason":"circuit_open","retry_after":30} — agents parse these.
Result cache	Same params → cached response within TTL. 10K-entry ceiling, LRU eviction.
Fallback chains	Primary fails → try the next tool in your list.
Health probes	Background periodic health checks, synced to circuit breaker.
Web dashboard	localhost:9400/dashboard — real-time log, EN/中 toggle, search & filter.
Dashboard replay	POST /dashboard/api/replay/{index} — re-run any logged request.
Breaker control	GET /api/breakers + POST /api/breakers/{name}/reset from dashboard.
Prometheus metrics	localhost:9400/metrics — counters, latency histograms per tool.
Graceful shutdown	Drains in-flight requests on SIGTERM. /health reports draining.
Auth	Bearer-token allowlist. Zero-config when disabled.
API presets	Drop-in configs for Brave Search, Resend, GitHub — presets/.
SSE streaming	GET /dashboard/api/stream — push real-time request log to browser.
Log export	GET /dashboard/api/log/export?format=csv|json — download logs.
Latency percentiles	p50/p90/p99 in /metrics (Prometheus summary) and /dashboard/api/stats.
Request ID propagation	X-Request-Id header forwarded to upstream for distributed tracing.
Tool enable/disable	POST /dashboard/api/tools/{name}/enable|disable at runtime.
Multi-tenant	API-key → tenant routing, per-tenant scopes, daily/monthly quotas.
OpenTelemetry	OTLP gRPC trace export to Jaeger/Tempo. In-process span fallback.
Redis HA	Circuit breaker, rate limit, and cache persistence across instances.
gRPC server	High-performance alternative to REST with HTTP/2 multiplexing.
Plugin SDK	plugin.yaml discovery, lifecycle hooks (pre_request, on_breaker_trip, …).
Enterprise auth	JWT/OAuth2 with JWKS validation, audit trail for admin actions.
Helm chart	charts/agentgate/ — HPA, PDB, Ingress, Redis, OTEL, Grafana dashboard.
SaaS admin panel	/admin/ — tenant usage, API key provisioning, audit log viewer.
Docker	docker compose up — one-command deployment with env vars.

Presets

Ready-to-use tool configs in presets/:

Preset	File	Env var needed
Brave Search	brave-search.yaml	BRAVE_API_KEY
Resend Email	resend.yaml	RESEND_API_KEY
GitHub API	github.yaml	GITHUB_TOKEN, GITHUB_REPO

cp presets/brave-search.yaml tools.yaml
# edit the env vars, then:
agentgate --config tools.yaml

Usage guide

With any AI agent (Python)

import requests

# Instead of calling APIs directly, point your agent at AgentGate.
# AgentGate handles retries, rate limits, circuit breaking automatically.
resp = requests.get(
    "http://localhost:9400/tool/web_search",
    params={"q": "latest AI news"},
)
data = resp.json()

if data["error"]:
    reason = data.get("reason", "unknown")
    wait = data.get("retry_after", 0)
    print(f"tool error: {reason}, retry in {wait}s")
else:
    results = data["data"]
    print(f"got {len(results)} results")

With OpenAI function calling

import openai, requests

def tool_handler(name: str, args: dict) -> dict:
    resp = requests.post(
        f"http://localhost:9400/tool/{name}",
        json=args,
    )
    return resp.json()

# Wire into OpenAI:
# completion = client.chat.completions.create(
#     model="gpt-4", messages=[...],
#     tools=[{"type": "function", "function": {"name": "web_search", ...}}]
# )
# for tool_call in completion.choices[0].message.tool_calls:
#     result = tool_handler(tool_call.function.name,
#                           json.loads(tool_call.function.arguments))

With LangChain / LlamaIndex

# LangChain: override the default requests Session
import requests
from langchain.tools import tool

@tool
def search(query: str) -> dict:
    """Search the web."""
    r = requests.get("http://localhost:9400/tool/web_search", params={"q": query})
    return r.json()["data"]

From any language (curl)

# Call any registered tool via HTTP
curl -X POST http://localhost:9400/tool/send_email \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer your-token" \
  -d '{"to": "user@example.com", "subject": "hello"}'

# Check tool health
curl http://localhost:9400/health

# Reset a tripped circuit breaker
curl -X POST http://localhost:9400/dashboard/api/breakers/web_search/reset

Adding authentication

# tools.yaml
tools:
  web_search:
    endpoint: https://api.brave.com/res/v1/web/search
    # ... tool config ...

auth:
  enabled: true
  tokens:
    - "sk-your-secret-token"

# Now every /tool/* call requires a bearer token:
curl -H "Authorization: Bearer sk-your-secret-token" \
  http://localhost:9400/tool/web_search?q=test

Multiple tools + fallback chain

tools:
  primary_search:
    endpoint: https://api.search.com/v1
    method: GET
    retry: {max_attempts: 2}
    circuit_breaker: {failure_threshold: 3, cooldown_seconds: 60}
    fallback:
      - backup_search

  backup_search:
    endpoint: https://backup-search.com/v1
    method: GET
    retry: {max_attempts: 1}

When primary_search fails all retries, AgentGate automatically calls backup_search.

Tuning for production

Goal	Setting
Reduce API costs	cache.ttl_seconds: 300 (cache identical requests 5 min)
Survive upstream outages	circuit_breaker.failure_threshold: 3 (trip after 3 failures)
Avoid rate limit bans	ratelimit.max_per_minute: 50 (stay under API quota)
Cap parallelism per tool	concurrency.max_concurrent: 10
Degrade gracefully	fallback: [backup_v1, backup_v2] (try backups in order)

Config reference

tools:
  my_tool:
    endpoint: https://api.example.com/v1/action
    method: POST               # default: POST
    headers:
      Authorization: "Bearer ${MY_API_KEY}"
    retry:
      max_attempts: 3
      backoff: exponential     # exponential | linear | fixed
      initial_delay: 1.0
      max_delay: 60.0
    ratelimit:
      max_per_minute: 60
    circuit_breaker:
      failure_threshold: 5
      cooldown_seconds: 30
    concurrency:
      max_concurrent: 10       # 0 = unlimited
    timeout: 30.0
    cache:
      ttl_seconds: 300         # 0 disables caching
    fallback:
      - backup_search
    middleware:
      before: []
      after: []

How it works

  AI Agent
     │
     │  POST /tool/web_search {"q": "..."}
     ▼
┌─────────────────────┐
│   AgentGate :9400   │
│                     │
│  cache  → hit? return cached
│  rate limit → queue if no tokens left
│  circuit breaker → reject if circuit open
│  retry loop → 429/5xx → wait → retry
│  fallback → try backup tools on exhaustion
│  forward → real API
└─────────────────────┘

API quick reference

Endpoint	Method	Description
/health	GET	Breaker states, tool list, drain status
/version	GET	Version string
/metrics	GET	Prometheus format
/tool/{name}	GET/POST/…	Proxy call to registered tool
/dashboard/	GET	Web UI
/dashboard/api/log	GET	Searchable request log ?tool=X&error_only=1&q=…
/dashboard/api/replay/{idx}	POST	Replay logged request
/dashboard/api/breakers	GET	All breaker states
/dashboard/api/breakers/{n}/reset	POST	Force-reset a breaker

Why not use agentgateway?

agentgateway is an enterprise agent governance layer built for Kubernetes. It requires CRDs, Gateway API, and a cluster to run. AgentGate is a single process — pip install && agentgate start. Same root concept, different user. Agentgateway is for platform teams managing hundreds of agents. AgentGate is for a developer who needs their tool calls to stop breaking.

License

MIT — with commercial-use restriction (see notice above).
