feat: add animated GIF export to record-video

[kws0210]

Tracking: LINECLIENT-1689 (LY internal)

What

record-video gains --format mp4|gif on all three surfaces (top-level, ios record-video, android record-video).
The format is also inferred from a .gif --output extension; an explicit --format wins, with a stderr note on mismatch.

sim-use record-video --output demo.gif            # inferred; 10 fps / 0.5 scale GIF defaults
sim-use record-video --format gif --fps 15 --scale 0.4

Why

Animated GIFs auto-play inline in PRs / issues / chat, which makes them the most convenient evidence format for short agent-driven verification flows — today producing one requires an out-of-band ffmpeg conversion.

Design

GIF is a post-stop transcode, not a fourth capture path: none of the capture pipelines (idb's in-process recorder on iOS, adb screenrecord passthrough on Android, the screenshot/screencap fallbacks) expose decoded frames in-process, and the signal-to-finalise path is latency-critical. Capture lands in an intermediate MP4; on stop, GIFTranscoder (in SimUseVideo) decodes it with AVAssetReader and encodes a looping GIF via CGImageDestination.

• Two decoding passes bound decode memory to one frame: pass 1 collects display-timeline PTS (CGImageDestination needs the frame count up front; passthrough PTS carry B-frame reorder offsets and un-applied edit lists, so a non-decoding read can't drive the plan), pass 2 appends only the sampled frames.
• Sampling walks a 1/fps target clock (capped at 50 fps — the GIF centisecond delay floor makes faster pacing dishonest), normalizing Android's VFR capture; per-frame delays follow source timestamp gaps.
• Shared orchestration: RecordingOutputPlan owns resolve → warn → prepare → stale-intermediate cleanup → transcode for every surface, so the flag contract can't drift between platforms (same posture as VideoRecordingOptions).
• Failure safety: a failed transcode preserves the intermediate MP4 (and says where), removes the partially written GIF, and a stale intermediate from a previous failed/killed run is cleared before capture. The capture signal observer is torn down before the transcode so Ctrl+C during a long encode stays effective. Encodes past ~300 frames print a memory warning (ImageIO holds all frames until finalize; documented in the README).

Base

Started from 50bc5a0 and rebased onto da63f16 (post-v0.12.0), relocating the code into the SimUseVideo module introduced by #79 — which is also what made the android record-video surface come along for free (as discussed on Slack).

Testing

• make test fully green (834 unit tests), including 16 new GIFTranscoderTests — sampling-plan properties, format/option resolution, output-plan lifecycle, and a real MP4→GIF round-trip synthesized through H264StreamRecorder (no simulator needed).
• Live-verified on an iPhone 17 simulator (iOS 26) against LINE Dev: multiple end-to-end repro GIFs recorded with a single command each (see Demo).

Demo

Each recorded against LINE Dev on an iPhone 17 simulator with a single record-video --output <name>.gif invocation (touch points enabled in the app):

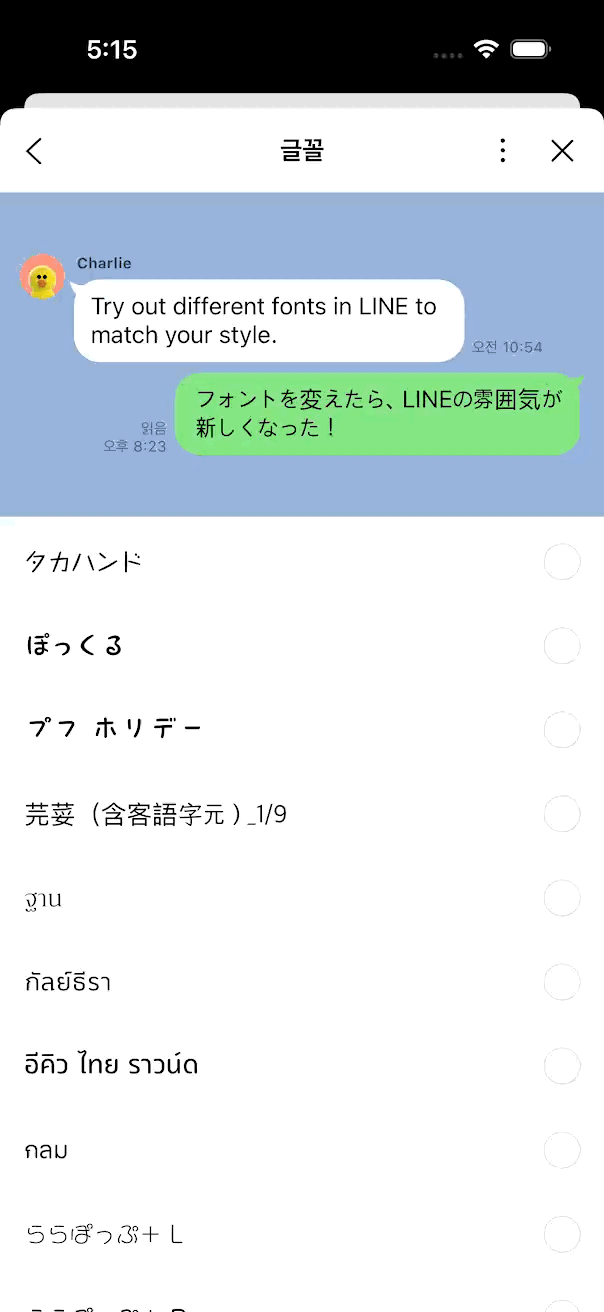

Open the camera from the LINE AI screen (83 frames, 905 KB)	Change the app font and apply (68 frames, 626 KB)

🤖 Generated with Claude Code

[onevcat]

The current sampling plan can stretch GIF playback at the documented 50 fps cap.

For a 60 fps source with --fps 60 (capped to 50), pts >= nextTarget - epsilon admits frames that are only 16.7 ms apart. Each is then independently clamped to the GIF 20 ms floor. Over a 10-second source this yields about 400 GIF frames and about 10.65 seconds of playback; a 120 fps source produces about 10.80 seconds. This breaks the stated wall-clock pacing guarantee on a normal iOS 60 fps recording path.

Could we make frame selection and centisecond quantization share a cumulative timing model, so the 20 ms floor does not lose timing debt? Re-selecting frames or carrying the rounding error into subsequent delays would both avoid the stretch.

Please also add 60 fps and 120 fps source cases with --fps 60, asserting total GIF duration to centisecond-level tolerance. The current abs(duration - 1.0) < 0.1 check allows this regression through.

[kws0210]

Confirmed — a code bug, not a doc issue: the admission tolerance let sub-2cs gaps through, and independent clamping accumulated exactly the stretch you measured.

Fixed in 35848ce with your cumulative timing model:

1. Selection skips any frame closer than minimumDelay to the last kept frame — no chosen gap ever needs clamping.
2. Delays quantize the cumulative timeline to centiseconds, so rounding carries forward instead of accumulating.

Added the requested 60/120 fps source tests (10 s at --fps 60, abs(duration - 10.0) <= 0.02) and tightened the cap test to the same tolerance.
Suite green (835).

[onevcat]

@kws0210 Thank you! LGTM and this is really useful!
