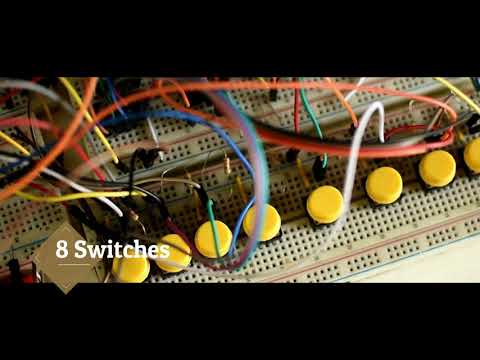

The objective of this project was to develop game “Hit the Rabbit”. In our project we used various basic logic gates, combinational circuits, and sequential circuits. The Proteus 8 Professional software was used to simulate the designed circuit to display its function. In this game we created a clock pulse and that is connected to a pseudo random number generator. The random number generator is connected to a 3 to 8 line decoder, and the decoder lit one led at a time. The player’s target is to click the corresponding button that is connected to led. If the player presses exact button which is connected to the led which is on he will get a point. And in every wrong press his point will be lessened. The game will be over after 1 minute. Features:
- Positive point for right response.
- Negative point for wrong.
- Difficulty adjustment.
- Reset game after some time
Project Detailed Report: https://github.com/mahmudulislam299/Hit-The-Rabbit-Game-Using-only-Logic-Circuit/blob/master/Final%20DE%20report.pdf
YouTube link: https://www.youtube.com/watch?v=cN8vq0HzhgA
