x402 Facilitator

Self-hosted payment facilitator for the x402 protocol. Supports EIP-7702 (any ERC-20, native ETH) and ERC-3009 (USDC) payment mechanisms. Enables gasless transfers on any EVM chain.

How It Works

The facilitator acts as a trusted relayer between a buyer and seller. The buyer never needs ETH for gas — the relayer pays gas and submits a Type 4 (EIP-7702) transaction that delegates the buyer's EOA to a Delegate contract, which then executes a signed token transfer.

  BUYER                     SELLER                   FACILITATOR
    |                         |                          |
    |--- GET /resource ------>|                          |
    |<-- 402 + requirements --|                          |
    |                         |                          |
    |  [sign EIP-712 intent]  |                          |
    |  [sign EIP-7702 auth]   |                          |
    |                         |                          |
    |--- GET + PAYMENT ------>|                          |
    |                         |--- POST /verify -------->|
    |                         |<-- { isValid: true } ----|
    |                         |--- POST /settle -------->|
    |                         |                     [submit Type 4 tx]
    |                         |                     [relayer pays gas]
    |                         |<-- { tx: 0x... } --------|
    |<-- 200 + data ----------|                          |

Packages

Package	Description
packages/contracts	Solidity Delegate.sol — EIP-7702 delegate for gasless payment intents
packages/eip7702	EIP-7702 mechanism library — verify + settle any ERC-20 via viem
packages/server	Unified CLI server — supports EIP-7702 + ERC-3009 mechanisms
packages/dash	Real-time dashboard for monitoring facilitator balances and transactions
packages/demo	Interactive demo with dual-token (USDT + USDC) buyer/seller agents

Quick Start

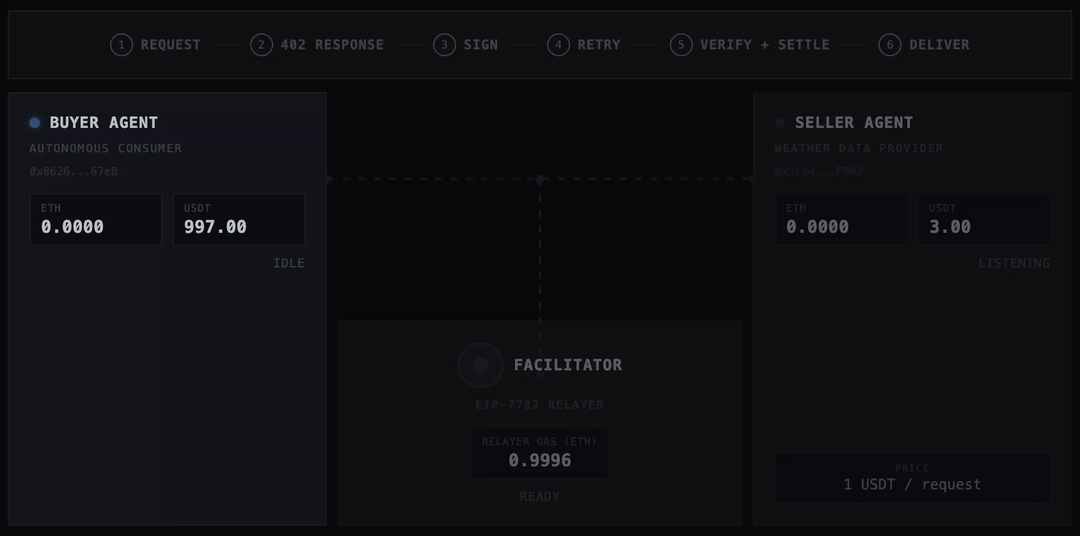

Try the Demo

Requires: Foundry (for Anvil)

curl -L https://foundry.paradigm.xyz | bash

npx @facilitator/demo

Note: You can also use bunx, yarn dlx, or pnpm dlx if you prefer.

Then in a new terminal, run the facilitator command printed by the demo:

npx @facilitator/server \
    --relayer-key 0x... \
    --delegate-address 0x... \
    --rpc-url http://127.0.0.1:8545

Open http://localhost:3030 and click INITIATE.

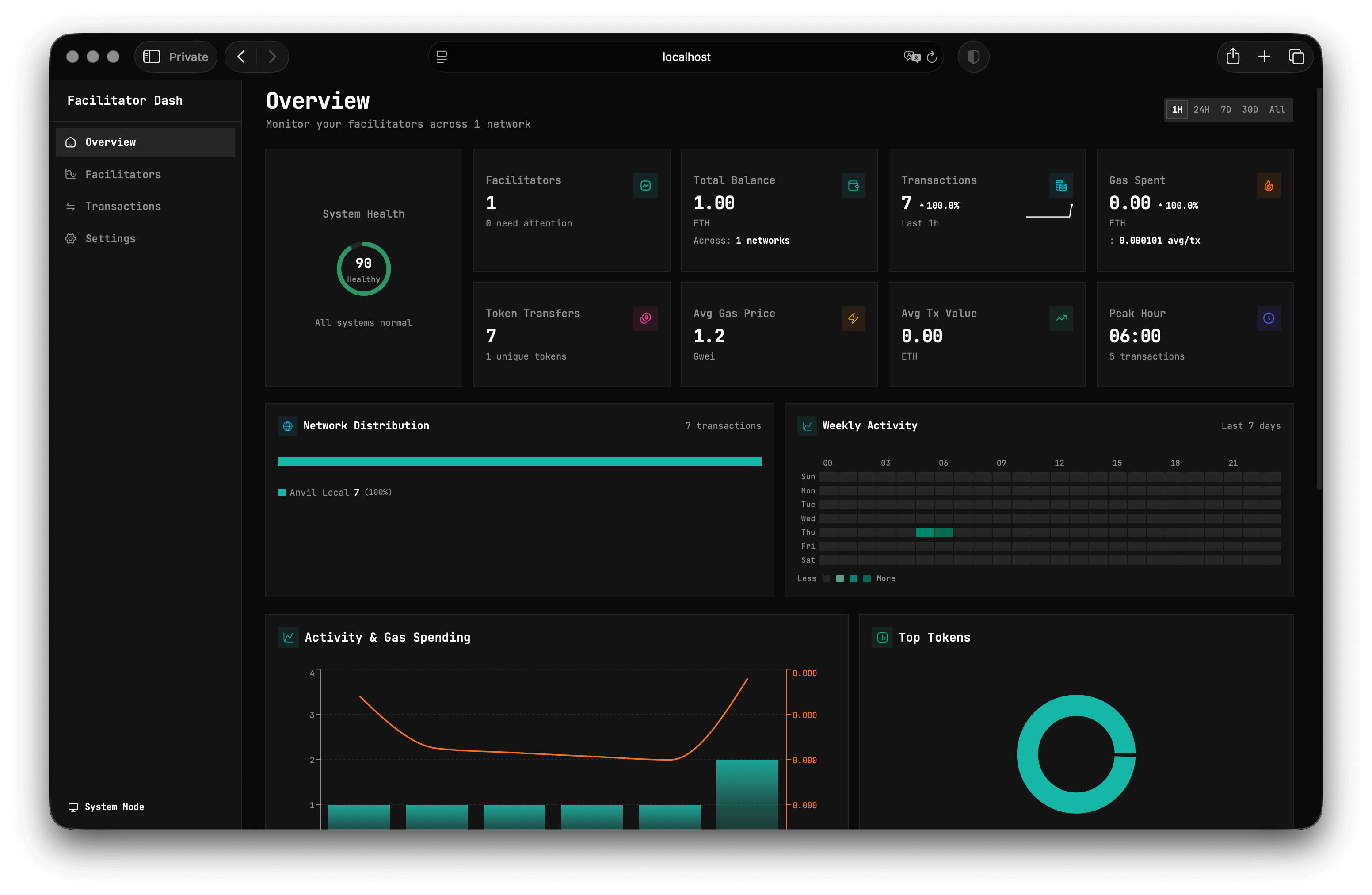

Facilitator Dashboard

npx @facilitator/dash

Deploy Your Own

1. Deploy the Delegate contract (same address on every chain via CREATE2):

forge install melonask/facilitator
forge \
    script lib/facilitator/packages/contracts/script/Deploy.s.sol \
    --rpc-url <RPC_URL> \
    --broadcast

2. Run the facilitator:

Multi-Chain:

npx @facilitator/server \
  --relayer-key 0x... \
  --chain 1=https://,https:// \
  --chain 137=https://polygon-rpc.com

Single-Chain:

npx @facilitator/server \
  --relayer-key 0x... \
  --rpc-url https://...

The server automatically resolves the Delegate.sol address for known networks (Ethereum, Polygon, Base, Optimism, Arbitrum, BNB Chain, Avalanche). For custom deployments, pass --delegate-address 0x... explicitly.

API

TypeScript server HTTP API:

Endpoint	Method	Description
/verify	POST	Verify a signed payment (read-only, no state change)
/settle	POST	Verify + submit Type 4 transaction on-chain
/supported	GET	List supported schemes, networks, and signers
/healthcheck	GET	Server health status

Request body for /verify and /settle:

{
  "paymentPayload": {
    "payload": {
      "authorization": {
        "contractAddress": "0x...",
        "chainId": 1,
        "nonce": 0,
        "r": "0x...",
        "s": "0x...",
        "yParity": 0
      },
      "intent": {
        "token": "0x...",
        "amount": "1000000",
        "to": "0x...",
        "nonce": "123",
        "deadline": "1700000000"
      },
      "signature": "0x..."
    }
  },
  "paymentRequirements": {
    "scheme": "eip7702",
    "network": "eip155:1",
    "asset": "0x...",
    "amount": "1000000",
    "payTo": "0x..."
  }
}

Verification Checks

The facilitator performs these checks before settlement:

1. Recover signer from EIP-7702 authorization
2. Verify delegate contract address is trusted
3. Verify EIP-712 intent signature matches authorization signer
4. Check intent matches payment requirements (recipient, amount, asset)
5. Check deadline has not expired
6. Check nonce has not been used (replay protection)
7. Check payer has sufficient token/ETH balance on-chain

Supported Mechanisms

This facilitator supports both mechanisms simultaneously:

	ERC-3009 (exact scheme)	EIP-7702 (eip7702 scheme)
Token support	Only tokens with transferWithAuthorization (USDC)	Any ERC-20 (USDT) + native ETH
Mechanism	Token-level authorization	Account-level delegation
Smart wallets	Requires EIP-6492 for counterfactual	Direct EOA delegation
Gas	Relayer pays gas	Relayer pays gas
Chain support	Chains with USDC deployment	Any EVM chain with EIP-7702

License

MIT
