Project Aegis

An air-gapped AI gaming companion that observes your game from a physically separate device — no code injection, no kernel hooks, no process memory access. Works with Claude, Gemini, GPT-4o, or fully offline with Ollama.

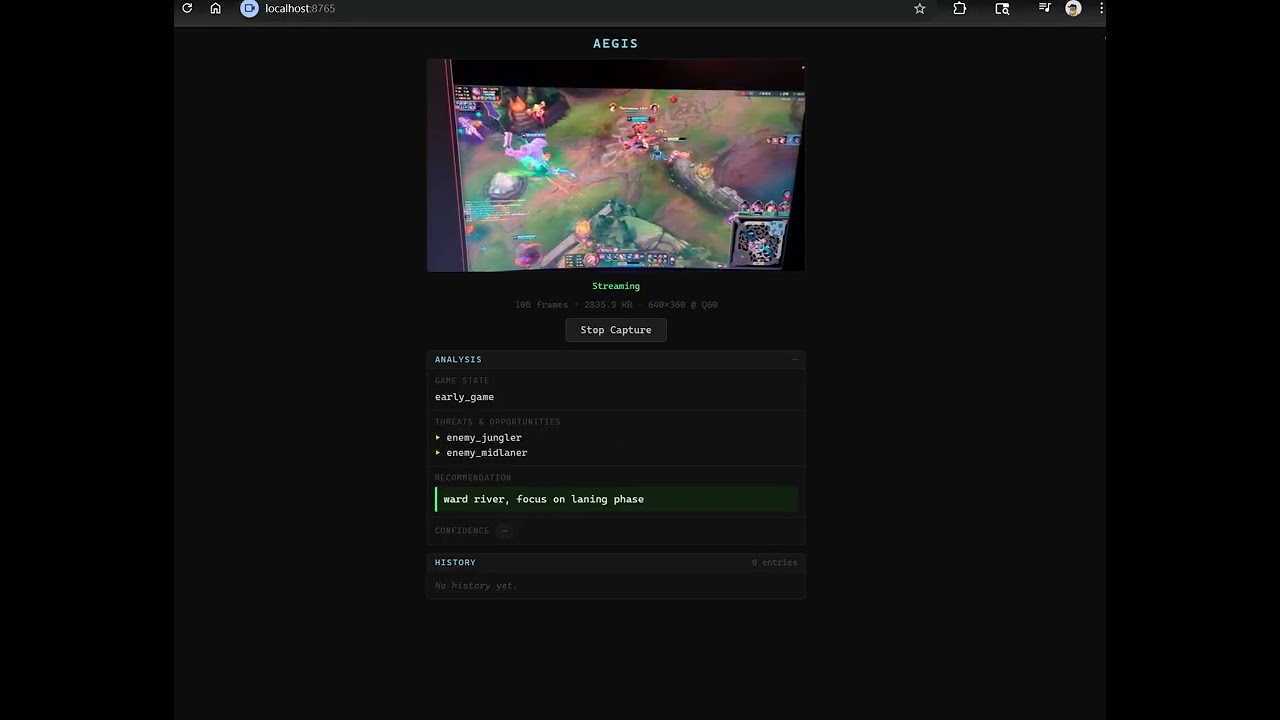

Demo

How it works

Game monitor
     │
     ▼  (phone camera or HDMI capture card)
[Separate device running Aegis]
     │
     ├── Receives frames via WebSocket (phone) or cv2.VideoCapture (capture card)
     ├── Preprocesses frames (resize + grayscale + CLAHE contrast enhancement)
     ├── Skips API call if frame hasn't changed enough (frame diff)
     ├── Sends frames to the configured AI provider every N seconds
     └── Streams structured analysis back to your browser in real-time

Because Aegis runs on a separate machine and only passively observes the screen (like a human watching a monitor), it is invisible to kernel-level anti-cheat software on the gaming PC.

---

Supported AI Providers

Provider	Default Model	Requires	Notes
claude	claude-opus-4-6	Anthropic API key	Default, best quality
gemini	gemini-1.5-flash	Google API key	Fast, cost-effective
openai	gpt-4o-mini	OpenAI API key	Widely available
ollama	llava	Ollama running locally	Free, fully offline
mistral	pixtral-12b-2409	Mistral API key	Pixtral multimodal
groq	llama-3.2-11b-vision-preview	Groq API key	Fastest inference

Set AI_PROVIDER in .env to switch. Only install the SDK for the provider you use.

---

Architecture

Project_Aegis/
├── main.py                  # FastAPI app, lifespan, all routes & WebSockets
├── config.py                # ENV-based config (pydantic-settings)
├── intake/
│   ├── base.py              # BaseVideoIntake ABC
│   ├── phone_browser.py     # WebSocket JPEG intake, resize + CLAHE, compressed storage
│   └── capture_card.py      # cv2.VideoCapture in background thread
├── engine/
│   ├── processor.py         # Frame → AI loop, frame diff, history, TTS, pub/sub
│   └── tts.py               # pyttsx3 TTS engine (daemon thread, queue-based)
├── providers/
│   ├── base.py              # BaseAIProvider ABC  →  analyze_frame() -> dict
│   ├── claude_vision.py     # Claude Opus 4.5 (Anthropic)
│   ├── gemini_vision.py     # Gemini 1.5 Flash (Google)
│   ├── openai_vision.py     # GPT-4o Mini (OpenAI)
│   └── ollama_vision.py     # LLaVA / any local Ollama model
├── scripts/
│   └── generate_cert.py     # Self-signed TLS cert generator (trustme)
├── static/
│   └── index.html           # Phone frontend — camera stream + analysis UI
├── .env.example
└── requirements.txt

---

Structured analysis output

Every frame analysis returns a structured JSON object:

{
  "game_state":     "Player is low health, two enemies flanking from the right.",
  "threats":        ["Enemy sniper on rooftop", "Low ammo"],
  "recommendation": "Take cover behind the wall to the left immediately.",
  "confidence":     "high",
  "timestamp":      "2026-03-03T14:23:01.123Z"
}

---

Intake modes

Phone browser (default)

Open http://<server-ip>:<port> on your phone — it streams the rear camera at 10 FPS over WebSocket. No app required.

Capture card

Connect an HDMI capture card to the Aegis machine and set INTAKE_MODE=capture. Reads directly from the device at 30 FPS.

---

Setup

1. Clone and install

git clone https://github.com/ninja-otaku/Project_Aegis.git
cd Project_Aegis
pip install -r requirements.txt

2. Configure

cp .env.example .env
# Edit .env: set AI_PROVIDER and the matching API key

3. Run

python main.py

Open http://<server-ip>:8765 on your phone or any browser on the same network.

---

Phone camera not working?

Most mobile browsers block camera access (getUserMedia) over plain HTTP on non-localhost connections. You need HTTPS.

pip install trustme
python scripts/generate_cert.py
# Set TLS_ENABLED=true in .env
python main.py
# Open https://<server-ip>:8765 on your phone
# Accept the self-signed cert warning

To remove the browser warning entirely, install certs/ca.pem as a trusted CA on your phone (Settings → Security → Install certificate).

---

Endpoints

Endpoint	Description
GET /	Phone browser frontend
GET /health	Service status, provider info, frame/analysis timestamps
GET /analysis	Latest AI analysis (polling)
GET /history	All retained analyses, newest first
WS /ws/intake	Binary JPEG frame ingestion (phone mode)
WS /ws/analysis	Real-time structured analysis stream
GET /profiles	List available profiles and active profile
POST /profiles/activate	Hot-reload a profile {"profile": "valorant"}

---

Configuration reference

Variable	Default	Description
INTAKE_MODE	phone	phone or capture
CAPTURE_DEVICE_INDEX	0	cv2 device index (capture mode)
PHONE_WS_PORT	8765	Server listen port
PHONE_FRAME_WIDTH	640	Resize phone frames to this width (px)
PHONE_COMPRESS_QUALITY	70	JPEG quality for compressed frame storage
AI_PROVIDER	claude	claude | gemini | openai | ollama
ANTHROPIC_API_KEY	—	Required for claude provider
CLAUDE_MODEL	claude-opus-4-6	Claude model string
GEMINI_API_KEY	—	Required for gemini provider
GEMINI_MODEL	gemini-1.5-flash	Gemini model string
OPENAI_API_KEY	—	Required for openai provider
OPENAI_MODEL	gpt-4o-mini	OpenAI model string
OLLAMA_HOST	http://localhost:11434	Ollama server URL
OLLAMA_MODEL	llava	Ollama model name
MISTRAL_API_KEY	—	Required for mistral provider
MISTRAL_MODEL	pixtral-12b-2409	Mistral model string
GROQ_API_KEY	—	Required for groq provider
GROQ_MODEL	llama-3.2-11b-vision-preview	Groq model string
ANALYSIS_INTERVAL_MS	2000	AI call frequency (ms)
ANALYSIS_SYSTEM_PROMPT	(see .env.example)	System prompt (game-specific tuning)
FRAME_DIFF_ENABLED	true	Skip API call when scene unchanged
FRAME_DIFF_THRESHOLD	0.02	Min pixel change to trigger analysis (~2%)
TLS_ENABLED	false	Enable HTTPS (needed for phone camera)
TLS_CERT_PATH	certs/cert.pem	Path to TLS certificate
TLS_KEY_PATH	certs/key.pem	Path to TLS private key
TTS_ENABLED	false	Speak recommendations aloud (pyttsx3)
HISTORY_MAX_ENTRIES	50	Number of past analyses to retain
RATE_LIMIT_RETRY_SECONDS	5	Wait time before retrying a rate-limited call
ACTIVE_PROFILE	default	Game profile name (without .json)
PROFILES_DIR	profiles	Directory containing game profile JSON files

---

Game Profiles

Drop a .json file into profiles/ to teach Aegis how to analyse a specific game — no code changes required.

Schema

{
  "game_name": "My Game",
  "system_prompt": "You are a <game> coach. Output JSON: game_state, threats, recommendation, confidence.",
  "frame_diff_threshold": 0.02,
  "roi_strategy": "full_frame",
  "roi_crops": {
    "minimap": { "x": 0.82, "y": 0.75, "w": 0.18, "h": 0.25, "label": "Minimap" }
  }
}

• Coordinates are percentages [0.0–1.0] of frame width/height — fully resolution-independent.
• roi_strategy — full_frame (no crop) · horizontal_stack · vertical_stack · grid (2×2)
• frame_diff_threshold — overrides the global .env value for this game
• If roi_crops is empty or strategy is full_frame, the whole frame is sent to the AI

Built-in profiles

Profile	Strategy	Crops
default	full_frame	None — full screen
league_of_legends	horizontal_stack	Minimap + Health/Mana bar
valorant	horizontal_stack	Minimap + Health/Shield + Abilities

Activate a profile

# Via .env (requires restart)
ACTIVE_PROFILE=valorant

# Or hot-reload at runtime (no restart)
curl -X POST http://localhost:8765/profiles/activate \
  -H "Content-Type: application/json" \
  -d '{"profile": "valorant"}'

Tip: To measure ROI coordinates, take a screenshot of your game at your native resolution, open it in browser DevTools or any image editor, and read the pixel positions of the UI element you want to crop. Divide by frame width/height to get percentages.

---

Docker Setup

# Pull the LLaVA model first (one-time, ~4 GB) — only needed for AI_PROVIDER=ollama
docker-compose run --rm ollama ollama pull llava

# Start Aegis + Ollama
docker-compose up -d

# Open http://<server-ip>:8765 on your phone

Game profiles are mounted as a read-only volume — add or edit .json files in profiles/ and hit POST /profiles/activate without rebuilding.

TLS with Docker: Generate certs first (python scripts/generate_cert.py), then uncomment the certs volume mount in docker-compose.yml and set TLS_ENABLED=true in .env.

---

Running Tests

pip install pytest
pytest tests/

Tests use mocks — no API keys or hardware required.

---

Extending

New intake source — subclass BaseVideoIntake in intake/, implement start(), stop(), get_latest_frame().

New AI provider — subclass BaseAIProvider in providers/, implement async analyze_frame(frame, system_prompt=None) -> dict. The dict must contain game_state, threats, recommendation, confidence.

See CONTRIBUTING.md for code templates and a full checklist.

---

Roadmap

• Additional providers: Mistral Vision, Groq (LLaVA), Gemma via Ollama
• Aegis II: mobile-native companion app (React Native) replacing the browser frontend

---

Contributing

Contributions are welcome! Read CONTRIBUTING.md for how to add new providers and intake sources.

---

License

MIT — Copyright (c) 2026 Project Aegis Contributors
