SeqSeg: Sequential Vessel Segmentation and Tracking

Automatic tracking and segmentation of blood vessels in CT and MR images using deep learning and geometric tracking

News: SeqSeg now outputs a full SimVascular project in the simvascular/ subdirectory. You can open it directly in SimVascular, with automatic pathlines and contours generated for every branch segmented by SeqSeg.

Abstract

SeqSeg is a novel method for automatic vessel segmentation that combines local deep learning predictions with geometric tracking algorithms. The approach segments vessels sequentially by taking steps along vessel centerlines and detecting bifurcations, enabling robust segmentation of complex vascular trees from minimal initialization.

Key Features:

• Minimal supervision: Requires only 1-2 seed points for initialization
• Robust bifurcation detection: Automatically identifies and follows vessel branches
• Multi-modal support: Works with CT and MR 3D medical imaging modalities
• Scalable: Handles vessels from small coronaries to large aortas
• Clinical validation: Tested on diverse vascular anatomies including coronary, aortic, cerebral, and pulmonary vessels (pre-trained weights released for aorta CT/MR and coronary CT)

Performance Highlights:

• Dice similarity coefficient: >0.9 on validation datasets
• Processing time: ~2-10 minutes per case (depending on vessel complexity)
• Computational requirements: Standard CPU and GPU (for faster inference) hardware

Real-time demonstration: Automatic segmentation of abdominal aorta in 3D MR scan

Table of Contents

• Quick Start
• Algorithm Overview
• Installation
• Usage
• Performance & Benchmarks
• Configuration
• Research & Development
• Citation

Quick Start

For immediate use with pre-trained models:

# Install
pip install seqseg

# Download weights (see tutorial for links)
# Run segmentation
seqseg -data_dir your_data/ -nnunet_results_path path/to/weights/ -config_name aorta_tutorial

📖 Complete Tutorial: Step-by-step guide with example data and detailed instructions.

Algorithm Overview

Methodology

SeqSeg employs a sequential tracking approach that combines:

1. Local CNN Segmentation: nnU-Net provides probabilistic segmentation of local 3D patches
2. Geometric Tracking: Vessel-specific tracking algorithm follows centerlines and detects bifurcations
3. Iterative Refinement: Sequential processing builds complete vascular trees from seed points

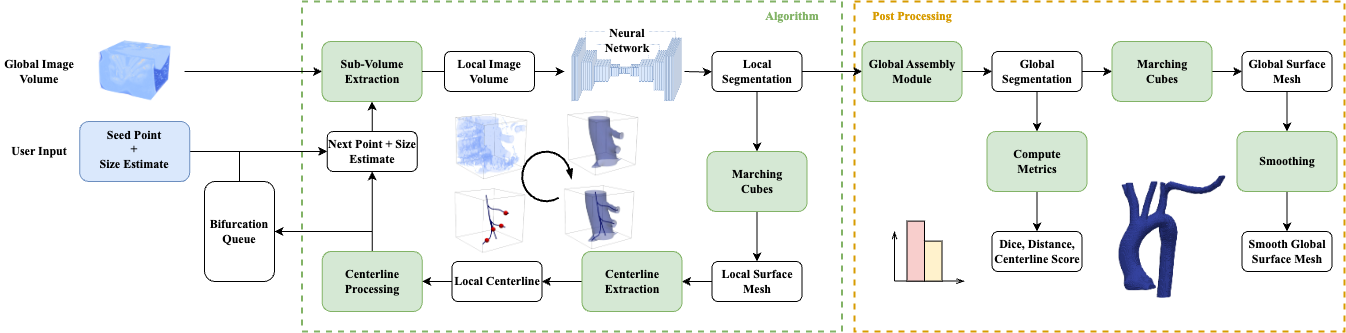

Technical Workflow

Step-by-step process:

1. Initialization: Place seed points manually or from prior centerlines
2. Local Segmentation: Extract and segment 3D patches using trained nnU-Net
3. Centerline Extraction: Compute local vessel centerlines and orientations
4. Step Planning: Determine next position along vessel direction
5. Bifurcation Detection: Identify and queue branch points
6. Iteration: Repeat until vessel termination or max steps reached

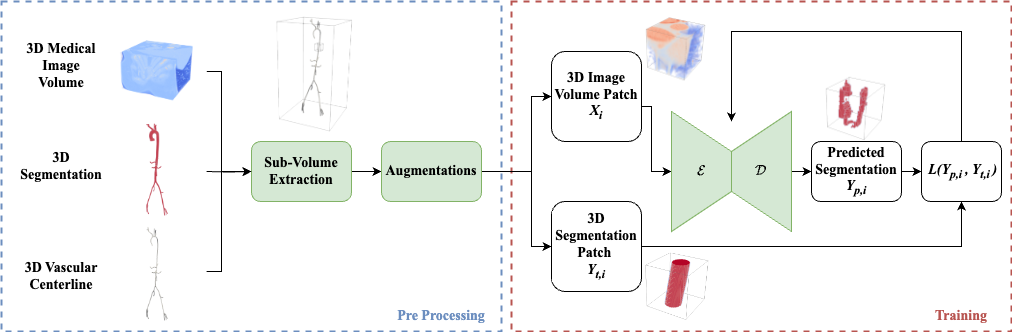

Training Strategy

The neural network is trained on local subvolume patches extracted from annotated vessel datasets, enabling:

• Generalization across different vessel scales and orientations
• Efficient training with limited annotated data
• Real-time inference on standard GPUs

Key Algorithmic Innovations

• Adaptive patch sizing: Automatically adjusts to vessel diameter
• Multi-scale processing: Handles vessels from 1mm to 30mm diameter
• Topology preservation: Maintains vessel connectivity during segmentation
• Branch prioritization: Intelligent exploration of vessel trees

Installation

System Requirements

• OS: Linux, macOS, Windows
• Python: ≥3.9 (3.11 recommended)
• GPU: CUDA-compatible GPU with ≥8GB VRAM (recommended for faster inference; can also run on CPU only)

Option 1: pip Installation (Recommended)

pip install seqseg
seqseg --help  # Verify installation

Option 2: Development Installation

git clone https://github.com/numisveinsson/SeqSeg.git
cd SeqSeg
pip install -e .

Option 3: Conda Environment

conda create -n seqseg python=3.11
conda activate seqseg
pip install seqseg

Dependencies

Core Dependencies:

nnunetv2                 # Deep learning segmentation
torch                    # PyTorch backend
SimpleITK                # Medical image I/O
vtk                      # 3D visualization and processing
PyYAML                   # Configuration management
scipy                    # Scientific computing

Optional Dependencies:

matplotlib               # Plotting and visualization
vmtk                    # Advanced vascular modeling tools

Model Weights

Pre-trained weights are required for inference:

1. Download:
   • Aortic and femoral (MR/CT): Pre-trained models (nnUNet_results folder)
   • Coronary CT (CCTA): SeqSeg nnU-Net weights — CT coronary segmentation (nnUNet_results_coronary.zip, Dataset010_SEQCOROASOCACT)
2. Extract: Unzip to desired location
3. Reference: Use -nnunet_results_path to specify path

Available Models:

• Dataset005_SEQAORTANDFEMOMR: Aortic and femoral vessels (MR)
• Dataset006_SEQAORTANDFEMOCT: Aortic and femoral vessels (CT)
• Dataset010_SEQCOROASOCACT: Coronary lumen (CT angiography) — nnU-Net weights on Zenodo
• Additional models for cerebral and pulmonary vessels available upon request

Usage

Data Preparation

Directory Structure

your_project/
├── images/              # Medical images (.nii.gz, .mha, .nrrd)
├── seeds.json          # Seed point coordinates
├── centerlines/        # Optional: existing centerlines
└── truths/            # Optional: ground truth segmentations

Supported Image Formats

• NIfTI: .nii, .nii.gz
• MetaImage: .mha, .mhd
• NRRD: .nrrd
• DICOM: Via SimpleITK readers
• Others: Any SimpleITK-supported format

Seed Point Specification

Seeds can be provided via:

Typical seed point radius estimates:

• Coronary vessels: 0.2 cm (2 mm)
• Aortic root: 1.1 cm (11 mm)

1. JSON file (recommended):

[
    {
        "name": "case_001",
        "seeds": [
            [[-2.07, -2.20, 13.43], [-1.17, -1.34, 12.24], 1.1]
        ]
    }
]

Format: [[start_point], [direction_point], radius_estimate]

2. Existing centerlines: Automatic initialization from first points
3. Cardiac meshes: Aortic valve (Region 8) and LV (Region 7) labels

Basic Usage

seqseg \
    -data_dir /path/to/data/ \
    -nnunet_results_path /path/to/nnUNet_results/ \
    -nnunet_type 3d_fullres \
    -train_dataset Dataset005_SEQAORTANDFEMOMR \
    -fold all \
    -img_ext .mha \
    -config_name aorta_tutorial \
    -outdir results/

Advanced Usage Examples

Debugging mode (write out intermediate results):

seqseg -data_dir data/ -max_n_steps 100 -max_n_branches 10 -write_steps 1

Batch processing:

seqseg -data_dir data/ -start 0 -stop 50  # Process cases 0-49

Scale adjustment:

seqseg -data_dir data/ -unit mm -scale 0.1  # Model trained in cm, data in mm

Command Line Arguments

Argument	Type	Default	Description
data_dir	str	-	Path to data directory containing images and seeds.json
nnunet_results_path	str	-	Path to nnUNet model weights directory
nnunet_type	str	3d_fullres	nnUNet model architecture (3d_fullres, 2d)
train_dataset	str	Dataset010_SEQCOROASOCACT	Dataset name used for training (e.g., Dataset005_SEQAORTANDFEMOMR)
fold	str	all	Cross-validation fold (all, 0, 1, 2, 3, 4)
img_ext	str	-	Image file extension (.nii.gz, .mha, .nrrd)
config_name	str	global	Configuration file name
outdir	str	-	Output directory for results
unit	str	cm	Image coordinate units (mm, cm)
scale	float	1.0	Scaling factor for unit conversion
max_n_steps	int	1000	Maximum tracking steps
max_n_steps_per_branch	int	100	Maximum steps per vessel branch
max_n_branches	int	100	Maximum number of branches to follow
start	int	0	Starting case index for batch processing
stop	int	-1	Ending case index (-1 for all)
write_steps	int	0	Save intermediate results (0/1)
extract_global_centerline	int	0	Extract final centerline (0/1)
cap_surface_cent	int	0	Cap vessel surface ends (0/1)
pt_centerline	int	50	Centerline point spacing for seed extraction
num_seeds_centerline	int	1	Number of seeds for centerline initialization

Output Files

SeqSeg generates several output files for each processed case. Filenames include {test_name} (e.g. 3d_fullres):

File	Description
{case}_segmentation_{test_name}_{steps}_steps.mha	Final binary segmentation
{case}_surface_mesh_{test_name}_{steps}_steps.vtp	Smoothed 3D surface mesh
{case}_centerline_{test_name}_{steps}_steps.vtp	Extracted vessel centerlines (only when extract_global_centerline=1)
{case}_binary_seg_*.mha	Raw binary segmentation
{case}_prob_seg_*.mha	Probabilistic segmentation
simvascular/	Directory with SimVascular-compatible files

For debugging (when write_steps=1):

• volumes/: Local image patches
• predictions/: nnUNet predictions
• centerlines/: Intermediate centerlines
• surfaces/: Intermediate surfaces
• points/: Tracking points

Performance & Benchmarks

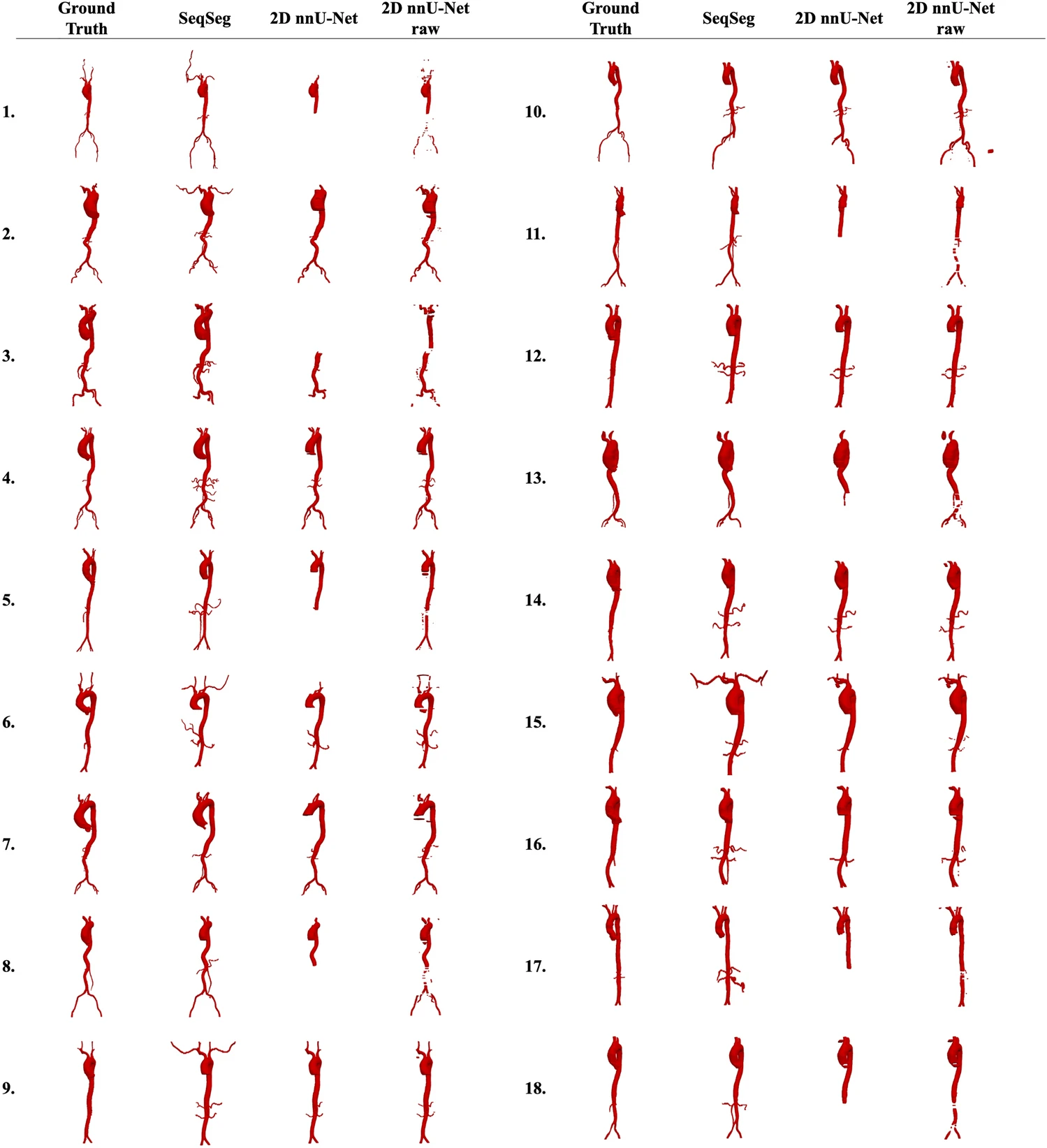

Aortic segmentation example

Qualitative comparison on 18 cases: ground truth, SeqSeg, 2D nnU-Net (with post-processing), and 2D nnU-Net raw predictions. SeqSeg tends to preserve a continuous aortic tree and peripheral branches where the 2D nnU-Net baselines are more fragmented or incomplete.

Coronary segmentation example

3D visualization: coronary tree segmented with SeqSeg (red) overlaid on the heart (transparent blue). Seed markers show the minimal initialization points used to grow the left and right coronary systems.

Performance Metrics

Processing Times (Local CPU, typical cases):

• Simple vessel (aorta): ~2-5 minutes
• Complex tree (coronary): ~5-15 minutes
• Full cerebral vasculature: ~10-30 minutes

Accuracy (validation on held-out test sets):

• Dice Similarity Coefficient: >0.9
• Hausdorff Distance: <35 pixels
• Centerline accuracy: >0.9

Scalability:

• Tested on images up to 512³ voxels
• Handles vessel diameters from 1mm to 30mm
• Supports vessel trees with 50+ branches

Configuration

Configuration Files

SeqSeg uses YAML configuration files located in seqseg/config/:

Config File	Purpose
global.yaml	Default settings
aorta_tutorial.yaml	Aortic vessel segmentation
global_coro.yaml	Coronary arteries
global_cereb.yaml	Cerebral vessels
global_pulm.yaml	Pulmonary vessels

Key Configuration Parameters

# Volume extraction
VOLUME_SIZE_RATIO: 5              # Local volume size vs radius (4.9 for aorta, 5.5 for coronaries)
MAGN_RADIUS: 1                    # Radius magnification factor
ADD_RADIUS: 0.3                   # Additional radius for volume extraction (mm)
MIN_RADIUS: 0.3                   # Minimum vessel radius before stopping (mm)

# Tracing control
NR_CHANCES: 2                     # Retry attempts for failed steps
NR_ALLOW_RETRACE_STEPS: 5         # Steps allowed inside existing vessels before stopping
PREVENT_RETRACE: True             # Avoid tracing already segmented areas
ASSEMBLY_EVERY_N: 20              # Combine predictions into assembly every N steps

# Early stopping
STOP_PRE: True                    # Enable premature stopping
STOP_RADIUS: 0.46                 # Stop tracing if radius drops below this (mm)
MAX_STEPS_BRANCH: 1000            # Max steps per branch

# Centerline extraction
CENTERLINE_EXTRACTION_VMTK: False # Use VMTK (True) or built-in FMM (False) for centerlines

Custom Configuration

1. Copy existing config: cp seqseg/config/global.yaml seqseg/config/my_config.yaml
2. Modify parameters for your specific use case
3. Run with: seqseg -config_name my_config ...

Research & Development

Extending SeqSeg

Custom Neural Networks

# Replace nnUNet with custom segmentation model
from seqseg.modules.prediction import CustomPredictor

class MyPredictor(CustomPredictor):
    def predict_patch(self, image_patch):
        # Implement custom prediction logic
        return segmentation_prediction

Training New Models

To train nnUNet models on custom datasets:

1. Prepare data in nnUNet format:

nnUNet_raw/Dataset999_MYCUSTOM/
├── imagesTr/          # Training images
├── labelsTr/          # Training labels
├── imagesTs/          # Test images (optional)
└── dataset.json      # Dataset metadata

2. Train model:

nnUNetv2_plan_and_preprocess -d 999
nnUNetv2_train 999 3d_fullres 0  # Train fold 0

3. Use with SeqSeg:

seqseg -train_dataset Dataset999_MYCUSTOM -fold 0

Integration with Other Tools

SimVascular Integration

SeqSeg outputs are compatible with SimVascular for CFD modeling:

# Output .vtp files can be directly imported into SimVascular
# for mesh generation and flow simulation

SeqSeg also provides a simvascular/Paths/ directory with pre-formatted path files.

3D Slicer Integration

# Load SeqSeg results in 3D Slicer for visualization
import slicer
segmentation = slicer.util.loadSegmentation("result.mha")

Citation

When using SeqSeg, please cite the following paper:

@Article{SveinssonCepero2024,
author={Sveinsson Cepero, Numi
and Shadden, Shawn C.},
title={SeqSeg: Learning Local Segments for Automatic Vascular Model Construction},
journal={Annals of Biomedical Engineering},
year={2024},
month={Sep},
day={18},
issn={1573-9686},
doi={10.1007/s10439-024-03611-z},
url={https://doi.org/10.1007/s10439-024-03611-z},
}
