The single pane of glass for every Model Context Protocol server in your Laravel fleet — circuit breakers, tenant-aware audit, and an interactive JSON-RPC playground baked in.
CI badge note: the workflow is provisioning during the v0.x → v1.0 cycle; the badge will flip green as soon as
ci.ymllands onmain.
The parent package padosoft/askmydocs-mcp-pack
ships a curated .claude/ folder with skills, rules, and commands so
Claude Code, Cursor, Copilot, and any other LLM agent can drive the
package productively from day one. This admin SPA will mirror the same
vibe-coding pack — wiring instructions, screenshot routing, audit
queries, breaker sweeps — in v1.1. The current v1.0 line focuses on
the SPA + cross-mount integration; the .claude/ companion is
intentionally not in the v1.0.0 tag so the agent-side docs can be
authored against the shipped surface rather than a moving target.
Why this matters: every Padosoft package converges on the same
.claude/convention so a single LLM session can plumb the entire AskMyDocs stack end-to-end — host, mcp-pack, mcp-pack-admin, connectors, AI-Act compliance, flow, pii-redactor — without context drift between packages.
- Why this package exists
- Features at a glance
- 📸 Screenshots — Admin Web Panel
- Comparison vs alternatives
- 🚀 Quick start (junior-proof, 5 minutes)
- ⚙️ Configuration reference
- 🏛️ Architecture
- 🔒 Security model
- 📖 Operating playbook — three scenarios
- 🗺️ Roadmap
- 🤝 Contributing + community
- Sponsors
- License
MCP — the Model Context Protocol — is now the de facto wire format between LLMs and tools. Cursor, Claude Desktop, VS Code, Cline, Continue, Sourcegraph Cody, the OpenAI Realtime API, and a long tail of agentic frameworks speak it natively. Within months of Anthropic's November 2024 release, the public catalog of MCP servers (Filesystem, GitHub, Slack, Postgres, Notion, Sentry, Cloudflare, Linear, …) became a viable replacement for hand-rolled tool stacks.
The gap: MCP itself ships no admin UX. Adopters install a Laravel
client package, wire a host bridge, and inherit a black box —
"Are my upstream servers alive? Which tool calls were authorised this
hour? Why did breaker (prod, github:search_repositories) trip? Did
that audit row belong to tenant acme or to tenant globex?" —
without an out-of-the-box answer.
What this admin gives you — a single, opinionated, tenant-aware,
RBAC-gated SPA that consumes the read-mostly admin REST surface
shipped in padosoft/askmydocs-mcp-pack v1.4:
- A live dashboard with circuit-breaker tiles, recent audit volume, and per-server status.
- A catalog browser for every MCP server registered in the host — status pills, transport badges, handshake-cached tool list.
- A per-(server, tool) circuit-breaker view that reads breaker
state via
CircuitBreaker::peekState()— the dashboard never consumes the half-open probe slot just by polling. - A tenant-scoped audit log with rich filters
(
status∋transport_error,server_id,tool_name,actor, date range), pagination, and redacted-input rendering. - An interactive JSON-RPC playground —
initialize,tools/list,tools/call— for verifying an upstream server without leaving the browser. - A prompt catalog browser (MCP-hosted prompts + templates).
- Pixel-perfect dark mode parity.
- Zero-config cross-mount: drop the package into any Laravel host
that already depends on
padosoft/askmydocs-mcp-pack, and the SPA appears under/admin/mcp/automatically via composer-extra discovery — same pattern aspadosoft/laravel-flow-adminandpadosoft/laravel-pii-redactor-admin.
If you're running MCP in production, this is the operations surface you were going to build yourself in six weeks. We extracted it from AskMyDocs v7.0 and shipped it standalone so you don't have to.
| ✓ | Capability |
|---|---|
| 📊 | Live dashboard — fleet health tiles, breaker open-count, recent audit volume per server, p50 / p95 / p99 latency at-a-glance. |
| 🚦 | Per-(server, tool) circuit-breaker view — closed / open / half_open states + manual sweep (force-close after upstream recovery). |
| 🧪 | Interactive JSON-RPC playground — drive initialize, tools/list, tools/call against any registered server, right in the browser. Fastest possible upstream-validation loop. |
| 🧾 | Tenant-scoped audit log (R30 isolation) — paginated, filterable by status (incl. transport_error), server_id, tool_name, actor, date range. Redacted input + full trace on row drilldown. |
| 🗂️ | Server catalog — status pills, transport badges (stdio / http / sse), handshake-cached tool matrix, per-server audit slice. |
| 📚 | Prompt catalog browser — MCP-hosted prompts/list + prompts/get rendered as a browsable library. |
| 🌗 | Pixel-perfect dark mode — every screen, every chart, every state. |
| 🔌 | Cross-mountable — composer-extra discovery wires the SPA under /admin/mcp/ with zero host changes. |
| 👮 | Spatie roles enforced — read-only audits for admin, mutations gated to super-admin. RBAC is enforced server-side; the FE merely renders. |
| 📡 | Real-time telemetry feed — dashboard tiles refresh against the audit table; no polling required for breaker state. |
| 🎛️ | Built-in feature flags — toggle tool-calling, breaker, retry policy from the Settings screen; no redeploy. |
| 🧩 | Source-aware status widening — accepts transport_error + any future package-emitted status value without an FE migration; new states are forward-compatible. |
Every screen below is a screenshot from the actual v1.0.0-rc build —
no mockups, no Figma. The same React bundle ships unchanged into every
host that adopts the package.

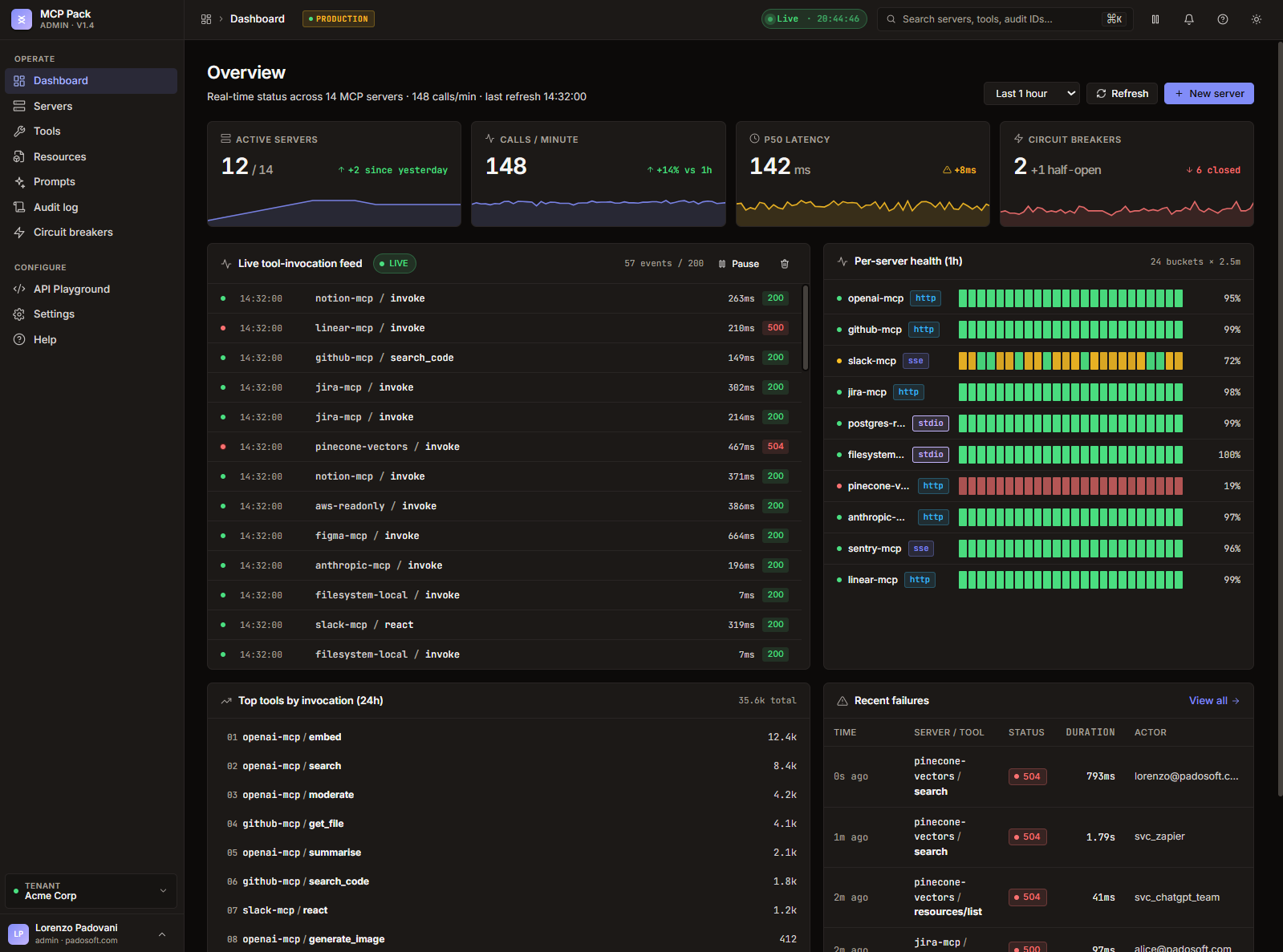

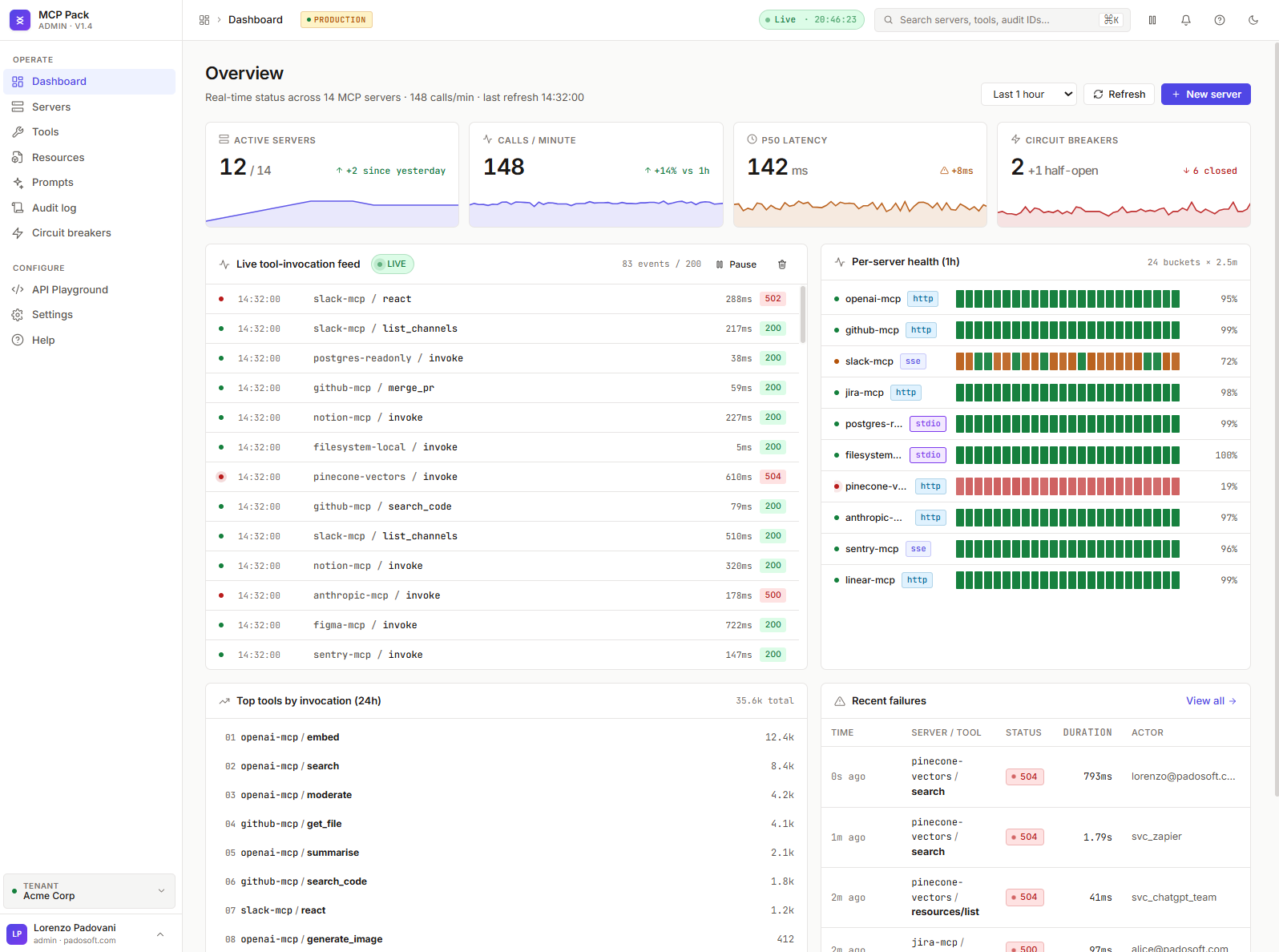

The landing surface. Live circuit-breaker tiles, recent audit slice, fleet status at a glance. Dark mode is pixel-perfect: every chart, every pill, every focus ring.
| Light | Dark |
|---|---|
![]() |
![]() |

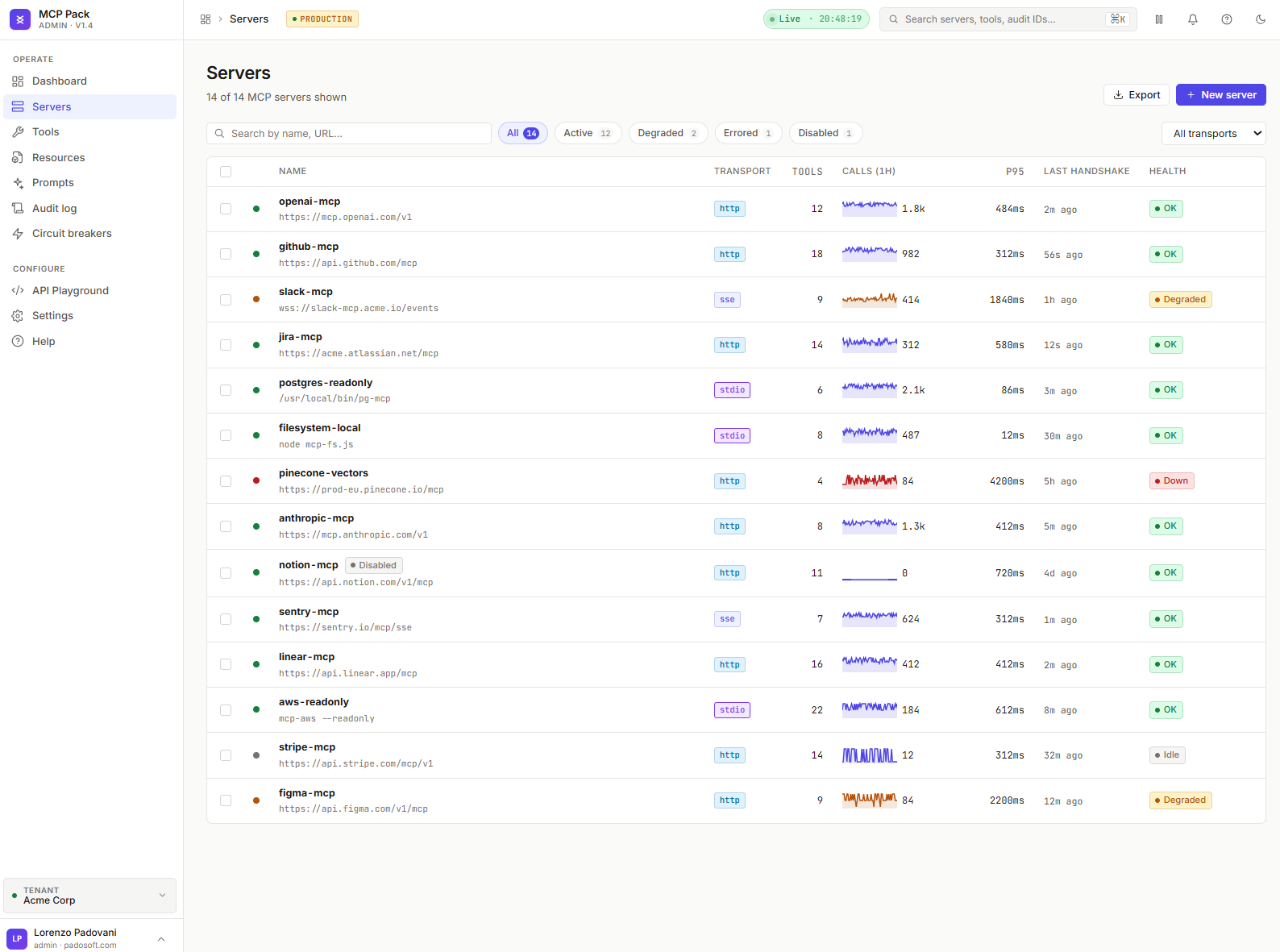

Every MCP server registered in the host, filterable by tenant + transport + status. Status pills + transport badges + per-server audit slice — one click away.

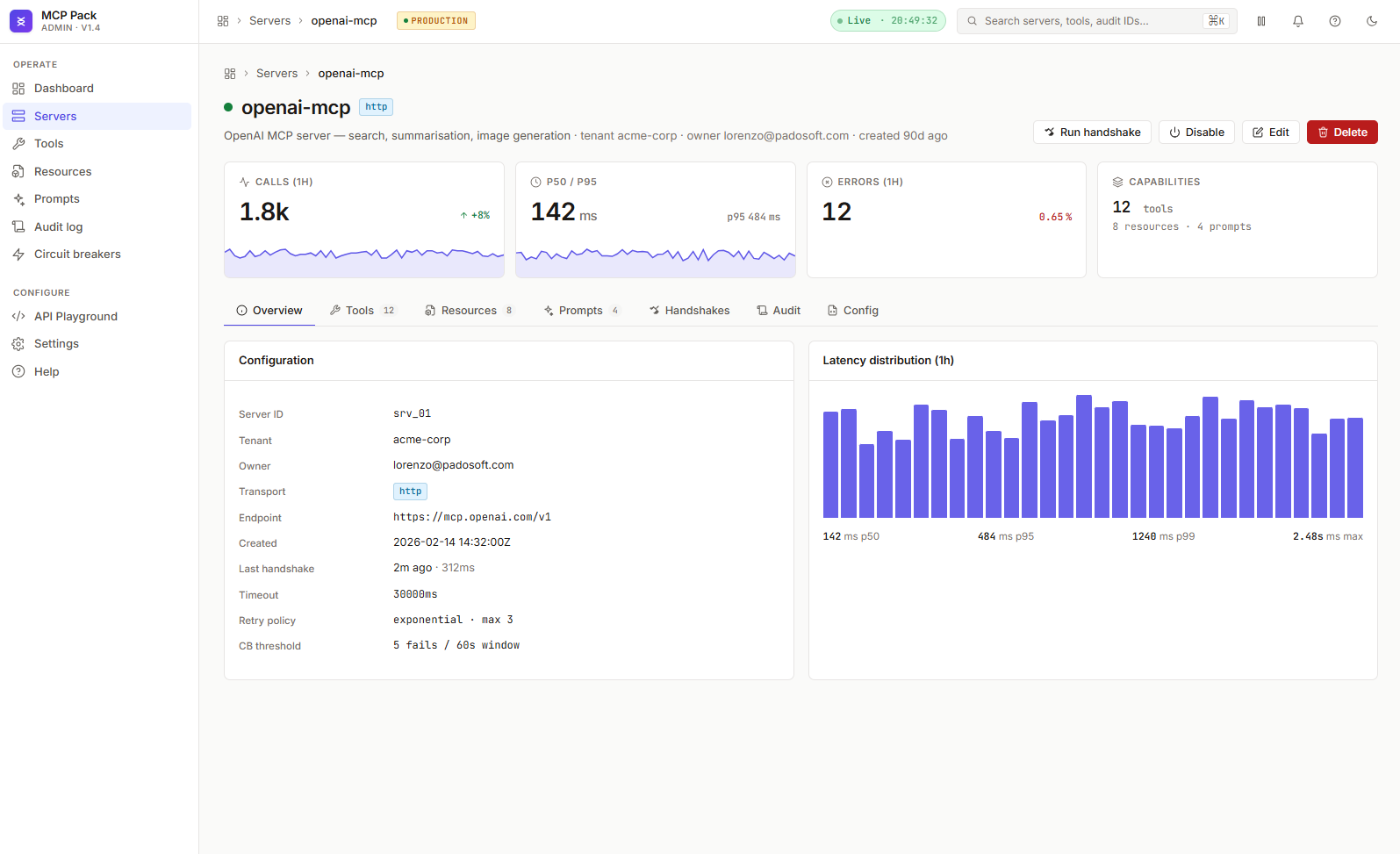

The cached initialize + tools/list response, rendered as a
human-readable tool matrix. No need to curl the upstream server to
inspect its capabilities.

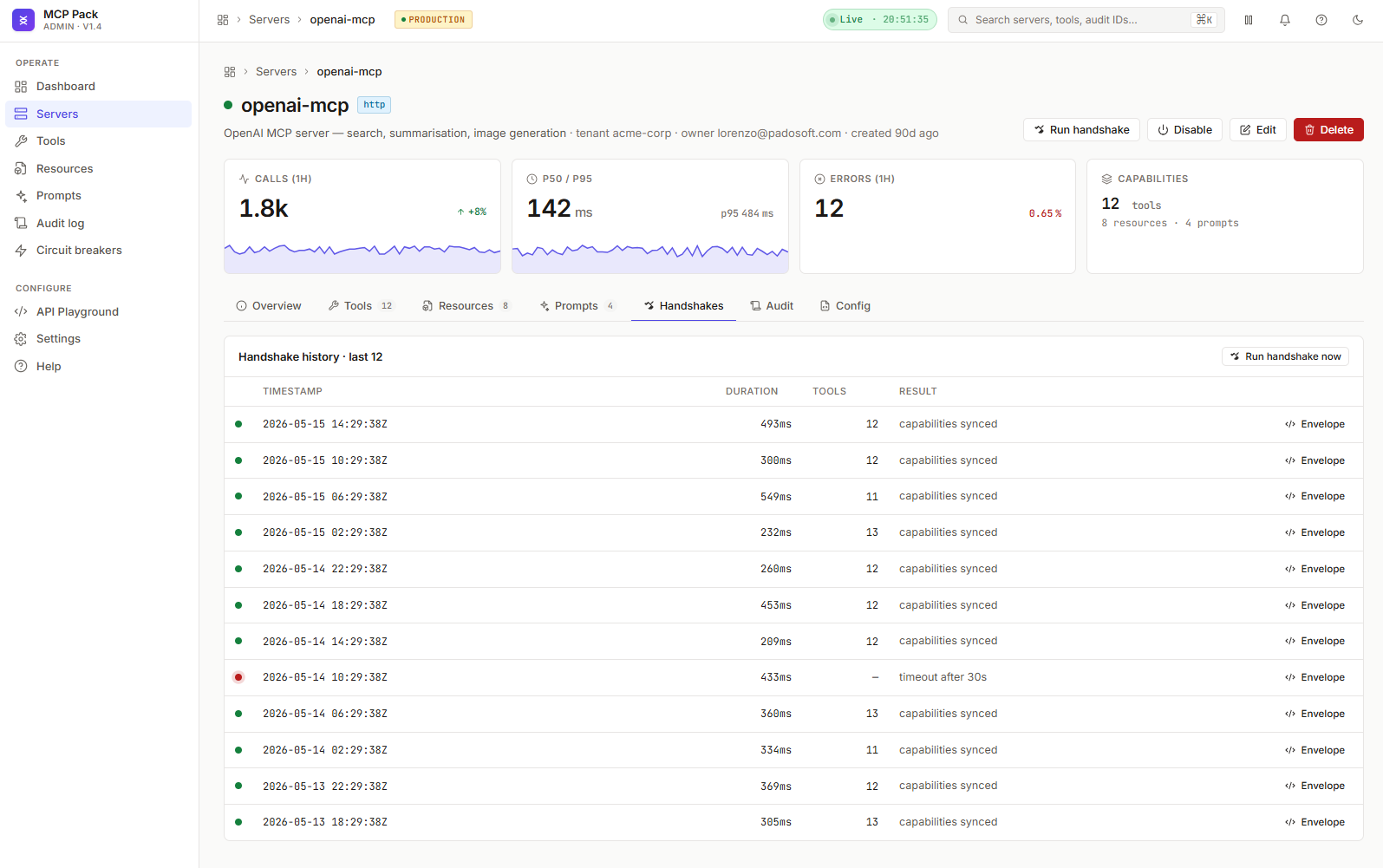

Audit slice scoped to a single server, with the same R30 tenant isolation that gates every other query in the panel.

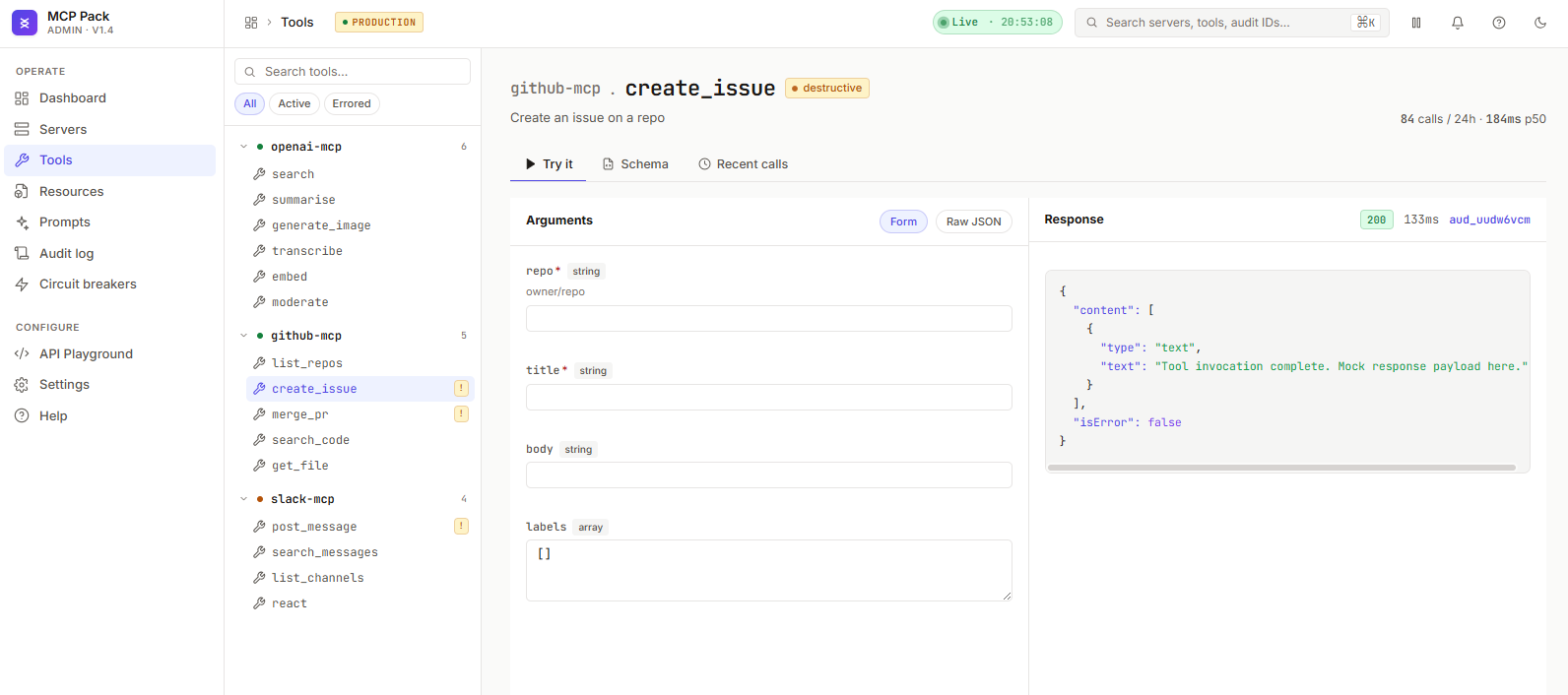

Every tool across every server, in one searchable table. Useful when
you need to answer "which servers expose a search tool?" in 5
seconds, not 5 minutes.

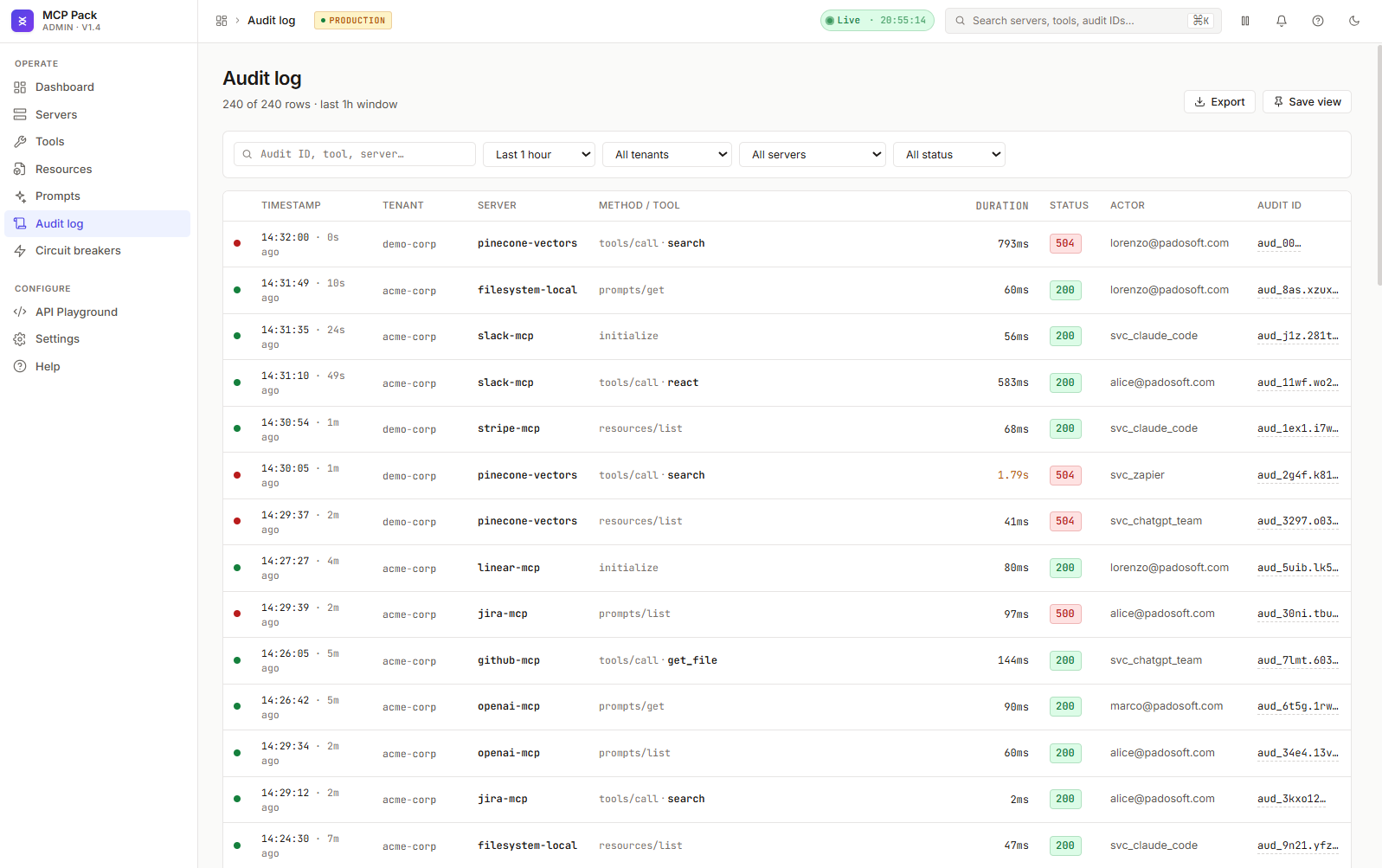

Paginated audit query over the configurable
mcp-pack.audit_model, tenant-scoped by default. Filters:
status (incl. transport_error), server_id, tool_name,
actor, date range.

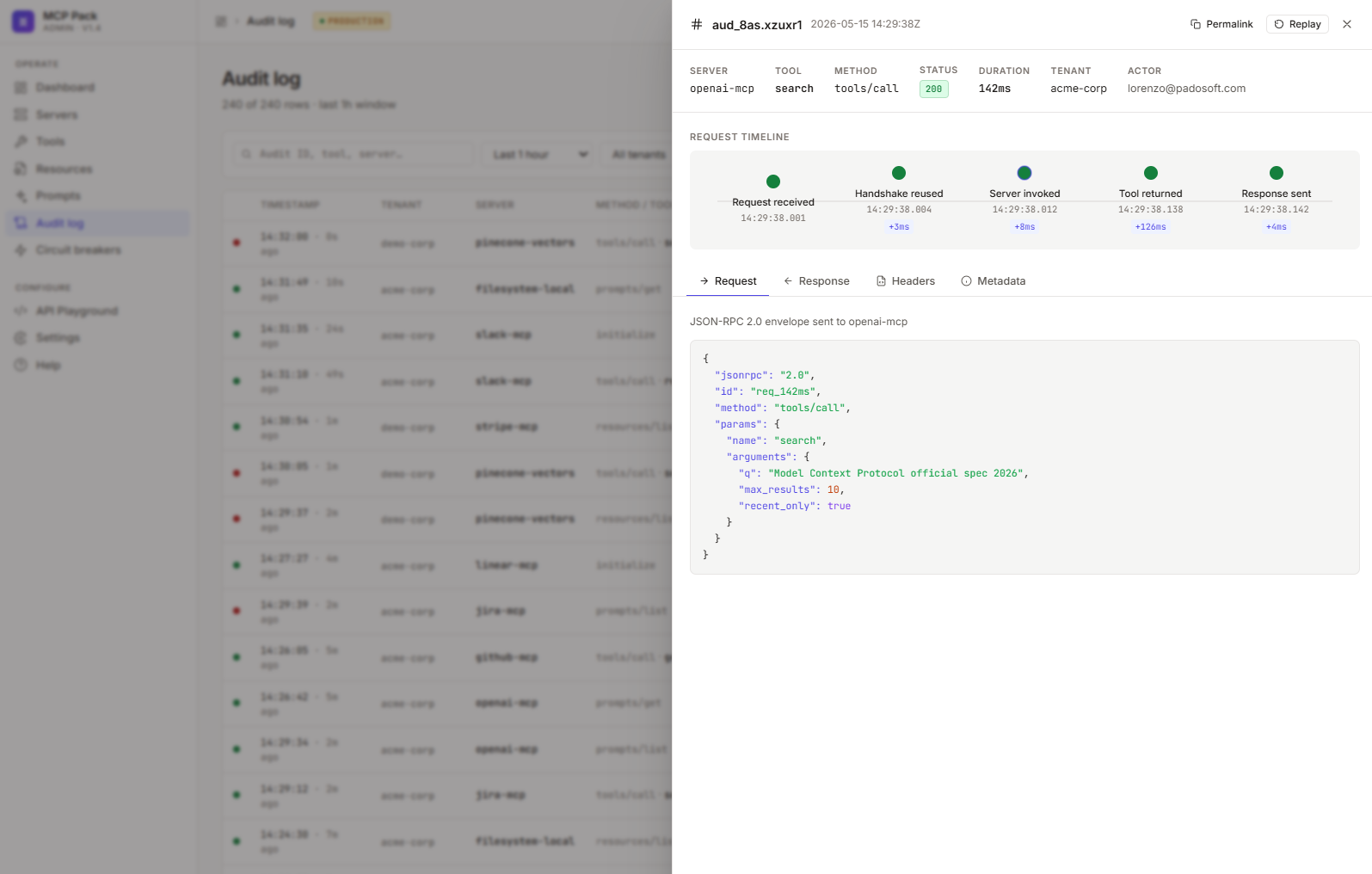

Click any audit row for the SHA-256 input/output hashes, redacted input excerpt, full duration, and error excerpt — exactly the trail an EU AI-Act audit will ask for.

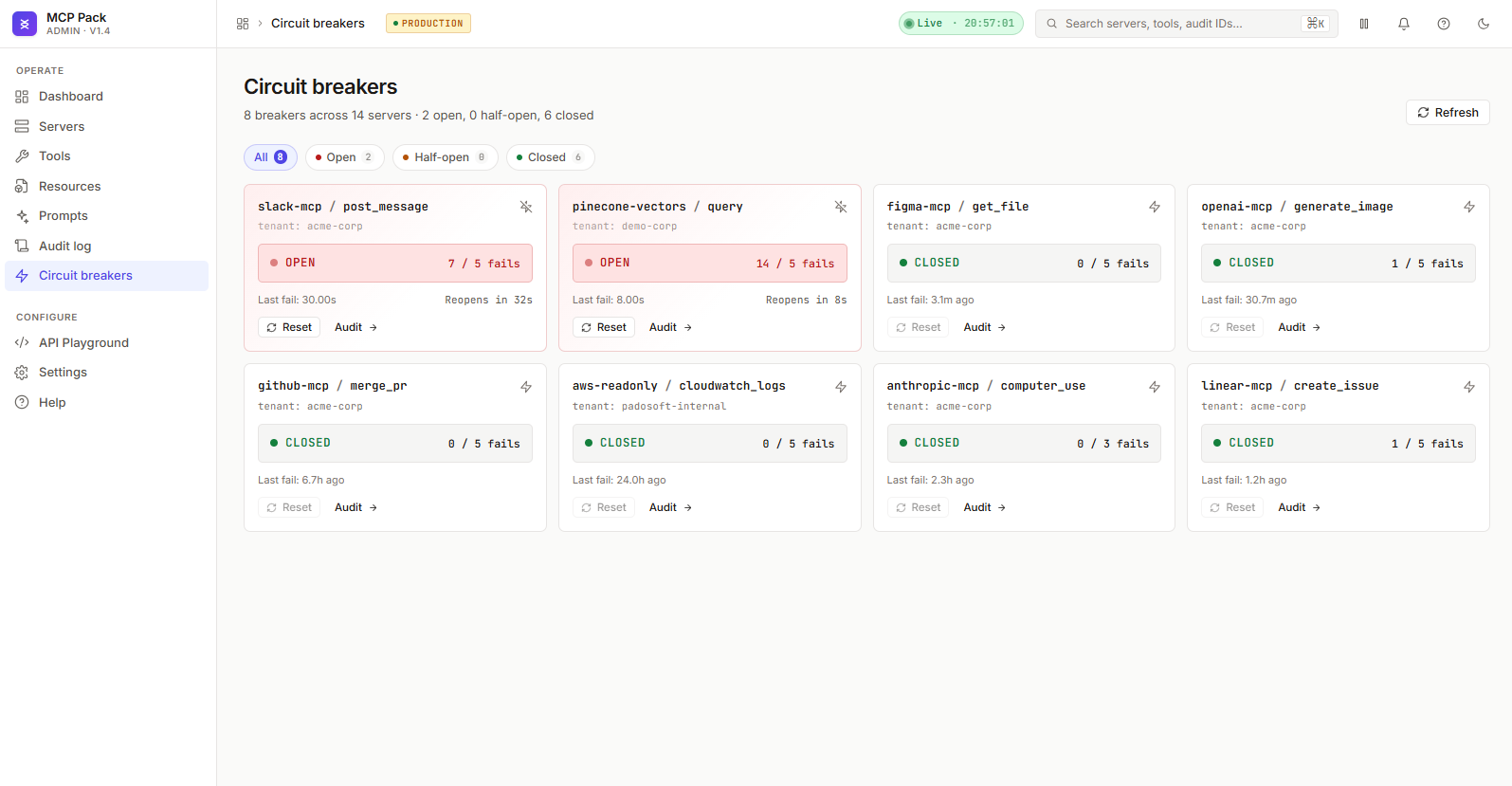

Per-(server, tool) breaker state with manual sweep. Read via
CircuitBreaker::peekState() so the dashboard NEVER consumes the
half-open probe slot just by polling.

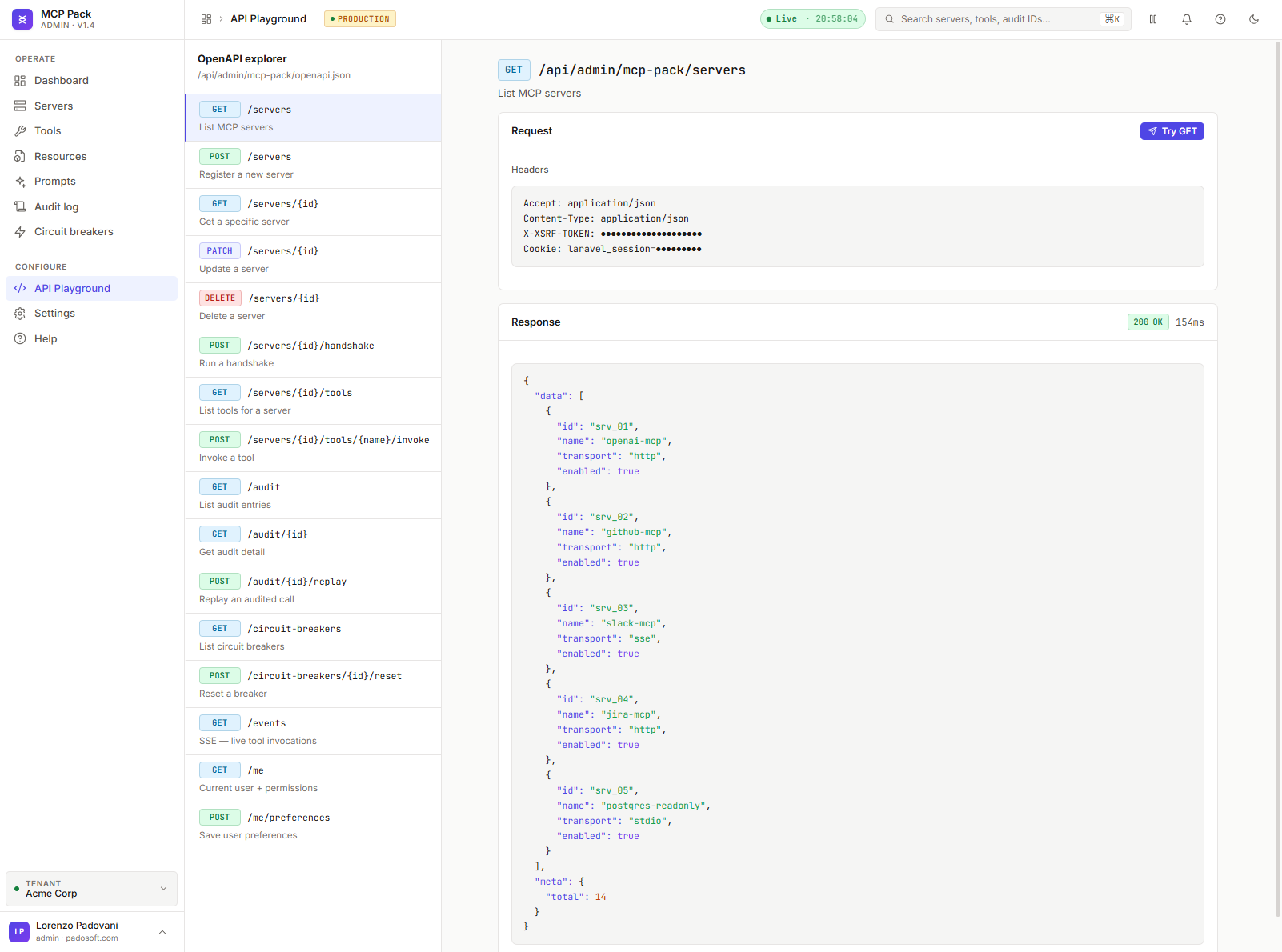

initialize, tools/list, tools/call — drive any registered MCP
server from the browser. Auth-aware, tenant-scoped, audit-logged.
Fastest way to validate that the upstream server you just spun up is
actually reachable from inside the host.

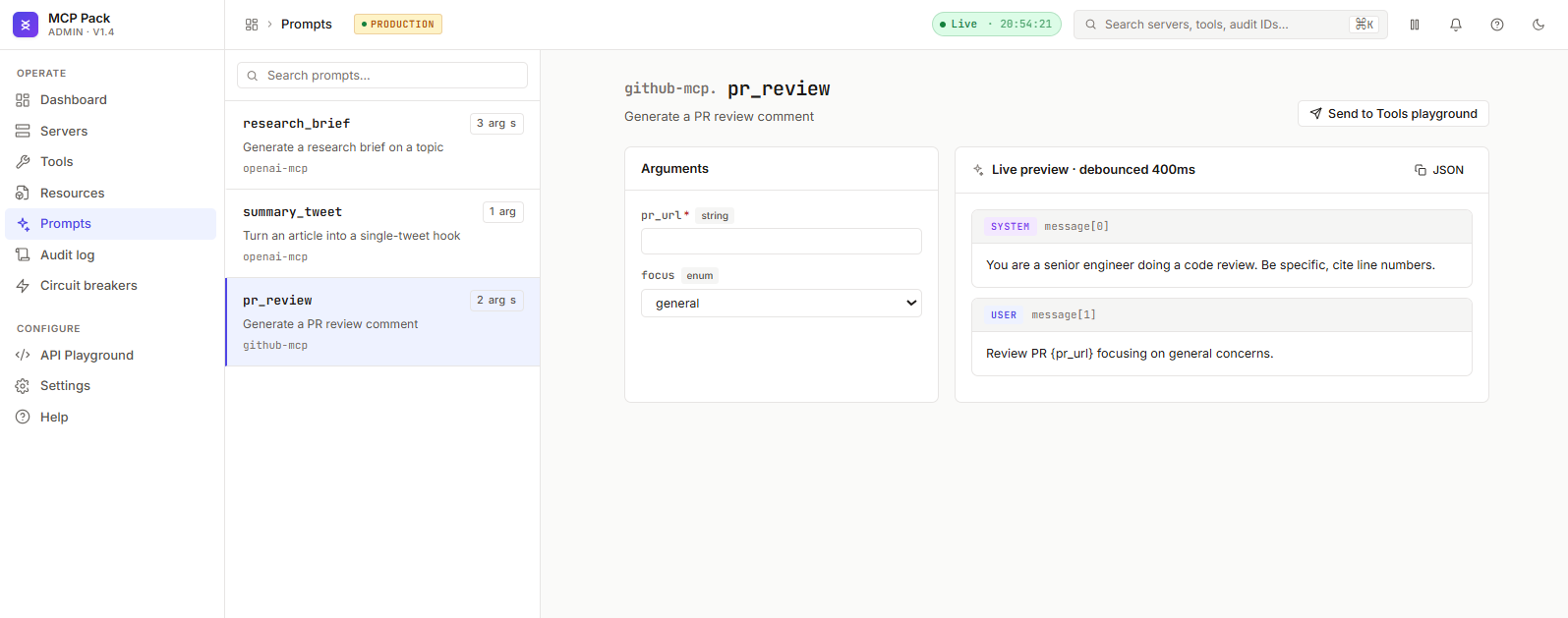

JSON-RPC prompts/list + prompts/get rendered as a browsable
library — every MCP-hosted prompt template, one click away from being
copy-pasted into the host chat.

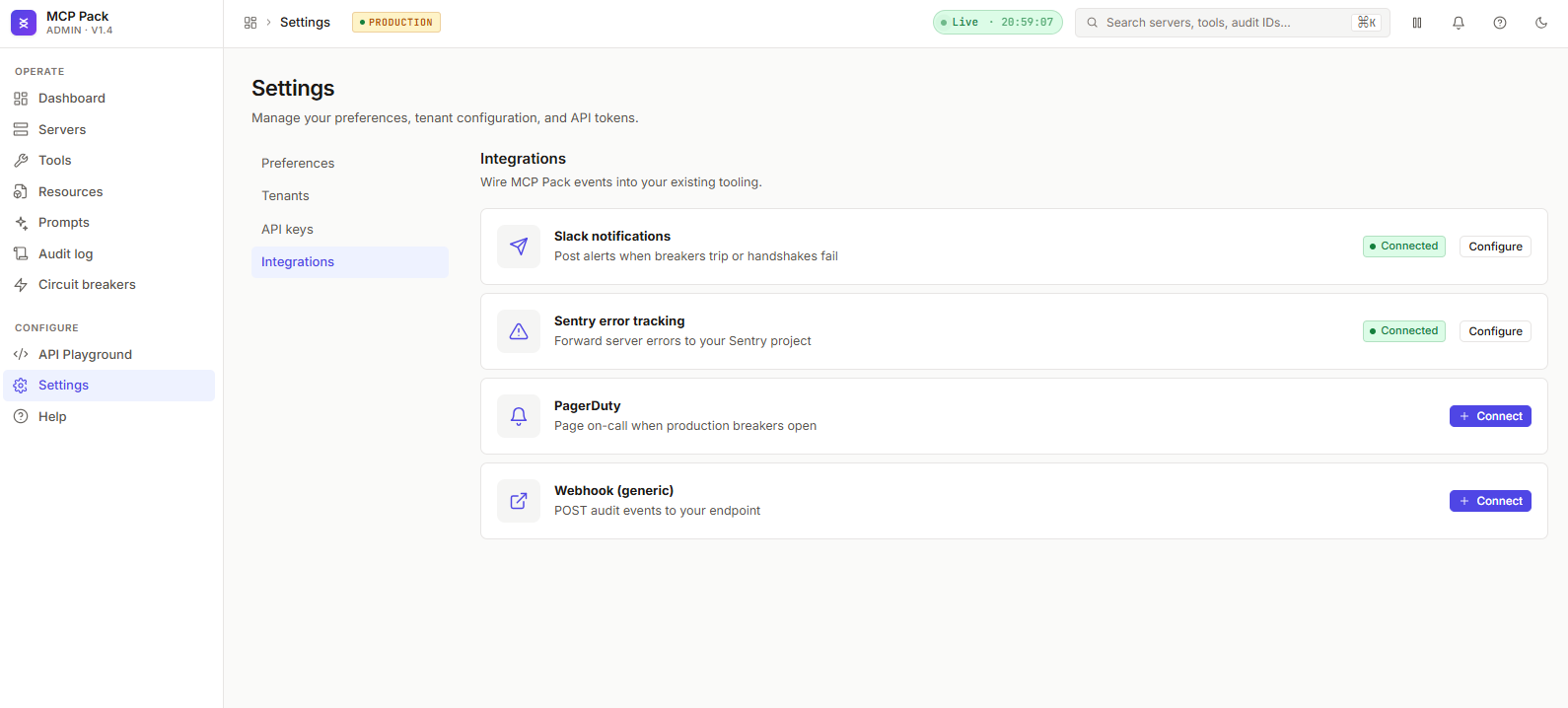

Mirrors the mcp-pack.* config block. Toggle tool-calling, the
circuit breaker, the retry budget; tune
MCP_PACK_CB_FAILURE_THRESHOLD and friends — without a redeploy
when the operator is logged in as super-admin.
| Capability | padosoft/askmydocs-mcp-pack-admin | Anthropic mcp-inspector |
Building from scratch |
|---|---|---|---|
| Targets | Production Laravel hosts (tenant fleets) | Local developer machine (single MCP server) | Whatever you ship |
| Tenant isolation (R30) | ✅ enforced server-side on every query | ❌ not a multi-tenant tool | DIY (audit + RBAC + scopes) |
| Live circuit-breaker dashboard | ✅ per-(server, tool), peekState()-safe |
❌ no concept of breaker | DIY (Redis + dashboard + manual sweep) |
| Tenant-scoped audit log | ✅ paginated, filtered, redacted-input render | ❌ no persistence | DIY (table + retention + filters) |
| Interactive JSON-RPC playground | ✅ initialize / tools/list / tools/call |
✅ standalone web app | DIY (~ 400 LOC React) |
| Pixel-perfect dark mode | ✅ | partial | DIY |
| Cross-mount into any Laravel host | ✅ composer-extra discovery | n/a — desktop tool | DIY (route registration + asset publish) |
| Spatie roles + super-admin write gating | ✅ admin read, super-admin mutate |
❌ | DIY |
| Real-time tool-call telemetry feed | ✅ | partial | DIY |
| Operator-tunable feature flags | ✅ Settings screen | ❌ | DIY |
| Production-ready (RBAC, audit, R30) | ✅ | ❌ — mcp-inspector is a dev-time tool |
DIY |
| License | Apache-2.0 | MIT | n/a |
mcp-inspectoris excellent for local debugging of a single MCP server you're writing — it ships from the upstream MCP project and we recommend it whenever you're authoring a brand new server. This admin is complementary, not competitive: it answers a different question ("how is my fleet doing right now, across every tenant?") and lives in a different operational tier (production, audit, RBAC).
This walkthrough assumes you have never touched MCP. Each step is a single command you can copy-paste verbatim.
| You need | Why |
|---|---|
PHP 8.3+ (php -v) |
The package targets PHP 8.3 minimum. |
Composer 2.5+ (composer --version) |
For the actual install. |
A working Laravel 13.x application (php artisan --version → Laravel Framework 13.*) |
The SPA cross-mounts into your existing host. |
padosoft/askmydocs-mcp-pack v1.4 or newer already installed |
The admin SPA consumes the v1.4 admin REST surface. |
| Spatie laravel-permission | The admin uses admin and super-admin roles. |
| A super-admin user | To log in and operate the panel. |
composer require padosoft/askmydocs-mcp-pack:^1.4
php artisan vendor:publish --tag=mcp-pack-config
php artisan vendor:publish --tag=mcp-pack-migrations
php artisan migrateConfirm it's wired by pinging the registry:
php artisan mcp-pack:pingYou should see a per-server status table. If the table is empty, register at least one MCP server first — the admin SPA will be empty otherwise.
composer require padosoft/askmydocs-mcp-pack-admin:^1.0The service provider is auto-discovered via
composer.json::extra.laravel.providers. Nothing to register by
hand.
php artisan vendor:publish --tag=mcp-pack-admin-assetsShips in v1.0.0. The
mcp-pack-admin-assetstag publishes the precompiled React bundle (JS + CSS + favicons) underpublic/vendor/mcp-pack-admin/. Nonpm/viterequired on the host — the SPA is shipped pre-built so a production deploy is a singlecomposer require.
php artisan migrateThe admin package itself does not ship migrations — it consumes
the mcp_tool_call_audit table already owned by
padosoft/askmydocs-mcp-pack. The migrate step is included here
only so that consumers running through the walkthrough don't miss a
parent-package migration that may have landed since the last deploy.
Navigate your browser to:
https://your-host.local/admin/mcp/
Log in with a user that has the super-admin Spatie role. You should
land on the Dashboard screen with circuit-breaker tiles and the
recent audit slice.
The fastest sanity check that the BE is wired (without opening the browser):
curl -s -H "Accept: application/json" \
-H "Cookie: laravel_session=<your-session-cookie>" \
https://your-host.local/api/admin/mcp-tool-call-audit \
| jq '. | {data_count: (.data|length), meta: .meta}'Expected response shape:
{
"data_count": 25,
"meta": {
"current_page": 1,
"last_page": 4,
"per_page": 25,
"total": 92
}
}If data_count > 0 and meta.total matches the audit table row
count, the BE is wired correctly and the SPA will render.
| Symptom | Likely cause | Fix |
|---|---|---|
404 Not Found at /admin/mcp/ |
Service-provider auto-discovery disabled in the host | Add the package SP manually to config/app.php providers[]. |
403 Forbidden after login |
User lacks admin or super-admin role |
$user->assignRole('super-admin'); then re-login (or clear the session). |
Blank white page at /admin/mcp/ |
SPA bundle never published | Re-run php artisan vendor:publish --tag=mcp-pack-admin-assets --force. |
| Mixed-content / asset-404 errors | APP_URL mismatch between host and reverse-proxy |
Set APP_URL=https://your-host.local in .env and re-run php artisan config:cache. |
/api/admin/mcp-tool-call-audit returns [] but the dashboard is empty |
No tool calls have happened yet | Run php artisan mcp-pack:ping --tenant=acme first, then drive a chat turn through McpToolCallingService::chatWithTools(). |
transport_error rows pile up |
Upstream MCP server unreachable | Inspect the audit row → use the API playground to re-drive initialize against the server and watch the response. |
If none of the above resolves your symptom, open a discussion at
github.com/padosoft/askmydocs-mcp-pack-admin/discussions
with the output of php artisan about and the relevant
/admin/mcp/* response body.
The admin SPA inherits most of its behaviour from the parent package. The knobs below are the ones that are specific to the admin mount.
| Key | Env var | Default | Purpose |
|---|---|---|---|
mcp_pack_admin.mount_path |
MCP_PACK_ADMIN_MOUNT_PATH |
/admin/mcp |
Where the SPA mounts. Change if your host already owns /admin/mcp for another tool. |
mcp_pack_admin.require_role |
MCP_PACK_ADMIN_REQUIRE_ROLE |
admin |
Minimum Spatie role required to read. Mutations are always gated to super-admin regardless of this knob. |
mcp_pack_admin.write_require_role |
MCP_PACK_ADMIN_WRITE_REQUIRE_ROLE |
super-admin |
Role required for circuit-breaker sweeps, settings writes, and playground tools/call invocations. |
mcp_pack_admin.audit_default_page_size |
MCP_PACK_ADMIN_AUDIT_PAGE_SIZE |
25 |
Default pagination size on the audit log browser. Capped server-side at 100. |
mcp_pack_admin.theme.default |
MCP_PACK_ADMIN_THEME_DEFAULT |
system |
system / light / dark. Per-user override is persisted in localStorage. |
mcp_pack_admin.feature_flags.playground |
MCP_PACK_ADMIN_PLAYGROUND_ENABLED |
true |
Master switch for the JSON-RPC playground. Set false in strict-security environments where ops should not |
be able to invoke tools/call from the panel. |
|||
mcp_pack_admin.feature_flags.prompts |
MCP_PACK_ADMIN_PROMPTS_ENABLED |
true |
Hide the Prompts screen if the host does not use MCP-hosted prompts. |
mcp_pack_admin.circuit_breaker_sweep |
MCP_PACK_ADMIN_CB_SWEEP_ENABLED |
true |
Hide the manual breaker-sweep button if the host wants automated-recovery-only. |
All keys default to a working configuration. If you publish nothing,
the SPA mounts at /admin/mcp/, requires admin to read,
super-admin to write, paginates audit rows in chunks of 25, and
ships every feature toggled on.
To publish the config file so you can override these in
config/mcp-pack-admin.php:
php artisan vendor:publish --tag=mcp-pack-admin-configThe
mcp-pack-admin-configtag, themount_pathrewrite, and the feature-flag toggles all ship in v1.0.0. The v0.x scaffold currently documented here is for community visibility ahead of GA.
┌───────────────────────────────────────────────────────────────────────────────┐
│ Operator browser │
│ │ │
│ └─► https://your-host.local/admin/mcp/ │
│ │ │
│ │ (SPA — React, precompiled, served from public/vendor/...) │
│ │ │
│ ├─► GET /api/admin/mcp-pack/servers ─── catalog │
│ ├─► GET /api/admin/mcp-pack/servers/{id} ─── detail │
│ ├─► GET /api/admin/mcp-tool-call-audit ─── audit log │
│ ├─► GET /api/admin/mcp-pack/circuit-breaker ─── breaker state │
│ ├─► POST /api/admin/mcp-pack/circuit-breaker/sweep (super-admin) │
│ ├─► POST /api/admin/mcp-pack/playground/initialize (super-admin) │
│ ├─► POST /api/admin/mcp-pack/playground/tools-list (super-admin) │
│ └─► POST /api/admin/mcp-pack/playground/tools-call (super-admin) │
│ │
│ (All routes shipped by padosoft/askmydocs-mcp-pack v1.4.) │
│ (Auth: Sanctum + Spatie role middleware. Tenant scope: R30.) │
└───────────────────────────────────────────────────────────────────────────────┘
│
│
┌──────────────────────────────────────▼────────────────────────────────────────┐
│ Host Laravel application │
│ │ │
│ ├─► padosoft/askmydocs-mcp-pack v1.4+ │
│ │ ├─► McpServerRegistryContract::forTenant($id) │
│ │ ├─► McpHandshakeService (cached 5min) │
│ │ ├─► McpToolCallingService (multi-turn loop, budget cap) │
│ │ ├─► ToolInvoker (CircuitBreaker + RetryBudget, opt-in) │
│ │ └─► McpToolCallAudit (SHA-256 hashed audit trail) │
│ │ │
│ └─► padosoft/askmydocs-mcp-pack-admin (this package) │
│ ├─► ServiceProvider — auto-discovered │
│ ├─► Route registrar — mounts /admin/mcp/* under host's auth │
│ ├─► Asset publisher — copies the React bundle into public/... │
│ └─► Config — mount_path, role gates, feature flags │
└───────────────────────────────────────────────────────────────────────────────┘
│
│ (host's chat flow drives JSON-RPC traffic)
│
┌──────────────────────────────────────▼────────────────────────────────────────┐
│ Upstream MCP servers (stdio child processes OR HTTP/SSE gateways) │
│ ├─► Filesystem / GitHub / Slack / Postgres / Notion / Sentry / Linear /… │
│ └─► Any server that speaks JSON-RPC 2.0 over the chosen transport │
└───────────────────────────────────────────────────────────────────────────────┘
Cross-mount pattern. The admin package follows the same recipe as
padosoft/laravel-flow-admin
and
padosoft/laravel-pii-redactor-admin:
- The host has a single base SPA shell (or even no SPA at all — the admin can mount on a fresh Laravel app).
- The admin package's
composer.jsondeclares anextra.askmydocs.admin-mountblock with the route prefix and the precompiled-asset path. - The base host (or its admin shell, if it has one) reads
composer-extraat boot and registers the route + serves the bundle. - Authentication is always inherited from the host — the admin package never owns a login screen.
- Authorization is enforced server-side on every route by the parent
padosoft/askmydocs-mcp-packv1.4 middleware stack.
The blast radius of bumping the parent package is bounded by the v1.x REST contract; the admin SPA does not couple to any internal class.
The admin is designed to ship in a production tenant without an extra security review. Five concentric gates:
- Network — the SPA only loads where the host's web routes load. If your host is behind Cloudflare Access / a corporate VPN / an SSH tunnel, so is the admin.
- Authentication — Laravel's
webmiddleware + Sanctum. The admin owns no login screen. - Read authorisation —
MCP_PACK_ADMIN_REQUIRE_ROLE(defaultadmin). Enforced by the parent package's middleware on every admin REST route. - Write authorisation —
MCP_PACK_ADMIN_WRITE_REQUIRE_ROLE(defaultsuper-admin). Mutations (breaker sweeps, playgroundtools/call, settings writes) ALWAYS check this independently of the read role. - Tenant isolation (R30) — every query in the admin REST surface
passes through
forTenant($ctx->current()). Cross-tenant leakage is structurally impossible; the FE never even sees other tenants' rows.
Audit-wise, every mutation issued from the panel produces an audit
row with actor set to the operator's user id. Playground
tools/call invocations are audit-logged the same way a host-driven
chat-flow tool call is — there's no privileged back-door.
Three real-world stories that show how the SPA collapses a long operator workflow into seconds. None of them require touching code in the host — every action below is a click in the panel.
The on-call gets paged: (prod, github:search_repositories) is
returning transport_error at a rate of ~5 req/min.
- Open
/admin/mcp/→ Dashboard. The breaker tile forgithub:search_repositoriesis red. - Click the tile → Circuit Breakers screen, scoped to that
(server, tool)pair. The recent failure trace is one click away. - Open the API playground in a second tab → run
tools/listagainstgithub. Confirms the handshake itself is healthy. - Run
tools/callforsearch_repositorieswith a known-good query. Observe the upstream error message verbatim — "GitHub PAT expired". - Rotate the PAT in the host's secrets store, restart the worker
pool. Wait for the breaker to drain through
half_open. - Click Manual sweep to force the breaker back to
closedimmediately. The audit log on the next page now shows cleantools/callrows.
Time-to-resolve, end-to-end: under three minutes.
The compliance team needs a tenant-scoped CSV of every tool call to
the Slack MCP server in the last 30 days, scoped to tenant acme.
- Open
/admin/mcp/→ Audit Logs. - Filter:
server_id = slack,tenant_id = acme, date rangenow - 30d→now. The pagination updates immediately. - Click any row → confirm the rendered fields are the compliance-ready set: timestamp, actor, tool name, status, duration, SHA-256 of redacted input + output, error excerpt.
- (In v1.0.0) click Export CSV at the top of the filtered view — the file streams directly to the operator's browser.
The R30 tenant scope is enforced server-side; an operator working
inside acme literally cannot see globex rows, even by URL-tampering.
A junior just registered a stdio Filesystem MCP server in the host config.
- Open
/admin/mcp/→ Servers. The new server appears with status pillunknown(no handshake yet). - Click the server → Per-server detail. Click Refresh handshake
(top right). The panel POSTs to the playground
initializeendpoint, the cached handshake updates, the tool matrix populates. - The junior expands the tool matrix → reads tool descriptions +
JSON schemas without ever needing to
catthe server'stools/listoutput by hand. - Optionally, the junior runs
tools/callforread_filefrom the playground to validate end-to-end I/O before wiring the server into a chat flow.
The whole loop is reproducible from any browser in the office, no SSH required.
| Version | Status | Highlights |
|---|---|---|
| v0.x | ✅ scaffold + screenshots | This repo. Banner, screenshots, README, repo skeleton. Source code lands in v1.0.0. |
| v1.0.0 | ⏳ planned | Initial release. React SPA bundle + service provider + asset publisher + composer-extra cross-mount. Full coverage of the v1.4 admin REST surface. |
| v1.0.1 | ⏳ planned | .claude/ vibe-coding pack mirrored from the parent package + Playwright E2E covering every screen in this README + Italian + English copy. |
| v1.1.0 | ⏳ planned | Chat-time tool-call inspector — drilldown that ties an audit row back to the host chat message that produced it (when the host wires the linkback). |
| v1.2.0 | ⏳ planned | Prometheus exporter — /admin/mcp/metrics exposes breaker state + audit volume + p95 latency in Prometheus text format. |
| v1.3.0 | ⏳ planned | Per-tool ACL editor — manage allowedTools per (tenant, server) from the panel (writes through a v1.5 parent-package writable registry contract). |
| v2.0.0 | ⏳ planned | Multi-cluster control plane — manage MCP fleets across multiple Laravel hosts from one panel. Single-binary or single-image deploy. |
The v1.x line is strictly additive — every screen, every REST contract, every CSS variable, every test-id is part of the public API. We don't break consumers between minors.
Issues, discussions, and PRs are very welcome. Until this repo grows
its own CONTRIBUTING.md, the upstream community policy from the
parent package applies verbatim:
- Code style: PSR-12 + Pint for PHP, Prettier + ESLint for the React SPA.
- Tests: every PR that touches a screen ships a Playwright scenario (happy path + at least one failure path); every PR that touches the BE wiring ships a feature test against the v1.4 REST routes.
- Commits: Conventional Commits (
docs(...),feat(...),fix(...),chore(...)). - PR review: GitHub Copilot is requested on every PR; we don't merge until Copilot is happy AND CI is green AND a human reviewer has approved.
See
padosoft/askmydocs-mcp-pack/CONTRIBUTING.md
for the full policy.
Have a question, a use case, or a complaint? Open a Discussion or an Issue. We respond to most threads within 48 hours.
If your team uses this package in production, please consider sponsoring Padosoft on GitHub Sponsors. Sponsorship funds the v1.x → v2 roadmap and the surrounding AskMyDocs platform.
Apache License 2.0 © Padosoft. See LICENSE for the full text.
Related packages
padosoft/askmydocs-mcp-pack— the parent: contracts, orchestrator, transports, audit trail, circuit breaker, admin REST routes.padosoft/laravel-flow+padosoft/laravel-flow-admin— the workflow engine and its admin SPA companion (same cross-mount pattern as this package).padosoft/laravel-pii-redactor+padosoft/laravel-pii-redactor-admin— PII redaction with reversible tokenization, and its admin SPA.padosoft/laravel-ai-act-compliance+padosoft/laravel-ai-act-compliance-admin— EU AI Act compliance pack, and its admin SPA.lopadova/AskMyDocs— the host platform that drove every package above into existence.
