Scakable In Vivo Fuzzing

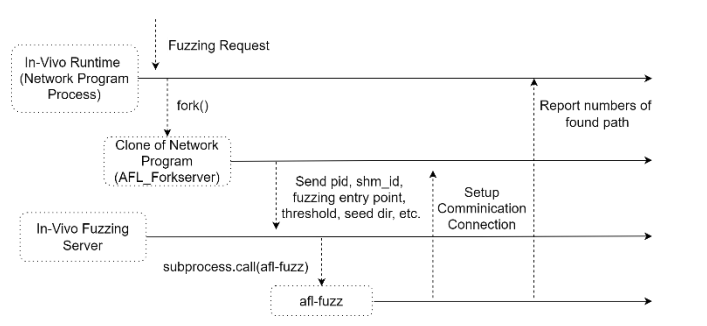

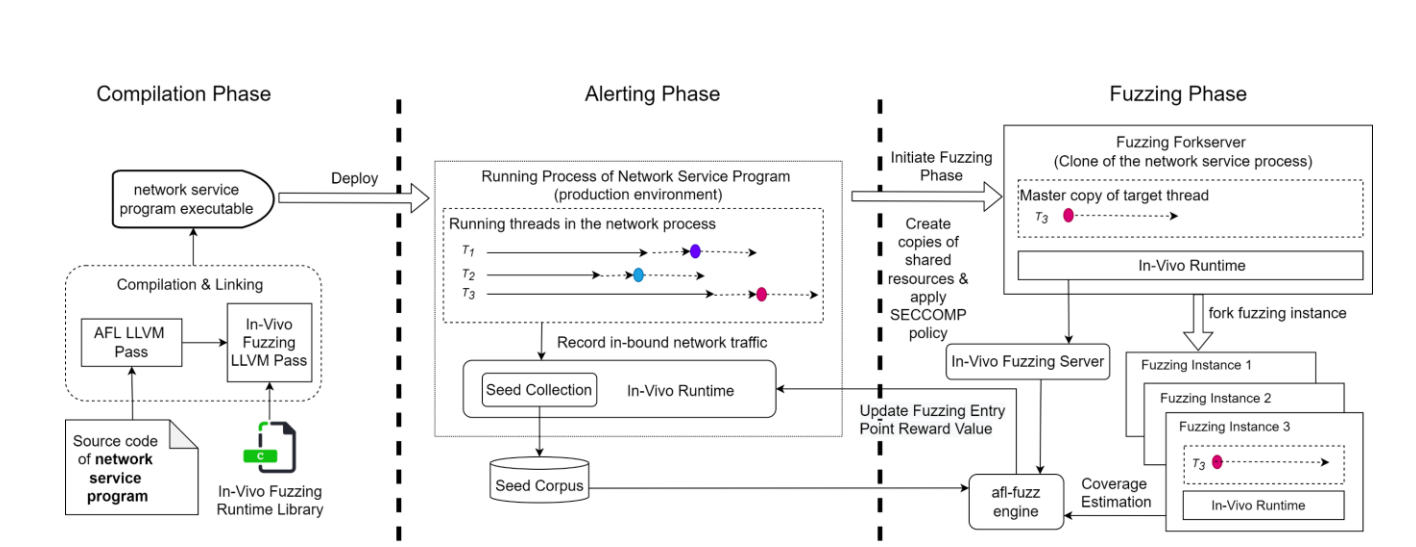

In-vivo Fuzzing 架構

套用成功的網路程式 CVE

使用 一般連線資料 跟接近 CVE exploit code 的 payload 讓程式蒐集 seed

Program	time to exploit	CVE	ASAN enable
MySQL-5.6.25	8 min 43s	CVE-2017-3599
Httpd-2.4.25	2 min 21s	CVE-2017-7659
Nginx-1.4.0	3 min 02s	CVE-2013-2028
Redis-5.0-rc1	2 min 09s	CVE-2013-2028
Exim- 4.92.1	1 day 3 hr 56s	CVE-2019-16928	yes
Live555-0.92	21 min 16s	CVE-2018-4013
Pure-FTPd 1.0.49	650ms	CVE-2018-4013
ntp-4.2.8p8	5 hr 57 min 43 s	CVE-2016-7434
tinydtls-0.8.2	15 min 19 s	CVE-2017-7243

Docker container 主要內容

~/
 - BSA_test (in-vivo Runtime library)
 - eval (Program CVE)
     - Nginx
         - entry.conf (適合的 fuzzing entry point function name)
         - tf_build.sh (設定 CC 跟 entry.conf，並自動 configure 跟 make)
         - bof.py (CVE POC)
     - MySQL
     - ...

測試流程概要

先 cd /BSA_test

1. 編譯 in-vivo fuzzing 框架

   • /BSA_rt make
   • /third_party/afl-2.52b/BSA_mode/ make

2. 編譯待測程式

   • CC 須為 ~/BSA_test/third_party/afl-2.52b/afl-BSA-clang-fast 的絕對位置
   • CFLAGS="-mllvm -config=/root/nginx-1.4.0/entry.conf -mllvm -level=2 -pthread"
   • 每個 cve 資料夾下都有個 tf_build.sh ，直接跑 ./tf_build.sh 即可

3. 啟動 IA_server：python3 IA_server.py（in /BSA_serv）

4. 啟動待測程式

5. 送出正常 request，確認待測程式進入正常流程

6. 送出 fuzzing request：./req 1 <待測程式pid> <待測程式tid> 0

7. 送出正常 request，開始 fuzzing

以 Nginx 為例

cd ~/BSA_test
cd BSA_rt
make
cd ~/BSA_test/third_party/afl-2.52b/BSA_mode/
make
cd ~/nginx-1.4.0
./tf_build.sh
./objs/nginx -p .  # start running the program


# open another pannel or use tmux to sperate pannel
cd ~/BSA_test/BSA_serv
python3 IA_server.py # launch the IA server



# open antoher pannel
# check whetehr the target program run successfully
curl localhost
python bof.py
# send fuzzing request
~/req 1 [pid of the program] [thread id of the program] 0
# send normal workload to target program
python bof.py

以 Exim 為例

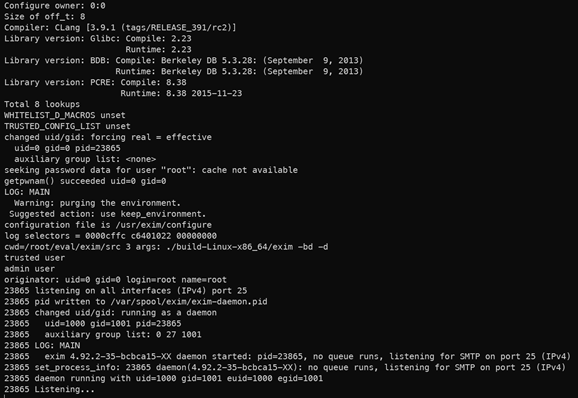

編譯 + 啟動 exim daemon

cd ~/eval/exim

echo "smtp_setup_msg" > entry.conf

CC="/root/BSA_test/third_party/afl-2.52b/afl-BSA-clang-fast"
CFLAGS=-mllvm -level=2 -mllvm -config=/root/eval/exim/src/entry.conf
AFL_USE_ASAN=1 make


./build-Linux-x86_64/exim -bd -d

啟動 In-vivo Fuzzing server

cd ~/BSA_test/BSA_serv && python3 IA_server.py

執行一般連線 + 惡意連線

python normal.py
python half_attack.py

發送 fuzzing request

~/req 1 [process id] [thread id] 0

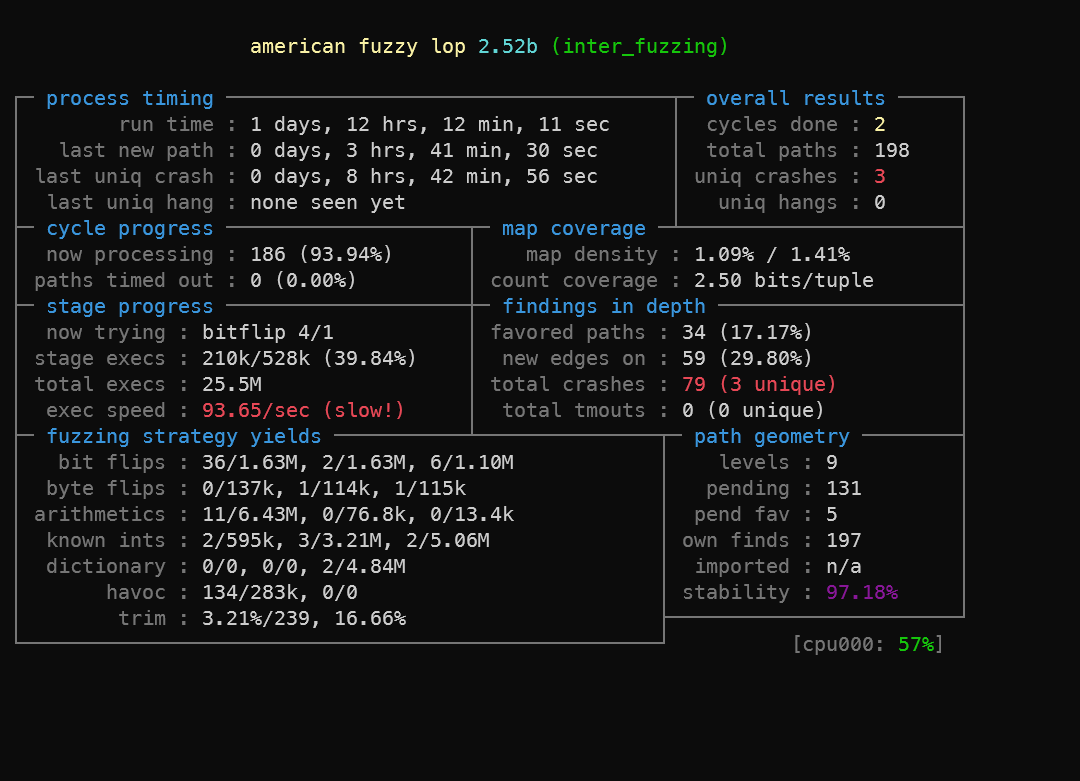

成功用 invivo + AFL 找到 bug

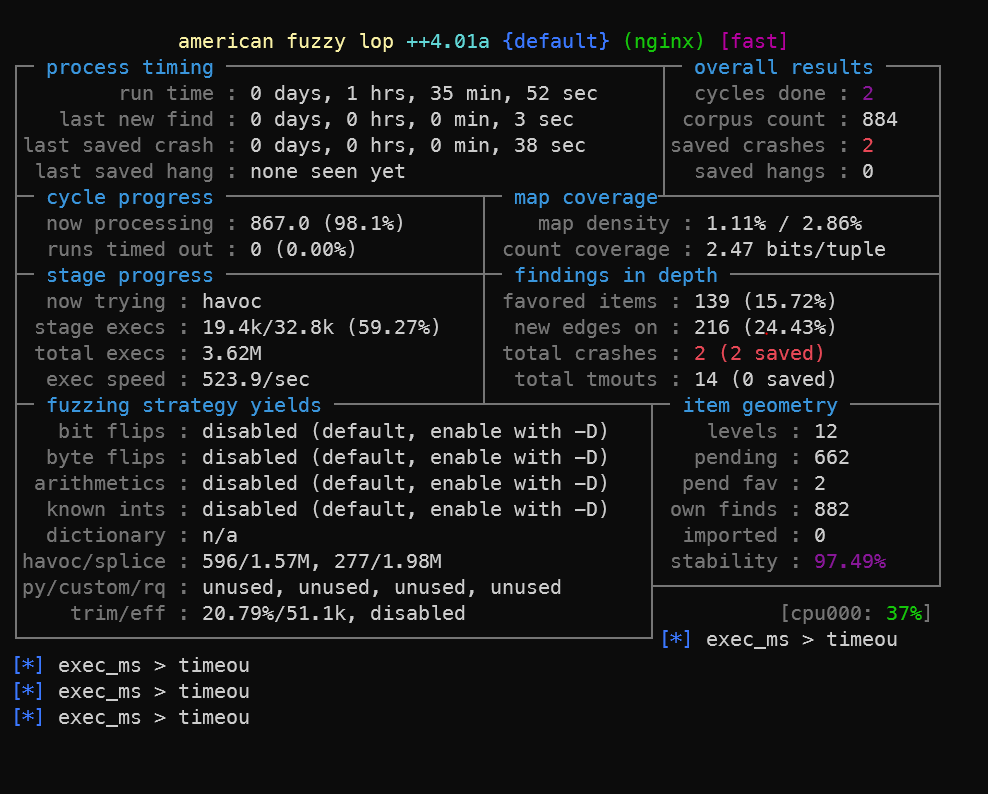

AFL++ with nginx
