A high-fidelity audio analysis engine that extracts musical features for reactive generative art. Transform any audio into stunning, music-driven visualizations.

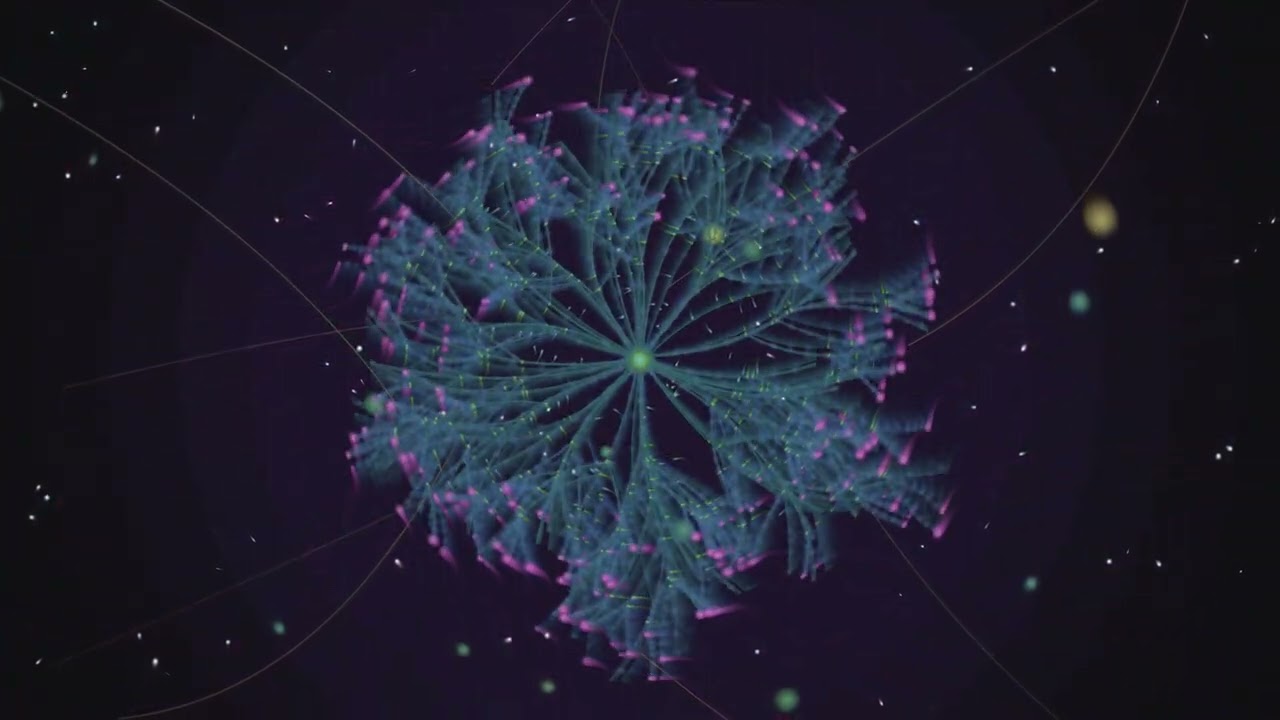

Real-time audio-reactive kaleidoscopic visualization
Audio File → Analysis Pipeline → Visual Driver Manifest → Kaleidoscope Video
This engine tries to understand the character of music by separating percussive transients (drums, attacks) from harmonic textures (melodies, chords).
| Feature | Description | Visual Application |
|---|---|---|
| HPSS Separation | Splits audio into harmonic and percussive components | Independent visual layers |
| Beat Tracking | Global BPM and beat timestamps | Sync animations to rhythm |
| Onset Detection | Identifies note attacks and transients | Trigger visual events |
| RMS Energy | Volume envelope (global + per-component) | Drive scale/intensity |
| Frequency Bands | Low (bass), Mid (vocals), High (cymbals) | Multi-band reactivity |
| Chroma Features | 12-bin pitch intensity (C, C#, D...) | Color mapping |
| Spectral Centroid | "Brightness" of the sound | Shape complexity |
Built-in visualizer with twelve distinct styles, each mapping audio features to unique transformations:
| Style | Description | Preview |
|---|---|---|
| Geometric | Orbiting polygons with radial symmetry |  |
| Glass | Faceted kaleidoscope with gem tessellation and prismatic rays |  |
| Flower | Organic petal shapes with bezier curves |  |
| Spiral | Hypnotic spiraling arms with flowing motion |  |
| Circuit | Hexagonal grid with glowing circuit traces |  |
| Fibonacci | Golden spiral meets kaleidoscope with phyllotaxis patterns |  |
| DMT | Hyperspace tunnel of non‑Euclidean, recursively folded geometry and neon fractals |  |
| Sacred Geometry | Mandala-style tiling, aperiodic patterns, and temple-like symmetry locks |  |
| Mycelial | Biomorphic fungal networks, bioluminescent growth, and spore-driven particle blooms |  |
| Fluid | Chrome-like ferrofluid blobs with viscous metal ripples and specular reflections |  |
| Orrery | Chaotic three-body orrery with brass planets, nested rings, and orbital trails |  |
| Quark | Quantum field visualizer with probability clouds, entangled particles, and interference patterns |  |
Audio-to-Visual Mapping:
- Percussive Impact → Shape pulsing (drums cause shapes to "kick")
- Harmonic Energy → Rotation speed (melodies drive smooth motion)
- Spectral Brightness → Polygon complexity (3 sides → 12 sides)
- Dominant Pitch → Hue colors (musical notes map to spectrum)
Dynamic Background Effects:
- Full-screen fractal kaleidoscope patterns that expand across the entire viewport
- Expanding radial geometry with mirrored triangles and polygon rings
- Gradient oscillation between two colors based on harmonic energy
- Floating particles that react to energy levels
- Expanding pulse rings on beat hits
- Smooth vignette for cinematic depth
- Fully configurable reactivity and color palette
A premium web-based interface designed for musicians:
- Drag & drop audio files
- Real-time preview with live canvas rendering
- Rotary knob controls that feel like studio hardware
- Waveform timeline with visual playhead
- One-click export to HD video
For a step‑by‑step, musician‑friendly walkthrough of the Studio, CLI, and Python API, see the User Guide.
# Clone the repository
git clone https://github.com/yourusername/chromascope.git
cd chromascope
# Create virtual environment
python3 -m venv .venv
source .venv/bin/activate
# Install with dependencies
pip install -e ".[dev]"Analyze audio and generate manifest:
from chromascope import AudioPipeline
pipeline = AudioPipeline(target_fps=60)
manifest = pipeline.process_to_manifest("your_song.mp3")
# Access frame data
for frame in manifest["frames"]:
if frame["is_beat"]:
print(f"Beat at {frame['time']:.2f}s - {frame['dominant_chroma']}")Render a kaleidoscope video:
from pathlib import Path
from chromascope.render_video import render_video
render_video(
audio_path=Path("your_song.mp3"),
output_path=Path("output.mp4"),
width=1920,
height=1080,
fps=60,
)# Analyze audio to JSON manifest
chromascope song.mp3 -o manifest.json --fps 60 --summary
# Render kaleidoscope video
python -m chromascope.render_video song.mp3 -o output.mp4# Start the web server
python frontend/server.py
# Open http://localhost:8080 in your browserThe Visual Driver Manifest is a JSON file with frame-by-frame data. It is
explicitly versioned via schema_version so renderers can safely evolve
alongside the analysis pipeline.
{
"metadata": {
"bpm": 120.5,
"duration": 180.0,
"fps": 60,
"n_frames": 10800,
"version": "1.0",
"schema_version": "1.0"
},
"frames": [
{
"frame_index": 0,
"time": 0.0,
"is_beat": true,
"is_onset": true,
"percussive_impact": 0.85,
"harmonic_energy": 0.42,
"global_energy": 0.65,
"low_energy": 0.72,
"mid_energy": 0.58,
"high_energy": 0.31,
"spectral_brightness": 0.44,
"dominant_chroma": "G#",
"chroma_values": {
"C": 0.12, "C#": 0.08, "D": 0.15, "D#": 0.10, "E": 0.05, "F": 0.03,
"F#": 0.02, "G": 0.25, "G#": 0.44, "A": 0.18, "A#": 0.09, "B": 0.06
},
"impact": 0.85,
"fluidity": 0.42,
"brightness": 0.44,
"pitch_hue": 0.73,
"texture": 0.45
}
]
}src/chromascope/
├── core/
│ ├── decomposer.py # HPSS separation (harmonic/percussive)
│ ├── analyzer.py # Feature extraction (beats, energy, chroma)
│ └── polisher.py # Envelope smoothing & normalization
├── io/
│ └── exporter.py # JSON/NumPy manifest export
├── visualizers/
│ └── kaleidoscope.py # Geometric visualization renderer
├── pipeline.py # Main orchestration
├── render_video.py # Video export with ffmpeg
└── cli.py # Command-line interface
frontend/
├── index.html # Main application
├── styles.css # Studio-grade dark theme
├── app.js # Visualization engine & controls
└── server.py # Development server
- Decomposition - HPSS separates harmonic (melody) from percussive (drums)
- Analysis - Extract temporal, energy, and tonality features
- Polishing - Apply attack/release envelopes for smooth visuals
- Export - Generate FPS-aligned manifest for rendering
from chromascope import AudioPipeline
from chromascope.core.polisher import EnvelopeParams
pipeline = AudioPipeline(
target_fps=60, # Output frame rate
sample_rate=22050, # Analysis sample rate
hpss_margin=(1.0, 1.0), # HPSS separation strength
impact_envelope=EnvelopeParams(
attack_ms=0.0, # Instant attack for punchy hits
release_ms=200.0, # 200ms decay for "glow" effect
),
energy_envelope=EnvelopeParams(
attack_ms=50.0, # Smooth attack
release_ms=300.0, # Gradual release
),
)from chromascope.visualizers.kaleidoscope import KaleidoscopeConfig
config = KaleidoscopeConfig(
width=1920,
height=1080,
fps=60,
num_mirrors=8, # Radial symmetry count
trail_alpha=40, # Motion blur persistence (0-255)
base_radius=150.0, # Base shape size
max_scale=1.8, # Maximum pulse scale
min_sides=3, # Triangle minimum
max_sides=12, # Dodecagon maximum
)- Python 3.10+
- FFmpeg (for video export)
- ~500MB disk space per minute of HD video
librosa- Audio analysisnumpy- Numerical operationsscipy- Signal processingpygame- Frame renderingPillow- Image handlingmoviepy- Video composition (optional)
# Install dev dependencies
pip install -e ".[dev]"
# Run tests
pytest tests/ -v
# Run with coverage
pytest tests/ --cov=src/chromascope --cov-report=term-missingThe test suite includes 52 tests covering:
- HPSS decomposition accuracy
- Feature extraction validation
- Envelope smoothing behavior
- Manifest schema compliance
- Full pipeline integration
- Music Videos - Generate reactive visuals for tracks
- Live Performance - Real-time audio-reactive graphics
- Art Installations - Ambient visualizations
- Game Development - Music-driven game mechanics
- Research - Music information retrieval
MIT License - See LICENSE for details.
Built with the philosophy that high-quality visualization isn't about raw data—it's about intent.
