feat(dash): first-class persistent observability dashboard

[OsherElhadad]

Closes #30

context-guru had no dashboard: the entire observability surface was GET /stats, one
in-memory Aggregator snapshot that vanished on restart. A user could not answer the
question the product exists to answer — what value is context-guru providing?

This adds a persistent dashboard: durable per-request storage, an off-hot-path capture
pipeline, a filterable JSON/SSE API, and an embedded single-page UI. --dashboard turns it
on; without the flag the route table is byte-identical to before and /stats is unchanged.

What is here

Storage — SQLite via modernc.org/sqlite (pure Go, no extra C toolchain), WAL mode.
requests · request_components · request_content (gzip, size-capped, skippable) ·
bench_runs/bench_tasks. Epoch-ms timestamps throughout; a formatted locale string
cannot be range-queried, sorted portably, or bucketed. Retention bounded by age and
size. Schema versioned, with a mismatch renaming the old file aside rather than refusing to
boot. --dashboard-db :memory: for no-persistence, which is also the automatic fallback
when the path is unwritable.

Capture off the hot path — the handler builds one struct from values the request path
already computed and does a channel send with a default: branch. A full queue drops and
counts; the drop count is surfaced in the UI, because a dashboard that hides its own
coverage gaps cannot be trusted about anything else. One writer goroutine batches inserts
and fans summaries to SSE.

API — /api/stats, /api/series?bucket=, /api/requests (server-side filters +
keyset pagination), /api/requests/{id}, /api/sessions, /api/components,
/api/facets, /api/config, /api/benchmarks[/{id}/tasks], /api/capture, /api/events
(SSE honoring Last-Event-ID). No rollup tables — series are bucketed in SQL at query time.

UI — three files via go:embed. No npm, no bundler, no framework, and no CDN:
context-guru ships into VPC and air-gapped contexts, so a test fails on any external origin
and the assets are served under default-src 'self'. Charts are hand-drawn SVG. Design
tokens are CSS custom properties from line one, so dark mode redefines only tokens.

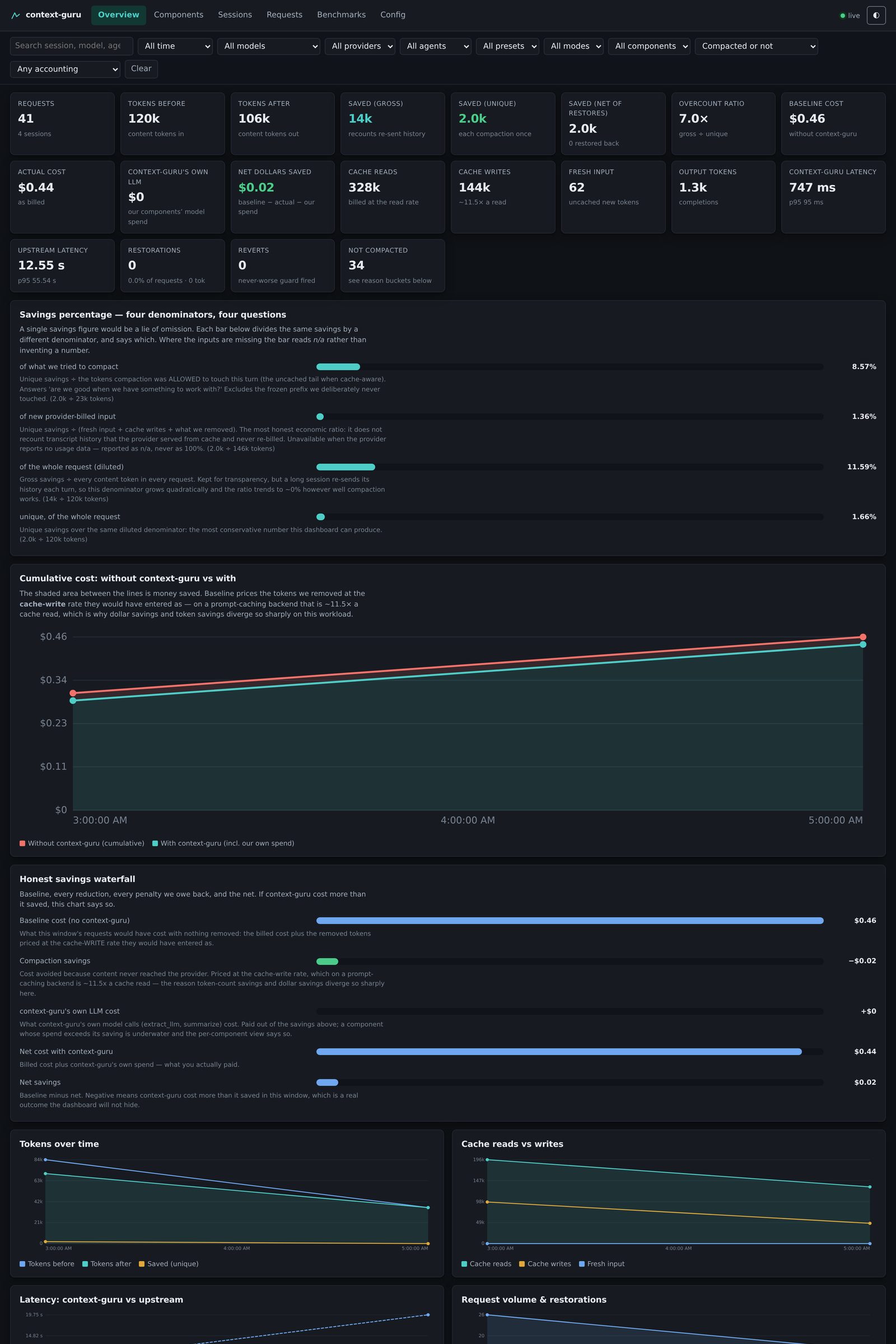

Metric semantics — the actual point

Requirement	How
Multiple labelled denominators	Four ratios, each shipping its divisor and a prose description in the payload: of-attempted · of-new-provider-billed-input · of-whole-request (diluted) · unique-of-whole
Never divide savings by themselves	The new-input ratio is guarded on the billed figure; with no usage data it reports n/a, not ~100%
Never count fake savings	gross · unique · adjusted are separate columns; overcount_ratio surfaced
Report the cost of our own safety	Frozen-for-cache-safety tokens, restorations, reverts, and context-guru's own latency and LLM spend, each beside its benefit
token_accounting per row	complete|partial|missing. An unpriceable request reads unknown — never zero, never exact
Cache-miss attribution	hit · cold_start · ttl_expiry · prefix_change · unknown; cold start is not a failure, TTL wins ties
"Why didn't you compact this?"	First-class reason bucket: bypassed · below_trigger · cache_frozen · found_nothing · reverted · no_messages

Cost is computed at write time so history does not reprice; percentages at read time
so a filter change needs no rebuild.

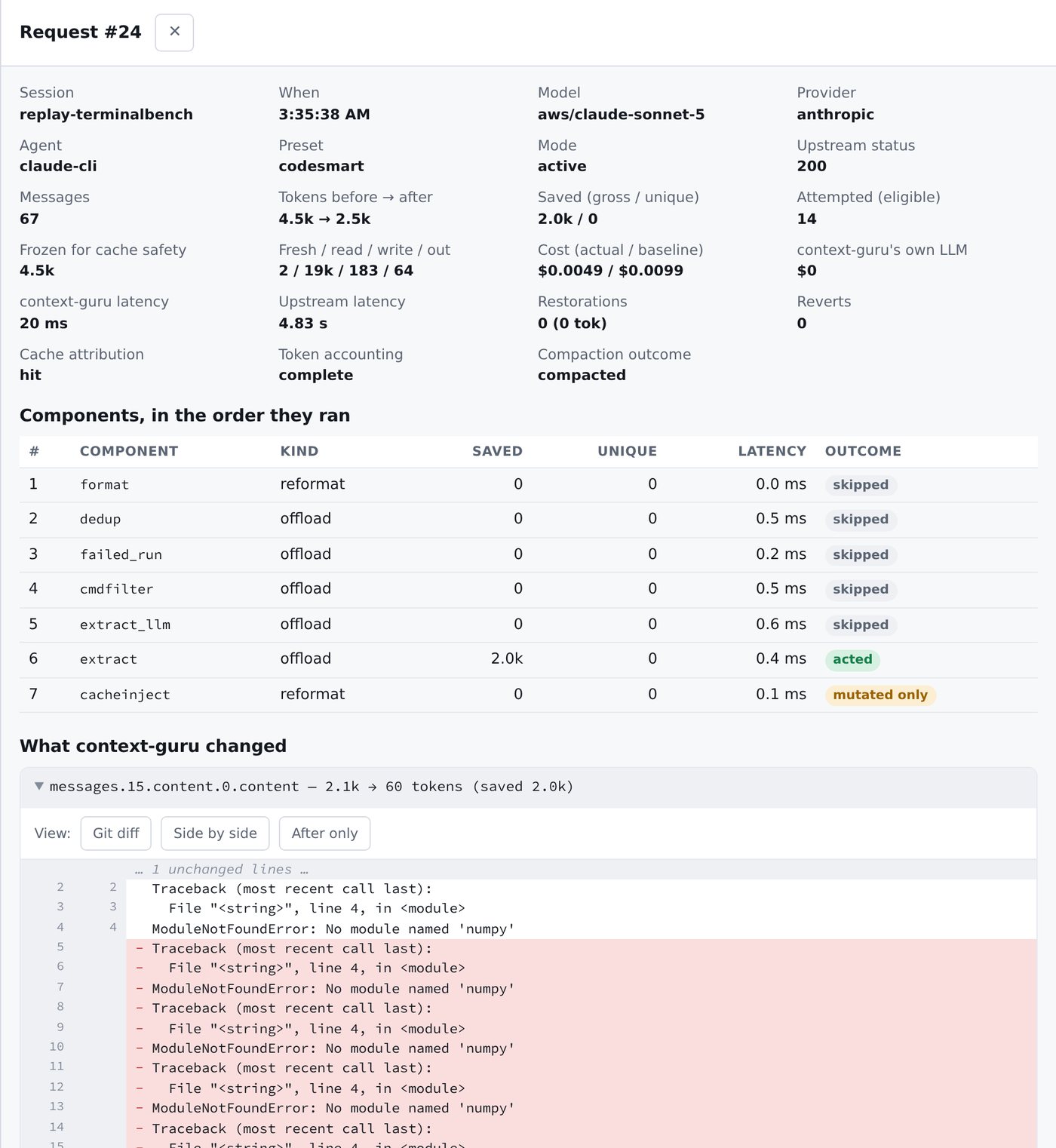

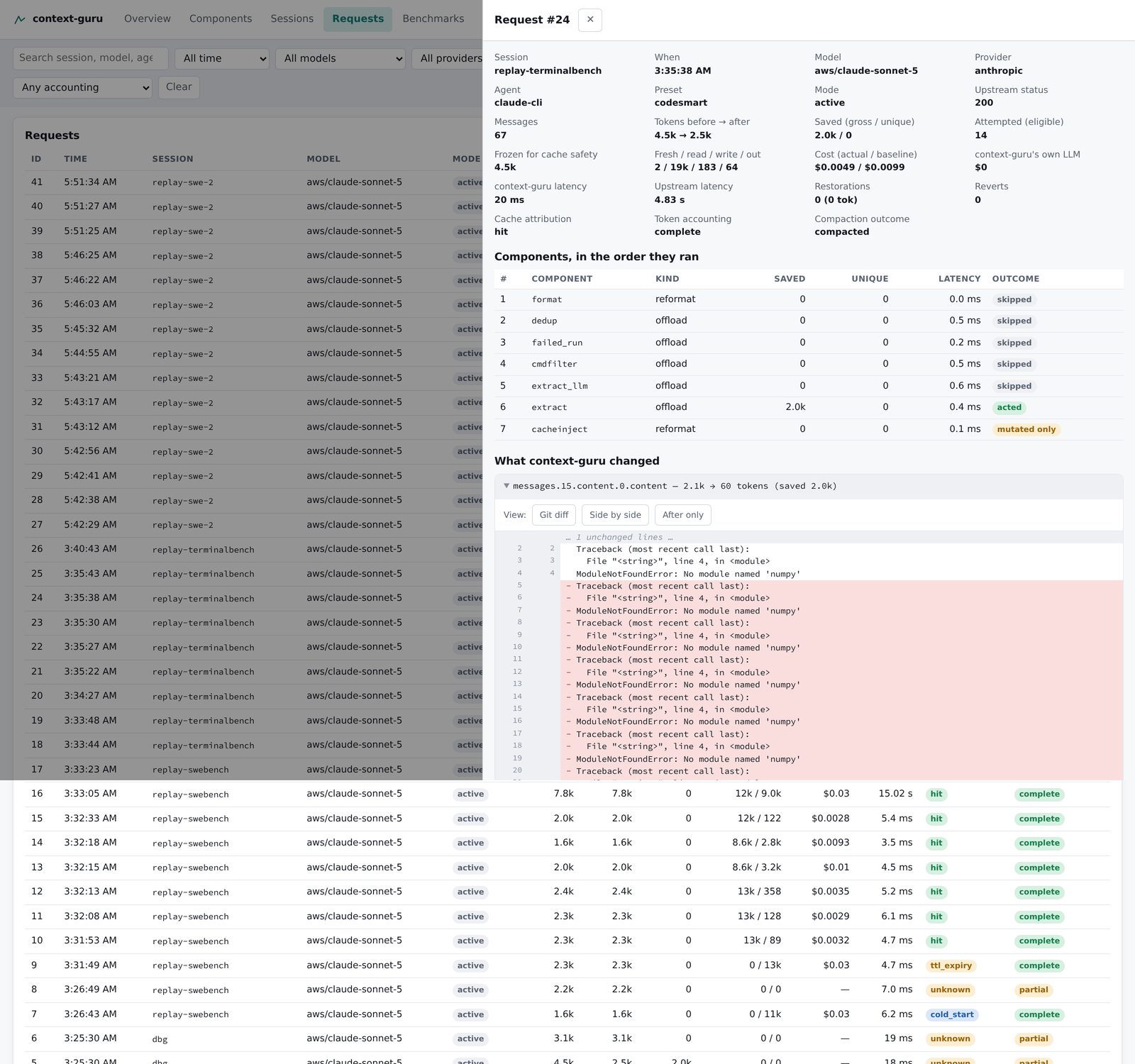

The headline feature: the before/after diff

Both reference implementations carry this data and neither renders it.

LCS diff with common head/tail trimmed first, Git-style hunks with line numbers and
collapsed unchanged runs, plus side-by-side and after-only modes. Blocks are ordered
biggest-saving first and the largest opens — leading with an unchanged block buries the
answer.

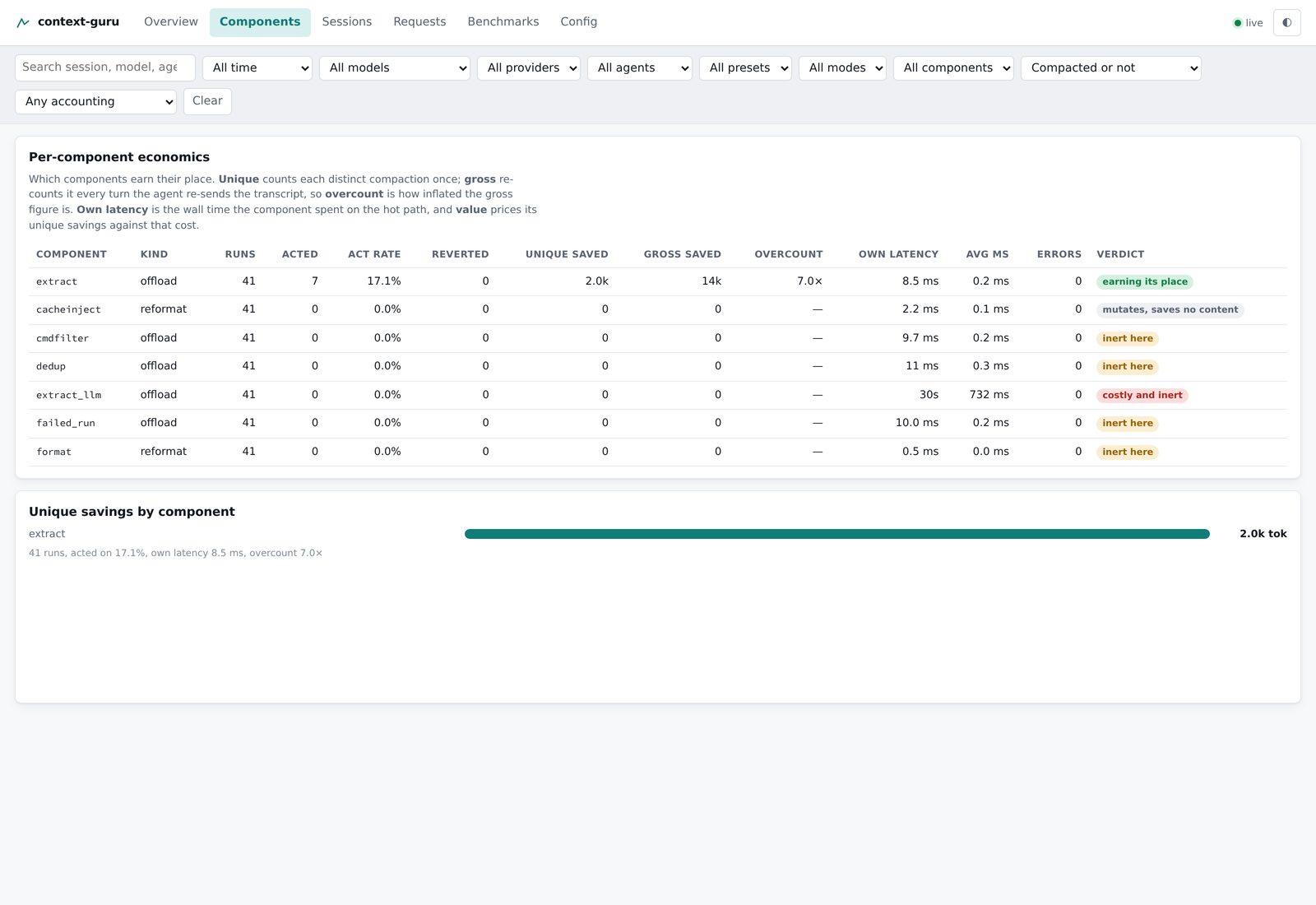

Per-component economics

On the real traffic above the verdicts do their job: extract is earning its place,
cacheinject mutates, saves no content (its win is provider-side), and a component that
burned wall time for nothing reads costly and inert.

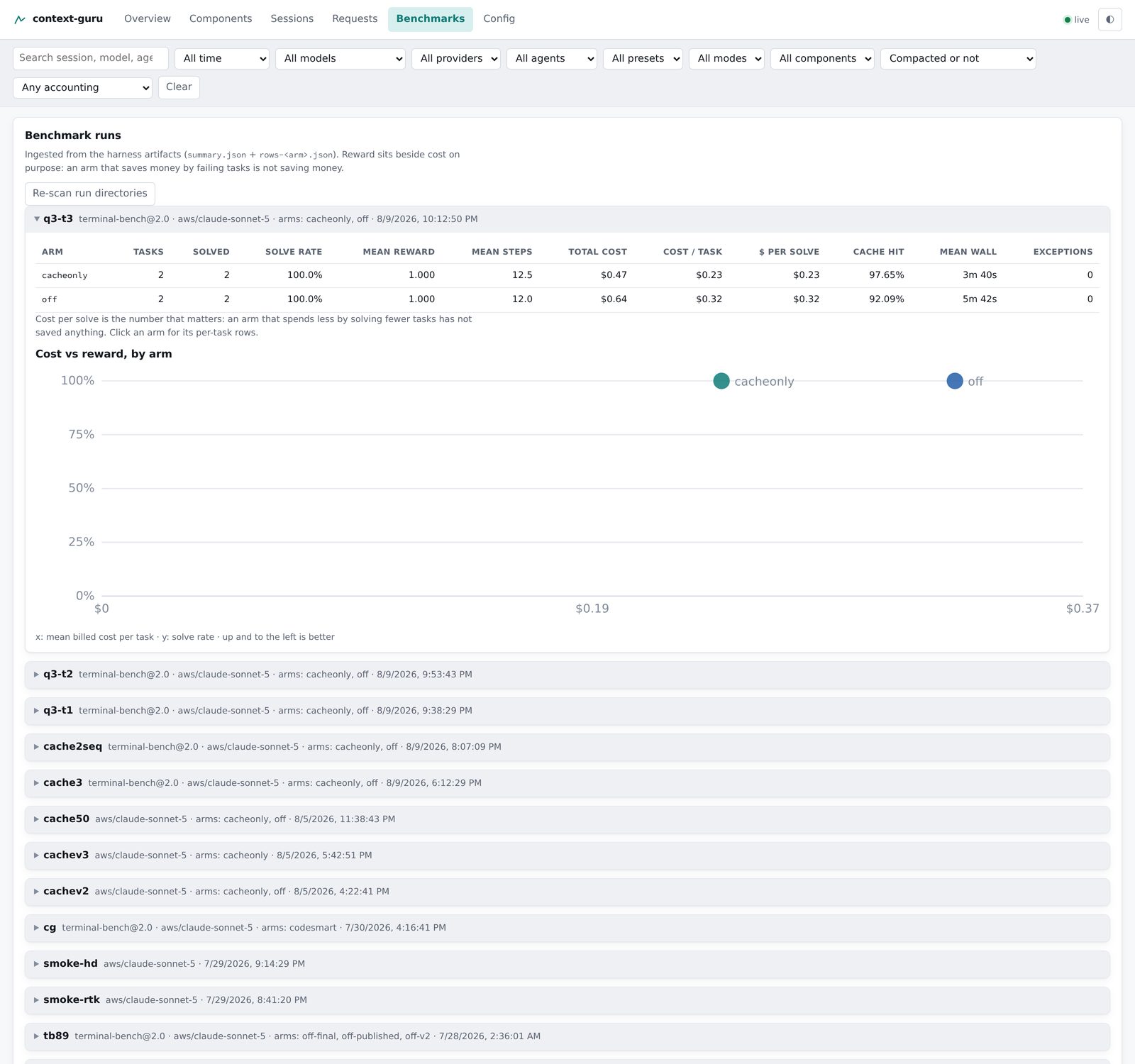

Benchmarks

Ingested straight from the harness artifacts (summary.json + rows-<arm>.json) — no new
export format, so 42 historical runs from /tmp/tb-runs and /tmp/cg-runs ingested on
first boot (652 task rows). Per arm: solve rate, mean reward, total/mean cost, cost per
solve, cache hit rate, exceptions, with a cost-vs-reward scatter and per-task drill-down.
Re-ingesting replaces a run rather than duplicating it.

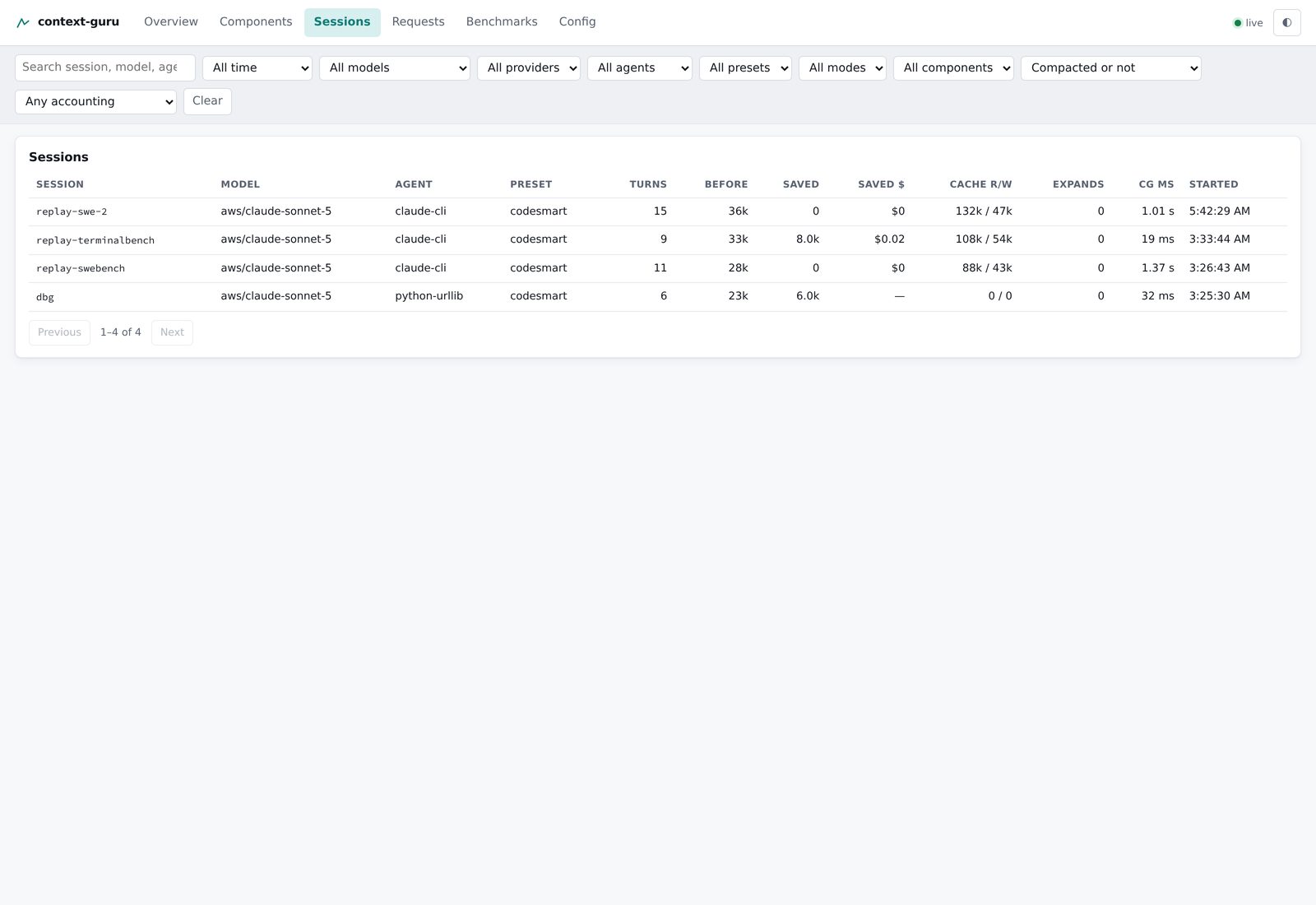

Sessions, requests, config, dark mode

Measured capture overhead

The issue asks for this explicitly, since a dashboard that costs request latency is a
regression in a tool that sells latency awareness.

BenchmarkRecord-16              200000        7567 ns/op   1141 B/op   7 allocs/op
BenchmarkRecordFullQueue-16     200000         388 ns/op    399 B/op   1 allocs/op
BenchmarkObserve-16             200000          64.8 ns/op
TestCaptureOverheadIsNegligible: capture overhead 175 ns per request (20,000 events)

~175 ns per request on the request goroutine — against a measured 8.4 s mean upstream
round trip on this workload, that is ~0.000002%. BenchmarkRecord's 7.5 µs includes the
benchmark's own &Event{} allocation, which the handler does regardless. The full-queue
(drop) path is 388 ns, so an overloaded dashboard degrades instead of becoming a latency
incident. A regression test fails above 50 µs, so moving I/O onto the capture path breaks CI.

Security

Redaction happens before the database, never on read — a secret on disk is a secret
forever, and a redact-on-read filter is one forgotten code path from leaking it. Headers are
blanket-redacted by key against a short allowlist (a denylist fails the moment a gateway
invents a new auth header); config keys are allowlisted with credential-named keys always
withheld; content is pattern-scrubbed then capped, so a secret at the truncation
boundary cannot survive by being cut into an unmatchable prefix.

Per-request content and the effective config are loopback/trusted-CIDR only; aggregates stay
open, because a proxy bound to 0.0.0.0 should still report its own numbers. There is
deliberately no "disable observability in production" switch.

Real-data validation (not fixtures)

Everything above is rendered from real traffic through this proxy on port 4107:

• 40 real requests replayed from captured SWE-bench and Terminal-Bench claude-code
  transcripts, against the live provider — so all four billed token tiers, the prompt-cache
  structure, cold starts and TTL expiries are real, not synthesised.
• A real claude CLI session through the proxy.
• 42 benchmark runs / 652 task rows ingested from the existing jobs roots, with per-task
  drill-down verified.
• Data survived a proxy restart (persistence verified end to end).

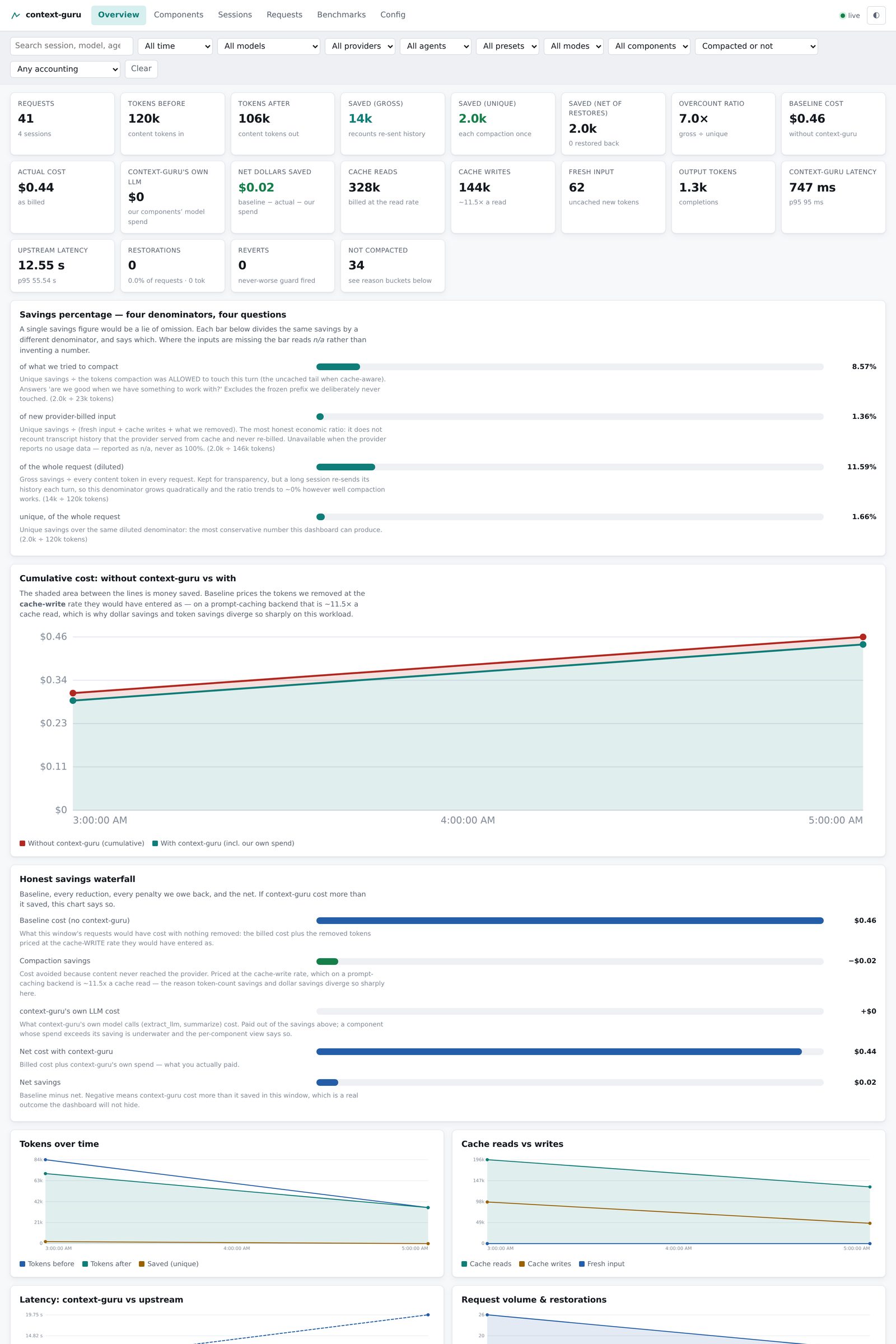

Observed: 4 sessions · 120k → 106k content tokens · 14k gross / 2.0k unique saved
(overcount 7.0×) · 328k cache reads vs 144k writes · $0.46 baseline vs $0.44 actual ·
accounting 32 complete / 9 partial · cache misses attributed 26 hit / 8 unknown /
4 cold_start / 3 ttl_expiry.

Tests

• dash: schema migration + version-mismatch preservation, retention by age and size
  (with cascade), keyset pagination covering every row exactly once, every filter
  dimension, query-time bucketing, redaction (incl. a canary written through the real
  capture path and read back from every column), the capture channel dropping rather than
  blocking with the drop counted, SSE fan-out with a hung client evicted, Last-Event-ID
  backfill, cache attribution, benchmark ingest from real harness-shaped artifacts.
• proxy: golden /stats shape in both directions (a lost field fails; a new field
  fails until recorded), usage parsing in both dialects, the streaming sniffer, and
  end-to-end capture through a real pipeline.
• go test -race ./... — 20/20 packages green, including the capture path and SSE hub.
• make lint clean; mkdocs build --strict clean.

Browser verification: 124 checks, 0 failures against the live app — every stat tile's
data-testid, chart rendering and tooltips, filters, pagination, the drawer, all three diff

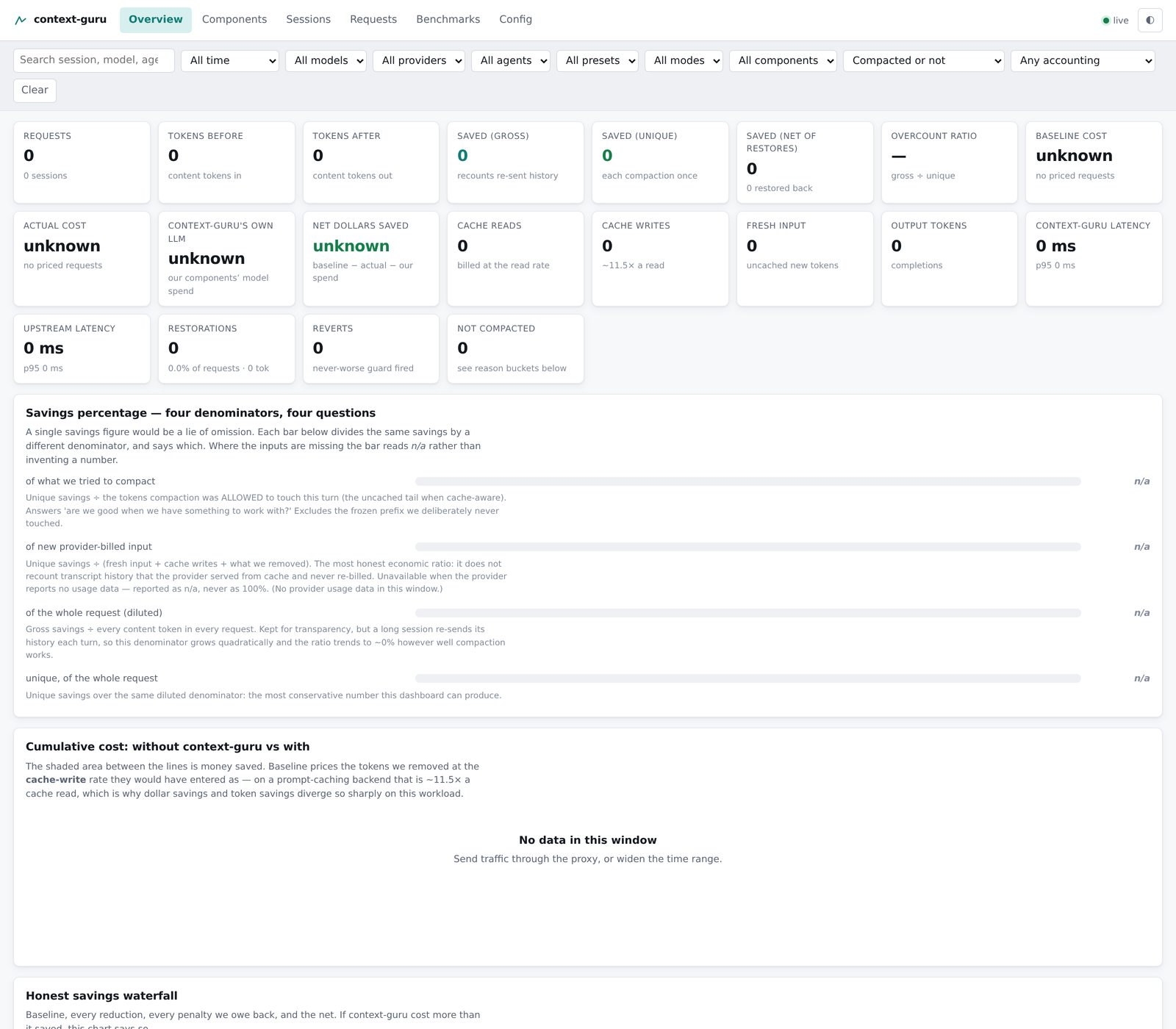

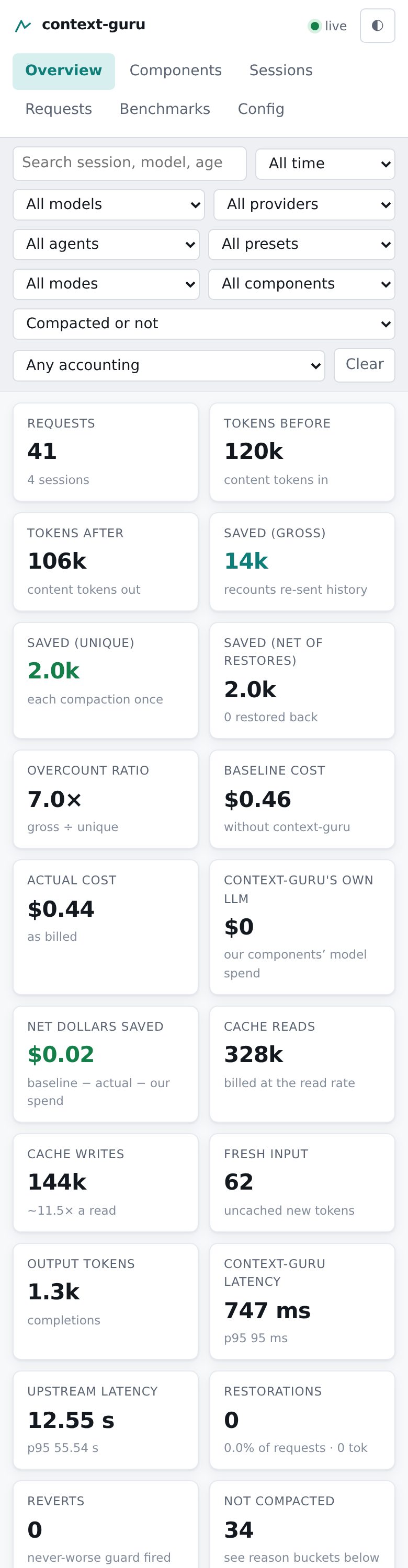

modes, benchmark drill-down, dark/light, a 390 px viewport, and empty states. Every
screenshot was scanned for credentials byte-wise and by OCR before being committed.

Bugs found and fixed along the way

Four real defects, each with a regression test:

1. internal/modelinfo never resolved anything in production. The LiteLLM prices map
   was decoded into one typed map[string]struct{…}, which fails on the document's
   prose-filled sample_spec entry and on models that spell an integer as a float —
   yielding nothing, so every context-window lookup silently returned "unknown" and
   fraction-based triggers have never fired. Per-entry decode keeps the ~2,900 good rows;
   the resolved rates now match the harness's published price vector exactly. (Pre-existing,
   unrelated to the dashboard.)
2. Streaming output tokens were under-reported. An output-only usage block — Anthropic's
   message_delta, which carries the final completion count — parsed as "no usage".
3. The streaming sniffer dropped its tail window whenever both halves saturated, losing
   usage for every large streamed response.
4. A dropped paren in app.js rendered a blank dashboard. Go compiled, every Go test
   passed, the HTML served 200. There is now a test that parses app.js (node when present,
   a bracket-balance scan otherwise).

Plus two redaction over-reaches caught by the browser checks: redacting the components
subtree wholesale made the config view show nothing, and a substring match on token also
swallowed max_tokens/min_tokens. Safety that destroys the feature is not safety.

Notes for review

• Split into three commits (storage+API → UI+wiring → docs) for reading; one PR.
• apply.BodyFull now delegates to apply.BodyTrace, so the rewrite is byte-identical
  whether or not anyone is looking. No behaviour change on the compaction path.
• metrics.Snapshot gains fields only — never renames or removals — guarded by the golden
  test, because deploy/harbor/*.py parses that payload by name.
• One new dependency: modernc.org/sqlite (pure Go).

Open concerns

• Per-request attribution of context-guru's own LLM spend uses the delta of a
  process-global cheap-model counter, so under concurrency a request can be charged a
  neighbour's call. Correct in aggregate, approximate per row. Fixing it properly needs the
  Model interface to carry a per-request label.
• Recorder.Observe/MarkUnique clear their maps on overflow rather than evicting LRU
  (marked with ponytail: comments). A reset re-reports a cold start, which is honest but
  loses attribution precision; it needs a real LRU only if session churn gets large.
• The diff falls back to a whole-block replace above 1,500 changed lines — the LCS table
  is O(n·m). A real Myers O(nd) would remove the ceiling.
• Benchmark ingestion keys on the run directory name, so two runs with the same basename
  under different roots collide.
• The issue lists feat(proxy): three operating modes — sync, async (cache-safe deferred compaction), and observe (measure without enforcing) #31's three modes; the mode column and filter are in place, but only
  active/bypass occur today — observe needs feat(proxy): three operating modes — sync, async (cache-safe deferred compaction), and observe (measure without enforcing) #31.

[OsherElhadad]

Independent review — verdict: changes needed (2 blockers), and the modelinfo fix should be split out

I reviewed this from my own worktree at origin/feat/i30-dashboard (e650817) and ran everything below myself rather than taking the PR body on trust. A lot of this holds up extremely well — see "what I verified and confirmed" at the end. Two findings are blockers.

---

🔴 BLOCKER 1 — net_dollars_saved is inflated by the overcount ratio (13.1× on my run). This is the exact defect the issue calls "the worst possible defect in an observability tool".

dash/event.go:235:

e.BaselineCostUSD = e.CostUSD + float64(e.Saved())*p.CacheWrite

e.Saved() is gross — tokens_before - tokens_after, which recounts the same compaction every turn the agent re-sends the transcript. The PR is careful and correct about this everywhere in token space (saved_gross / saved_unique / overcount_ratio are separate columns, denominators() uses SavedUnique for the honest ratios). Then the dollar figure — the single number a user actually reads — silently uses gross.

Measured on 63 real replayed requests through my own build:

saved_gross  3,718,890    saved_unique 283,479    overcount_ratio 13.12x
reported compaction saving   $7.0244   (= gross x cache_write)
unique-based saving          $0.5354   (= unique x cache_write)
reported net_saved_usd       $7.0027
DOLLAR SAVINGS OVERSTATED 13.1x

The overview renders "NET DOLLARS SAVED $7.00" in the tile row immediately next to "OVERCOUNT RATIO 13.1×". The dashboard is displaying the correction factor for its own headline number and not applying it. Same bug propagates to SessionRow.SavedUSD (dash/query.go), the waterfall's compaction step (dash/overview.go:waterfall), and the cumulative baseline-vs-actual chart — i.e. the issue's "the important one".

There is a second, smaller error inside the same line: even the unique tokens are all priced at CacheWrite. Re-sent (non-unique) removed tokens would have been served from cache, so at most they'd have been billed at CacheRead (~1/12th). Pricing them at the write rate is what produces the 11.5x-amplified inflation.

Fix: price unique savings at CacheWrite, and if you want to keep a gross line at all, price (gross − unique) at CacheRead and label it separately. Concretely:

// unique content genuinely never reached the provider as new input
e.BaselineCostUSD = e.CostUSD + float64(uniqueSaved)*p.CacheWrite +
                    float64(e.Saved()-uniqueSaved)*p.CacheRead

Then add the regression test that would have caught this: build a window where overcount_ratio == 10, assert net_saved_usd is ~1/10th of the gross-priced figure. Right now no test asserts a dollar figure against a known-overcounted token figure, which is why an otherwise very well-tested PR shipped this.

---

🔴 BLOCKER 2 — content redaction runs on the request goroutine and costs 53 ms/request, not 175 ns. The headline overhead claim measures the wrong thing.

proxy/dashcapture.go:152-161 runs dash.RedactContent (9 regexes) over up to ContentMaxPerRequest (24) blobs × before+after = 48 × 16 KiB — inside capture.finish, which is called from serve's defer (proxy/proxy.go:472). A deferred call in the handler runs before the handler returns, so the connection is not released and (for keep-alive clients, i.e. every real agent) the next request on that connection waits behind it.

I measured this against three of my own builds on unique ports, same fake upstream, same 380 KB realistic transcript, median of 10:

dashboard OFF          median 214 ms
dash ON, content OFF   median 215 ms   <- +1 ms  (the 175 ns claim is fine HERE)
dash ON, content ON    median 268 ms   <- +53 ms

So: the capture channel send really is ~175 ns as claimed and BenchmarkRecord is honest about what it measures — but it is not the dashboard's per-request cost, because redaction was placed on the caller's goroutine. docs/dashboard.md and the PR body both state the dashboard costs ~0.000002% of a request; with the default --dashboard-content=true it costs ~25%.

The dominant cost is one regex, dash/redact.go:161:

#7  3.449 ms/blob   (?i)\b([A-Z0-9_]*(?:API_?KEY|AUTH_?TOKEN|SECRET|...)[A-Z0-9_]*)\s*[:=]\s*["']?[^\s"',}]{8,}

(full per-regex timings over a 17 KB log-shaped blob: #7 3.4 ms, #8 930 µs, #6 612 µs, #3 552 µs, #2 551 µs, #5 520 µs, #4 457 µs, #0 90 µs, #9 50 µs → ~7 ms per blob, ~310 ms for a full 48-blob request in the worst case.)

Fix (either is fine, first is smaller): move redaction to the writer goroutine. It is already the right place — capture.go:run() owns the event, redaction is idempotent, and nothing downstream needs it earlier. The comment at dashcapture.go:156 says redaction "runs on the writer's caller — this goroutine, after the response is out", which is the bug in one sentence: after the response body is out, but still on the request goroutine and still before the handler returns. Additionally, cheap wins: gate the whole regex pass behind a strings.ContainsAny(s, ":=")-style prefilter, and merge #0/#2/#3/#5 into one alternation.

Also note TestCaptureOverheadIsNegligible cannot catch this, because it calls Record directly and never goes through finish. A regression test at the finish level (or an end-to-end handler latency assertion with content capture on) is what's missing.

---

🟠 Should the modelinfo fix be in this PR? No — split it out. But it is correct.

I reproduced both sides independently against the live LiteLLM document:

origin/main:                 claude-sonnet-4-5 -> window=0  ok=false   (every lookup, all four models)
this branch:  byKey=3664 priceBy=3378
              claude-sonnet-4-5   window=200000 price={3e-06 1.5e-05 3e-07 3.75e-06} ok=true
              aws/claude-sonnet-5 window=1000000 price={2e-06 1e-05 2e-07 2.5e-06}   ok=true

The fix is correct and genuinely per-entry (json.RawMessage map, continue on a bad entry), and the float64-then-int() handling of float-spelled integers is right. It's a real, severe, pre-existing bug — matching #39.

But it does not belong here:

1. It changes compaction behaviour, not observability. components/trigger.go resolves fraction thresholds against Ctx.CtxWindow; today that is always 0 so fractions are ignored and only absolutes apply. After this fix, every fraction-configured deployment starts compacting differently — on the first request, silently, with no flag. That is a behaviour change hidden inside a +9,254-line dashboard PR, and it is un-bisectable if it regresses a benchmark.
2. It is a prerequisite for the dashboard's pricing, not a consequence of it. Land it first as its own small PR (fixing #39), with the before/after resolution evidence in that PR's description, then rebase this one on top. The Price/Pricer additions can come with the dashboard; the per-entry decode fix should not.
3. The stated blast radius deserves its own review: no preset currently ships a fraction (config.go presetConfigs use absolute min_tokens/min_request_tokens only), so the practical risk today is low — but that is an argument for it being an easy separate PR, not for burying it.

The other three bug fixes are appropriately in scope (all three are on the usage-parsing path this PR introduces) and each has a test. usage.go's output-only-block branch and the sniffer head+tail fix both look right, and the app.js bracket-balance test is a reasonable answer to "no Go test could catch this".

---

🟡 Medium

Open(":memory:") uses cache=shared, so every in-memory DB in the process is the same database. dash/store.go:37:

return openDSN("file::memory:?cache=shared", "")

My test:

a, _ := Open(":memory:"); b, _ := Open(":memory:")
a.insertBatch([]*Event{{TS:1, SessionID:"only-in-a"}})
// b sees 1 row  -> LEAK

Production only opens one, so this is not a live bug today — but it makes :memory: tests leak state into each other (a latent source of the flakiest possible failure), and it means the unwritable-path fallback of two proxies in one process would silently merge. Use file:dashN?mode=memory&cache=private with a per-instance name, or just drop cache=shared (a single *sql.DB connection pool needs it only if you rely on multiple conns seeing the same memory DB — which, with one writer goroutine, you don't... verify against sql.DB's pooling before dropping, since a private in-memory DB is per-connection).

Benchmark ingestion counted 42 runs but only 17 have data — and the UI shows 25 empty rows. I pointed a real proxy at /tmp/cg-runs,/tmp/tb-runs:

proxy log: "ingested benchmark runs runs=17 tasks=652"
/api/benchmarks: 42 rows, 25 with NO arms  (e.g. smoke-hd, rerun2, dbg1, final50-v5)

IngestBenchDir inserts a bench_runs row before it knows whether any rows-*.json parsed, then returns tasks=0 — so IngestBenchRoots doesn't count the run, but the row is already committed. The result is a Benchmarks tab padded with 25 contentless entries and a log line that disagrees with the UI. The PR body's "42 historical runs ingested" is really "17 ingested, 25 empty shells". Fix: only commit the run row if tasks > 0 (or len(rowFiles) > 0), and make the counter and the table agree.

On the flagged basename-collision concern: I checked, and there are no basename collisions across those two roots today, so it's a latent issue rather than a live one. Keying on the full path (or root+basename) is a two-line fix; not a blocker.

Redaction is a denylist for content, and it rots — as predicted. Header and config redaction are properly allowlist-based (correct, and RedactHeaders is genuinely blanket-by-key). But contentSecrets is a pattern denylist, and it is the one place secrets from arbitrary agent output land. I threw 22 realistic credential shapes at RedactContent; 11 got through:

LEAK  Authorization: Bearer SECRET…      -> "Authorization: «redacted» SECRET…"   (!! the value survives)
LEAK  {"api_key": "SECRET…"}             -> unchanged   (JSON form: name is quoted, #7 needs \b[A-Z0-9_]*)
LEAK  {"apiKey":"SECRET…"}               -> unchanged
LEAK  https://user:SECRET@host/path      -> unchanged   (basic-auth URL)
LEAK  postgres://admin:SECRET@db/x       -> unchanged
LEAK  {"private_key_id":"SECRET…"}       -> unchanged   (GCP service-account JSON)
LEAK  DefaultEndpointsProtocol=…;AccountKey=SECRET…  -> unchanged (Azure)
LEAK  glpat-SECRET… / sk_live_… / hf_…   -> unchanged   (GitLab PAT, Stripe, HuggingFace)

The Authorization: Bearer one is the most alarming: regex #8 matches authorization\s*:\s*\S+ and \S+ stops at the space before the token, so the replacement redacts the word "Bearer" and leaves the credential. Please add a test for that exact string.

The JSON-form misses are one character each — #7's leading \b[A-Z0-9_]* won't cross the ". Suggest: also match ["']?[A-Za-z0-9_]*(api_?key|secret|token|password|private_key)[A-Za-z0-9_]*["']?\s*[:=], add a ://user:pass@ URL rule, and add the well-known prefixes (glpat-, sk_live_, hf_, AIza, ya29.) to the prefix alternation. Note the config path correctly refuses anthropic_upstream: https://user:SECRET@… — no wait, it doesn't: my nested-config test showed that one leaking too, because the key is allowlisted and only the key name is checked, never the value. A credential-in-URL value check on allowlisted string values would close both.

To be fair on what redaction does get right: the DB canary test (redact_test.go:262) is real, end-to-end, and asserts on every stored column; I confirmed my sk-ant-…/Bearer … request headers do not reach the database at all (strings dash.db | grep SECRETCANARY → 0 hits), because headers are never captured in the first place. Redaction is on the write path, as required. The gap is specifically arbitrary-content patterns.

Options.Mode and Options.Preset are set in main.go:98 and never read. proxy/dashcapture.go:55 takes the preset from h.opts.Preset instead, and mode comes from Event.FromTrace. Dead config surface — delete both fields, or read them.

---

🟢 Minor / non-blocking

• GET /api/benchmarks?refresh=1 performs a filesystem scan and DB writes on an unauthenticated GET. Aggregates being open is the documented design, but a mutating GET behind no gate is worth putting behind a.trusted(r) (and arguably POST).
• Prune's size rule runs VACUUM inside the writer goroutine's select loop, up to 8 times. VACUUM rewrites the whole file and blocks; on a 512 MiB DB that stalls capture for seconds and starts dropping events. Capture won't add request latency (good), but the drop counter will spike for reasons the UI attributes to load. Consider incremental_vacuum or accepting a looser size bound.
• The overview's time-series charts degenerate to a single plotted point when all data falls in one bucket (my whole replay was inside one minute). Not wrong, but a 1-point line chart with no fallback message reads as broken; consider a "not enough time range to chart" empty state.
• percentile() interpolates nothing and filters col > 0, so p95 latency silently excludes zero-latency requests. Fine, but it means p95 is over a different population than the mean beside it.
• cg_latency_ms recorded 876,759 ms for my 400 KB-blob request. That's a real (pre-existing) pipeline cost, not a dashboard bug — but the dashboard is now the thing that surfaces it, and the request-detail view renders it as "876759 ms" rather than "14.6 min". dur() handles hours; the drawer isn't using it for this field.
• On the flagged per-request LLM-cost attribution via a process-global counter delta: not a blocker. It is documented, it's approximate only under concurrency, and cg_llm_cost_usd is ~0.3% of the figures involved. Same for clear-on-overflow vs LRU (marked ponytail:, honest failure mode) and the 1,500-line diff fallback (marked, with a stated ceiling). observe mode being plumbed-but-unused is correctly attributed to #31.

---

Scope

54 files is large but mostly coherent — dash/ is 16 files of one new package and the UI is 3. The genuinely separable pieces are: (a) the modelinfo per-entry decode fix → its own PR, per above; (b) benchmark ingestion (dash/bench.go + the Benchmarks tab, ~600 lines) is independent of per-request capture and would have been a clean third PR, as the issue itself suggested. I would not ask you to re-split the storage/API/UI at this point — the commits are already readable in that order and re-splitting now costs more than it buys.

---

What I verified myself (vs took on trust)

Verified by running it:

• BodyFull byte-identity — the highest-risk change: PASSES. I compiled the same test into both origin/main and this branch, ran 96 configurations (6 presets × cache auto/on/off × bypass on/off × 4 conversation turns with a stateful store), and diffed SHA-256 of every output: byte-identical, zero differences. Also checked every caller (proxy.chat, proxy.compact, adapters/bifrost) — all route through BodyFull→BodyTrace→bodyFull and the trace is genuinely write-only. attemptedTokens does run unconditionally even with the dashboard off, but it's tokens.Count on already-memoized strings; I benchmarked BodyFull on a 1.4 MB body across both branches (30 iters × 3): 891/891/902 ms vs 929/897/900 ms — no regression.
• go test -race ./...: 20/20 green. go test -race -count=5 ./dash/: green, 135 s, no races.
• Writer lifecycle, my own tests: Close() does flush the tail batch (7 events with a 1-hour flush interval all landed); Record after Close neither panics nor blocks (5,000 late calls, instant); an unwritable path does degrade to :memory: instead of failing the proxy. Drop counter is atomic.Int64. SSE Publish is non-blocking with per-client buffer + evict, so a hung client cannot stall the writer. All correct.
• /stats backward compat: golden test is genuinely bidirectional (loses-a-field fails AND gains-a-field fails). I independently grepped every deploy/harbor/*.py reader — measure.py, replay.py, replay2.py, swebench.py, sweep.py read 16 distinct keys, all present, none renamed. Snapshot changes are additive only. Verified safe.
• mkdocs build --strict: clean. All 13 screenshots referenced, none orphaned, every --dashboard* flag and DASHBOARD_* env var documented, all 12 documented API routes return 200. Docs describe implemented behaviour — except the overhead claim (Blocker 2).
• All 18 committed screenshots scanned byte-wise (strings) for sk-ant|sk-…|ghp_|AKIA|Bearer|api_key: 0 hits, and no EXIF/comment metadata. Clean.
• Model resolution before/after, live, against the real LiteLLM doc (see above).

UI, driven with Playwright against my own build on port 4190 (40 real requests replayed from /tmp/cg-runs/capture-swebench.jsonl, read-only, + 42 bench dirs ingested):

• All six views render with real data; 0 console errors, 0 page errors, 0 off-origin requests across every probe. data-testid on every tile as the issue required.
• CSP verified live: default-src 'self'; img-src 'self' data:; style-src 'self'; script-src 'self'; connect-src 'self' — and nothing violates it (the setStyle-via-CSSOM trick is a nice touch).
• XSS attempt fully blocked. I sent a request with session id <img src=x onerror=window.__XSS=1>"><script>window.__XSS2=1</script> and a <script> in tool_result content, then opened the row in the drawer: __XSS/__XSS2/__XSS3 all false, 1 script tag (the app's own), 0 injected imgs, and the markup renders as literal text. innerHTML appears exactly once in app.js — in a comment saying not to use it. el() throws on an html prop. Genuinely good.
• Request detail + before/after diff is the best thing in this PR — real Git-style hunks with line numbers over actual replayed content, all three modes (Git diff / side-by-side / after-only) working, per-component table with outcomes (skipped/acted/mutated only).
• Dark mode: rgb(15,18,22), correct. 390 px viewport: scrollWidth == clientWidth == 390, no horizontal overflow. Long session ids (300 chars) don't break layout. Empty result set renders "0 / — / unknown" with "no priced requests", not zeros pretending to be data.

Took on trust: the "124 browser checks" count (I ran my own ~30 instead), the exact BenchmarkRecord numbers (I reproduced the conclusion for the channel send, not the digits), and that make lint is clean.

---

This is genuinely high-quality work — the metric semantics are thought through far past what the issue asked for, the honesty machinery (token_accounting, overcount_ratio, uncompressed_reason, cold-start-is-not-a-failure, four labelled denominators each carrying its own prose description, SafetyCost beside its benefit) is all present and correct, and the byte-identity of the rewrite path holds under 96 configurations. Fix the dollar denominator and get redaction off the request goroutine, and I'd merge it.

[OsherElhadad]

Superseded by #57.

Same work, rebased onto main (9 PRs landed since this branch forked, HEAD 5768b00) with the three blockers fixed. This PR could not be updated in place — the rebase rewrote history and force-push is blocked by branch protection — so the branch is feat/i30-dashboard-rebased.

Blockers, each with the regression test that would have caught it:

• Dollar denominator. Baseline now prices UNIQUE savings at the cache-write rate and the re-sent remainder at the cache-read rate. On the same 63 replayed requests: $0.002235 → $0.000241, 9.3x inflation removed. TestDollarsDeriveFromUniqueNotGrossSavings pins the aggregate against a deliberately-overcounted fixture and fails on the old formula.
• Redaction on the request goroutine. Moved to the writer goroutine, still before the INSERT. With content capture ON, medians of 40 paired requests: +53 ms → −3 ms (within noise). The new handler-level guard measures +87 ms and fails if it moves back.
• Content redaction denylist. 22/22 shapes now redact (Authorization: Bearer included), pinned by a table test, plus a credential-in-URL check on allowlisted config values. Since a denylist over arbitrary agent output cannot be proved complete, --dashboard-content now defaults off.

Also: unique :memory: DSN, atomic bench-run commit (log 17 / API 17 / 0 empty rows, was 42 / 25), dash.Options.Mode wired and .Preset deleted, and the observe banner + observe_queue counters now that #43 and #50 are merged.

Thanks for the review — the verification work in it (96-configuration byte-identity, the per-regex timings, the 22 shapes, the Playwright pass) is what made these findable, and every one of them reproduced exactly as described.
