Student Performance Forecasting System

The Student Performance Forecasting System is a Java-based application developed using Eclipse IDE, featuring a Swing GUI for streamlined student data management. This system encompasses modules for recording and managing student social activities and sports participation, leveraging a MySQL database for data storage. XAMPP is employed for MySQL database management.

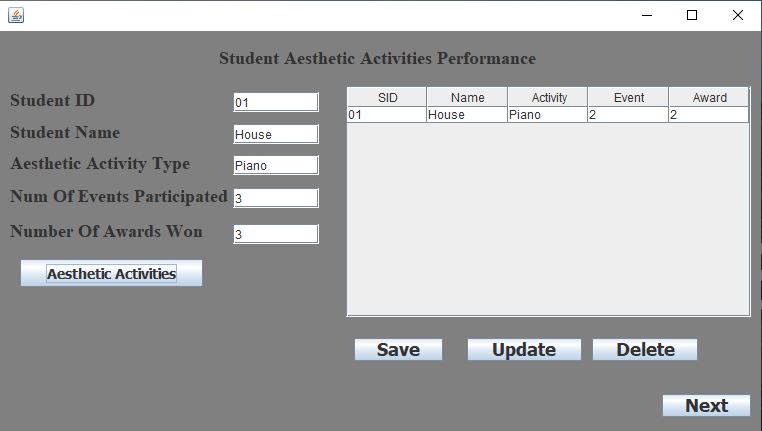

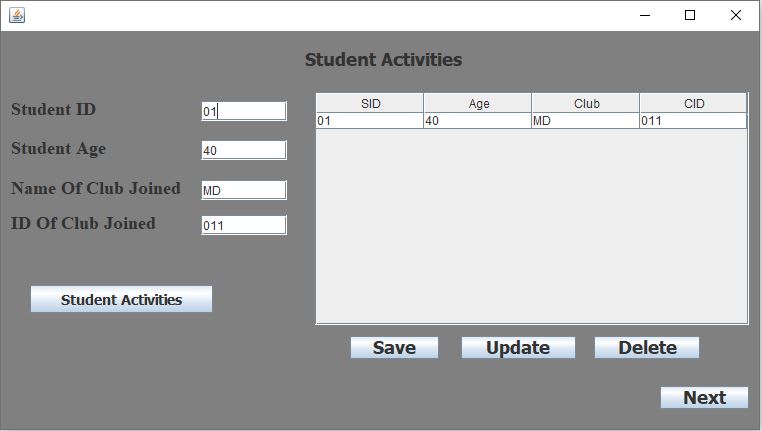

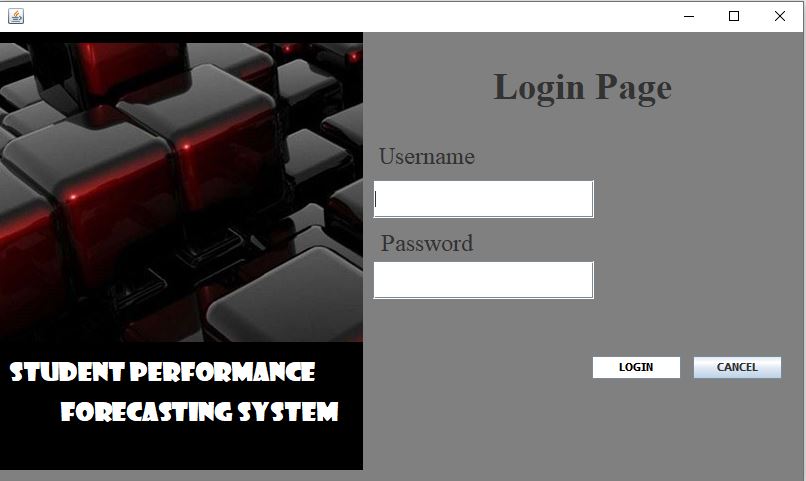

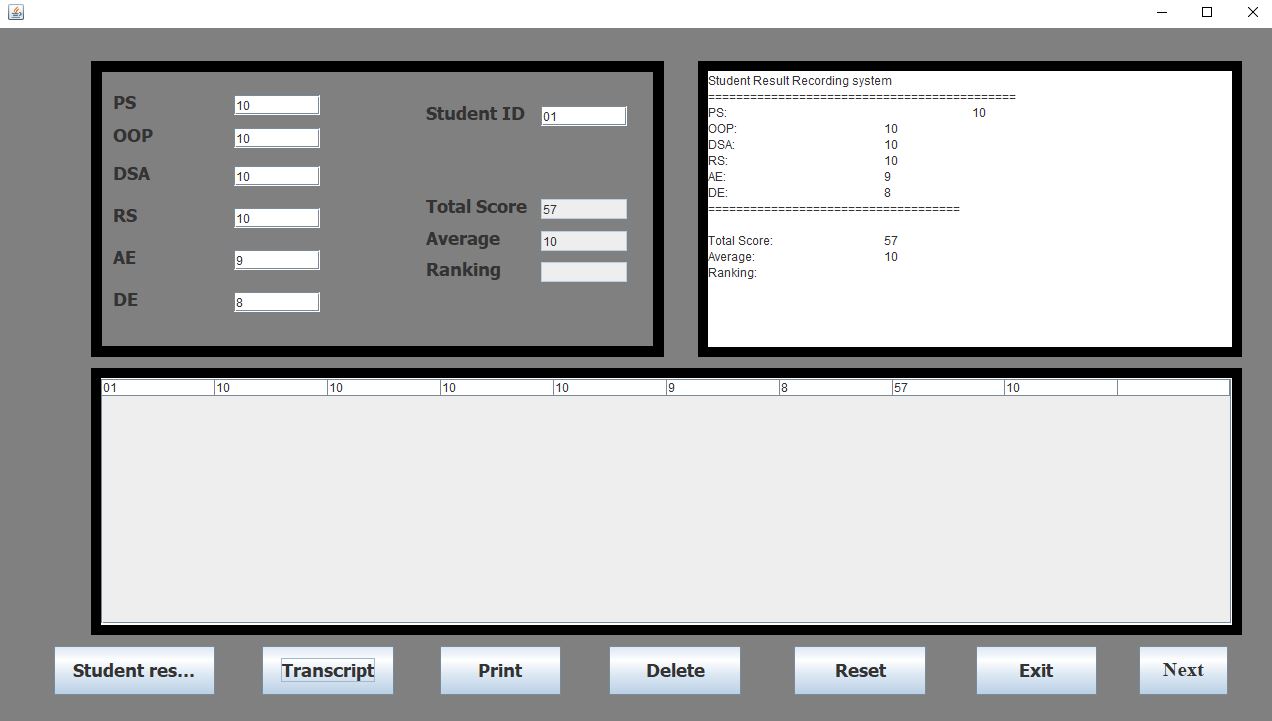

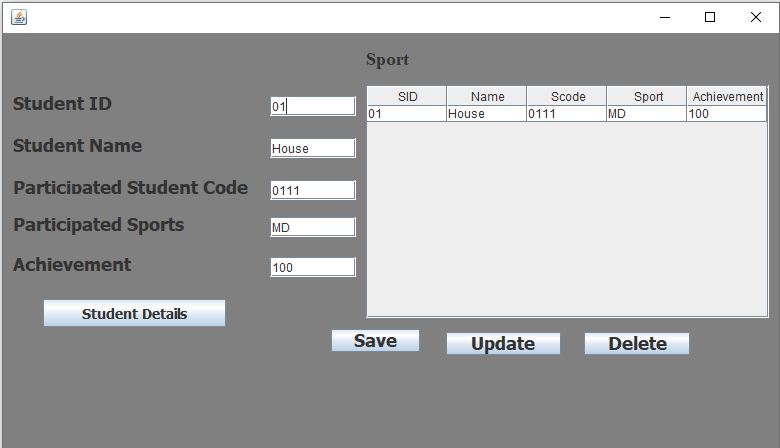

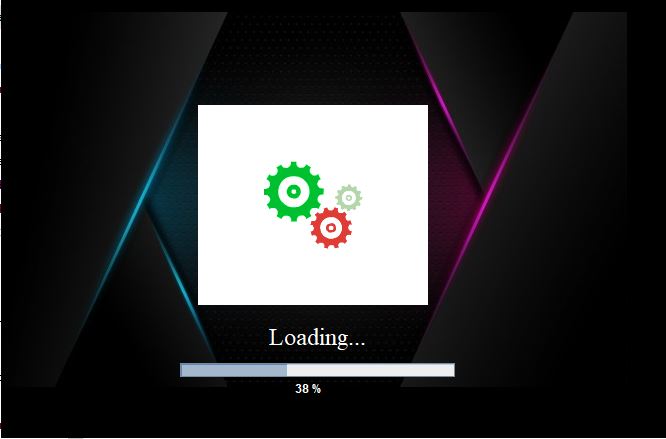

Screenshots

Installation

Certainly! Here are the simplified steps to run the project:

1. Download and Install Eclipse:

   • Download Eclipse IDE from eclipse.org.
   • Install Eclipse on your machine.

2. Download and Install XAMPP:

   • Download XAMPP from apachefriends.org.
   • Install XAMPP, which includes MySQL.

3. Import the Project to Eclipse:

   • Clone or download the project from the GitHub repository.
   • Open Eclipse and import the project.

4. Create Database and Tables:

   • Open XAMPP and start the MySQL server.
   • Using the SQL script or provided information, create a database named oop.
   • Create the required tables using the provided column details.

5. Update Database Connection:

   • In the project source code, locate the database connection settings (usually in a file named SqlConnection.java).
   • Update the connection details (username, password, etc.) to match your local MySQL setup.

6. Run the Project:

   • Build and run the project in Eclipse.
   • Ensure that the XAMPP MySQL server is running.

7. Test the Application:

   • Open the web browser and go to http://localhost/phpmyadmin/.
   • Verify that the oop database and tables have been created.
   • Use the application to interact with the data as needed.

Tables and Column Details:

Table: admin

• Columns:
  • UserID (VARCHAR)
  • UserName (VARCHAR)
  • Password (VARCHAR)

Table: studentinfo

• Columns:
  • SID (VARCHAR)
  • Name (VARCHAR)
  • Surname (VARCHAR)
  • Age (INT)
  • Email (VARCHAR)

Table: marks

• Columns:
  • StudentID (VARCHAR)
  • PS (INT)
  • OOP (INT)
  • DSA (INT)
  • RS (INT)
  • AE (INT)
  • DE (INT)
  • TotalScore (INT)
  • Average (INT)
  • Ranking (VARCHAR)

Table: aesthetic

• Columns:
  • SID (VARCHAR)
  • Name (VARCHAR)
  • Activity (VARCHAR)
  • Event (INT)
  • Award (INT)

Table: social

• Columns:
  • SID (VARCHAR)
  • Name (VARCHAR)
  • Club (VARCHAR)
  • Year (VARCHAR)
  • Positions (VARCHAR)

Table: activity

• Columns:
  • SID (VARCHAR)
  • Age (VARCHAR)
  • Club (VARCHAR)
  • CID (VARCHAR)

Table: sport

• Columns:
  • SID (VARCHAR)
  • Name (VARCHAR)
  • Scode (VARCHAR)
  • Sport (VARCHAR)
  • Achievement (VARCHAR)

Note: Ensure you have the required MySQL JDBC driver in your project's classpath. Customize the database connection details as needed.
