Secure Cartography v2

SSH & SNMP-Based Network Discovery and Topology Mapping

Secure Cartography is a network discovery tool that crawls your infrastructure via SNMP and SSH, collecting CDP/LLDP neighbor information to automatically generate topology maps. Built by a network engineer, for network engineers.

If you are interested in a non-python native application for network maps see Secure Cartography JS

What's New in v2

Version 2 is a complete rewrite with a modernized architecture:

Feature	v1	v2
Discovery Engine	Synchronous, single-threaded	Async with configurable concurrency
Discovery Protocol	SSH only	SNMP-first with SSH fallback
Credential Storage	No credential persistance	SQLite vault with AES-256 encryption
CLI	Basic	Full-featured with test/discover/crawl commands
Progress Reporting	Callbacks	Structured events for GUI integration
SNMP Support	None	v2c and v3 (authPriv)
Vendor Support	Cisco, Arista	+ Cisco, Arista and Juniper, Others fingerprinted based on sysdesc
GUI	PyQt6	PyQt6 with theme support (Cyber/Dark/Light)
Topology Viewer	External (yEd/Draw.io)	Embedded Cytoscape.js with vendor coloring, yEd & Draw.io export
Security Analysis	None	CVE vulnerability scanning via NIST NVD
Device Polling	None	Interactive SNMP fingerprinting from map

Features

Discovery Engine

SNMP-first discovery with automatic SSH fallback
CDP and LLDP neighbor detection across vendors
Two-pass LLDP resolution - correctly handles lldpLocPortNum vs ifIndex
Bidirectional link validation - only confirmed connections appear in topology
Concurrent crawling - discover 20+ devices simultaneously
Depth-limited recursion - control how far the crawler goes
Exclusion patterns - skip devices by hostname, sys_name, or sysDescr
No-DNS mode - use IPs directly from neighbor tables (home lab friendly)

Credential Management

Encrypted SQLite vault - AES-256-GCM encryption at rest
Multiple credential types - SSH (password + key), SNMPv2c, SNMPv3
Priority ordering - try credentials in sequence until one works
Credential discovery - auto-detect which credentials work on which devices

Security Analysis (CVE Vulnerability Scanning)

Platform-to-CPE mapping - automatically parses discovered platform strings
NIST NVD integration - queries National Vulnerability Database for CVEs
Severity color-coding - CRITICAL/HIGH/MEDIUM/LOW at a glance
Local CVE cache - SQLite cache avoids repeated API calls
Export reports - CSV export with affected devices per CVE
Device-centric view - "Export by Device" shows CVE counts per device
Multi-vendor support - Cisco IOS/IOS-XE/NX-OS, Arista EOS, Juniper JUNOS, Palo Alto, Fortinet

Live Topology Preview

Embedded Cytoscape.js viewer - interactive network visualization
Real-time rendering - topology displayed immediately after discovery
Vendor-specific styling - Cisco (blue), Arista (green), Juniper (orange) with distinct colors
Undiscovered peer nodes - referenced but unreachable devices shown with warning markers
Theme-aware - visualization adapts to Cyber/Dark/Light themes
Interactive controls - fit view, auto-layout, node selection with details popup

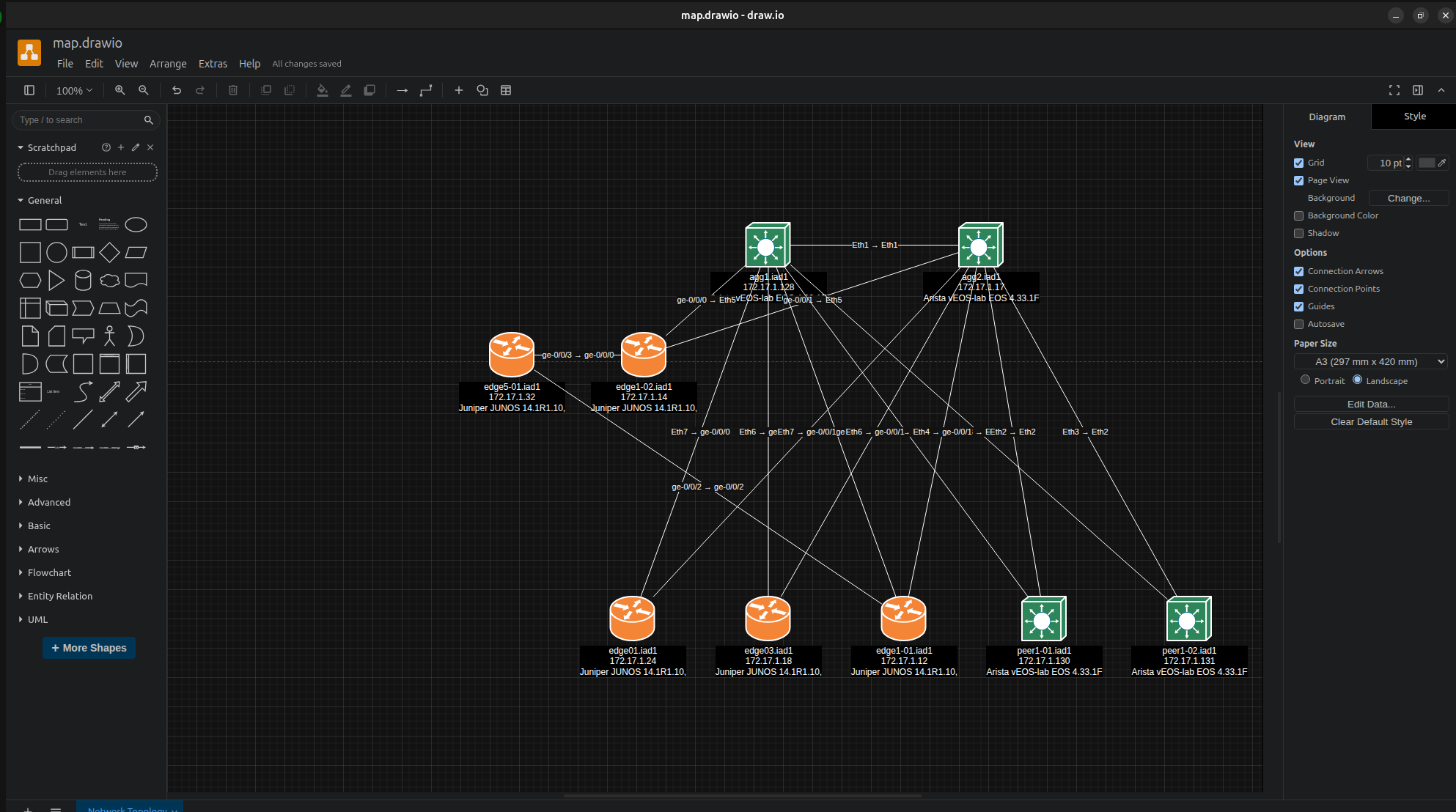

Draw.io Export

One-click export to Draw.io format for professional network documentation:

Cisco mxgraph stencils - native Draw.io shapes for switches, routers, firewalls, wireless
Vendor coloring - automatic fill colors match the embedded viewer (Cisco blue, Juniper orange, Arista green)
Hierarchical layout - tree algorithm positions devices by network tier
Interface labels - port-to-port connections preserved on edges
Universal compatibility - open in Draw.io desktop, web (diagrams.net), or VS Code extension
Edit and annotate - recipients can modify layouts, add notes, highlight paths

Interactive Device Polling

Poll individual devices directly from the Map Viewer for on-demand identification and inventory — no full discovery required.

SNMP fingerprinting - identifies vendor, model, OS version via Rapid7 Recog patterns
Interface inventory - collects ifTable with MAC addresses and OUI vendor lookup
ARP table collection - neighbor IP/MAC mappings with vendor identification
Two operating modes:
- Local mode - direct SNMP using pysnmp-lextudio (works on Windows/Linux/Mac)
- Proxy mode - for targets only reachable from a jump host (SNMP Proxy)
Export to Excel - multi-sheet workbook with Summary, Interfaces, and ARP data

Themed GUI

Three themes - Cyber (cyan), Dark (gold), Light (blue)
Real-time progress - live counters, depth tracking, log output
Responsive design - UI remains interactive during discovery
Click-to-inspect - node details (hostname, IP, platform) on selection

Supported Platforms

Vendor	SNMP	SSH	CVE Mapping
Cisco IOS/IOS-XE	✓	✓	✓
Cisco NX-OS	✓	✓	✓
Arista EOS	✓	✓	✓
Juniper JUNOS	✓	✓	✓

Others will likely appear but testing has been limited

Screenshots


Cyber - Teal accents	Dark - Gold accents	Light - Blue accents


Topology Preview - Cyber	Topology Preview - Dark	Topology Preview - Light


Login - Cyber	Login - Dark	Login - Light

Installation

Prerequisites

Python 3.10 or higher
pip

From Source

git clone https://github.com/scottpeterman/secure_cartography.git
cd secure_cartography
pip install -e .

Dependencies

# Core
pip install pysnmp-lextudio paramiko cryptography textfsm aiofiles

# GUI
pip install PyQt6 PyQt6-WebEngine

Quick Start

1. Initialize the Credential Vault

# Create vault and set master password
python -m sc2.scng.creds init

# Add SNMP credential
python -m sc2.scng.creds add snmpv2c snmp-readonly --community public

# Add SSH credential
python -m sc2.scng.creds add ssh network-admin --username admin

# List credentials
python -m sc2.scng.creds list

2. Test Connectivity

# Quick SNMP test (no vault needed)
python -m sc2.scng.discovery test 192.168.1.1 --community public

# Test with vault credentials
python -m sc2.scng.discovery device 192.168.1.1

3. Run Discovery

# Basic crawl
python -m sc2.scng.discovery crawl 192.168.1.1 -d 3

# With options
python -m sc2.scng.discovery crawl 192.168.1.1 10.0.0.1 \
    -d 5 \
    --domain corp.example.com \
    --exclude "phone,wireless,linux" \
    --output ./network_maps

4. Launch GUI

python -m sc2.ui

5. Security Analysis

After running discovery, click the 🔐 SECURITY button in the header bar to open the Security Analysis window:

Load CSV - Import the devices.csv from your discovery output
Review Mappings - Verify auto-detected platform → CPE mappings
Sync Selected - Query NIST NVD for CVEs (optional: add free API key for faster rate limits)
Analyze Results - Review CVEs sorted by severity
Export Report - Generate CSV with CVEs and affected devices

Security Analysis Workflow

The Security Analysis module transforms your network inventory into an actionable vulnerability report.

Platform Recognition

Secure Cartography automatically parses platform strings into CPE (Common Platform Enumeration) format:

"Cisco IOS IOS 15.2(4.0.55)E" → cpe:2.3:o:cisco:ios:15.2(4.0.55)e:*:*:*:*:*:*:*
"Arista vEOS-lab EOS 4.33.1F" → cpe:2.3:o:arista:eos:4.33.1f:*:*:*:*:*:*:*

CVE Lookup

Queries the NIST National Vulnerability Database for known vulnerabilities:

Results cached locally in ~/.scng/cve_cache.db
Free NVD API key increases rate limits (get one at nvd.nist.gov)

Export Options

Two export formats for different use cases:

Export	Format	Use Case
Export Report	One row per CVE	Security team review, compliance audits
Export by Device	One row per device	Remediation planning, patch prioritization

Jump Host Workflow

When your desktop doesn't have SNMP access:

SSH to a jump host with network access
Run discovery via CLI: python -m sc2.scng.discovery crawl ...
Copy devices.csv back to your desktop
Open in GUI → Security Analysis → Load CSV → Sync

Architecture

sc2/
├── scng/                      # Discovery engine
│   ├── creds/                 # Credential vault
│   │   ├── vault.py           # Encrypted SQLite storage
│   │   ├── models.py          # SSH, SNMPv2c, SNMPv3 dataclasses
│   │   ├── resolver.py        # Credential testing & discovery
│   │   └── cli.py             # Credential management CLI
│   │
│   ├── discovery/             # Discovery engine
│   │   ├── engine.py          # Async orchestration, crawl logic
│   │   ├── models.py          # Device, Neighbor, Interface
│   │   ├── cli.py             # Discovery CLI
│   │   │
│   │   ├── snmp/              # SNMP collection
│   │   │   ├── walker.py      # Async GETBULK table walks
│   │   │   └── collectors/    # system, interfaces, lldp, cdp, arp
│   │   │
│   │   └── ssh/               # SSH fallback
│   │       ├── client.py      # Paramiko wrapper
│   │       ├── collector.py   # Vendor detection, command execution
│   │       └── parsers.py     # TextFSM integration
│   │
│   └── utils/
│       └── tfsm_fire.py       # TextFSM auto-template selection
│
├── export/                    # Export modules
│   ├── graphml_exporter.py    # yEd GraphML export
│   └── drawio_exporter.py     # Draw.io export with vendor styling
│
└── ui/                        # PyQt6 GUI
    ├── themes.py              # Theme system (Cyber/Dark/Light)
    ├── login.py               # Vault unlock dialog
    ├── main_window.py         # Main application window
    ├── help_dialog.py         # Help system (GUI/CLI/Security docs)
    │
    ├── assets/
    │   └── icons_lib/
    │       └── platform_icon_drawio.json  # Draw.io icon mappings
    │
    └── widgets/               # Custom themed widgets
        ├── panel.py               # Base panel with title bar
        ├── connection_panel.py    # Seeds, domains, excludes
        ├── credentials_panel.py   # Credential management UI
        ├── discovery_options.py   # Depth, concurrency, toggles
        ├── output_panel.py        # Output directory config
        ├── progress_panel.py      # Stats, progress bar
        ├── discovery_log.py       # Styled log output
        ├── discovery_controller.py # Discovery↔UI bridge with throttled events
        ├── topology_preview_panel.py  # Preview container (singleton)
        ├── topology_viewer.py     # QWebEngineView + Cytoscape.js bridge
        ├── topology_viewer.html   # Cytoscape.js visualization
        ├── map_viewer_dialog.py   # Full-screen topology viewer
        ├── security_widget.py     # CVE vulnerability analysis
        ├── tag_input.py           # Tag/chip input widget
        ├── toggle_switch.py       # iOS-style toggle
        └── stat_box.py            # Counter display boxes

Topology Viewer

The embedded topology viewer uses Cytoscape.js for interactive network visualization.

Features

Automatic layout - Dagre algorithm for hierarchical network arrangement
Vendor coloring - Platform-specific border and fill colors (Cisco blue, Juniper orange, Arista green)
Undiscovered nodes - Peers referenced but not crawled shown with dashed borders and ⚠ markers
Edge labels - Interface pairs displayed on connections
Click inspection - Select nodes to view device details
Theme integration - Colors adapt to current UI theme

Export Options

Format	Use Case
Draw.io	Editable diagrams with Cisco stencils for documentation, Confluence, SharePoint
yEd (GraphML)	Professional diagrams with automatic layouts and port labels
PNG	Quick image export for reports and presentations
CSV	Device and connection lists for spreadsheet analysis
JSON	Raw topology data for custom processing

Data Flow

Discovery Engine → map.json → Base64 encode → QWebChannel → JavaScript → Cytoscape.js

The viewer uses base64 encoding for reliable Python→JavaScript data transfer, avoiding escaping issues with complex JSON payloads.

CLI Reference

Secure Cartography provides two CLI modules that can be used independently of the GUI:

sc2.scng.creds - Credential vault management
sc2.scng.discovery - Network discovery engine

Both CLIs support --help on all commands and subcommands.

Credential Management (`sc2.scng.creds`)

usage: scng-creds [-h] [--vault-path VAULT_PATH] [--password PASSWORD]
                  {init,unlock,add,list,show,remove,set-default,test,discover,change-password,deps} ...

Global Options

Option	Description
`-v, --vault-path`	Path to vault database (default: `~/.scng/credentials.db`)
`-p, --password`	Vault password (or set `SCNG_VAULT_PASSWORD` env var)

Commands

`init` - Initialize a new vault

python -m sc2.scng.creds init
python -m sc2.scng.creds init --vault-path /path/to/custom.db

`add` - Add credentials

# SSH with password (prompts for password)
python -m sc2.scng.creds add ssh admin-cred --username admin --password

# SSH with key file
python -m sc2.scng.creds add ssh key-cred --username automation --key-file ~/.ssh/id_rsa

# SNMPv2c
python -m sc2.scng.creds add snmpv2c readonly --community public

# SNMPv3 (authPriv)
python -m sc2.scng.creds add snmpv3 snmpv3-cred \
    --username snmpuser \
    --auth-protocol sha256 \
    --auth-password authpass123 \
    --priv-protocol aes128 \
    --priv-password privpass123

`list` - List all credentials

python -m sc2.scng.creds list

Output shows credential name, type, priority, and default status.

`show` - Show credential details

python -m sc2.scng.creds show admin-cred
python -m sc2.scng.creds show admin-cred --reveal  # Show passwords/communities

`remove` - Delete a credential

python -m sc2.scng.creds remove old-credential

`set-default` - Set credential as default for its type

python -m sc2.scng.creds set-default admin-cred

`test` - Test credential against a host

python -m sc2.scng.creds test admin-cred 192.168.1.1
python -m sc2.scng.creds test readonly 10.0.0.1

`discover` - Find which credentials work on a host

python -m sc2.scng.creds discover 192.168.1.1

Tests all credentials and reports which ones succeed.

`change-password` - Change vault master password

python -m sc2.scng.creds change-password

`deps` - Check required dependencies

python -m sc2.scng.creds deps

Network Discovery (`sc2.scng.discovery`)

usage: scng.discovery [-h] {test,device,crawl} ...

Commands

`test` - Quick SNMP connectivity test (no vault required)

python -m sc2.scng.discovery test 192.168.1.1 --community public
python -m sc2.scng.discovery test 192.168.1.1 --community public --verbose

`device` - Discover a single device

python -m sc2.scng.discovery device 192.168.1.1
python -m sc2.scng.discovery device core-switch.example.com --output ./results

`crawl` - Recursive network discovery

usage: scng.discovery crawl [-h] [-d DEPTH] [--domain DOMAINS] [--exclude EXCLUDE_PATTERNS]
                            [-o OUTPUT] [-v] [--no-dns] [-c CONCURRENCY] [-t TIMEOUT]
                            [--no-color] [--timestamps] [--json-events]
                            seeds [seeds ...]

Option	Description
`seeds`	One or more seed IP addresses or hostnames
`-d, --depth`	Maximum discovery depth (default: 3)
`--domain`	Domain suffix for hostname resolution (repeatable)
`--exclude`	Exclusion patterns for devices to skip (repeatable, comma-separated)
`-o, --output`	Output directory for results
`-v, --verbose`	Enable debug output
`--no-dns`	Disable DNS lookups; use IPs from LLDP/CDP directly
`-c, --concurrency`	Maximum parallel discoveries (default: 20)
`-t, --timeout`	SNMP timeout in seconds (default: 5)
`--no-color`	Disable colored terminal output
`--timestamps`	Show timestamps in log output
`--json-events`	Output events as JSON lines (for GUI/automation integration)

Crawl Examples

# Basic crawl from single seed
python -m sc2.scng.discovery crawl 192.168.1.1

# Multiple seeds with depth limit
python -m sc2.scng.discovery crawl 10.1.1.1 10.2.1.1 --depth 5

# With domain suffix for DNS resolution
python -m sc2.scng.discovery crawl core-sw01 --domain corp.example.com --domain example.com

# Exclude devices by pattern (matches hostname, sys_name, or sysDescr)
python -m sc2.scng.discovery crawl 192.168.1.1 --exclude "linux,vmware,phone"

# Multiple exclude flags also work
python -m sc2.scng.discovery crawl 192.168.1.1 \
    --exclude "linux" \
    --exclude "phone" \
    --exclude "wireless"

# Home lab mode (no DNS, faster)
python -m sc2.scng.discovery crawl 192.168.1.1 --no-dns

# High concurrency for large networks
python -m sc2.scng.discovery crawl 10.0.0.1 -c 50 -d 10 -o ./enterprise_map

# Full production example
python -m sc2.scng.discovery crawl \
    core-rtr-01.dc1.example.com \
    core-rtr-01.dc2.example.com \
    --depth 8 \
    --domain dc1.example.com \
    --domain dc2.example.com \
    --exclude "linux,esxi,vcenter,phone,wireless,ups" \
    --concurrency 30 \
    --timeout 10 \
    --output ./network_discovery_$(date +%Y%m%d) \
    --verbose

Exclusion Patterns

The --exclude option filters devices from propagating the crawl. Patterns are:

Case-insensitive substring matches
Comma-separated for multiple patterns in one flag
Matched against three fields: sysDescr, hostname, and sys_name

This means exclusions work for both SNMP-discovered devices (via sysDescr) and SSH-discovered devices (via hostname).

Pattern	Matches
`linux`	Any device with "linux" in sysDescr, hostname, or sys_name
`rtr-lab,sw-test`	Devices with "rtr-lab" OR "sw-test" in any field
`phone,wireless,ap-`	Common patterns to skip IP phones and APs

Note: Excluded devices are still discovered (credentials tested, data collected), but their neighbors are not queued for further discovery. This prevents the crawl from expanding through non-network infrastructure.

Output Format

Discovery creates per-device folders with JSON data:

discovery_output/
├── core-switch-01/
│   ├── device.json      # System info, interfaces
│   ├── cdp.json         # CDP neighbors
│   └── lldp.json        # LLDP neighbors
├── dist-switch-01/
│   └── ...
├── devices.csv          # Device inventory (for Security Analysis)
├── discovery_summary.json
├── topology.graphml     # yEd-compatible graph
└── map.json             # Topology with bidirectional validation

map.json (Topology)

{
  "core-switch-01": {
    "node_details": {
      "ip": "10.1.1.1",
      "platform": "Arista vEOS-lab EOS 4.33.1F"
    },
    "peers": {
      "dist-switch-01": {
        "ip": "10.1.1.2",
        "connections": [
          ["Eth1/1", "Gi0/1"],
          ["Eth1/2", "Gi0/2"]
        ]
      }
    }
  }
}

devices.csv (Security Analysis Input)

hostname,ip,platform,vendor,model,serial
core-switch-01,10.1.1.1,Cisco IOS IOS 15.2(4.0.55)E,cisco,WS-C3850-24T,FCW2134L0NK
dist-switch-01,10.1.1.2,Arista vEOS-lab EOS 4.33.1F,arista,vEOS,SN-VEOS-01

GUI Theme System

The GUI uses a comprehensive theme system with three built-in themes:

Theme	Primary	Accent	Use Case
Cyber	`#0a0a0f`	`#00ffff` (cyan)	SOC/NOC aesthetic
Dark	`#000000`	`#d4af37` (gold)	Professional elegance
Light	`#ffffff`	`#2563eb` (blue)	Bright environments

See README_Style_Guide.md for widget styling details.

Documentation

Document	Description
README_Creds.md	Credential vault API and CLI
README_scng.md	Discovery engine architecture
README_SNMP_Discovery.md	SNMP collection details
README_SSH_Discovery.md	SSH fallback module
README_Progress_events.md	GUI progress event reference
README_Style_Guide.md	PyQt6 widget theming guide
snmp_proxy/README.md	SNMP proxy deployment for remote polling

Development Status

✅ Complete

Credential vault with encryption
SNMP discovery (v2c, v3)
SSH fallback discovery
Async crawl engine with progress events
CLI for creds and discovery
Theme system (Cyber/Dark/Light)
Login dialog with vault unlock
Main window layout with all panels
Custom themed widgets
Discovery↔UI integration with throttled events
Live topology preview with Cytoscape.js
Vendor coloring in topology viewer
Undiscovered peer node visualization
Security Analysis with CVE vulnerability scanning
Export to yEd (GraphML with port labels)
Export to Draw.io with Cisco stencils and vendor coloring
Built-in help system
Interactive device polling (local + proxy modes)
Device fingerprinting via Rapid7 Recog patterns
OUI vendor lookup for MAC addresses

📋 Planned

Map enhancement tools (manual node positioning, annotations)
Credential auto-discovery integration
Settings persistence
Export topology as PNG/SVG
Topology diff (compare discoveries)

Technical Notes

Threading Architecture

The GUI uses a careful threading model to prevent UI lockups:

Discovery runs in QThread - async engine wrapped in worker thread
Events throttled at source - high-frequency events (stats, topology) rate-limited before emission
QueuedConnection for all signals - ensures slots execute on main thread
WebView isolation - no webview updates during active discovery; topology loads once at completion

Topology Data Transfer

Python→JavaScript communication uses base64 encoding:

# Python side
b64_data = base64.b64encode(json.dumps(topology).encode()).decode()
self._run_js(f"TopologyViewer.loadTopologyB64('{b64_data}')")

// JavaScript side
loadTopologyB64(b64String) {
    const jsonString = atob(b64String);
    this.loadTopology(jsonString);
}

This avoids JSON escaping issues with complex network data containing special characters.

Security Analysis Architecture

The Security Widget operates independently of the discovery engine:

Platform parsing - regex patterns extract vendor/product/version from sysDescr strings
CPE generation - converts parsed data to NIST CPE 2.3 format
NVD API client - async queries with rate limiting and caching
SQLite cache - ~/.scng/cve_cache.db stores CVE data to avoid repeated API calls
Device tracking - maps CVEs back to specific hostnames/IPs from discovery CSV

Security Considerations

Master password is never stored; derived key is held in memory only while vault is unlocked
Credentials are encrypted with AES-256-GCM before storage
Salt is randomly generated per installation
No credentials in logs - discovery output never includes passwords/communities
Vault auto-locks when application exits
CVE cache is local - no sensitive data sent to NVD (only CPE queries)

Performance

Typical discovery rates:

Single device (SNMP): 2-5 seconds
Single device (SSH fallback): 5-15 seconds
100 devices: 3-8 minutes with 20 concurrent workers
750+ devices: ~4-5 hours (production tested, 88%+ success rate)

Security Analysis:

NVD API (no key): 5 requests per 30 seconds
NVD API (with key): 50 requests per 30 seconds
Cached lookups: instant

GUI remains responsive during discovery due to throttled event architecture.

License

This project is licensed under the GNU General Public License v3.0 - see LICENSE for details.

Author

Scott Peterman - Network Engineer

GitHub: @scottpeterman
Homepage: scottpeterman

Built by a network engineer who got tired of manually drawing topology diagrams.

Acknowledgments

Network visualization powered by Cytoscape.js
SNMP operations via pysnmp-lextudio
SSH via Paramiko
CLI parsing with TextFSM
GUI powered by PyQt6
Encryption via cryptography
CVE data from NIST National Vulnerability Database
Device fingerprinting via Rapid7 Recog
OUI database from Wireshark
Draw.io stencils from mxgraph Cisco library

Name		Name	Last commit message	Last commit date
Latest commit History 65 Commits
data		data
sc2		sc2
screenshots		screenshots
snmp_proxy		snmp_proxy
tfsm_backup		tfsm_backup
.gitignore		.gitignore
README.md		README.md
README_Creds.md		README_Creds.md
README_Events.md		README_Events.md
README_Progress_events.md		README_Progress_events.md
README_SNMP_Discovery.md		README_SNMP_Discovery.md
README_SNMP_Maps.md		README_SNMP_Maps.md
README_SSH_Discovery.md		README_SSH_Discovery.md
README_Style_Guide.md		README_Style_Guide.md
README_scng.md		README_scng.md
requirements.txt		requirements.txt
setup.py		setup.py

Folders and files

Latest commit

History

Repository files navigation

Secure Cartography v2

What's New in v2

Features

Discovery Engine

Credential Management

Security Analysis (CVE Vulnerability Scanning)

Live Topology Preview

Draw.io Export

Interactive Device Polling

Themed GUI

Supported Platforms

Screenshots

Installation

Prerequisites

From Source

Dependencies

Quick Start

1. Initialize the Credential Vault

2. Test Connectivity

3. Run Discovery

4. Launch GUI

5. Security Analysis

Security Analysis Workflow

Platform Recognition

CVE Lookup

Export Options

Jump Host Workflow

Architecture

Topology Viewer

Features

Export Options

Data Flow

CLI Reference

Credential Management (sc2.scng.creds)

Global Options

Commands

init - Initialize a new vault

add - Add credentials

list - List all credentials

show - Show credential details

remove - Delete a credential

set-default - Set credential as default for its type

test - Test credential against a host

discover - Find which credentials work on a host

change-password - Change vault master password

deps - Check required dependencies

Network Discovery (sc2.scng.discovery)

Commands

test - Quick SNMP connectivity test (no vault required)

device - Discover a single device

crawl - Recursive network discovery

Crawl Examples

Exclusion Patterns

Output Format

map.json (Topology)

devices.csv (Security Analysis Input)

GUI Theme System

Documentation

Development Status

✅ Complete

📋 Planned

Technical Notes

Threading Architecture

Topology Data Transfer

Security Analysis Architecture

Security Considerations

Performance

License

Author

Acknowledgments

About

Topics

Resources

Uh oh!

Stars

Watchers

Credential Management (`sc2.scng.creds`)

`init` - Initialize a new vault

`add` - Add credentials

`list` - List all credentials

`show` - Show credential details

`remove` - Delete a credential

`set-default` - Set credential as default for its type

`test` - Test credential against a host

`discover` - Find which credentials work on a host

`change-password` - Change vault master password

`deps` - Check required dependencies

Network Discovery (`sc2.scng.discovery`)

`test` - Quick SNMP connectivity test (no vault required)

`device` - Discover a single device

`crawl` - Recursive network discovery

Packages
