VLSI-Tester

CIS 4930 (VLSI Testing) - Final Project at USF.
Implements an automatic test generator for single stuck-at faults in Python.

Supports:

• [0] Read a circuit description using the specified format.
• [1] Fault collapsing.
• [2] Fault class listing.
• [3] Simulate a fault free for faulty circuit with the given vector.
• [4] Test generation for single stuck at faults using D-Algorithm.

Getting Started

• Ensure python 3.10 or higher is installed.
• Extract VLSITester-main.zip.
• Run command in the directory named source: python main.py
• To test your own circuit, place file with correct format in directory: benchmarks

Preview

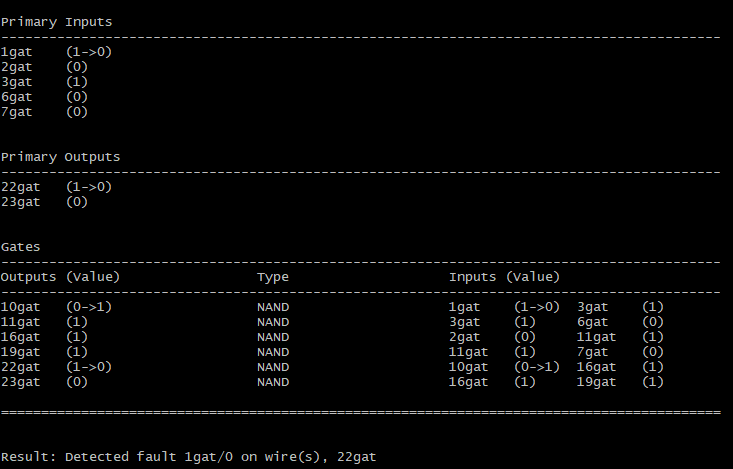

Option [3] Simulate (with faults)
