Gefen-X Fork

A fork of upstream Gefen that fixes critical gaps in the shipped release, adds modern-architecture support, and closes the loss gap to AdamW.

Gefen is intended to be a drop-in replacement for the AdamW optimizer for memory-efficient training. It keeps the familiar AdamW training recipe while cutting optimizer state to about 1 byte per parameter (measured 1.01 B/param) — an 8× reduction versus classic fp32 AdamW state, about 6.5 GiB saved per billion parameters, while maintaining AdamW-level loss. The reduced memory footprint enables training larger models and larger batch sizes for added throughput.

Fork Highlights:

• Fine-tuning, not just pre-training — upstream Gefen was validated for pre-training; this fork makes it a drop-in optimizer for fine-tuning: full fine-tune (FFT), LoRA, and QLoRA, with a VRAM sizing guide.
• New: matches AdamW's loss out of the box at about a quarter of its optimizer memory (default factored_v_2d). See Benchmarks and the factored-v lever.
• Works on modern decoders (Qwen3, Llama-3, Mistral). Upstream loses its memory advantage on these architectures (≈9 B/param — worse than AdamW); this fork keeps the intended ≈1 B/param.
• Validated across 2026 architectures — two dozen modern LLMs, VLMs, and image/video/audio media-gen models full-fine-tuned on 24 GB GPUs, plus 20-30B MoEs via LoRA. See the compatibility matrix.
• ≈2× faster opt.step() via fused CUDA kernels, with identical results.
• Whole-model Muon option (GefenMuonHybrid) at the same ≈1 B/param memory and AdamW-level loss.
• Reliable checkpoint save/resume and FSDP2 support — broken or absent in the shipped release.
• Hardened against crashes (device/dtype guards, bounds checks, race fixes) with a bit-exact test suite.

See Benchmarks for the full optimizer comparison (loss · speed · memory) with raw logs.

Detailed Fork Improvements (vs upstream)

Capability	Upstream v1.1.1	This fork
Training regime	pre-training	fine-tuning — full fine-tune, LoRA & QLoRA, validated across model families and sized per model
Loss vs AdamW	trails AdamW by ≈0.06	matches AdamW via the default factored_v_2d — details
Modern decoders (Qwen3 / Llama-3 / Mistral — SwiGLU + grouped-query attention)	uses more optimizer memory than AdamW on these	keeps the full ≈1 B/param optimizer state (about a quarter of bf16 AdamW's)
Learning rate on those architectures	no guidance — silently over-steps	documented ≈0.6× AdamW, so quality matches AdamW
Optimizer-step speed	baseline	≈2× faster opt.step() (fused kernels), identical results
Peak memory during the step	large transient spikes	much lower peak — room for bigger models / batches
Sharded multi-GPU training (FSDP2)	breaks with the fast path	works — for plain Gefen and Muon
Whole-model Muon	2D weight matrices only	GefenMuonHybrid trains the entire model
Muon step efficiency	generic momentum hack + redundant dequant gather	single-pass bit-exact momentum kernel
Save / resume checkpoints	can corrupt state or lose tuning on resume	saves & resumes correctly
Crash safety	missing device / edge-case guards	guarded against wrong-device, empty-tensor, and race bugs
Tested correctness	no fused-kernel tests	bit-exact + distributed parity test suite
Getting started	no Axolotl / fork-install guidance	Axolotl how-to + fair loss/speed/memory benchmarks
Muon loss vs AdamW	Muon trails AdamW	the recommended hybrid config puts Gefen-Muon on the AdamW loss level — details

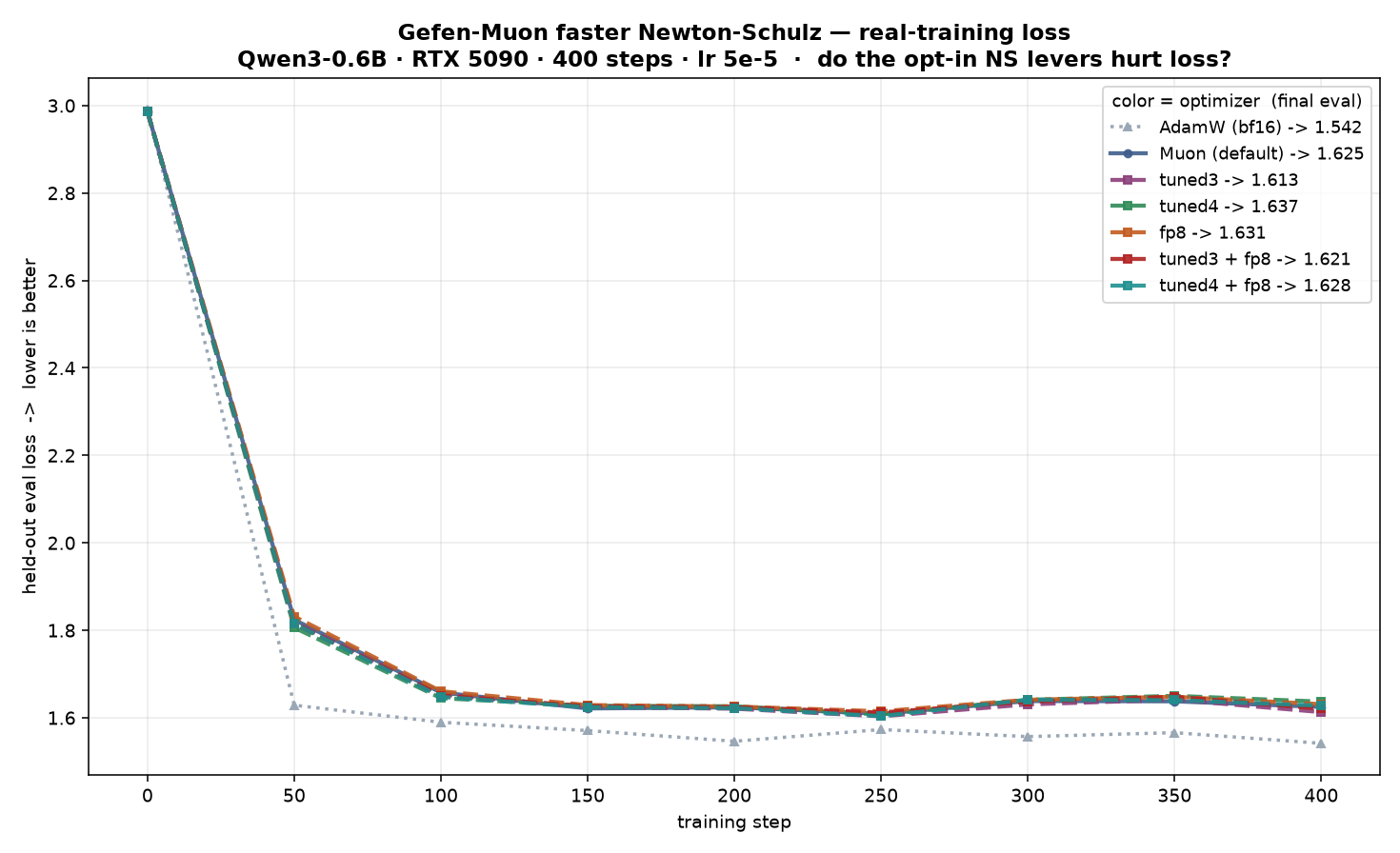

Muon (Newton-Schulz) speed	fixed 5-step schedule	tunable ns_schedule; the hybrid defaults to tuned3 (≈1.4× faster, same loss) — details
Low-precision orthogonalization	bf16 only	opt-in fp8_ns for large matrices on newer GPUs, safe fallback elsewhere — details

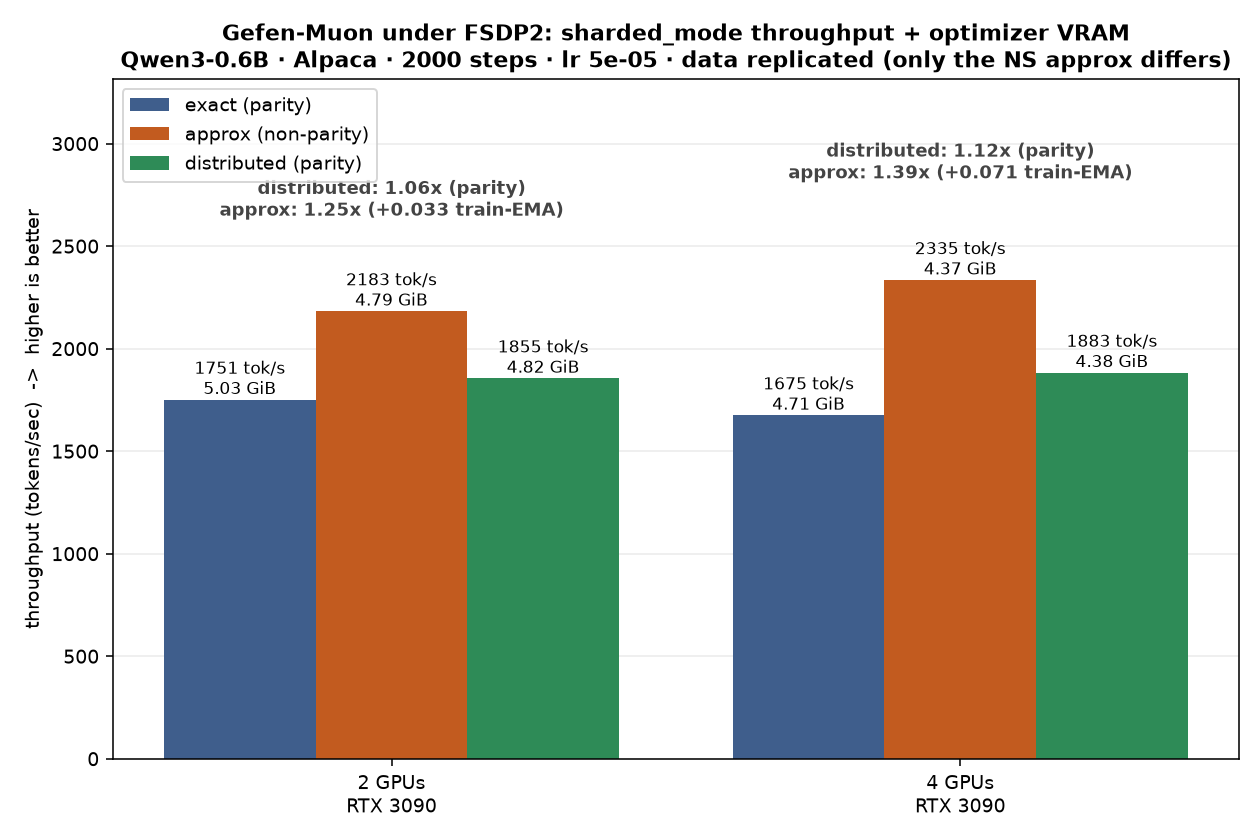

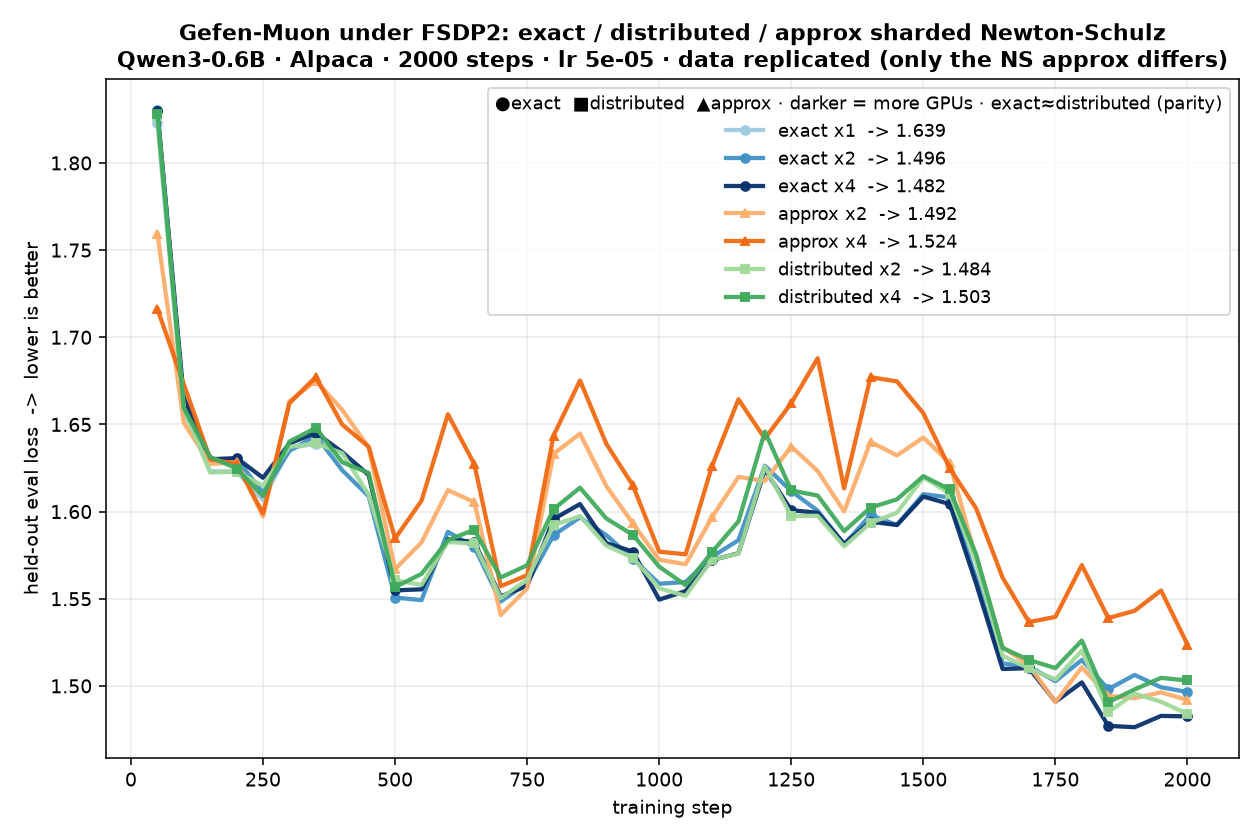

Sharded Muon under FSDP2	every GPU redundantly repeats the same work	sharded_mode="distributed" splits the work across GPUs at identical results — details

All measured numbers live in Benchmarks and the lever sections below.

Installation

This fork is not on PyPI. pip install gefen fetches the upstream release, which does not include the fixes/improvements above — install this fork from source instead.

Build from source (editable install):

git clone https://github.com/thad0ctor/Gefen-X
cd Gefen-X
pip install -e .          # imports as `gefen`

Install PyTorch first. torch>=2.5 is a dependency, but pip's default PyTorch wheel may be CPU-only or built for a CUDA version that doesn't match your machine. Install the PyTorch build for your platform/CUDA before installing Gefen. A CPU-only or mismatched build won't crash — Gefen falls back to pure PyTorch — but you lose the fused CUDA kernels.

The package is pure-Python at install time, the fused kernels (CUDA required) are built on first use via PyTorch JIT (torch.utils.cpp_extension) + nvcc. The first CUDA run takes a few minutes; later runs reuse the cached build keyed on your Python / PyTorch / CUDA version, GPU architecture, and the Gefen source checkout. Force a rebuild with GEFEN_FORCE_REBUILD=1.

Requirements: a CUDA toolkit and host compiler compatible with your PyTorch build (the JIT compiles for your GPU's compute capability; set TORCH_CUDA_ARCH_LIST to target arch or a multi-arch build).

Supported versions

Python	3.10+ (verified on 3.12)
PyTorch	2.5+ (verified on 2.12 / cu133)
Platform	Linux with a CUDA GPU

The Hugging Face Trainer flow, the find_lr tool, and the examples/ all use transformers and datasets, which are not core dependencies — install them alongside (pip install transformers datasets). Optional benchmark baselines: bitsandbytes (AdamW-8bit), torchao (AdamW-4bit).

Troubleshooting

Symptom	Fix
Fused CUDA kernel fails to build on the first step	Gefen auto-falls back to fused=False (pure-PyTorch, slower) with a warning — training continues. Set GEFEN_VERBOSE_BUILD=1 for the full build diagnostic; the usual cause is an nvcc that doesn't match torch.version.cuda.
Changed GPU / arch and the kernel misbehaves or won't load	The build cache is keyed on the effective arch list (TORCH_CUDA_ARCH_LIST, or the detected GPU when unset), so a changed arch rebuilds automatically. If you kept an explicit TORCH_CUDA_ARCH_LIST across a GPU change, force a fresh build with GEFEN_FORCE_REBUILD=1.
Loss diverges or plateaus high	LR is too hot — use ≈0.6× your AdamW LR (Learning rate) or measure it with the find_lr tool.
Out of memory	See Hardware Requirements for measured peak VRAM per model size and method.

Compatibility

Validated with full-parameter fine-tune smoke tests on 24 GB GPUs across modern LLMs/VLMs and media-generation models — Gemma 4, Qwen3-VL, Mistral 3, MiniCPM-V 4.6, LFM2.5 (+VL), SDXL, Stable Diffusion 3.5, FLUX.1-dev (12B via FSDP2), FLUX.2-klein, Z-Image (6B via FSDP2), Anima, and ACE-Step 1.5 — and on 20-30B MoEs (GPT-OSS-20B, GLM-4.7-Flash) via LoRA adapter training. Per-model results, method, and hardware footprints: COMPATIBILITY.md.

Sizing a GPU? Hardware Requirements gives measured peak VRAM per model size and method (full fine-tune with Gefen vs AdamW, LoRA, QLoRA), plus a per-card rule of thumb for other sizes.

Quick Start

import torch
from gefen import Gefen

device = "cuda" if torch.cuda.is_available() else "cpu"
model = torch.nn.Linear(128, 10).to(device)

# optimizer = torch.optim.AdamW(
optimizer = Gefen(  # Replace AdamW with Gefen:
    model.parameters(),
    lr=1e-3,
    betas=(0.9, 0.999),
    eps=1e-8,
    weight_decay=0.0,
)

inputs = torch.randn(32, 128, device=device)
targets = torch.randint(0, 10, (32,), device=device)

logits = model(inputs)
loss = torch.nn.functional.cross_entropy(logits, targets)
loss.backward()

optimizer.step()
optimizer.zero_grad(set_to_none=True)

print('Finished successfully.')

Want a real end-to-end run? See examples/toy-finetune/ — fine-tune a small model in about four minutes on one 24 GB GPU, with a before/after check that makes success obvious.

Learning rate (when porting an AdamW config)

Use ≈0.6× your AdamW learning rate (e.g. AdamW at 5e-5 → Gefen at 3e-5). That is Gefen's measured optimum on the models tested (Qwen3 0.6B–8B), and at it Gefen matches AdamW's loss. Don't creep the LR back up toward the AdamW value — Gefen is less tolerant of a too-hot LR than AdamW is.

Better than the heuristic: measure it. The LR finder picks the best LR for your model empirically:

python -m gefen.tools.find_lr --model <path> --optimizer gefen --method sweep

See tools/README.md.

One knock-on effect: weight decay in AdamW-style optimizers is applied as lr × weight_decay, so scaling lr down to 0.6× also weakens regularization by 0.6×. If your recipe relies on weight decay, scale weight_decay up by the inverse (≈1.7×) or retune it.

Background: where the ≈0.6× factor comes from

Gefen's compressed optimizer state takes slightly larger effective steps than AdamW on a few small, high-leverage tensors (most sharply the RMSNorm weights, whose whole tensor shares one statistic in the legacy mode). Those tensors set the stability ceiling, which lands the usable LR at ≈0.6× AdamW's. The factor is set by the architecture's norm/head_dim structure rather than model size — measured across Qwen3-0.6B → 8B (all head_dim=128) the usable factor stayed in the ≈0.57–0.78 band — so re-measure only for a different architecture. The default factored_v_2d second moment lands at the same ≈0.6× optimum empirically (fair-LR sweep at 0.6B and 1.7B).

Measured on a Qwen3-4B full fine-tune: at its own ≈0.6× optimum Gefen ties AdamW at 300 and 800 steps with AdamW-like run-to-run spread; forced up to an AdamW-scale LR it lands ≈0.3–0.4 worse with ≈5× the spread.

Benchmarks

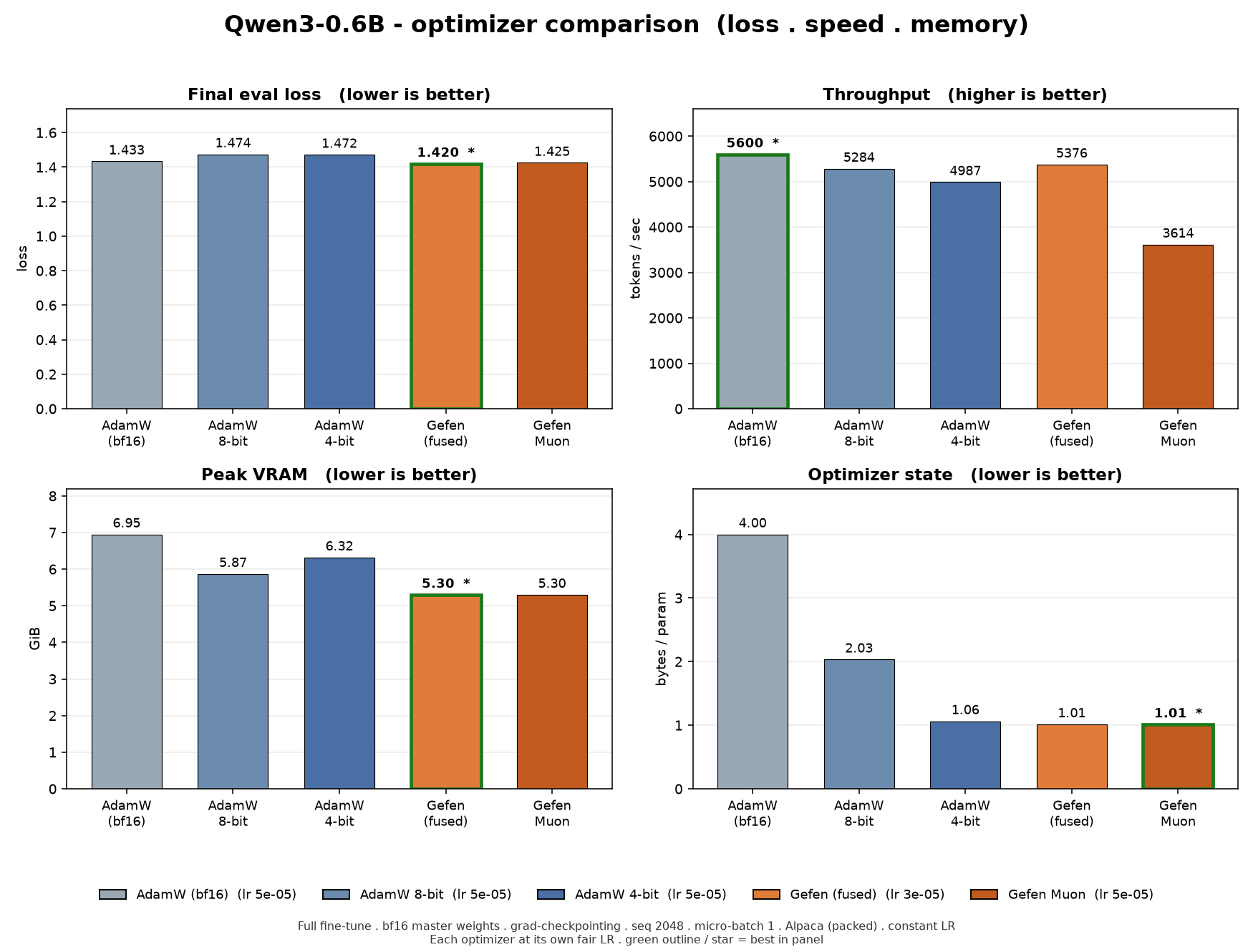

Optimizer comparison on a full fine-tune, with each optimizer at its own fair learning-rate optimum (from a per-optimizer LR sweep), 2000 steps.

You can run these yourself — see benchmarks/ for what each suite measures and how to reproduce the tables/plots (bash benchmarks/optimizer-sweep/run.sh regenerates this comparison, with the recommended Gefen-Muon config applied by default).

Testing environment

• Hardware: NVIDIA RTX 3090 for Qwen3-1.7B and RTX 3090 Ti for Qwen3-0.6B (Ampere, sm_86), single GPU per run; compare optimizers within a model, not tok/s across models.
• Software: PyTorch 2.12.0 (cu133), Python 3.12; Gefen fused CUDA kernels JIT-built for sm_86.
• Models: Qwen3-0.6B and Qwen3-1.7B — full fine-tune (all weights trained, no adapters).
• Regime: bf16 master weights, gradient checkpointing, sequence length 2048, micro-batch 1, Alpaca greedy-packed to 2048-token blocks, 2000 steps, identical data order across optimizers, 32-example held-out eval.
• Noise: single seed; the eval metric moves about ±0.005–0.007 between reruns (bf16 nondeterminism), so treat eval differences under 0.01 as a tie.
• Learning rate (each at its own fair optimum): AdamW family 5e-5; Gefen 3e-5; Gefen-Muon 5e-5 with the recommended hybrid config.
• Optimizers: adamw_bf16 = torch fused AdamW · adamw8bit = bitsandbytes · adamw4bit = torchao · gefen_fused = Gefen(fused=True) · gefen_muon = GefenMuonHybrid(..., fused=True) (Muon on 2D hidden matrices, Gefen on everything else). Both Gefen runs use the fused CUDA kernels (fused=True).

Full results table (per-optimizer numbers)

Model	Optimizer	LR	Eval loss	tok/s	Peak VRAM (GiB)	Opt-state B/param
Qwen3-0.6B	adamw_bf16	5e-5	1.433	5600	6.95	4.00
Qwen3-0.6B	adamw8bit	5e-5	1.474	5284	5.87	2.03
Qwen3-0.6B	adamw4bit	5e-5	1.472	4987	6.32	1.06
Qwen3-0.6B	gefen_fused	3e-5	1.420	5376	5.30	1.01
Qwen3-0.6B	gefen_muon	5e-5	1.425	3614	5.30	1.01
Qwen3-1.7B	adamw_bf16	5e-5	1.217	2985	14.00	4.00
Qwen3-1.7B	adamw8bit	5e-5	1.240	2704	10.84	2.03
Qwen3-1.7B	adamw4bit	5e-5	1.242	2622	15.11	1.06
Qwen3-1.7B	gefen_fused	3e-5	1.226	2870	9.21	1.01
Qwen3-1.7B	gefen_muon	5e-5	1.241	1314	9.20	1.01

gefen_fused uses the shipped defaults; gefen_muon uses the recommended hybrid recipe (backup_lr ≈0.5× lr, backup_1d_period_one=True). Both run at their own best learning rate. Older (pre-default) behaviors are still available behind flags — see the lever sections below for what each default does and how to switch it off.

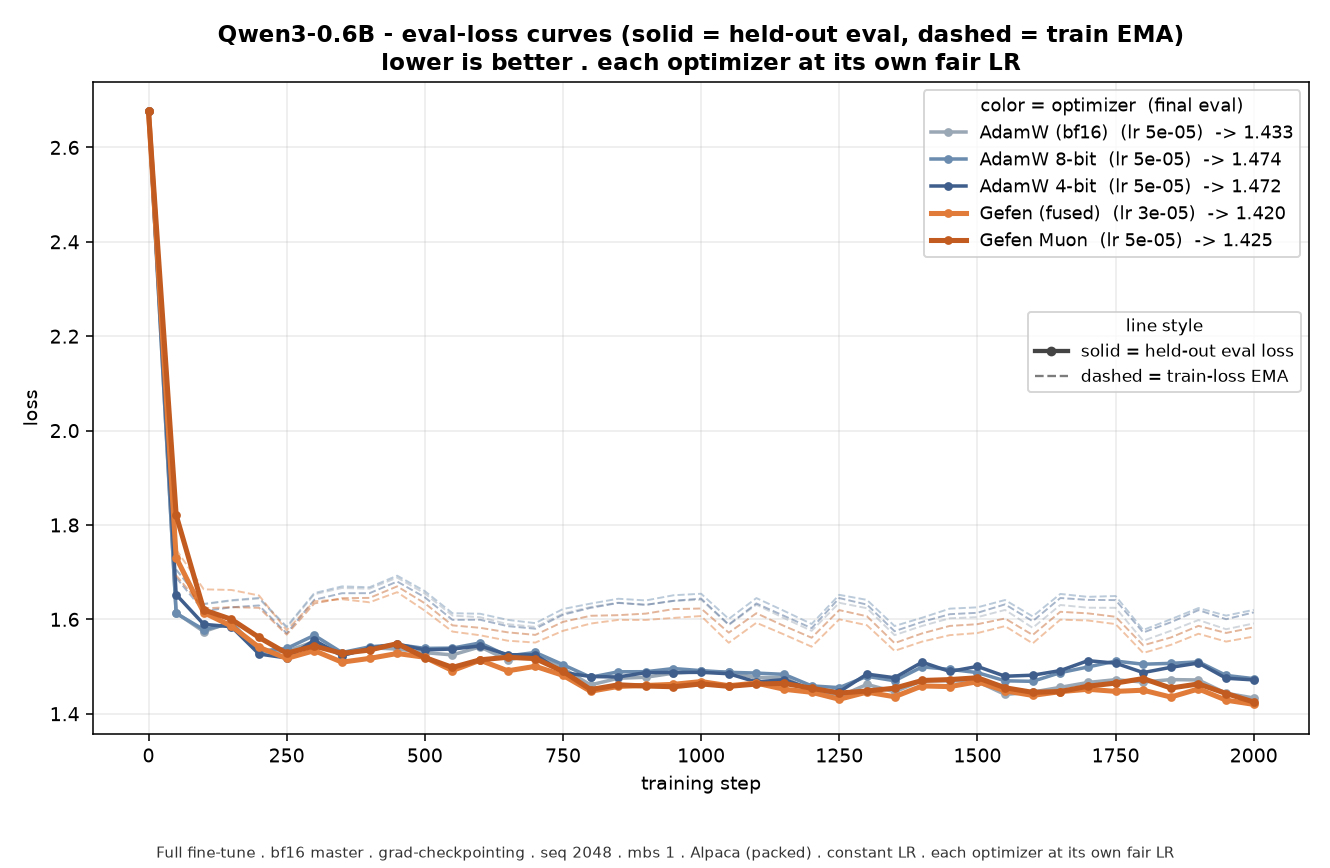

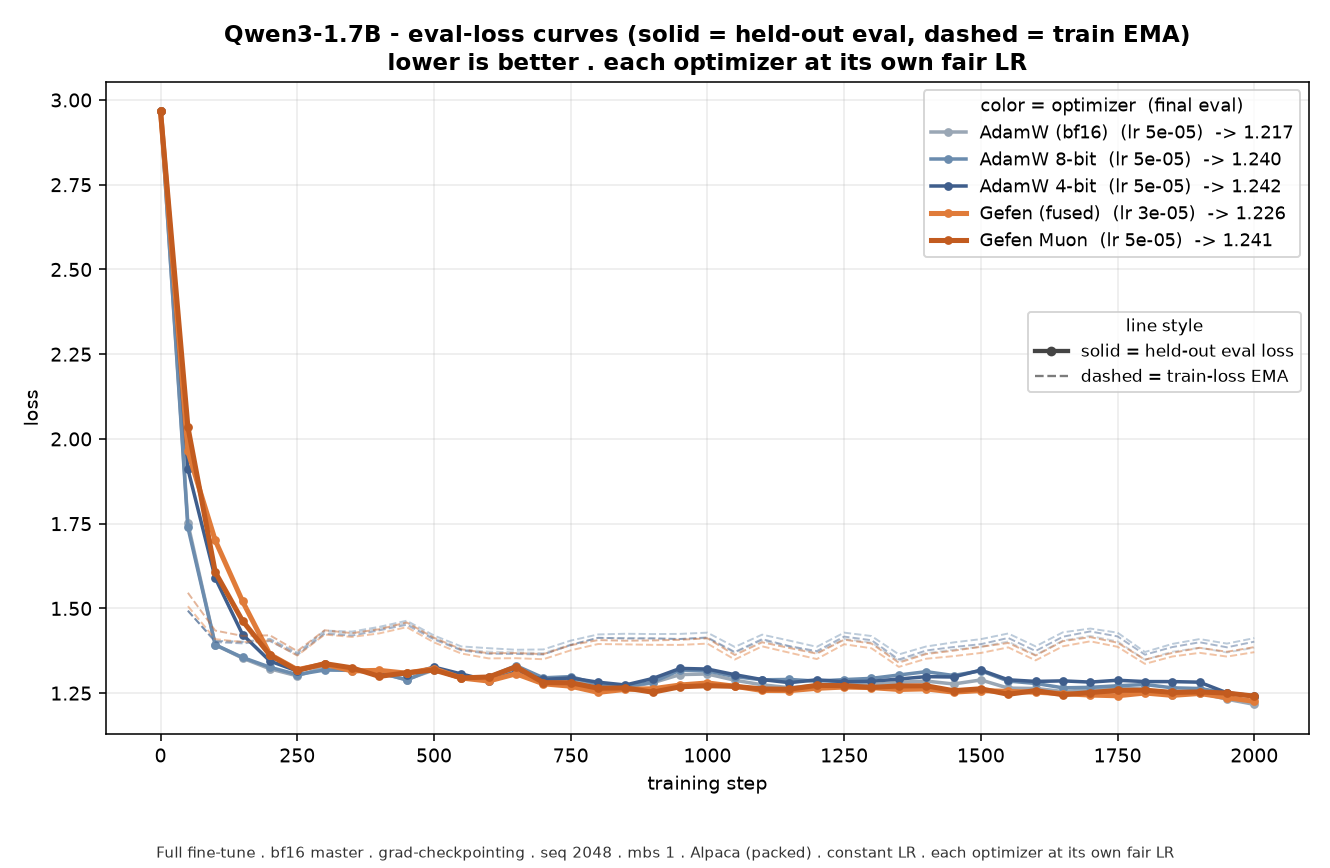

Loss curves — loss over the 2000 steps. For each optimizer (distinguished by color), there are two lines: solid = held-out eval loss (the 32-example validation set, logged every 50 steps — this is the comparison metric in the table above) and dashed = train-loss EMA (exponential moving average of the training loss).

Gefen-fused (with the factored_v_2d default) sits on the AdamW cluster at both scales — best-in-table at 0.6B (1.4199, −0.014 below the best AdamW) and a statistical tie at 1.7B (1.2257 vs 1.2169; each eval number moves ±0.005–0.007 between reruns, so gaps under ≈0.01 are ties). Gefen-Muon matches at 0.6B (1.4249, a tie) and lands +0.024 above the best AdamW at 1.7B (1.2411 vs 1.2169).

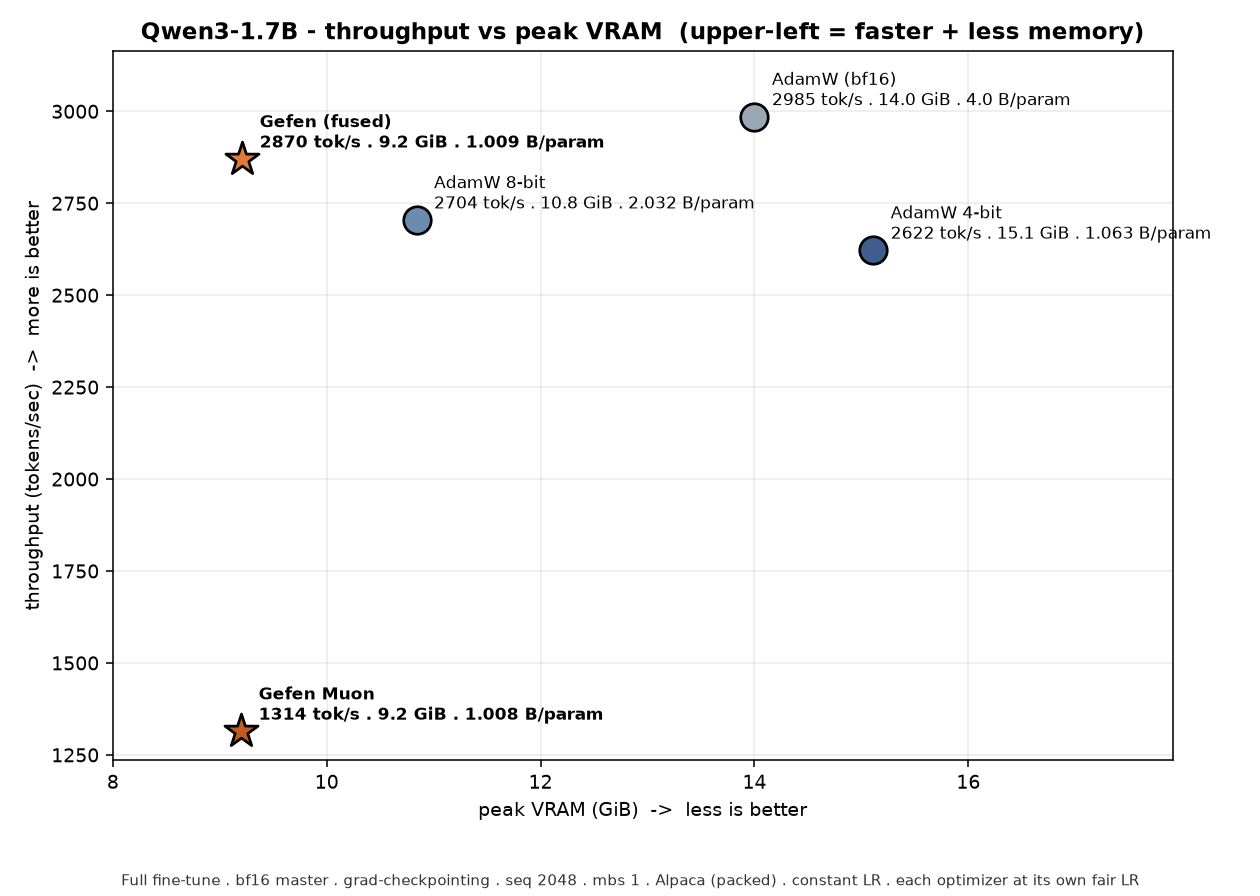

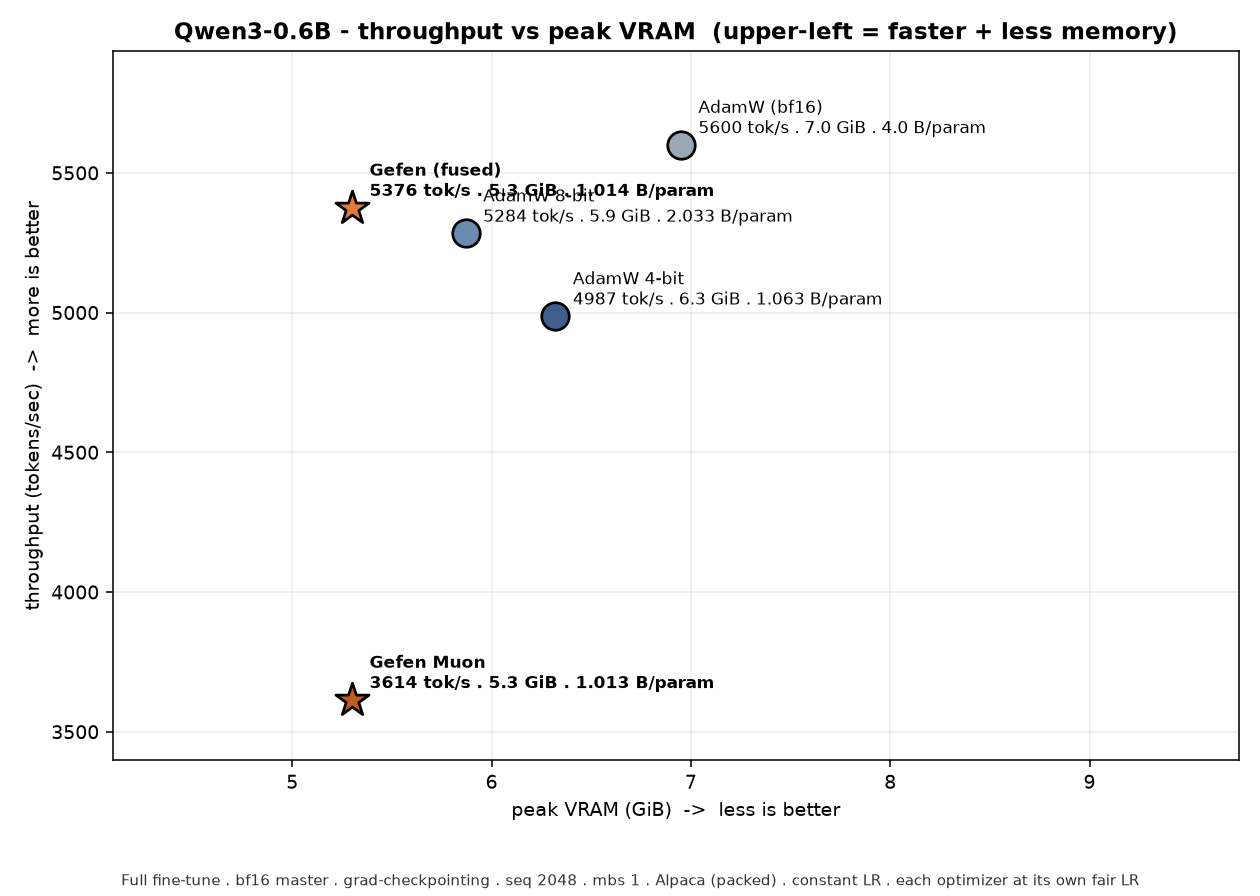

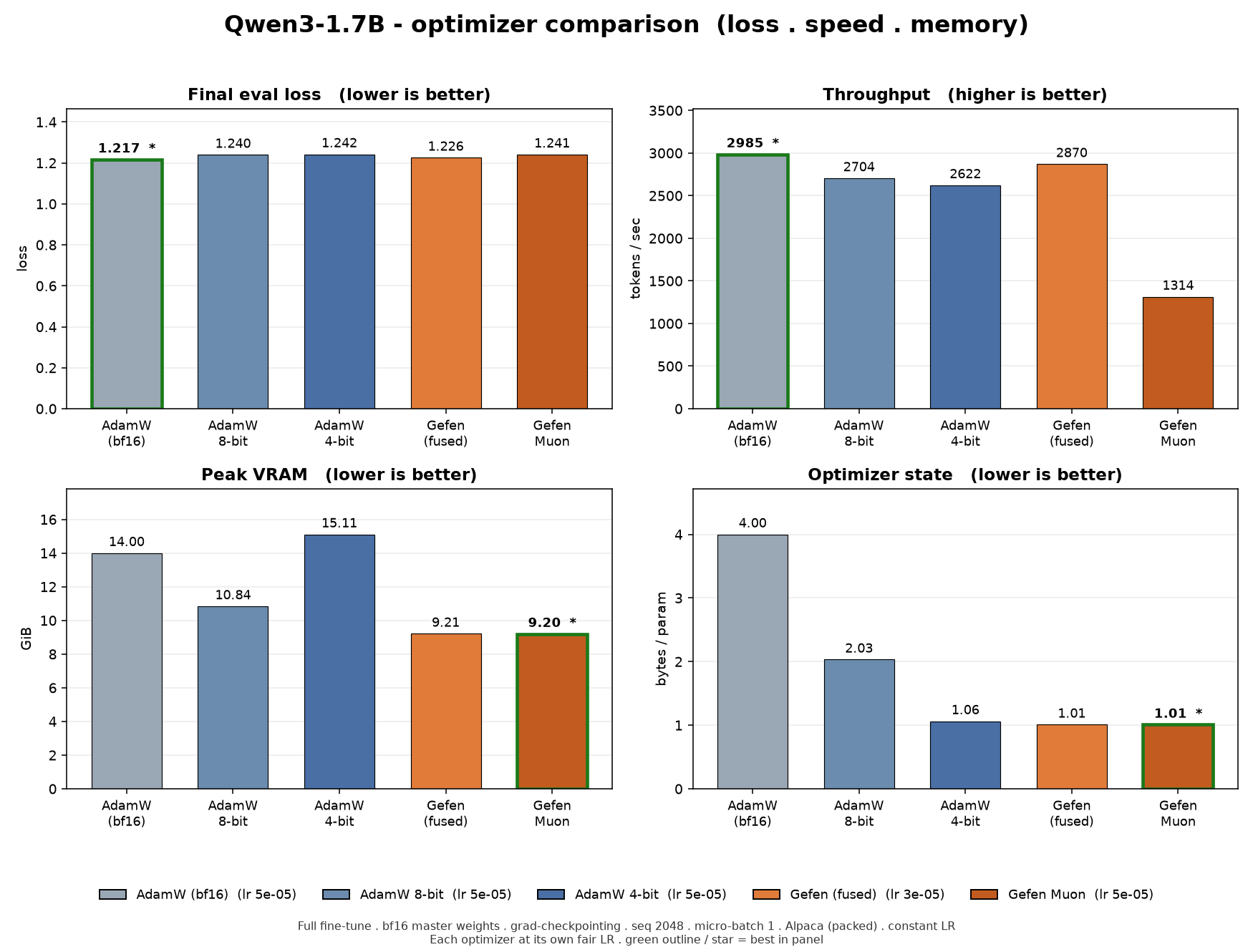

Throughput vs peak VRAM — the speed/memory frontier (upper-left = faster and lighter is better). Gefen-fused holds the lowest-VRAM column at ≈0.96× the fused-AdamW throughput at both scales; AdamW-4-bit is worst on both axes despite its small optimizer state (torchao transient buffers).

Gefen-Muon shares Gefen-fused's lowest-VRAM column but sits far lower on throughput — the Newton-Schulz orthogonalization makes it the slowest optimizer.

Gefen-fused is the recommended configuration: AdamW-level loss with the lowest peak VRAM and the lowest optimizer state in the table, at ≈0.96× AdamW's speed. (AdamW-4-bit's optimizer state is also small, but its peak VRAM is the highest in the table because of its transient buffers — Gefen is the real memory winner.)

Gefen-Muon reaches the same loss level at the same memory footprint, but at roughly half the speed (Muon's orthogonalization step is expensive). Choose it if you specifically want Muon-style updates; otherwise Gefen-fused gives the same quality faster.

Review the raw runs: per-cell training logs (step-by-step loss, throughput, VRAM) in docs/benchmarks/logs/ · aggregated metrics as CSV and JSONL.

Hugging Face Trainer

Until native optim="gefen" support is released in Transformers, pass Gefen to the Trainer with optimizer_cls_and_kwargs:

from gefen import Gefen
from transformers import Trainer, TrainingArguments

training_args = TrainingArguments(
    output_dir="outputs",
    learning_rate=3e-5,   # ≈0.6× your AdamW LR — see "Learning rate" above; don't copy an AdamW-scale LR here
    weight_decay=0.0,
)

trainer = Trainer(
    model=model,
    args=training_args,
    train_dataset=train_dataset,
    optimizer_cls_and_kwargs=(
        Gefen,
        {
            "lr": training_args.learning_rate,
            "betas": (training_args.adam_beta1, training_args.adam_beta2),
            "eps": training_args.adam_epsilon,
            "fused": True,
        },
    ),
)

Distributed Training

Gefen drops into standard distributed training like any other PyTorch optimizer, with either fused=True or fused=False. Validated setups: single-GPU, PyTorch DDP, and FSDP2 (fully_shard / DTensor). DeepSpeed ZeRO is not yet validated.

Extension: Gefen-Muon

GefenMuon adds a Muon-style pseudo-orthogonalization step (Keller Jordan et al., "Muon", 2024) on the first moment (skipping the second moment), then quantizes those first moments to 8-bit with Gefen's partitioning quantization.

Scope — read this first. Like Muon, GefenMuon optimizes 2D hidden weight matrices only. It has no code path for embeddings, the LM head, or 1D parameters (norms, biases) — feeding it those will fail or misbehave. For a full model, use GefenMuonHybrid below, which routes the non-Muon parameters to Gefen for you.

Pass (name, param) pairs, not bare tensors. GefenMuon keys its 8-bit codebook cache on each parameter's name. If you strip the names (e.g. [p for _, p in pairs]) every parameter collapses to the name "none" and the cache is corrupted. Always pass the named pairs through:

from gefen import GefenMuon

# muon_named_params: list of (name, param) for your 2D hidden weight matrices.
optimizer = GefenMuon(muon_named_params, lr=lr)   # note: raw GefenMuon defaults weight_decay=0.1 (the standard Muon recipe), unlike Gefen / the hybrid, which default 0.0

Full models: GefenMuonHybrid

GefenMuonHybrid is the drop-in for training a whole model with Muon. It routes 2D hidden weight matrices to GefenMuon and everything else (embeddings, LM head, norms, biases) to Gefen, behind a single torch.optim.Optimizer interface. Both sub-optimizers are 8-bit, so the whole optimizer-state footprint stays small — unlike a stock Muon+AdamW setup where the AdamW half is full precision.

Hand it a model and it splits and routes the parameters for you — no manual param lists:

from gefen import GefenMuonHybrid

optimizer = GefenMuonHybrid(model, lr=ADAMW_LR)               # single-argument form
optimizer = GefenMuonHybrid.from_model(model, lr=ADAMW_LR)    # equivalent explicit classmethod

Recommended configuration (lowest loss vs AdamW at matched LR — this is what the gefen_muon benchmark row uses): keep the Muon half at AdamW scale and lower only the backup half, with per-element 2nd moment on its 1D tensors. Both are free on throughput.

optimizer = GefenMuonHybrid(
    model,
    lr=ADAMW_LR,                   # Muon (2D) half stays at AdamW scale
    backup_lr=0.5 * ADAMW_LR,      # backup half ≈0.5× (tune 0.4–0.6×) — the main loss lever
    backup_1d_period_one=True,     # AdamW-like per-element 2nd moment on norms/biases
    adjust_lr_fn="match_rms_adamw",
    fused=True,
)

Manual control. For a custom split, gefen.split_params_for_muon(model) returns the (muon_named, backup_named) (name, param) lists; pass them as the two positional arguments (GefenMuonHybrid(muon_named, backup_named, lr=...)) and adjust as needed. The single-argument and from_model forms cover the common case.

Muon learning rate — keep adjust_lr_fn="match_rms_adamw" (the default). The hybrid feeds a single lr to both halves, but Muon matrices and the Gefen backup want different LR scales, so the shared lr only works after a per-parameter rescale:

• "match_rms_adamw" (the default) rescales Muon updates to AdamW-equivalent size, so one AdamW-scale lr works for the whole model.
• None keeps Muon's native scaling — an AdamW-sized lr then under-trains the Muon matrices, and no single lr suits both halves. Don't combine None with an AdamW-scale lr.

Optional knobs (GefenMuonHybrid):

Knob	Default	What it does	When to change it
backup_lr	= lr	learning rate for the Gefen backup half	set to ≈0.5× lr (tune 0.4–0.6×) — the recommended recipe and the main loss lever
backup_1d_period_one	False	AdamW-like per-element 2nd moment on 1D backup tensors (norms/biases); free on throughput	True in the recommended recipe

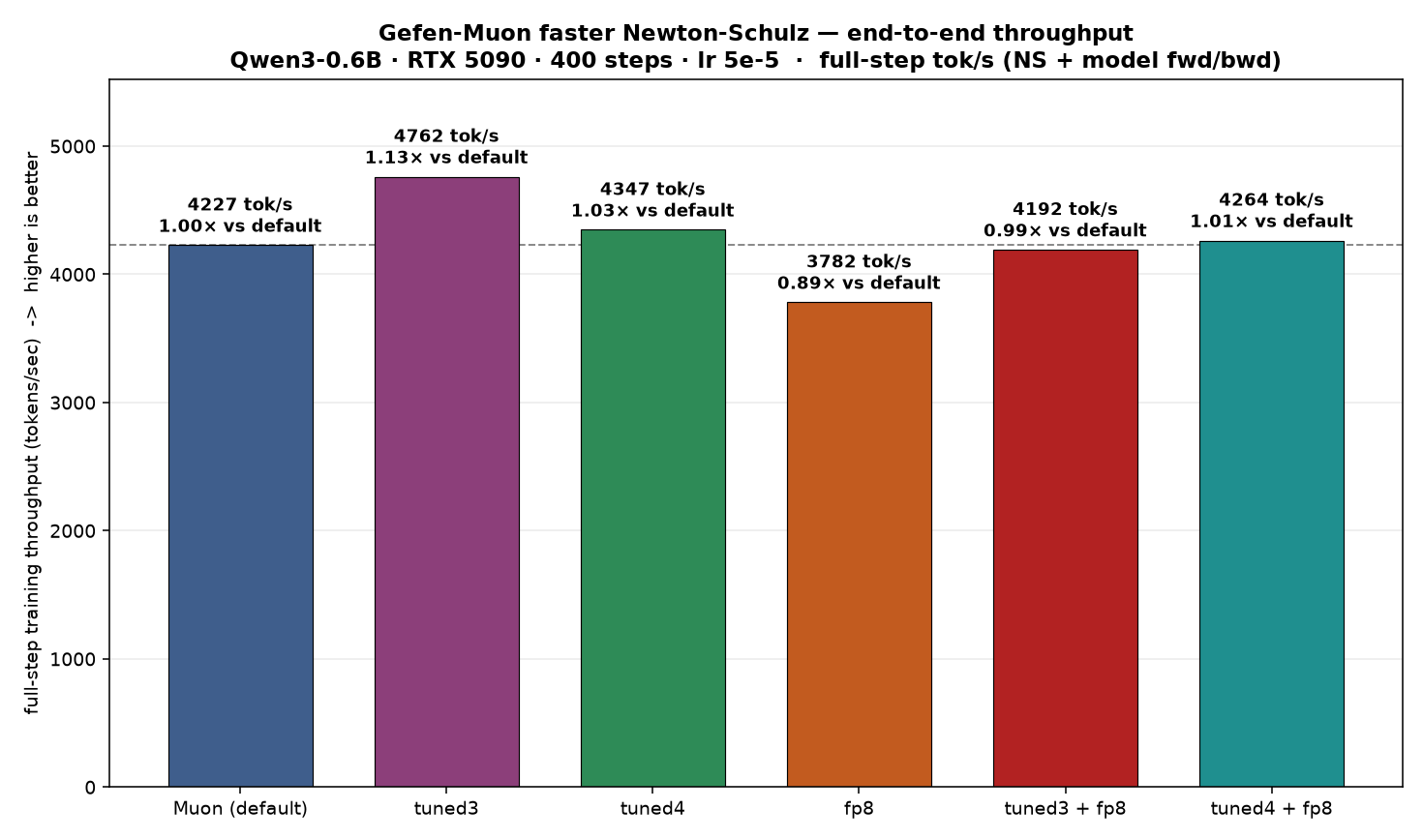

ns_schedule	"tuned3"	faster Newton-Schulz schedule (≈1.4× step throughput, loss-neutral) — details	"standard" for the bit-exact classic quintic

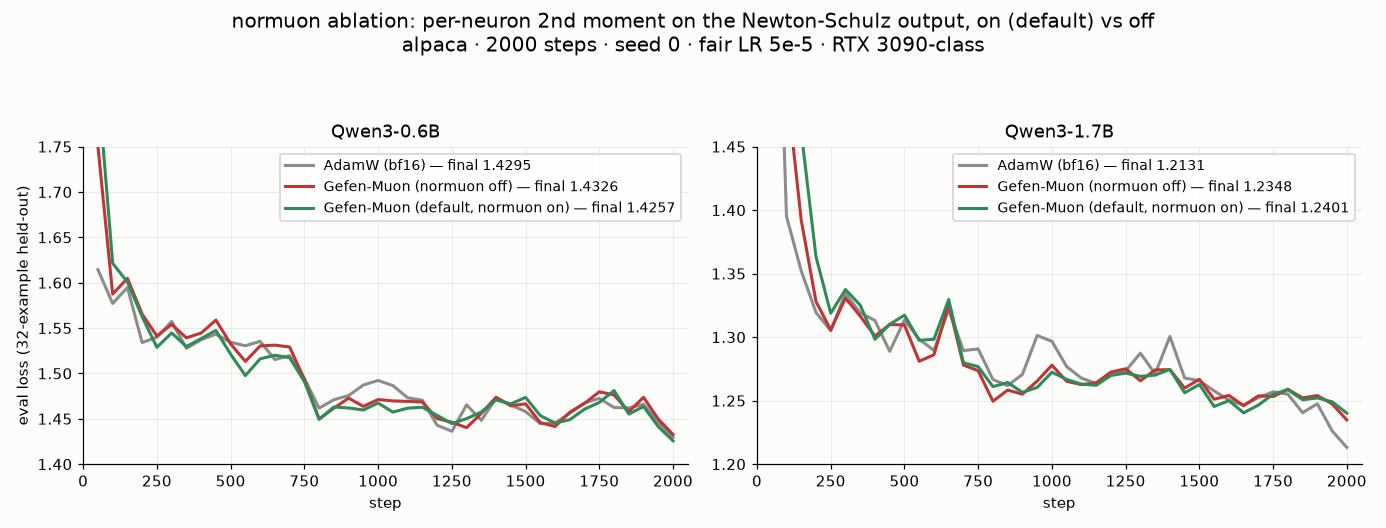

normuon	True	free per-neuron 2nd moment on the NS output; small consistent loss win — details	False to disable

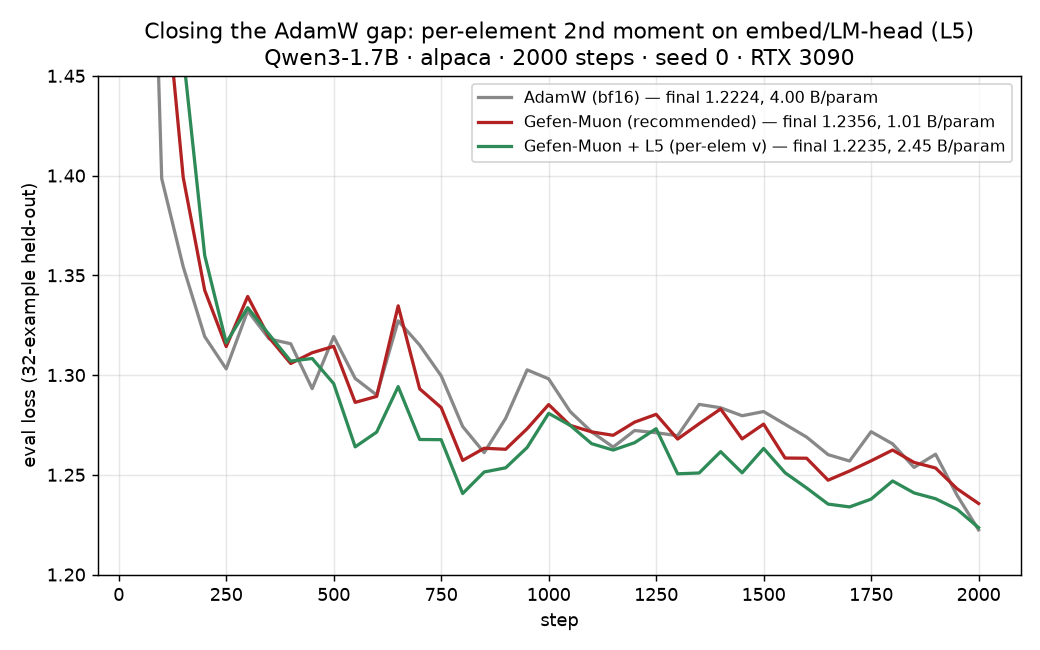

backup_2d_period_one	False	per-element 2nd moment on the embedding/LM head — matches AdamW's loss at extra memory — details	turn on to close the last loss gap at 1.7B+
stochastic_round	False	unbiased rounding for the 8-bit momentum (free, loss-neutral)	optional
capturable	False	CUDA-graph-capturable step(), like torch.optim's capturable — details	turn on to capture step() in a torch.cuda.CUDAGraph

It supports step(), zero_grad(), state_dict()/load_state_dict(), and LR schedulers (e.g. torch.optim.lr_scheduler.StepLR(optimizer, ...)) like any optimizer. Because it splits params at construction rather than taking a single iterable, build it yourself and hand it to the Hugging Face Trainer via optimizers= (not optimizer_cls_and_kwargs):

optimizer = GefenMuonHybrid(model, lr=training_args.learning_rate,
                            backup_lr=0.5 * training_args.learning_rate, backup_1d_period_one=True)
trainer = Trainer(model=model, args=training_args, train_dataset=train_dataset,
                  optimizers=(optimizer, None))  # (optimizer, lr_scheduler)

Using Gefen with Axolotl

Axolotl trains with Gefen through two native optimizer names, added by axolotl-ai-cloud/axolotl#3808 (install axolotl from that PR until it lands in a release):

• optimizer: gefenx — the core quantized AdamW drop-in (Gefen).
• optimizer: gefenx_muon — the whole-model Muon hybrid (GefenMuonHybrid): Muon on 2D hidden weights, Gefen on embeddings / LM head / norms / biases, at the same ≈1 B/param footprint.

Install this fork from source, not the PyPI gefen — which is upstream Gefen, without this fork's fixes (the modern-arch period==1 memory fallback, the ≈2× fused kernels, the Muon hybrid): git clone https://github.com/thad0ctor/Gefen-X && cd Gefen-X && pip install -e . (see Installation).

gefenx — memory-efficient AdamW drop-in (recommended):

optimizer: gefenx
learning_rate: 6.0e-6    # ≈0.6× your AdamW LR — Gefen takes larger effective steps
bf16: true
optim_args:
  fused: true            # ≈2× faster opt.step, bit-exact (default)
  factored_v_2d: true    # Adafactor-style 2D 2nd moment — matches AdamW loss (default)

gefenx_muon — whole-model Muon hybrid, same ≈1 B/param footprint:

optimizer: gefenx_muon
learning_rate: 5.0e-5    # Muon tolerates a hotter LR than plain gefenx
bf16: true
optim_args:
  fused: true
  backup_lr: 2.5e-5      # Gefen LR for embed / head / norms; defaults to 0.5 × learning_rate
  sharded_mode: exact    # "distributed" splits Newton-Schulz across GPUs under FSDP2

gefenx_muon applies the fork's recommended recipe by default (backup_lr = 0.5 × lr, backup_1d_period_one, adjust_lr_fn="match_rms_adamw") — all overridable under optim_args.

How config maps: learning_rate, weight_decay, adam_beta1/adam_beta2, adam_epsilon forward to the constructor; anything under optim_args (fused, factored_v_2d, backup_lr, sharded_mode, …) passes through as extra constructor kwargs (string values are coerced to type). To set the LR properly instead of the ≈0.6× heuristic, run the finder: python -m gefen.tools.find_lr --model <path> --optimizer gefen --method sweep — see tools/README.md.

Lever	axolotl config	Notes
Select Gefen / Muon hybrid	optimizer: gefenx / gefenx_muon	core drop-in / whole-model hybrid
Fused kernels	optim_args: { fused: true }	≈2× faster opt.step; bit-exact; default on
Factored 2D 2nd moment	optim_args: { factored_v_2d: true }	matches AdamW loss; default on
Muon backup LR	optim_args: { backup_lr: <lr> }	Gefen LR for embed / head / norms; defaults to 0.5 × learning_rate
Sharded Newton-Schulz	optim_args: { sharded_mode: exact }	exact (default) or distributed (splits NS across GPUs under FSDP2)
Learning rate	learning_rate: <≈0.6× AdamW>	heuristic — better, measure with the LR finder. Background: Learning rate
period==1 memory fallback	on by default in this fork	restores ≈1 B/param on modern decoders; module flag MEMORY_SAFE_FALLBACK, not a YAML key

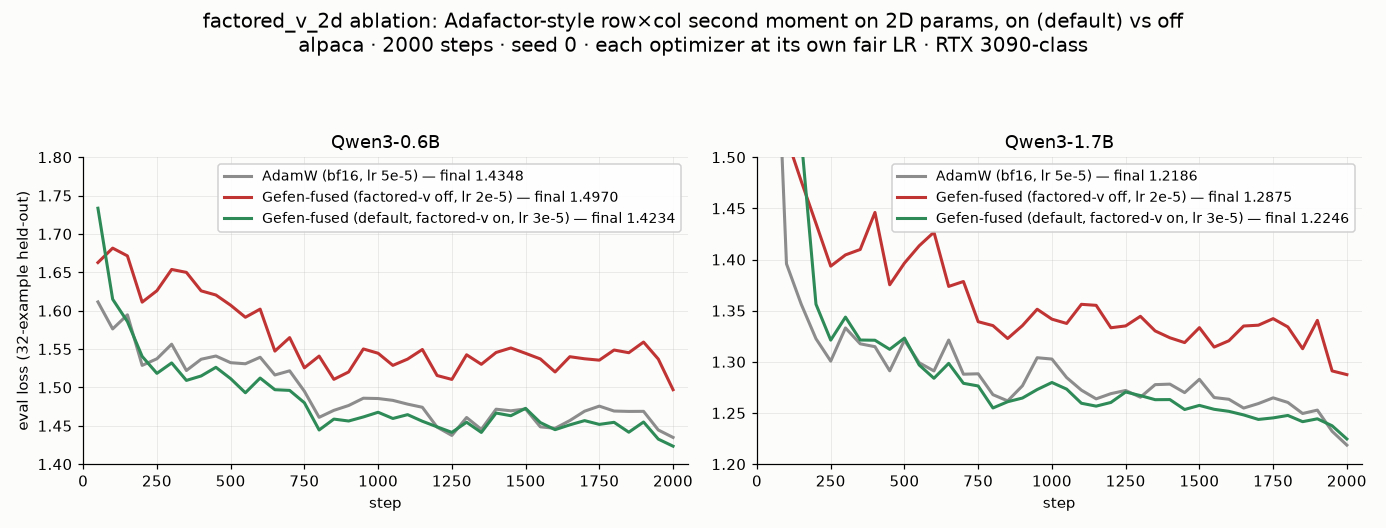

Quality Lever: factored second moment on 2D params (factored_v_2d)

On by default — this is what makes plain Gefen match AdamW's loss. Set factored_v_2d=False for the legacy behavior: ≈4% faster end-to-end at 1.7B (on par with fused AdamW's throughput), about 0.06 worse eval loss, and a lower best learning rate (2e-5 instead of 3e-5 at the benchmarked scales).

Gefen historically shared one adaptive step size across each block of parameters, where AdamW keeps one per parameter — that granularity difference was the ≈0.06 loss gap. factored_v_2d gives every parameter of a weight matrix its own step size by tracking just one statistic per row and one per column (the Adafactor idea) and combining them on the fly inside the update kernel. The stored state is only rows + columns per matrix, so the ≈1 B/param memory story is unchanged.

opt = Gefen(model.named_parameters(), lr=0.6 * ADAMW_LR, fused=True)  # factored-v is the default

	Gefen (default)	AdamW bf16	Gefen legacy (factored_v_2d=False)
Qwen3-0.6B eval loss	1.420	1.433	1.497
Qwen3-1.7B eval loss	1.226	1.217	1.286
Qwen3-1.7B tok/s	2870	2985	2996
Optimizer state	1.01 B/param	4.00	1.01

Chart from the original factored-v ablation run; the table above cites the current benchmark re-runs (per-cell logs, including the legacy-mode cell, in docs/benchmarks/logs/).

Details: validation, checkpoint migration, and limits

• Validated at both scales in the fair-LR regime, with a second-seed replication at 0.6B and a learning-rate sweep at 1.7B (best LR 3e-5 ≈ 0.6× AdamW's, matching Gefen's documented heuristic). The fused kernel computes the per-element step size in registers (no extra temporaries; step transients measured 0 MiB) and is covered by tests/test_gefen_factored_v.py.
• Checkpoints migrate automatically in both directions (old checkpoints work with the new default and vice versa; the second-moment statistics re-warm briefly and harmlessly).
• GefenMuonHybrid's backup half stays on the legacy path (that combination hasn't been benchmarked), and under FSDP2 sharded 2D params fall back to the legacy path as well.
• Two sibling experiments from the same investigation ship off by default because they measured no effect: period_one_substrings (per-element state on name-matched tensors) and codebook_refresh_every (periodic codebook refit).

Experimental Lever: faster Newton-Schulz (ns_schedule, fp8_ns)

GefenMuonHybrid defaults to ns_schedule="tuned3" (≈1.4× faster steps, same loss). Pass ns_schedule="standard" for the classic schedule; fp8_ns is off by default.

The orthogonalization step is ≈90% of a Muon step, so it has two speed levers:

• ns_schedule — a tuned schedule that reaches the same result in fewer iterations. "tuned4" is ≈1.2× faster at equal quality; "tuned3" (the hybrid default) is ≈1.6× faster with a negligible quality cost.
• fp8_ns — run the matrix math in fp8 on GPUs that support it (RTX 40-series/Hopper and newer) for matrices large enough to benefit; everywhere else it silently falls back to normal precision, so it's always safe to enable.

opt = GefenMuonHybrid(
    muon_named_params, backup_named_params,
    lr=5e-5, adjust_lr_fn="match_rms_adamw", fused=True,
    ns_schedule="tuned4",   # "tuned3" (hybrid default, ~1.6x) | "tuned4" (equal-quality, ~1.2x) | "standard" (classic quintic)
    fp8_ns=True,            # sm_89+ large matrices only; a no-op bf16 fallback elsewhere
)

Measured: no lever hurts loss — all variants track default Muon. fp8_ns pays off on larger models (≈1.2× end-to-end at Qwen3-4B) and its built-in size gate avoids the penalty on small ones; tuned3 runs ≈1.4× faster end-to-end at the same loss, which is why it's the default.

Quality Lever: per-neuron 2nd moment on the Newton-Schulz output (normuon)

On by default in GefenMuonHybrid; free on speed and memory. Disable with normuon=False.

Muon's orthogonalization step leaves some output neurons taking slightly bigger steps than others. normuon (after NorMuon) evens that out by tracking a running average per neuron and normalizing against it — at essentially zero cost in speed or memory.

Measured: a small but consistent loss win (−0.007 to −0.010 at 0.6B across two seeds, and about a third of the remaining gap to AdamW at 1.7B). A related experiment (cautious=True, sign-agreement masking) clearly hurt and ships off.

Experimental Lever: match-AdamW 2nd moment on embed / LM-head (backup_2d_period_one)

Opt-in, default off. Unlike the levers above, this one costs memory — it's a deliberate loss-for-memory trade.

The hybrid's last sliver of loss gap at larger scales comes from the shared statistics on the embedding and LM head. This knob gives those two tensors full per-element statistics (like AdamW keeps everywhere), closing the gap at the cost of extra optimizer memory on them.

opt = GefenMuonHybrid(
    model,
    lr=5e-5, backup_lr=2.5e-5, adjust_lr_fn="match_rms_adamw",
    backup_1d_period_one=True,
    backup_2d_period_one=True,   # per-element v on embed/LM-head — matches AdamW loss, costs memory
)

Measured at Qwen3-1.7B across two seeds: the gap to AdamW goes from ≈+0.02 to ≈0.00, at 2.45 B/param optimizer state (still well under AdamW's 4.0), with no speed cost. Leave it off to keep the ≈1 B/param memory-first footprint.

A related opt-in, stochastic_round=True, switches the 8-bit momentum to unbiased rounding. It's free and validated but measured loss-neutral, so it stays optional.

CUDA Graphs & torch.compile (capturable)

All three optimizers accept capturable=True (same meaning as torch.optim's argument): opt.step() can then be captured in a torch.cuda.CUDAGraph or wrapped in torch.compile(mode="reduce-overhead") at no step-time cost — and the compiled hybrid step is about 10% faster than eager. Usage, caveats, and measured numbers: COMPATIBILITY.md.

Experimental Lever: sharded Newton-Schulz under FSDP2 (sharded_mode)

Opt-in. Default is sharded_mode="exact" (single-GPU parity).

Under FSDP2, Muon's orthogonalization needs each full weight matrix, but every GPU only holds a slice. Three strategies:

• "exact" (default) — every GPU rebuilds every matrix and does the same work. Identical to single-GPU results, but redundant.
• "distributed" (experimental) — each matrix is assigned by its stable position in the full distributed parameter set to one GPU, which does the work and shares the result. Bit-identical to "exact" on homogeneous GPUs and faster as you add them. Momentum ownership is stable when the active gradient set varies, and state_dict() collectively gathers owner-local momentum so rank 0 can write a complete checkpoint after all ranks call it.
• "approx" — each GPU works on just its slice. Fastest, but results genuinely differ — an accuracy trade.

from gefen import GefenMuonHybrid

opt = GefenMuonHybrid(
    muon_named_params, backup_named_params,
    lr=5e-5, adjust_lr_fn="match_rms_adamw", fused=True,
    sharded_mode="distributed",  # "exact" (default, parity) | "distributed" (experimental, collective checkpoint) | "approx" (fastest, non-parity)
)
# only takes effect under FSDP2 (DTensor params); no-op single-GPU

"distributed" checkpointing is collective. state_dict() gathers each owner's momentum across ranks, so every rank must call it (as in a standard FSDP full-state-dict flow). Calling state_dict() on rank 0 only — e.g. a rank-0-only save loop — deadlocks. Save and load also transiently materialize the full unsharded momentum on every rank, so peak memory at checkpoint time approaches "exact" mode's.

Measured (Qwen3-0.6B, 2 and 4 GPUs): "distributed" is a free speedup at identical results (1.06× / 1.12×); "approx" is faster still (1.25× / 1.39×) but visibly costs training quality, and the cost grows with GPU count. The "distributed" win grows with model size.

Param Groups and Integrations

Gefen, GefenMuon, and GefenMuonHybrid preserve the parameter groups you pass to the optimizer, so list-indexed layer-wise LR recipes, per-group LR logging, and state_dict()["param_groups"] see the same group boundaries as conventional torch.optim optimizers. Per-parameter names are stored in optimizer state and mirrored as each group's param_names list for integrations that need name-level routing. Checkpoints from the older one-group-per-parameter layout are migrated on load when the total parameter order still matches and the old per-param hyperparameters can be represented by the new group layout.

Known limitations

• Hybrid checkpoint schema. GefenMuonHybrid's state_dict() uses its own nested {"muon": ..., "backup": ...} layout. Resume from a checkpoint Gefen itself saved — not one consolidated or converted to the flat torch {state, param_groups} layout (those are rejected, not silently ignored).

Citation:

If you found this library useful, please consider citing our work:

@article{benedek2026gefen,
  title={Gefen: Optimized Stochastic Optimizer},
  author={Benedek, Nadav and Koren, Tomer and Fried, Ohad},
  journal={arXiv preprint arXiv:2606.13894},
  year={2026}
}

Paper:

Gefen: Optimized Stochastic Optimizer
