Dependency

compile 'com.thedesigncycle.ui:views:0.3.1'



CircleButton

XML

<com.thedesigncycle.ui.CircleButton
	  xmlns:app="http://schemas.android.com/apk/res-auto"
      android:layout_width="100dp"
      android:layout_height="100dp"
      app:buttonColor="#ff0000"
      app:icon="@drawable/ic_list"
  />

Attribute	Description	Example
buttonColor	Color of the button	#ff0000 or @color/myButtonColor
icon	Icon resource	@drawable/ic_call



Java

Create at runtime

CircleButton myCircleButton = new CircleButton(context);

or fetch from layout

CircleButton myCircleButton = (CircleButton) findViewById(R.id.my_circle_button);

Customize

myCircleButton.setColor("#FF0000");

myCircleButton.setIcon(getResources().getDrawable(R.drawable.ic_list));

Methods

Method	Description
setButtonColor(int Color)	Set color of the button
setIcon(Drawable icon)	Set icon drawable



CircleButton inherits all public methods from View, including setOnClickListener(...)

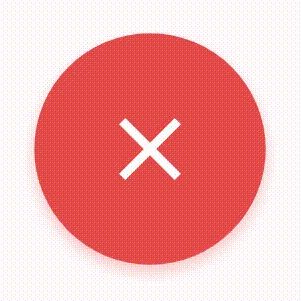

CircleToggleButton

XML

 <com.thedesigncycle.ui.CircleToggleButton
        android:id="@+id/my_circle_toggle"
        android:layout_width="100dp"
        android:layout_height="100dp"
        app:buttonColorChecked="#00cc00"
        app:iconChecked="@drawable/ic_check"
        app:buttonColorUnchecked="#ff0000"
        app:iconUnchecked="@drawable/ic_wifi"
        />

Attribute	Description	Example
buttonColorChecked	Color of the button in checked state	#00ff00 or @color/myCheckedColor
iconChecked	Icon resource for checked state	@drawable/ic_check
buttonColorUnchecked	Color of the button in unchecked state	#ff0000 or @color/myUncheckedColor
iconUnchecked	Icon resource for unchecked state	@drawable/ic_close



Java

Create at runtime

CircleToggleButton circleToggleButton = new CircleToggleButton(context);

or fetch from layout

CircleToggleButton circleToggleButton = (CircleToggleButton) findViewById(R.id.my_circle_toggle);

Customize

circleToggleButton.setButtonColorUnchecked(Color.RED);
circleToggleButton.setButtonColorChecked(Color.parseColor("#00cc00"));
circleToggleButton.setIconUnchecked(getResources().getDrawable(R.drawable.ic_wifi));
circleToggleButton.setIconChecked(getResources().getDrawable(R.drawable.ic_check));

Methods

Method	Description
setButtonColorUnchecked(int Color)	Set color of the button for unchecked state
setIconUnchecked(Drawable icon)	Set icon drawable for unchecked state
setButtonColorChecked(int Color)	Set color of the button for checked state
setIconChecked(Drawable icon)	Set icon drawable for checked state



CircleToggleButton inherits all public methods from CompoundButton, including setOnCheckedChangeListener(...)

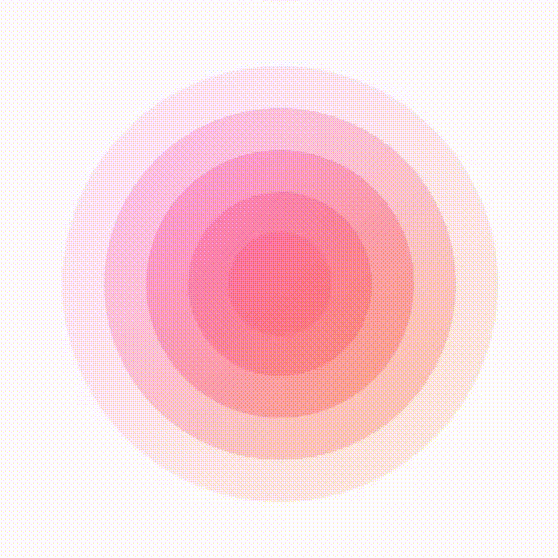

RippleView

XML

    <com.thedesigncycle.ui.RippleView
        android:layout_width="200dp"
        android:layout_height="200dp"

        app:colorMode="gradient"
        app:gradientColor1="#FA67BF"
        app:gradientColor2="#E37F83"
        app:rippleCount="5"
        app:rippleDuration="3000"
        app:smallCircleScale="0.2"
        app:gravity="center"
        />

Attribute	Description	Example	Default
colorMode	Solid color or gradient	solid or gradient	solid
solidColor	Color (if solid color mode)	#00ff00 or @color/myColor
gradientColor1	Color 1 of gradient (if gradient color mode)	#00ff00 or @color/myColor1
gradientColor2	Color 2 of gradient (if gradient color mode)	#0000ff or @color/myColor2
rippleCount	Number of visible ripples at any instance of time	Recommended between 2 and 10	5
rippleDuration	Duration of animation of ripple in milliseconds	Recommended between 100 and 5000	1000
smallCircleScale	The scale of the initial circle	Between 0.1 and 0.9	0.5
gravity	The anchor of the ripples	center left top right bottom top|left bottom|right etc.	center



Java

Create at runtime

RippleView rippleView = new RippleView(context);

or fetch from layout

RippleView rippleView = (RippleView) findViewById(R.id.my_ripple_view);



Customize

Anchor to an edge

rippleView.setGravity(Gravity.LEFT);

Anchor a corner

rippleView.setGravity(Gravity.BOTTOM | Gravity.RIGHT);

Gradient

rippleView.setGradient(color1, color2);

Solid color

rippleView.setSolidColor(color);

Ripple Count

rippleView.setRippleCount(5);

Ripple Animation Duration (in milliseconds)

rippleView.setRippleDuration(1000);

Scale of the starting ripple (relative to the view size)

rippleView.setSmallCircleScale(0.5f);
