Visualize and explore graphs and trees right in your terminal. Fast, interactive, and easy to use for understanding your data.

---

Table of Contents

• Features
• Installation
• Usage
• Navigation
• File Formats
• Roadmap
• Feature Requests
• Screenshots
• Video

Cosmo provides a fast and interactive way to explore node/edge data structures directly in your terminal. Whether you point it at a JSON/YAML file or use it programmatically, you can smoothly navigate large hierarchies and general graphs.

Features

Command-Line Interface (CLI)

• Visualize Data: Render graphs and trees from JSON or YAML files directly in your terminal.
• Interactive Viewer: Pan and zoom through your data with smooth, intuitive controls.
• Search: Quickly find nodes by their ID or value.
• Theming: Customize the look and feel with built-in themes (aura, dracula, atom, catppuccin).
• Export: Export your graph data to JSON or YAML.

As a Package

• Programmatic API: Integrate Cosmo into your own projects to render graphs and trees from your own data structures.
• Customizable: Pass in your own nodes and edges, and configure the appearance and behavior of the graph.

Installation

NPM

npm i -g cosmo-flow

Yarn

yarn global add cosmo-flow

Usage

CLI

You can use the cosmo command to visualize a JSON or YAML file directly in your terminal. It has the following options:

• --file <path-to-file>: The path to the JSON or YAML file you want to visualize.
• --colorscheme <theme>: The theme to use for the visualization. The available themes are: aura, dracula, atom, and catppuccin.

Examples

# Visualize a JSON file
cosmo --file mock/small_tree.json

# Visualize a YAML file with a specific theme
cosmo --file mock/small_tree.yaml --colorscheme dracula

As a package

You can also use cosmo as a package in your project.

import { cosmo } from "cosmo-flow";

const nodes = [
  { id: "1", value: "Hello" },
  { id: "2", value: "World" },
];

const edges = [{ id: "1-2", source: "1", target: "2" }];

cosmo({ nodes, edges });

Navigation

Once the application is running, you can use the following keys to navigate:

• Pan: Use the arrow keys (↑, ↓, ←, →) or h, j, k, l to pan the view.
• Search: Press / to open the search bar and find nodes by their ID or value.
• Main Menu: Press Escape or Space to open the main menu.
• Keybindings: From the main menu, select "Keybindings" or press s to see all available commands.

File Formats

Cosmo accepts JSON or YAML files with the following structure:

JSON

{
  "nodes": [{ "id": "string", "value": "string" }],
  "edges": [{ "id": "string", "source": "string", "target": "string" }]
}

YAML

nodes:
  - id: b1
    value: Root
  - id: b2
    value: L1 - L
  - id: b3
    value: L1 - R
edges:
  - id: be1
    source: b1
    target: b2
  - id: be2
    source: b1
    target: b3

The nodes array should contain objects with an id and a value. The edges array should contain objects with an id, a source (which is the id of the source node), and a target (which is the id of the target node).

Roadmap (near term)

• Improved edge paths
• In-place editing (add / delete / rename)
• Edge rewire operations
• Save back to file after interactive edits
• Live reload when source file changes
• Custom theme injection
• Layout options (horizontal / vertical / layered)
• Export to SVG / PNG

Acknowledgements

This project was created using the react-curse library — many thanks to its author for enabling the terminal UI foundations used here. See: https://github.com/infely/react-curse

Feature Requests

Have an idea for a new feature? We'd love to hear from you! The best way to suggest a new feature is to open an issue on our GitHub repository.

When you open an issue, please provide a clear and detailed description of the feature you'd like to see. Explain why you think it would be a valuable addition to Cosmo, and if possible, provide a simple example of how it might work.

We appreciate your feedback and contributions to making Cosmo even better!

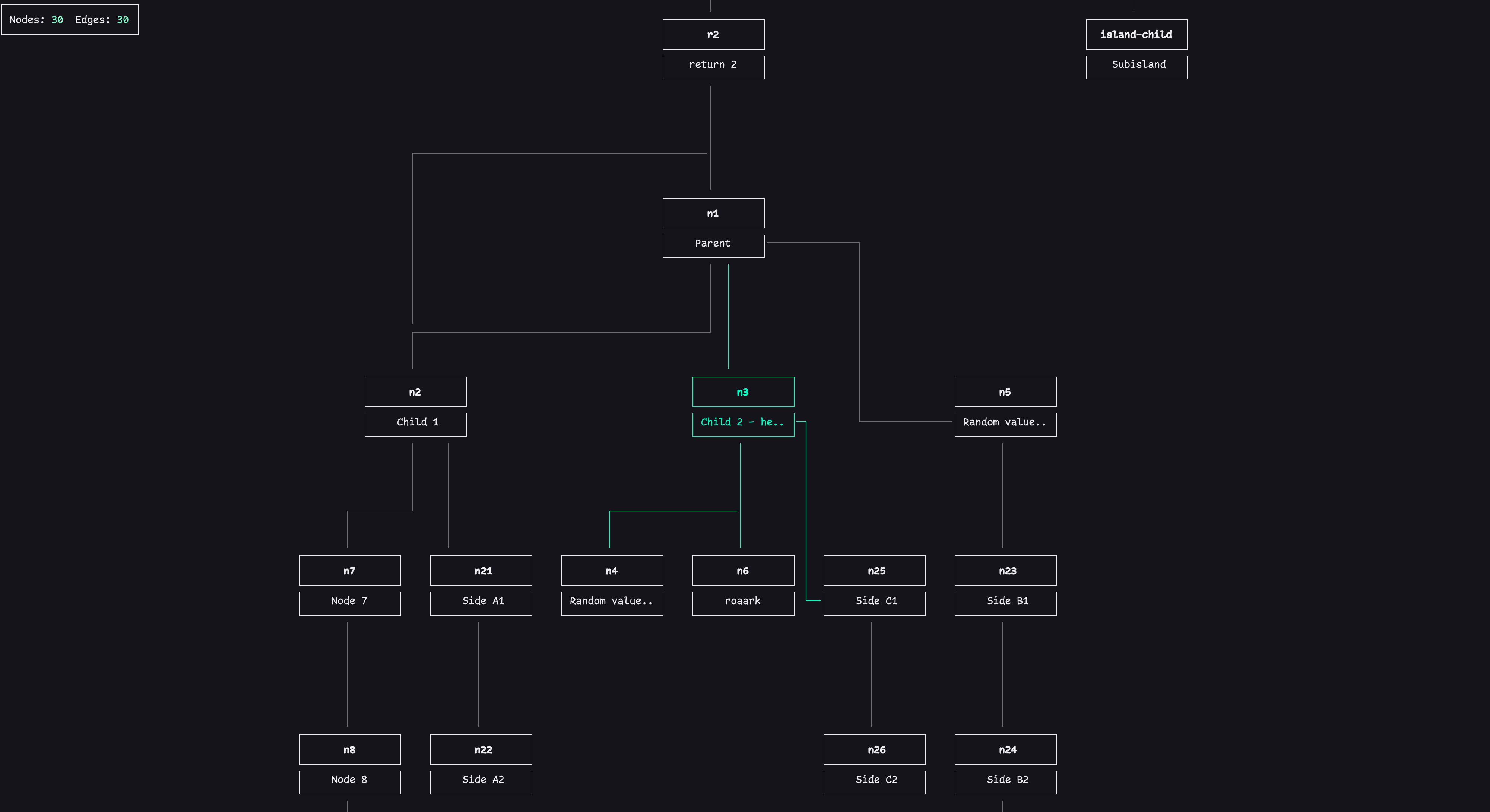

Screenshots

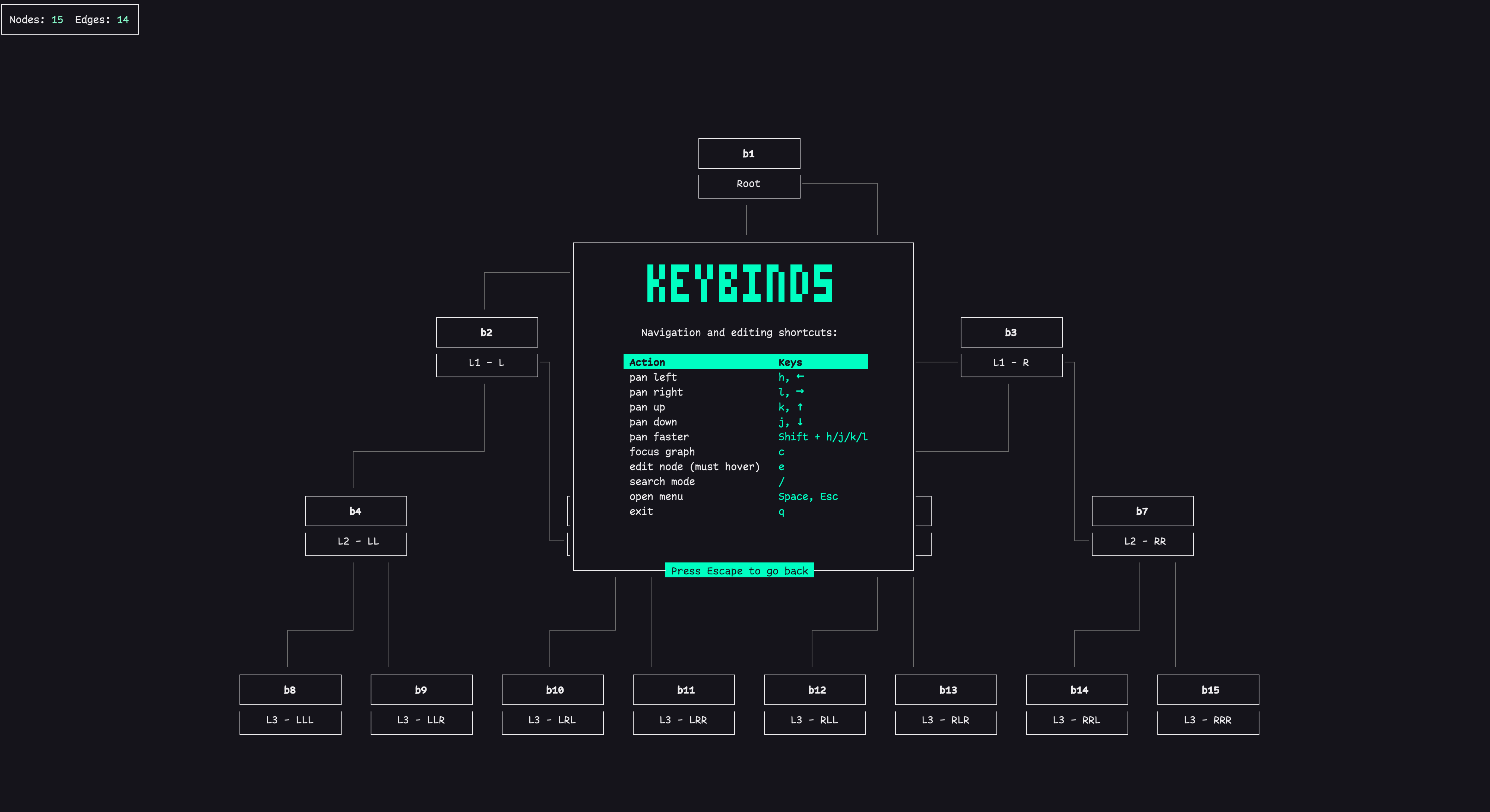

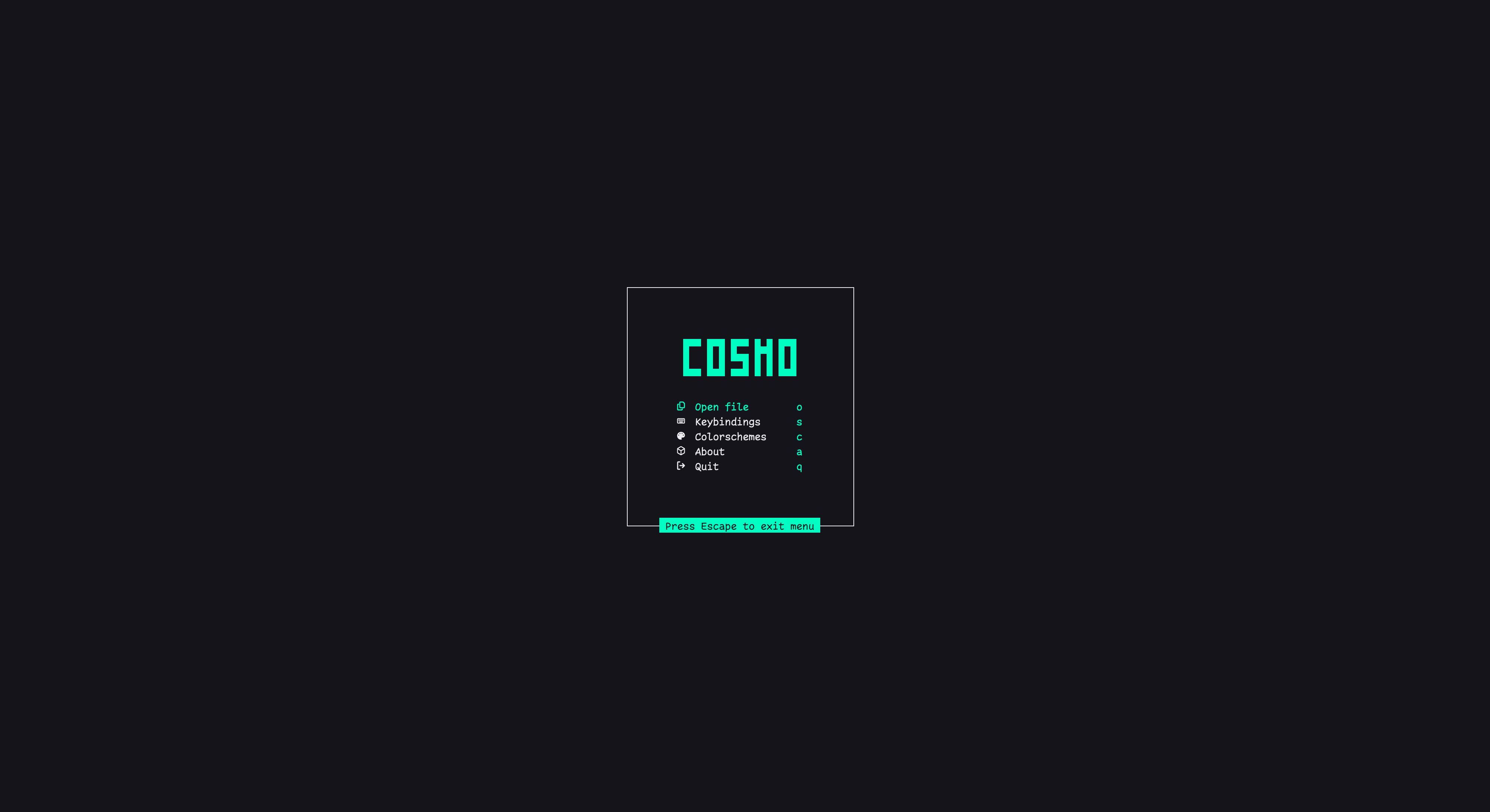

Main Menu	Keybindings

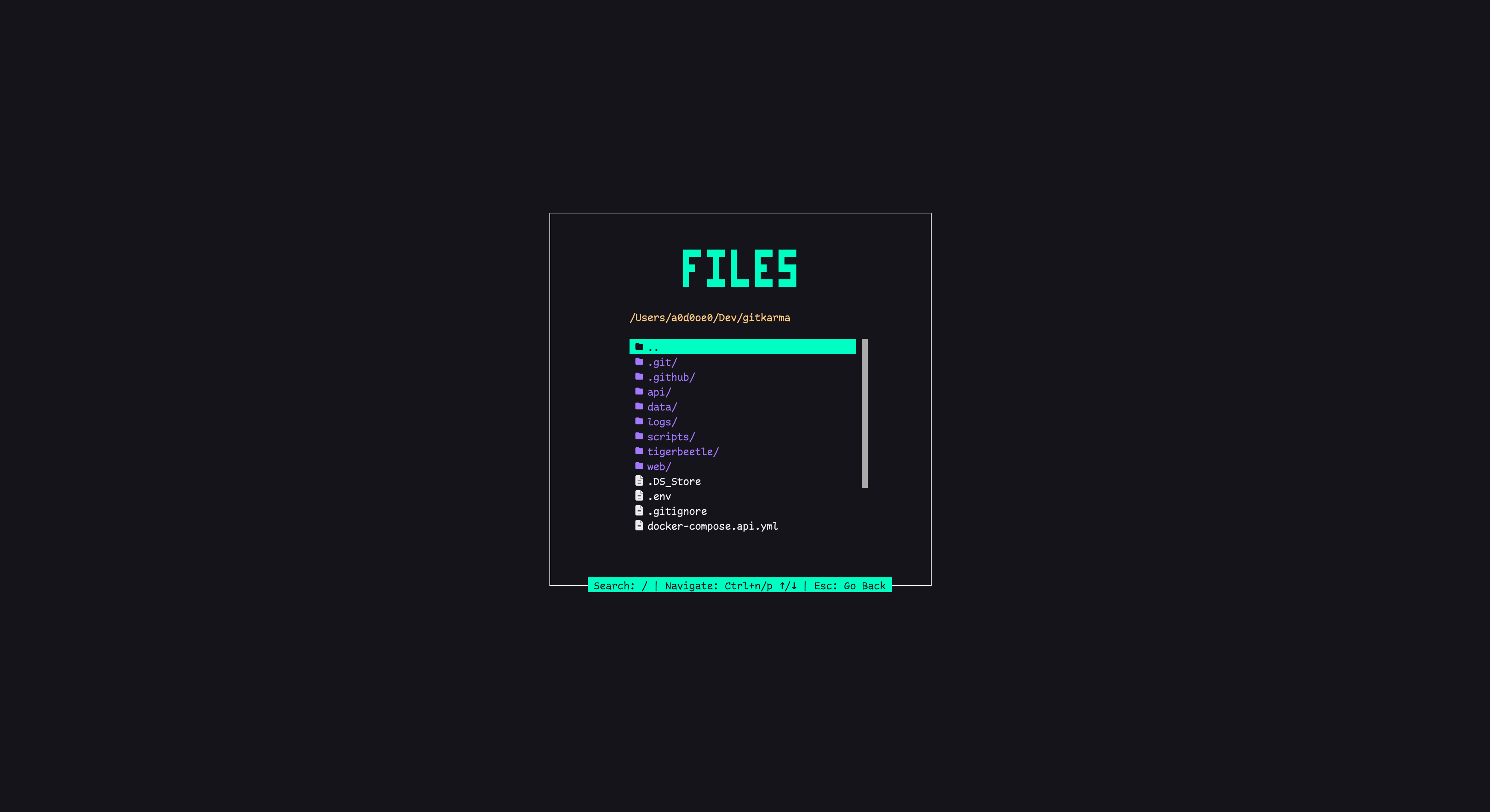

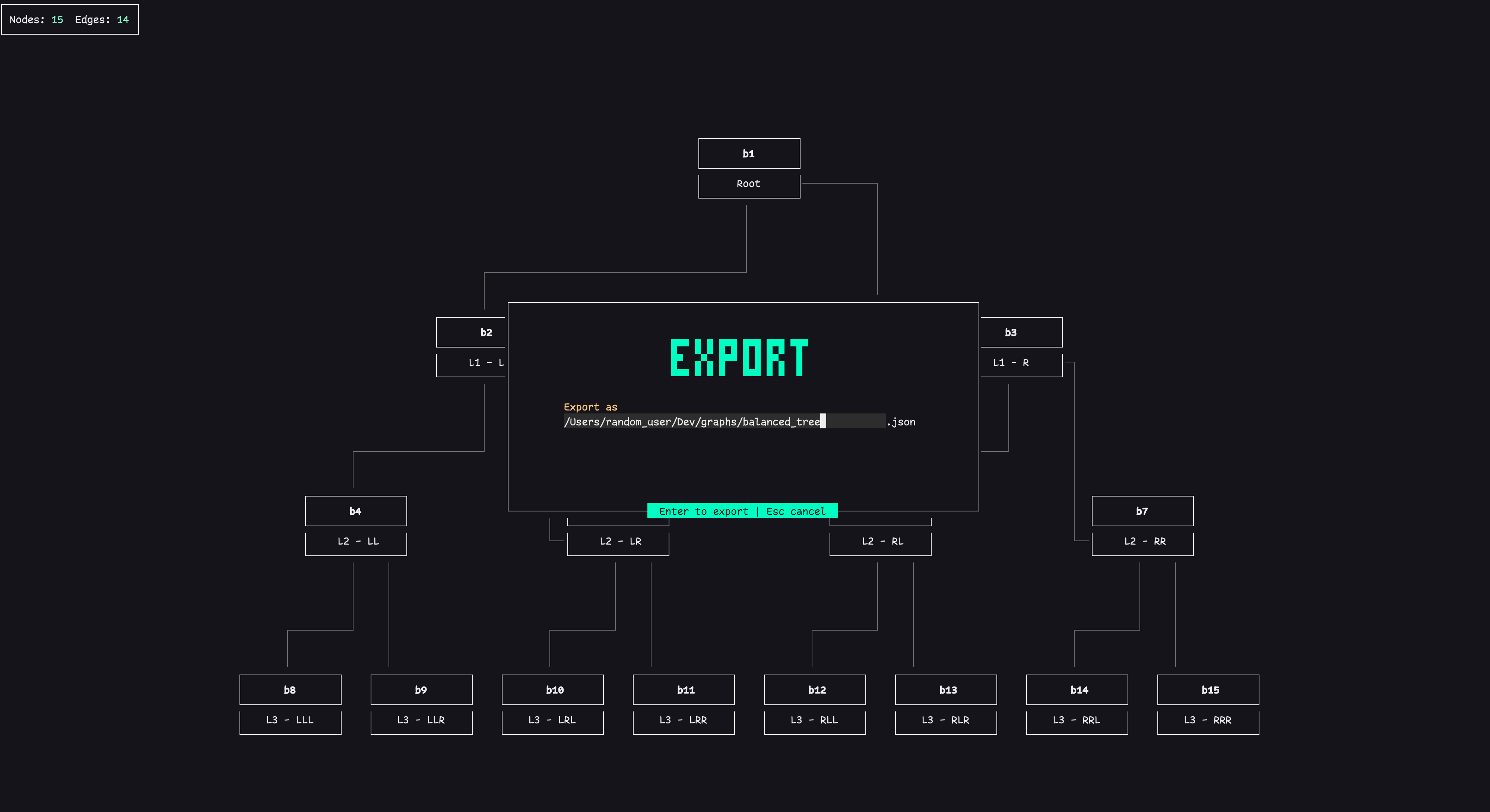

File Explorer	Export

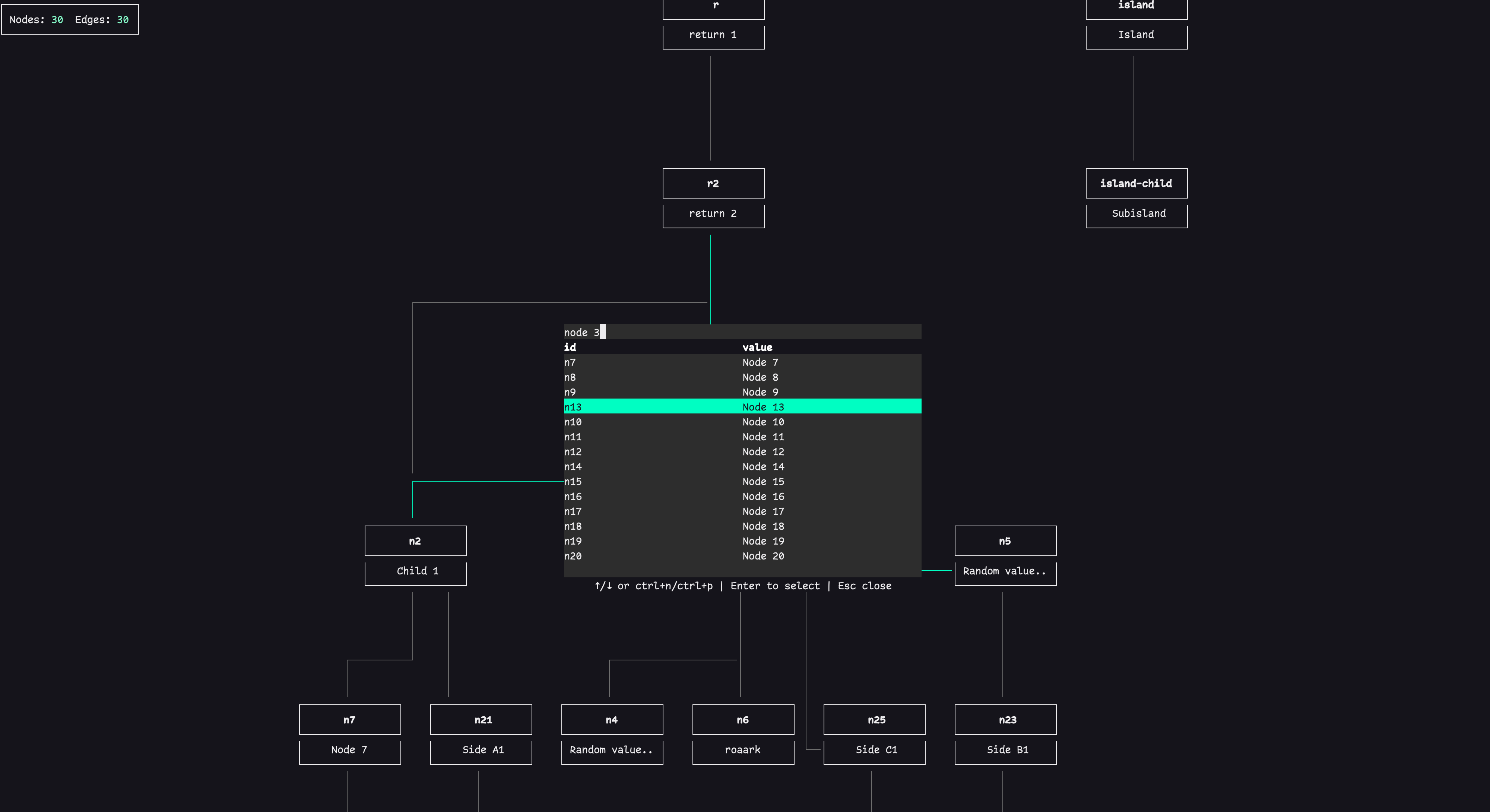

Search	Nodes/Edges Highlighting

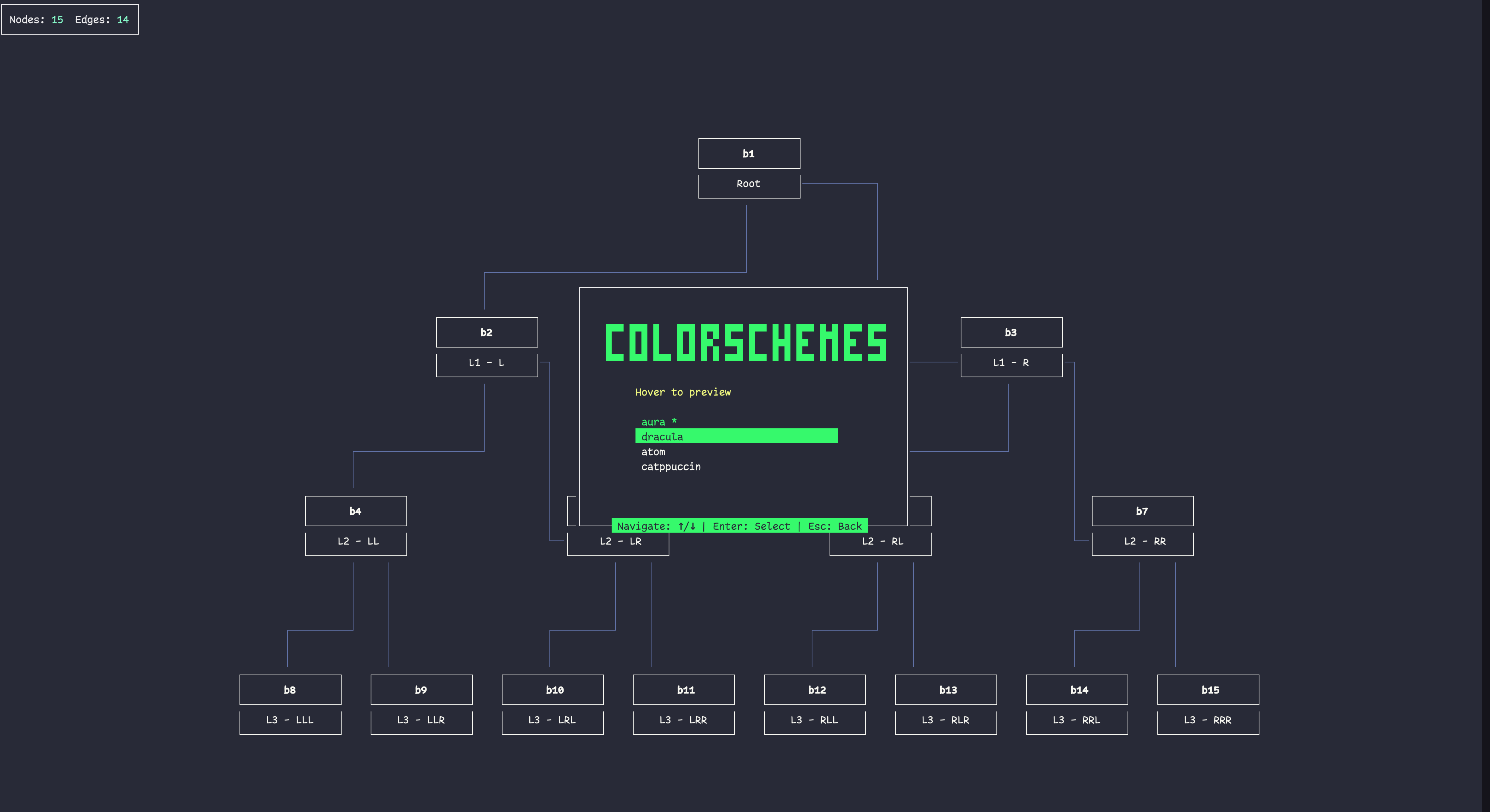

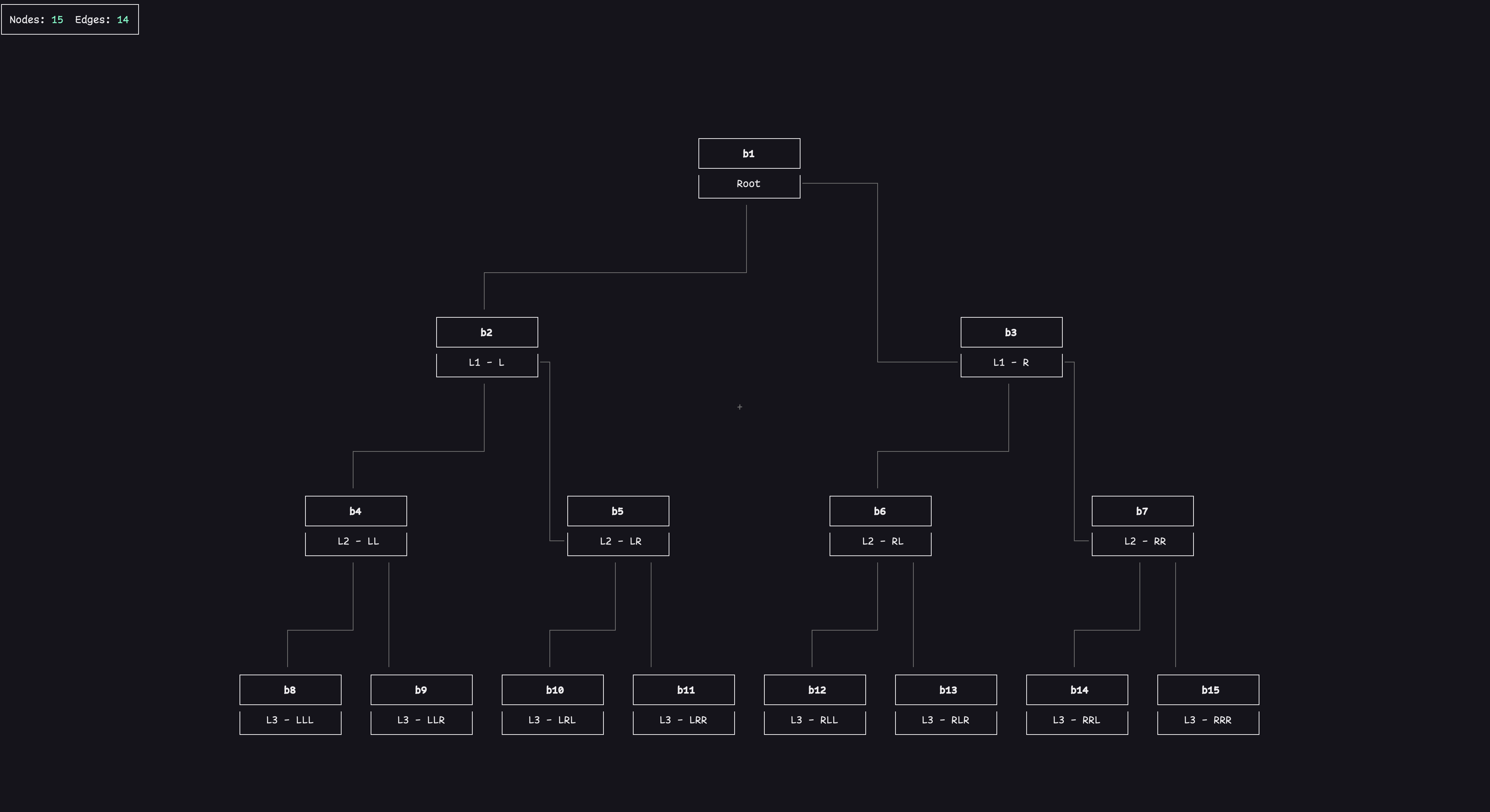

Colorschemes	Graph Example

Video
