M5StarScope is a real-world-synced virtual telescope built from an M5Stack StopWatch, an AtomS3R, and a simple viewing tube. It reveals the stars in the direction you point it, using the observation location, current time, and the telescope's physical orientation.
The stars are still there behind ceilings, clouds, daylight, and city lights. M5StarScope makes that real sky visible anytime and anywhere, while keeping its core astronomy and rendering completely offline.
▶ Watch the full M5StarScope demo on YouTube

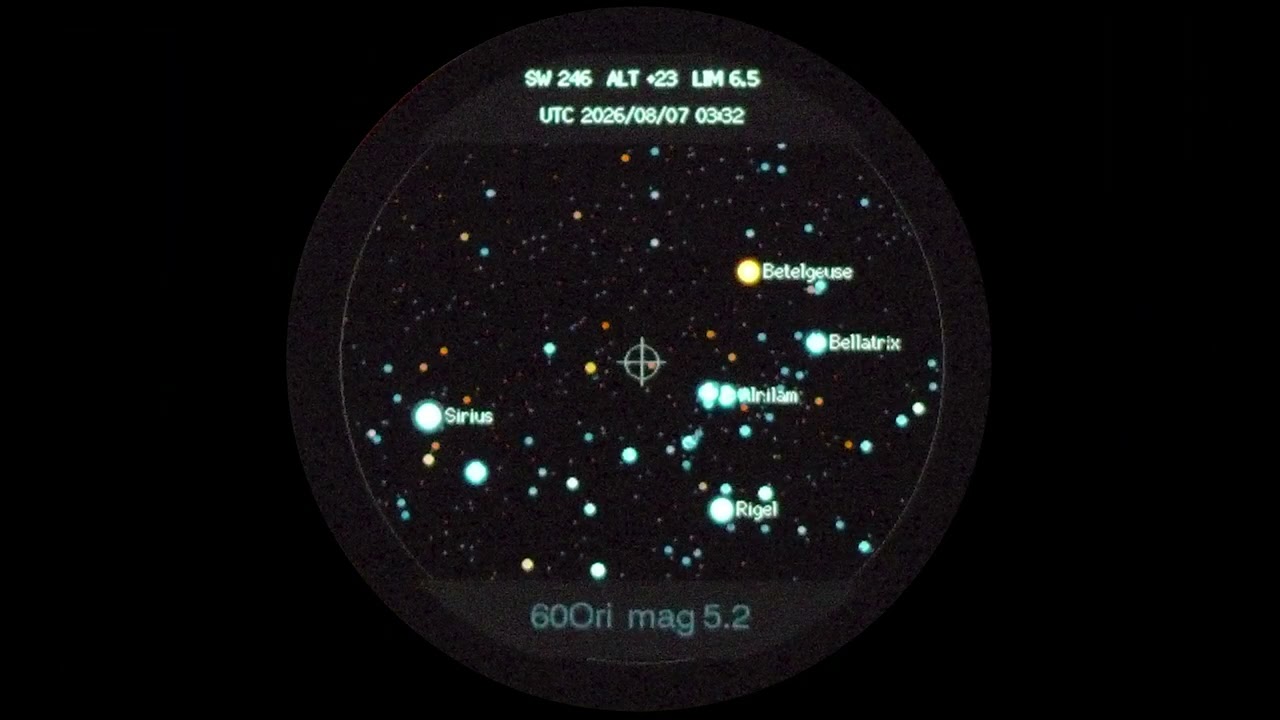

The 466 x 466 circular AMOLED shows a 45-degree view containing the stars in the direction of the tube. The embedded catalogue includes 8,921 stars through magnitude 6.5, together with the Sun, Moon, Mercury, Venus, Mars, Jupiter, and Saturn. Brightness, stellar color, horizon, compass direction, and the physical roll of the telescope are rendered in real time.
Connect an AIAvatarKit-compatible WebSocket server to ask about the sky at the selected place and time. M5StarScope sends the visible bright stars and solar-system objects as structured context, records questions through the StopWatch microphone, and plays responses through its speaker. The telescope continues to work normally when Wi-Fi or the voice server is unavailable; language and model support depend on the connected backend.
Move the telescope itself to search naturally instead of translating a flat star chart into the sky. Red night mode lowers the display brightness and helps preserve dark adaptation, making it practical to compare the virtual view with the real sky without ending the experience at the display.
- M5Stack StopWatch (C152)
- M5Stack AtomS3R (C126)
- One HY2.0-4P/Grove cable
- A USB-C data cable for flashing each device
- A viewing tube, ideally about 50 mm in inner diameter and 250 mm long, plus a rigid mount for the AtomS3R
- PlatformIO Core or PlatformIO IDE for VS Code
PlatformIO downloads the pinned ESP32 platform and library dependencies during the first build. Verify that its CLI is available before continuing:
pio --versionFrom the repository root:
pio test -e native
pio run -e atoms3r
pio run -e stopwatchKeep the Grove cable disconnected while both devices are independently connected to USB. Flash each firmware separately:
pio run -e atoms3r -t upload
pio run -e stopwatch -t uploadIf a device is not detected, put it into download mode by holding its reset or power button for about two seconds until the internal green LED lights, then release it and retry the upload.
Disconnect the USB cables, mount the AtomS3R on the tube as described in Hardware assembly, and connect the two devices with the Grove cable. The StopWatch powers the AtomS3R during normal use.
That's it: your M5StarScope is ready. Look into the tube and move it around. The display should reveal the sky in that direction and follow the movement of the telescope.
The initial observation location is Tokyo (35.681236, 139.767125, UTC+9),
and the observation time is read from the UTC value currently stored in the
StopWatch RTC. To reproduce the sky at your own place and current time, continue
to Settings.
- Hold the AtomS3R screen/button for about two seconds.
- Connect your phone to the SSID and password shown on the StopWatch.
- Open
http://192.168.4.1if the captive portal does not appear automatically. - Search for a city by city name, country name, or two-letter country code.
- Select a result to fill the location name, latitude, longitude, standard UTC offset, and magnetic-declination correction.
- Adjust the UTC offset manually when daylight saving time is active.
- Optionally enter the Wi-Fi and WebSocket settings for the voice guide.
- Save the settings, then hold the AtomS3R button again or use the page's exit button to return to the telescope.
City search and magnetic-declination calculation are performed on the device without an Internet connection. You can also enter coordinates manually and recalculate the declination. Saving the page copies the phone's current UTC time to the StopWatch RTC. All settings are stored in the StopWatch NVS rather than compiled into the firmware.
When putting the StopWatch away, short-press the power button once to enter the low-power L1 mode while keeping the RTC running. Short-press it once again to restart the application with the saved time and settings. Avoid the normal double-press power-off except as an emergency fallback: it cuts power to the RTC, so the stored date and time can be lost.
The city catalogue supplies the standard UTC offset. Daylight saving rules change over time and are intentionally left as a manual adjustment. Magnetic declination is calculated from the selected coordinates and date using the embedded World Magnetic Model 2025 (WMM2025), which is valid through the end of 2029.
- The AtomS3R display shows azimuth, altitude, roll, magnetic field strength, and calibration quality.
- Short-press its screen/button to start a 20-second magnetometer calibration.
- Rotate the complete assembled telescope through all axes until calibration finishes. Calibrate it while mounted, not as a loose AtomS3R.
- Keep the AtomS3R away from the StopWatch speaker and other magnets.
| Control | Short press | Hold for about 1 second |
|---|---|---|
| Yellow / A | Cycle limiting magnitude: 6.5, 5.5, 4.0, 3.0, 2.0, 1.0 | Push to talk; release to send |
| Blue / B | Hide or show the HUD | Toggle red night mode |
Push-to-talk recording is sent automatically after 20 seconds. Pressing and holding A while the guide is speaking stops the response and begins a new recording.
If orientation packets from the AtomS3R are absent, EMU appears in the HUD.
Drag on the StopWatch display to emulate azimuth and altitude when testing on a
desk.
The HY2.0-4P/Grove cable carries both power and UART data:
| Wire | StopWatch | AtomS3R |
|---|---|---|
| Black | GND | GND |
| Red | 5 V out | 5 V in |
| Yellow | GPIO 10 TX | GPIO 2 RX |
| White | GPIO 11 RX | GPIO 1 TX |
A tube with an inner diameter of approximately 50 mm and a length of approximately 250 mm is recommended, but the dimensions do not need to be exact.
Tip
No suitable pipe? Roll up a sheet of drawing paper or light cardstock and secure it with tape. The first M5StarScope prototype was built exactly this way. 😂

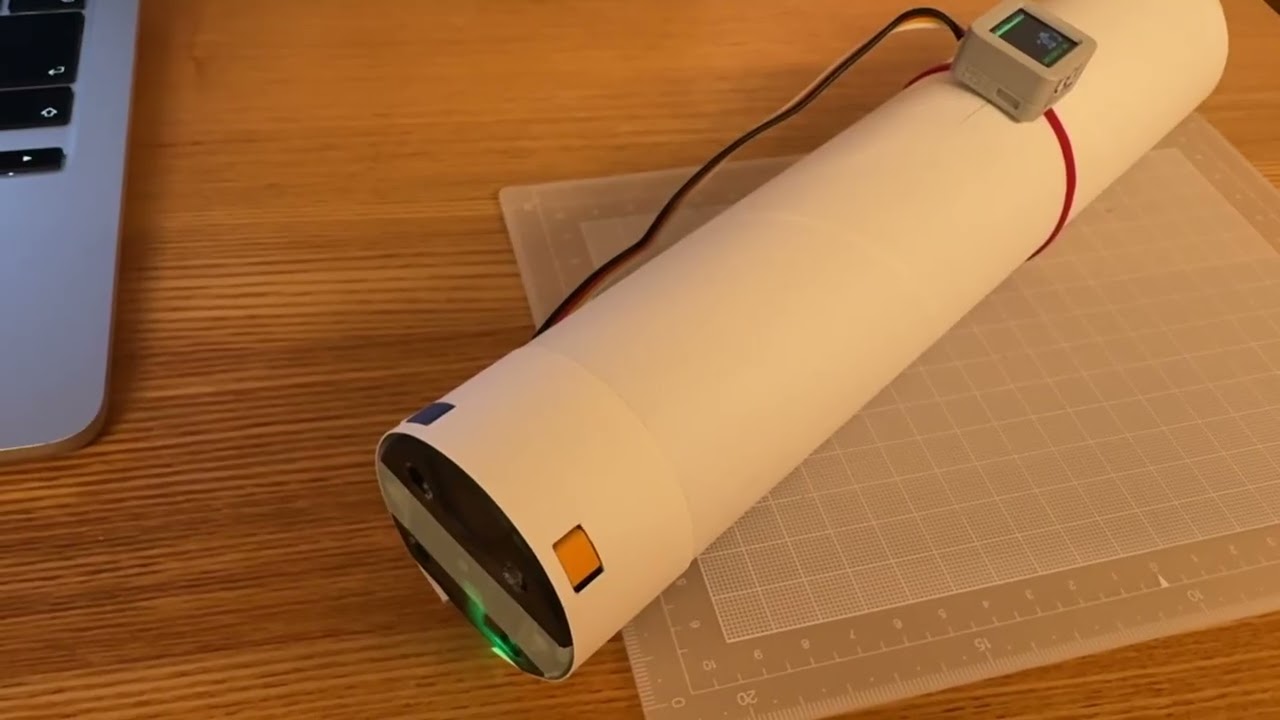

The first paper-tube prototype
Mount the AtomS3R rigidly on top of the tube using this orientation:
- Sensor +X points toward the open/front end of the tube.
- Sensor +Z points upward, away from the tube.
- The StopWatch display is perpendicular to the tube at the eye end.
Tip
If the AtomS3R's geomagnetic heading is unstable or clearly incorrect, remove the magnets from the back of the StopWatch. Peel off the rear sticker to find the four magnets underneath, then remove all four before recalibrating the assembled telescope.
The kMountYawDeg, kMountPitchDeg, and kMountRollDeg constants near the top
of src/stopwatch/main.cpp isolate bracket-axis differences from the sensor
fusion. Check their signs once on the completed bracket and adjust them if your
mounting orientation differs.
For comfortable close viewing, place a Google-Cardboard-style convex lens between the eye and display. A useful starting point is a 30-35 mm lens with a 45-55 mm focal length, positioned approximately one focal length from the screen. The software field of view remains 45 degrees.
▶ Watch the voice guide demo on YouTube
The included Python server connects M5StarScope to OpenAI speech recognition, a conversational model, and speech synthesis through AIAvatarKit. Run the server on any computer that the StopWatch can reach. A computer on the same LAN is the simplest option, but an Internet-reachable host also works.
From the repository root:
cd server
python -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txtOn Windows, activate the environment with .venv\Scripts\activate instead.
Create an API key from the
OpenAI API key page.
The server supports either a local .env file:
OPENAI_API_KEY=your-api-keyor an environment variable set immediately before startup:
export OPENAI_API_KEY="your-api-key"
python run.pyWhen using .env, start the server with python run.py after saving the file.
Never commit .env, expose an API key in source code, or include it in firmware.
The server listens on all network interfaces at port 8000. Keep this terminal
running while using the voice guide, and allow incoming TCP connections to that
port if the computer's firewall asks.
Open the M5StarScope Settings page and enter:
| Setting | Value |
|---|---|
| Wi-Fi | A network from which the StopWatch can reach the server |
| WebSocket host | The server's LAN IP address, public IP address, or hostname, without ws:// |
| WebSocket port | 8000 |
| WebSocket path | /ws |
Do not use localhost or 127.0.0.1; from the StopWatch, those addresses refer
to the StopWatch itself. Save the settings and return to the scope.
Note
The included server does not authenticate WebSocket clients. If it is exposed to the Internet, restrict access with an appropriate firewall, VPN, or proxy.
Generated catalogue sources are committed, so ordinary builds do not download data. To regenerate them from their upstream datasets:
python3 tools/build_star_catalog.py path/to/hygdata_v41.csv
python3 tools/build_city_catalog.py path/to/cities15000.zip \
path/to/countryInfo.txt path/to/timeZones.txtThe star catalogue is derived from HYG 4.1 under CC BY-SA 4.0. The city catalogue is derived from GeoNames under CC BY 4.0, and the magnetic model uses NOAA/NCEI WMM2025 coefficients. See THIRD_PARTY_DATA.md for sources and attribution.
The original source code and documentation in this repository are licensed under the MIT License. Third-party datasets and generated derivatives remain subject to their respective licenses. See THIRD_PARTY_DATA.md for details.
